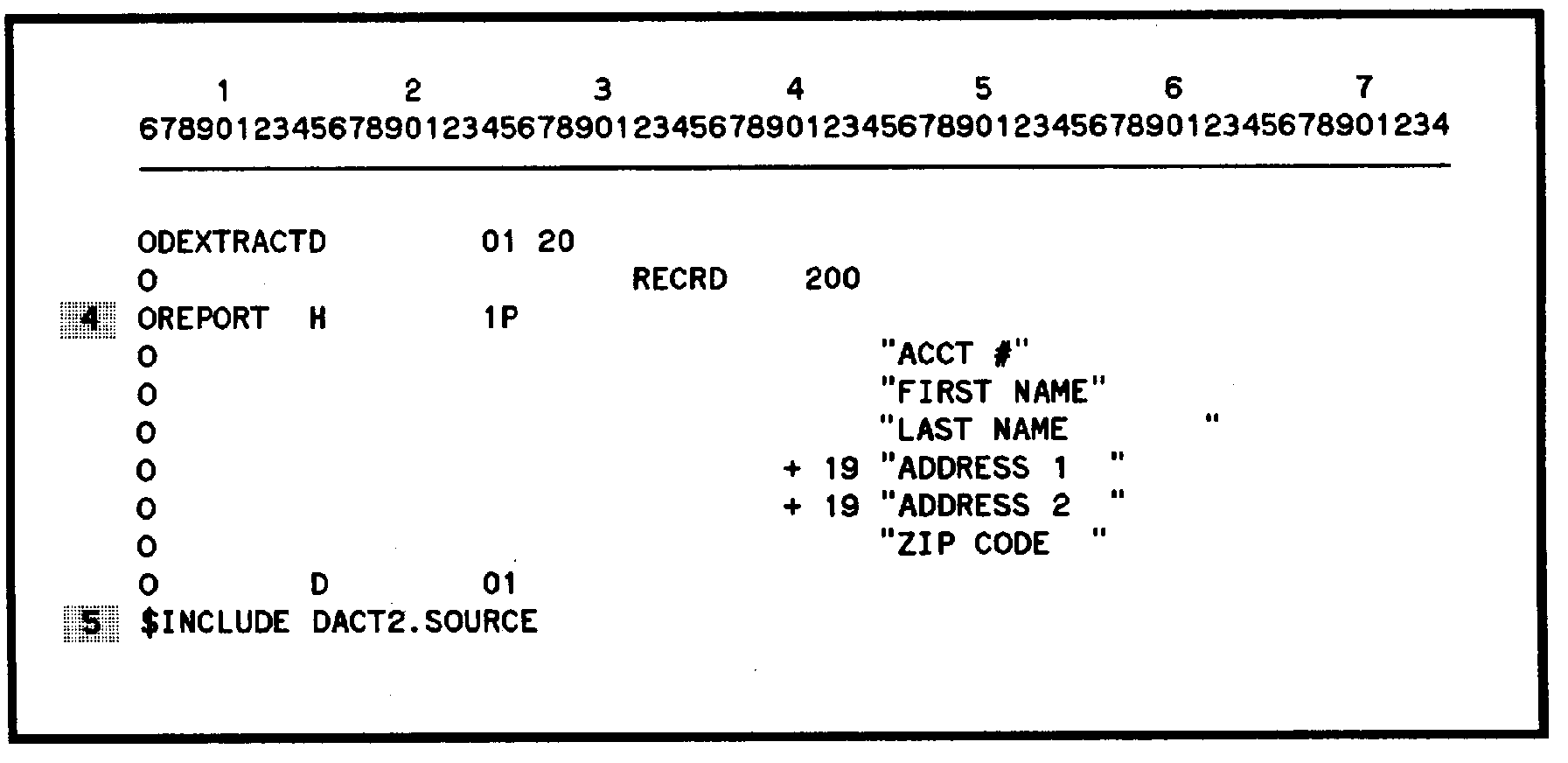

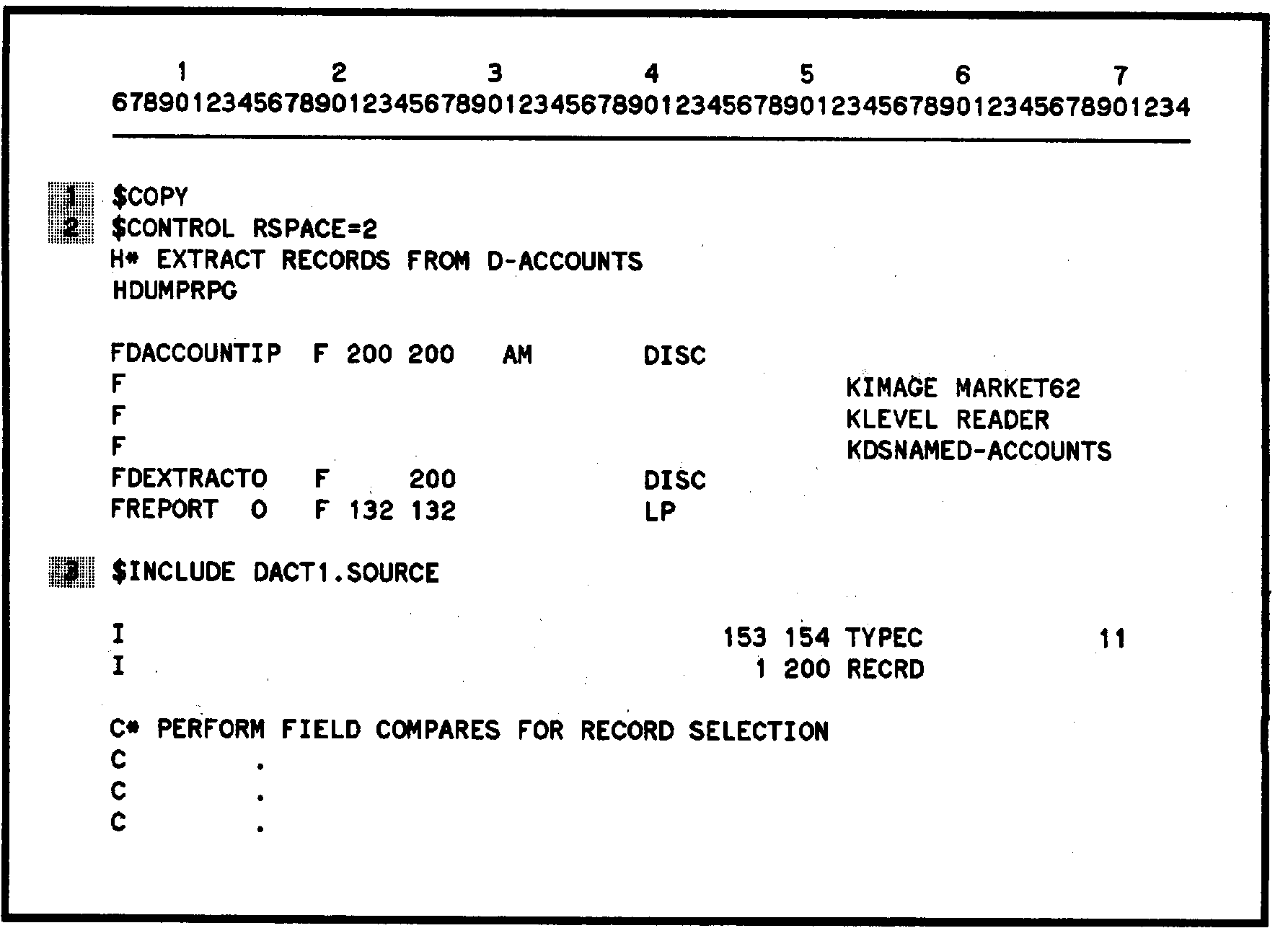

Using Source Libraries Source libraries help to standardize parts of RPG programs and reduce the manual effort in coding programs. You enter commonly-used source code into a source library, then copy that code into programs rather than recoding it in each of them. An RPG source library is a standard text file containing RPG specifications. You can create a source library using any text processor, such as EDITOR. Enter the RPG specifications exactly as they should appear in a source program. When you want to use the source libraries in a program, enter a $COPY statement at the beginning of the program. $COPY enables the source library facility of RPG. At the point in the program where you want to insert the source library text, enter an $INCLUDE statement. Figure 6-1 lists a program that extracts records from the D-ACCOUNTS data set (see the MARKET schema in Figure 3-23). It prints the extracted records and writes them to the file EXTRACT. There are two $INCLUDE statements in the program. The first (line 3) copies the input field definitions for D-ACCOUNTS. The second (line 5) copies the output field definitions for the detail report record. Figure 6-2 and Figure 6-3 list the contents of the source library files and Figure 6-4 shows what the compiled source program listing looks like.Figure 6-1. A Source Program Before CompilationFigure 6-1. A Source Program Before Compilation (Continued) Comments 1 This $COPY subsystem command specifies that the preprocessor utility (RPGCOPY.PUB.SYS) is used during compilation. RPGCOPY processes $INCLUDE statements. $COPY must be the first statement in the program. 2 This $CONTROL subsystem command contains the RSPACE option. RSPACE directs the compiler to add 2 spaces between each output field having relative end positions. 3 This $INCLUDE subsystem command directs the compiler to insert source library text at this point in the program. The text comes from the file, DACT1, in group SOURCE. 4 This line begins the specifications for the report headings. 5 This $INCLUDE command directs the compiler to insert source library text at this point in the program. The text comes from the file, DACT2, in group SOURCE. Figure 6-2 lists the entries in the source library file, DACT1. ________________________________________________ | | | IDACCOUNTNS 01 3 8 ACTNO| | I 9 18 FNAME| | I 19 34 LNAME| | I 35 62 ADDR1| | I 63 90 ADDR2| | I 91 118 ADDR3| | I 119 128 ZIPCD| | I 129 134OPHONE| | I 135 136OPHEXT| | I 137 144 MAILC| | I 145 148OBDATE| | I 149 152 SRCCD| | I 153 154 TYPEC| | I 155 162 ADATE| | | ________________________________________________ Figure 6-2. Contents of the Source Library DACT1.SOURCE Figure 6-3 lists the entries in the source library file, DACT2. _____________________________________ | | | O ACTNO | | O FNAME | | O LNAME | | O ADDR1 | | O ADDR2 | | O ZIPCD | | | _____________________________________ Figure 6-3. Contents of the Source Library DACT2.SOURCE Figure 6-4 shows, in effect, what the program looks like after the source text is inserted. Source library text is inserted during the compilation process; it is not incorporated as a permanent part of the source program. In the listing, a "C" precedes the text that has been copied and $COPY and $INCLUDE are changed to *COPY and *INCLUDE. --------------------------------------------------------------- *COPY $CONTROL RSPACE=2 H* EXTRACT RECORDS FROM D-ACCOUNTS HDUMPRPG FDACCOUNTIP F 200 200 AM DISC F KIMAGE MARKET62 F KLEVEL READER F KDSNAMED-ACCOUNTS FDEXTRACTO F 200 DISC FREPORT O F 132 132 LP *INCLUDE DACT1 1 CIDACCOUNTNS 01 CI 3 8 ACTNO CI 9 18 FNAME CI 19 34 LNAME CI 35 62 ADDR1 CI 63 90 ADDR2 CI 91 118 ADDR3 CI 119 128 ZIPCD CI 129 134OPHONE CI 135 136OPHEXT CI 137 144 MAILC CI 145 148OBDATE CI 149 152 SRCCD 2 MI 153 154 TYPEC CI 155 162 ADATE 3 I 1 200 RECORD C* PERFORM FIELD COMPARES FOR RECORD SELECTION C* . C* . C* . --------------------------------------------------------------- Figure 6-4. A Source Program After Compilation ---------------------------------------------------------------- ODEXTRACTD 01 20 O RECRD 200 OREPORT H 1P O 6 "ACCT #" R O 18 "FIRST NAME" R O 36 "LAST NAME " R O 66 "ADDRESS 1 " +019 O 96 "ADDRESS 2 " +019 O D 01 108 "ZIP CODE " R O *INCLUDE DACT2 4 CO ACTNO 6 R CO FNAME 18 R CO LNAME 36 R CO ADDR1 66 R CO ADDR2 96 R CO ZIPCO 108 R ----------------------------------------------------------------- Figure 6-4. A Source Program After Compilation (Continued) Comments 1 This is the first line copied from source library, DACT1. Each of the lines in DACT1, except for lines 2 and 3, are copied. 2 This line remains the same as that in the original program. Fields with the same names remain unaltered. 3 This field does not exist in the source library; therefore, it remains unaltered. 4 This is the first line copied from source library, DACT2.
![[]](../../pic3k/M010422/RPGP6F13c50.gif)
![[]](../../pic3k/M010422/RPGP6F1A3c50.gif)
