HP SNA Products Remote System Configuration Guide

SNA Services using SNA/X.25 iX Configuration Example

This example defines a network with LU 6.2 API, SNA IMF, and SNA NRJE
using SNA/X.25 as shown in figure A-7.

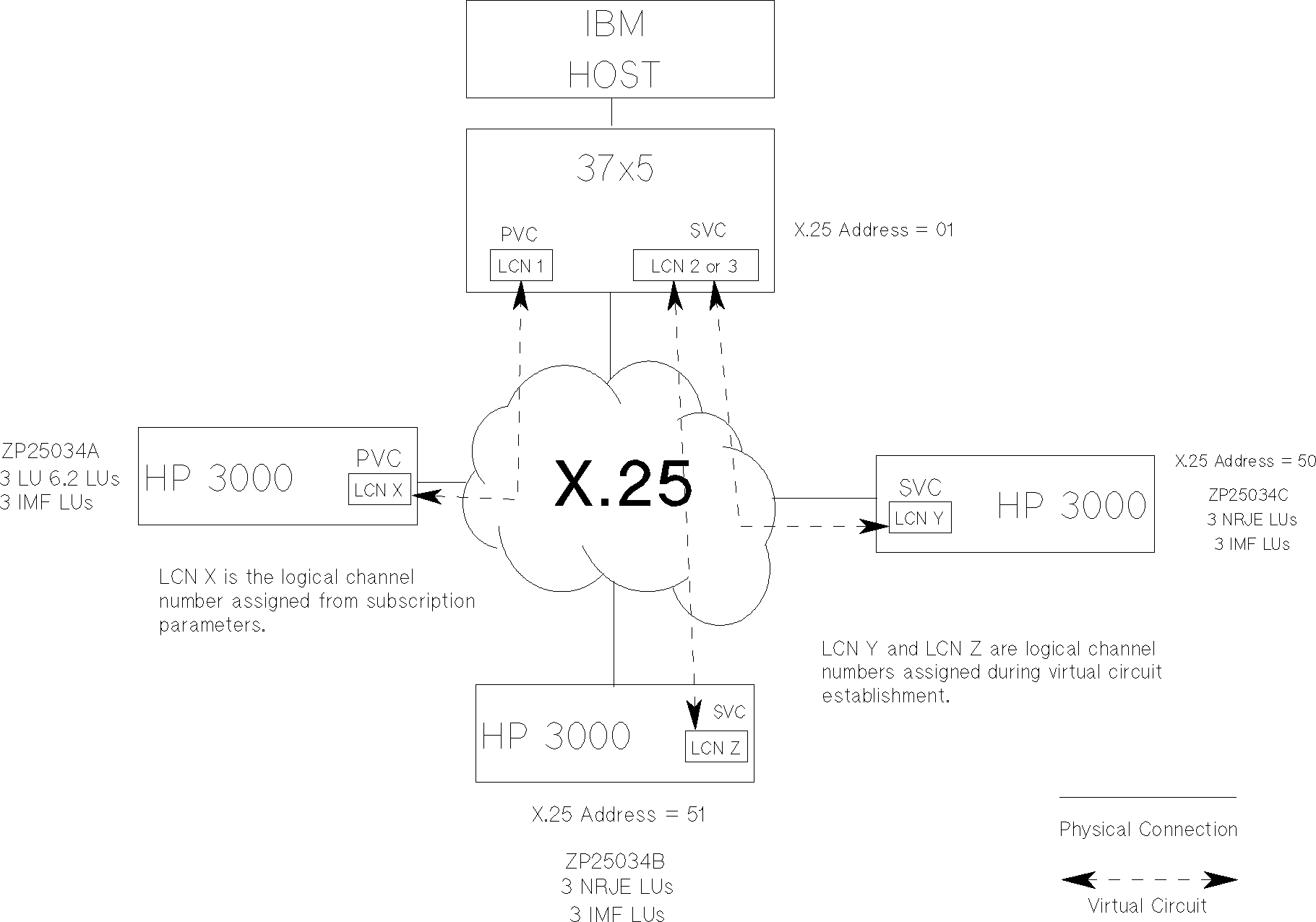

          Figure A-7.  SNA/X.25 Link/iX Example Network

     ******************************************************************
     *********              BUILD STATEMENT          ******************
     *
     *The following lines from the BUILD statement are required by
     *X.25 NPSI. They do not represent a complete BUILD statement.
     *
     ******************************************************************
     P38X25 BUILD  X25.MAXPIU=1296,
                   X25.MCHCNT=1,
                   X25.MWINDOW=7,
                   X25.PREFIX=Z,
                   X25.SNAP=YES,
                   X25.USGTIER=3
     ******************************************************************
     *********                 X.25 NETWORK          ******************
     *
     *The following code defines an X.25 Network to X.25 NPSI.
     *in SYS1.VTAMLST, the parameter library for VTAM.
     *
     ******************************************************************
     *
           X25.NET CPHINDX=2,
                   OUHINDX=2
     *
         X25.VCCPT INDEX=1,
                   MAXPKL=128,
                   INSLOW=(25,0),
                   VWINDOW=7
         X25.VCCPT INDEX=2,
                   MAXPKL=128,
                   INSLOW=(25,0),
                   VWINDOW=7
     *
          X25.OUFT INDEX=1,
                   OPTFACL=420707430202,
          X25.OUFT INDEX=2,
                   OPTFACL=420707430707
     *
           X25.MCH ADDRESS=034,
                   FRMLGTH=131,
                   LCGDEF=0(9),
                   MWINDOW=7,
                   ANS=CONT,
                   GATE=NO,
                   LCN0=NOTUSED,
                   LLCLIST=LLC3,
                   PKTMODL=8,
                   SPEED=9600,
                   STATION=DTE,
                   TDTIMER=1,
                   TPTIMER=1.0,
                   TRAN=NO
     *
           X25.LCG LCGN=0
     *
     ZL25034A X25.LINE LCN=1,
                   VCCINDX=1,
                   LLC=LLC3,
                   TYPE=PERMANENT,
                   DSTNODE=BNN
     *
     ZP25034A X25.PU PUTYPE=2,
                   ADDR=01,
                   ISTATUS=ACTIVE,
                   MODETAB=HPMODTAB,
                   IRETRY=YES,
                   MAXDATA=521,
                   MAXOUT=7,
                   PASSLIM=7
     *
     ZU2534A1 X25.LU LOCADDR=2,
                   DLOGMOD= MODE62
     *
     ZU2534A2 X25.LU LOCADDR=3,
                   DLOGMOD= MODE62
     *
     ZU2534A3 X25.LU LOCADDR=4,
                   DLOGMOD= MODE62
     *
     ZU2534A4 X25.LU LOCADDR=5,
                   DLOGMOD= MODEIMF
     *
     ZU2534A5 X25.LU LOCADDR=6,
                   DLOGMOD= MODEIMF
     *
     ZU2534A6 X25.LU LOCADDR=7,
                   DLOGMOD= MODEIMF
     ****************************************************
     * The following section defines an SVC using the   *
     * X25.LINE and X25.PU macros.                      *
     ****************************************************
     ZL25034B X25.LINE LCN=2,
                    VCCINDX=2,
                    TYPE=SWITCHED,
                    CALL=IN,
                    OUFINDX=1,
                    DSTNODE=BNN
     *
     ZP25034B X25.PU PUTYPE=2,
                    MAXLU=16
     ****************************************************
     * The following section defines an SVC using the   *
     * X25.VC macro.                                    *
     ****************************************************
     ZL25034C X25.VC LCN=3,
                    VCCINDX=2,
                    TYPE=SWITCHED,
                    CALL=IN,
                    OUFINDX=2

Switched Major Node

The following is an example of the PU and LU definitions in a switched
major node that could use the switched (dial) line LN046 defined under
group LG06.

     SW3000D   VBUILD TYPE=SWNET  THIS MEMBER DEFINES A SWITCHED MAJOR
     NODE

     *
     *
     ZP25034B PU    IDBLK=023,
                    IDNUM= 01234,
                    MAXLU=7,
                    PUTYPE=2,
                    BATCH=NO,
                    ISTATUS=ACTIVE,
                    MODTAB=HPMODTAB,
                    PACING=(3,1),
                    VPACING=(2,1)
     *
     XPATHB    PATH USE=NO,
                    GRPNM= S0
                    PID=3
     *
     *
     ZU2534B1 LU    LOCADDR=2,
                    SSCPFM=FSS,
                    DLOGMOD=MODENRJE
     ZU2534B2 LU    LOCADDR=3,
                    SSCPFM=FSS,
                    DLOGMOD=MODENRJE
     ZU2534B3 LU    LOCADDR=4,
                    SSCPFM=FSS,
                    DLOGMOD=MODENRJE
     ZU2534B4 LU    LOCADDR=5,
                    SSCPFM=USSSCS,
                    DLOGMOD=MODE62
     ZU2534B5 LU    LOCADDR=6,
                    SSCPFM=USSSCS,
                    DLOGMOD=MODE62
     ZU2534B6 LU    LOCADDR=7,
                    SSCPFM=USSSCS,
                    DLOGMOD=MODE62
     *
     *
     ZP25034C PU    IDBLK=023,
                    IDNUM= 12345,
                    MAXLU=7,
                    PUTYPE=2,
                    BATCH=NO,
                    ISTATUS=ACTIVE,
                    MODTAB=HPMODTAB,
                    PACING=(3,1),
                    VPACING=(2,1)
     *
     XPATHC    PATH USE=NO,
                    DIALNO= 51*0130001,
                    GRPNM= S0
                    PID=3
     *
     *
     ZU2534C1 LU    LOCADDR=2,
                    SSCPFM=FSS,
                    DLOGMOD=MODENRJE
     ZU2534C2 LU    LOCADDR=3,
                    SSCPFM=FSS,
                    DLOGMOD=MODENRJE
     ZU2534C3 LU    LOCADDR=4,
                    SSCPFM=FSS,
                    DLOGMOD=MODENRJE
     ZU2534C4 LU    LOCADDR=5,
                    SSCPFM=USSSCS,
                    DLOGMOD=MODEIMF
     ZU2534C5 LU    LOCADDR=6,
                    SSCPFM=USSSCS,
                    DLOGMOD=MODEIMF
     ZU2534C6 LU    LOCADDR=7,
                    SSCPFM=USSSCS,
                    DLOGMOD=MODEIMF
