HP SNADS/iX Configuration Example

This example defines a network with HP SNADS/iX as shown in figure A-5.

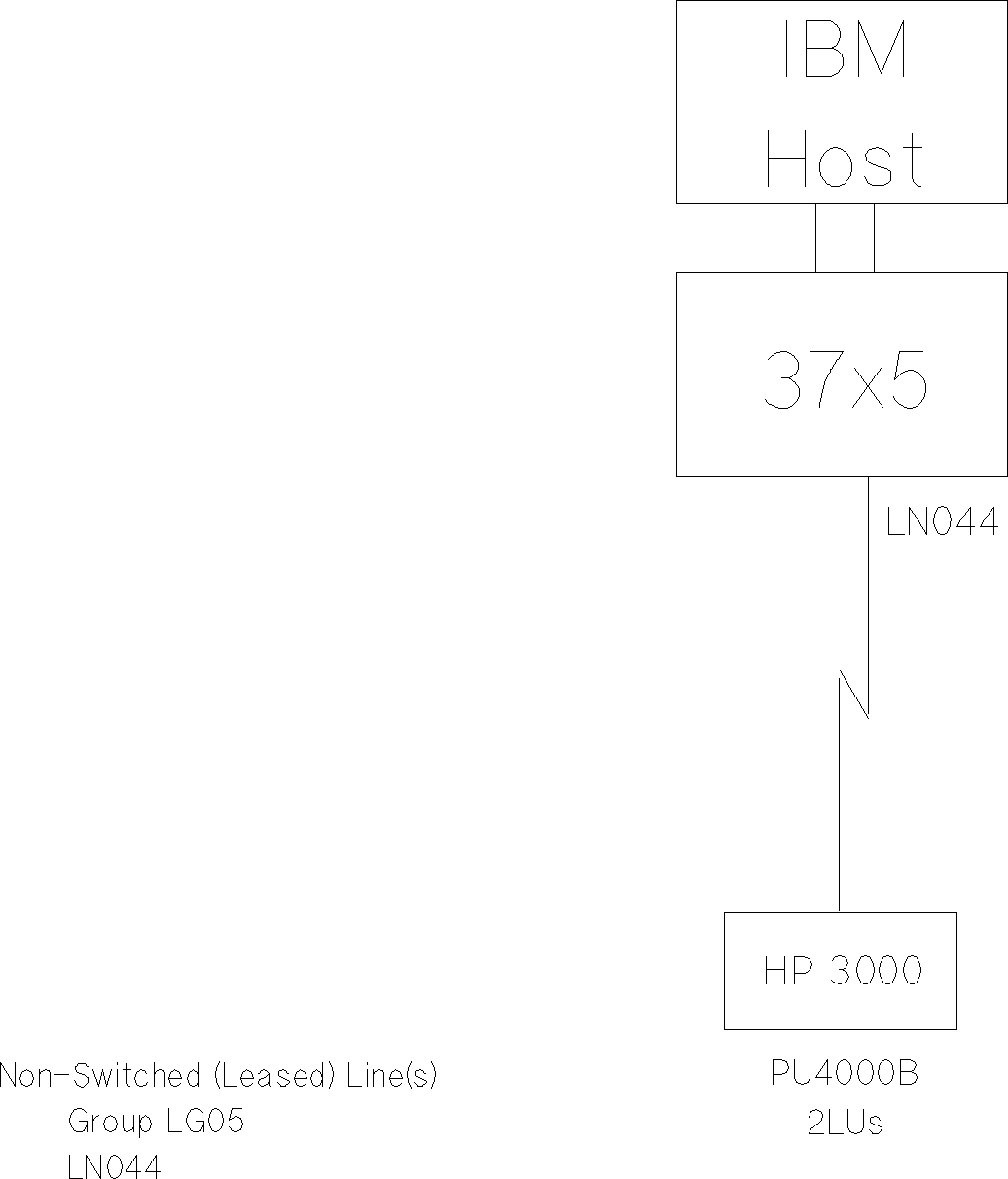

          Figure A-5.  HP SNADS/iX Example Network

     *******************************************************************
     *
     LG05    GROUP DIAL=NO,
                   LNCTL=SDLC,
                   REPLYTO=1.0,
                   TEXTTO=1.0,
                   TYPE=NCP,
     ********************************************************************
     * LINE OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   CLOCKNG=EXT,
                   DATRATE=HIGH,
                   ETRATIO=30,
                   HDXSP=NO,
                   INTPRI=1,
                   LPDATS=NO,
                   NRZI=NO,
                   POLLED=YES,
                   SPDSEL=NO,
                   TRANSFR=12,
     ********************************************************************
     * PU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   IRETRY=NO,
                   MAXDATA=265,
                   MAXOUT=3,
                   PASSLIM=7,
                   PUTYPE=2,
                   SRT=(32768,32768),
     ********************************************************************
     * LU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   BATCH=NO,
                   DLOGMOD=MODE62,
                   ISTATUS=ACTIVE,
                   MODETAB=HPMODTAB,
                   PACING=(3,1),
                   SSCPFM=FSS,
                   VPACING=2
     *    Point to point (leased) low speed line.
     *
     *
     LN044    LINE  ADDRESS =044,
                    SPEED=4800,
                    DUPLEX=HALF,
                    MAXPU=1
     *
     SERV400B SERVICE ORDER =(PU4000B)
     *
     PU4000B PU ADDR =C1
     *
     LU40002B LU LOCADDR =2
     *
     LU40003B LU LOCADDR =3
     *


NOTE  The POLLED=YES parameter is required by a PU type 2 for ACF/NCP
      version 1, releases 1 and 2.  This parameter is invalid for an SDLC
      line for ACF/NCP version 1, release 3 and later versions.
