HP SNA Products Remote System Configuration Guide

SNA NRJE, SNA IMF, & LU 6.2 API Configuration Example

This example defines a network with SNA NRJE, SNA IMF, SNA DHCF/iX and LU
6.2 API as shown in figure A-4.

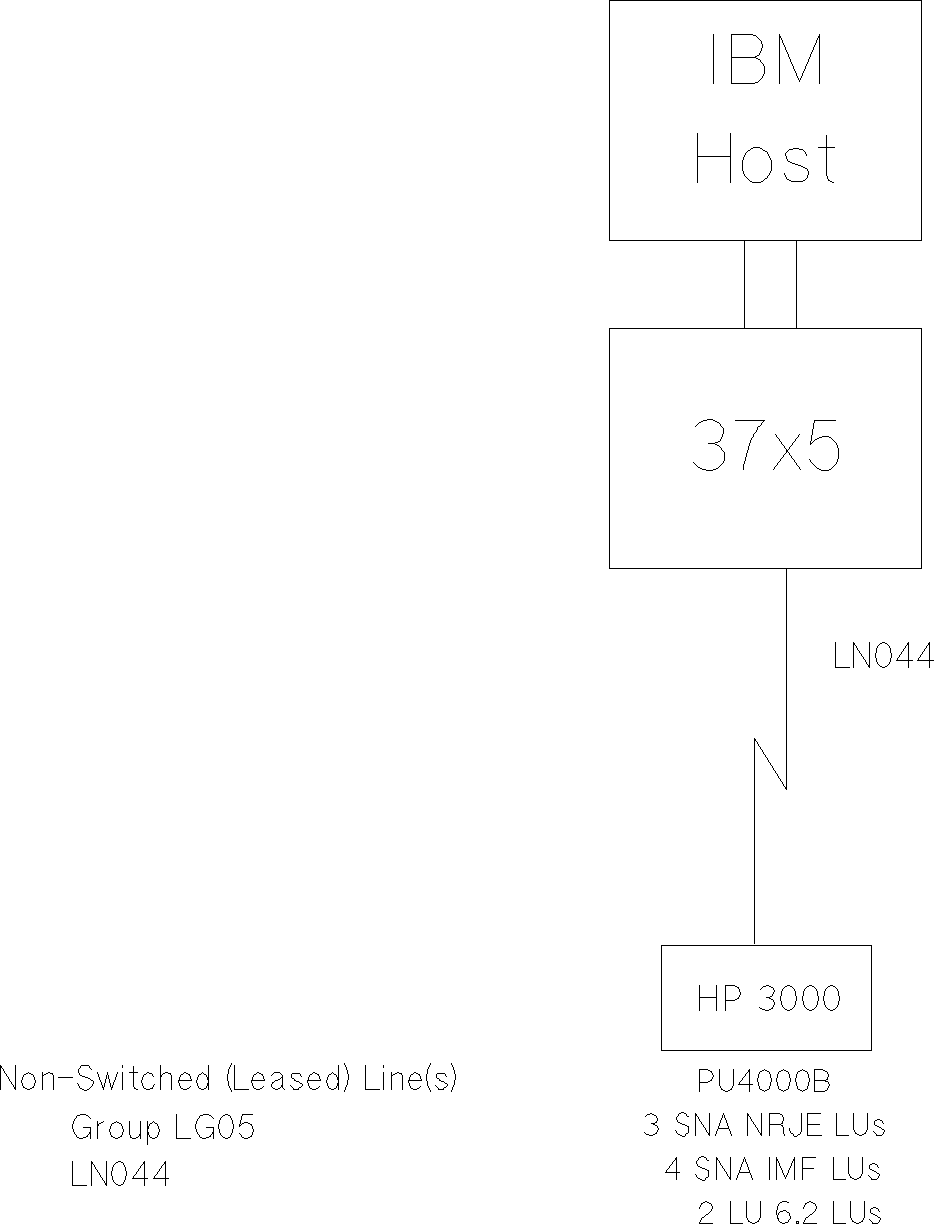

          Figure A-4.  SNA NRJE/SNA IMF/LU 6.2 Example Network

     *******************************************************************
     *
     LG05    GROUP DIAL=NO,
                   LNCTL=SDLC,
                   REPLYTO=1.0,
                   TEXTTO=1.0,
                   TYPE=NCP,
     ********************************************************************
     * LINE OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   CLOCKNG=EXT,
                   DATRATE=HIGH,
                   ETRATIO=30,
                   HDXSP=NO,
                   INTPRI=1,
                   LPDATS=NO,
                   NRZI=NO,
                   POLLED=YES,
                   SPDSEL=NO,
                   TRANSFR=12,
     ********************************************************************
     * PU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   IRETRY=NO,
                   MAXDATA=265,
                   MAXOUT=3,
                   PASSLIM=7,
                   PUTYPE=2,
                   SRT=(32768,32768),
     ********************************************************************
     * LU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   BATCH=NO,
                   ISTATUS=ACTIVE,
                   PACING=(3,1),
                   VPACING=2
     LN044 LINE    ADDRESS =044,
                   SPEED=9600,
                   DUPLEX=FULL,
                   MAXPU=1
     *
     *
     SERV400C SERVICE ORDER =(PU4000C1)
     *
     PU4000C1 PU   ADDR =C1
     *
     *   There are 3 SNA NRJE LUs, 4 SNA IMF LUs,
     *    and 2 LU 6.2 API LUs on this PU.
     *
     *
     LU40C102 LU   LOCADDR =2,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODENRJE,
                   SSCPFM=FSS
     *
     LU40C103 LU   LOCADDR =3,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODENRJE,
                   SSCPFM=FSS
     *
     LU40C104 LU   LOCADDR =4,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODENRJE,
                   SSCPFM=FSS
     *
     LU40C105 LU   LOCADDR =5,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODEIMF,
                   SSCPFM=USSSCS
     *
     LU40C106 LU   LOCADDR =6,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODEIMF,
                   SSCPFM=USSSCS
     *
     LU40C107 LU   LOCADDR =7,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODEIMF,
                   SSCPFM=USSSCS
     *
     LU40C108 LU   LOCADDR =8,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODEIMF,
                   SSCPFM=USSSCS
     *
     LU40C109 LU   LOCADDR =9
     *
     LU40C110 LU   LOCADDR =10
     *
     LU40C111 LU   LOCADDR =11
     *
     LU40C112 LU   LOCADDR =12
     *
     LU40C113 LU   LOCADDR =13
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODE62,
                   SSCPFM=FSS
     *
     LU40C114 LU   LOCADDR =14,
                   MODETAB=HPMODTAB,
                   DLOGMOD=MODE62,
                   SSCPFM=FSS


NOTE  The POLLED=YES parameter is required by a PU type 2 for ACF/NCP
      version 1, releases 1 and 2.  This parameter is invalid for an SDLC
      line for ACF/NCP version 1 release 3 and later versions.
