HP SNA Products Remote System Configuration Guide

SNA IMF Configuration Example

This example defines a network with SNA IMF as shown in figure A-2.

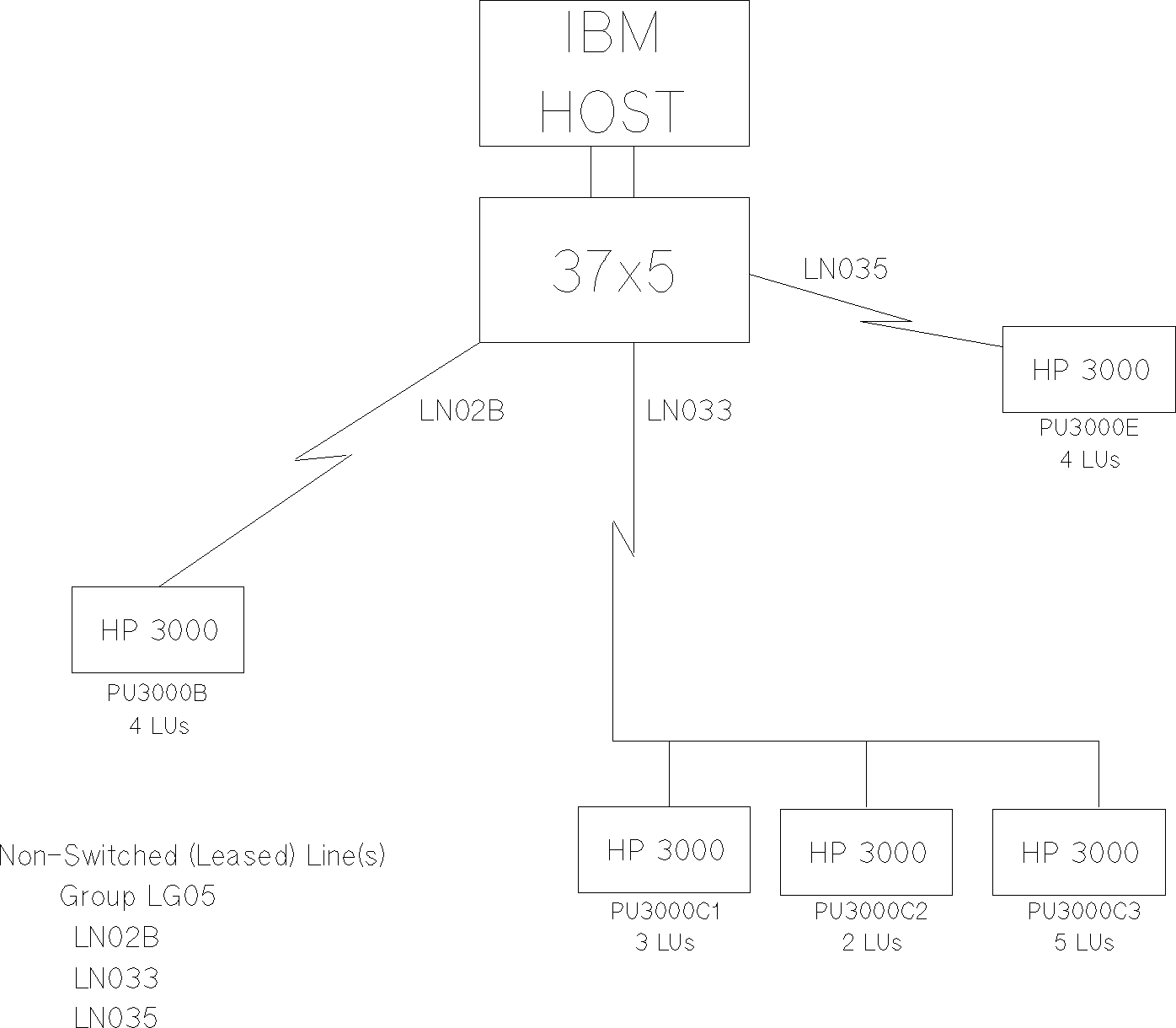

          Figure A-2.  SNA IMF Example Network

     *******************************************************************
     LG05    GROUP DIAL=NO,
                   LNCTL=SDLC,
                   REPLYTO=1.0,
                   TEXTTO=1.0,
                   TYPE=NCP,
     ********************************************************************
     * LINE OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   CLOCKNG=EXT,
                   DATRATE=HIGH,
                   ETRATIO=30,
                   HDXSP=NO,
                   INTPRI=1,
                   LPDATS=NO,
                   NRZI=NO,
                   POLLED=YES,
                   SPDSEL=NO,
                   TRANSFR=12,
     ********************************************************************
     * PU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   IRETRY=NO,
                   MAXDATA=265,
                   MAXOUT=3,
                   PASSLIM=7,
                   PUTYPE=2,
                   SRT=(32768,32768),
     ********************************************************************
     * LU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                   BATCH=NO,
                   DLOGMOD=MODEIMF,
                   ISTATUS=ACTIVE,
                   MODETAB=HPMODTAB,
                   PACING=0,
                   SSCPFM=USSSCS,
                   VPACING=0,
                   USSTAB= USSTBL
     *    Point to point (leased) low speed line.
     *
     *
     LN02B   LINE  ADDRESS =02B,
                   SPEED=4800,
                   DUPLEX=HALF,
                   MAXPU=1
     *
     SERV300B SERVICE ORDER =(PU3000B)
     *
     PU3000B PU ADDR =C1
     *
     LU30002B LU LOCADDR =2
     *
     LU30003B LU LOCADDR =3
     *
     LU30004B LU LOCADDR =4
     *
     LU30005B LU LOCADDR =5
     *   Multi-drop line with three drops
     *
     LN033   LINE  ADDRESS =033,
                   SPEED=9600,
                   DUPLEX=FULL,
                   MAXPU=3
     *
     *
     SERV300C SERVICE ORDER =(PU3000C1,PU3000C2,PU3000C3)
     *
     *
     PU3000C1 PU ADDR =C1
     *
     LU30C102 LU LOCADDR =2
     *
     LU30C103 LU LOCADDR =3
     *
     LU30C104 LU LOCADDR =4
     *
     *
     PU3000C2 PU ADDR =C2
     *
     LU30C202 LU LOCADDR =2
     *
     LU30C203 LU LOCADDR =3
     *
     *
     PU3000C3 PU ADDR =C3
     *
     LU30C302 LU LOCADDR =2
     *
     LU30C303 LU LOCADDR =3
     *
     LU30C304 LU LOCADDR =4
     *
     LU30C305 LU LOCADDR =5
     *
     LU30C306 LU LOCADDR =6
     *
     * Point to point line.
     *
     LN035   LINE  ADDRESS =035,
                   SPEED =9600,
                   DUPLEX=FULL,
                   MAXPU=1
     *
     *
     SERV300E SERVICE ORDER =(PU3000E)
     *
     *
     PU3000E PU ADDR =C1
     *
     LU30002E LU LOCADDR =2
     *
     LU30003E LU LOCADDR =3
     *
     LU30004E LU LOCADDR =4
     *
     LU30005E LU LOCADDR =5


NOTE  The POLLED=YES parameter is required by a PU type 2 for ACF/NCP
      version 1, releases 1 and 2.  This parameter is invalid for an SDLC
      line for ACF/NCP version 1, release 3 and later versions.
