SNA NRJE Configuration Example

This example defines a network with SNA NRJE as shown in figure A-1.
Each of these HP 3000s is defined as an NRJE workstation.

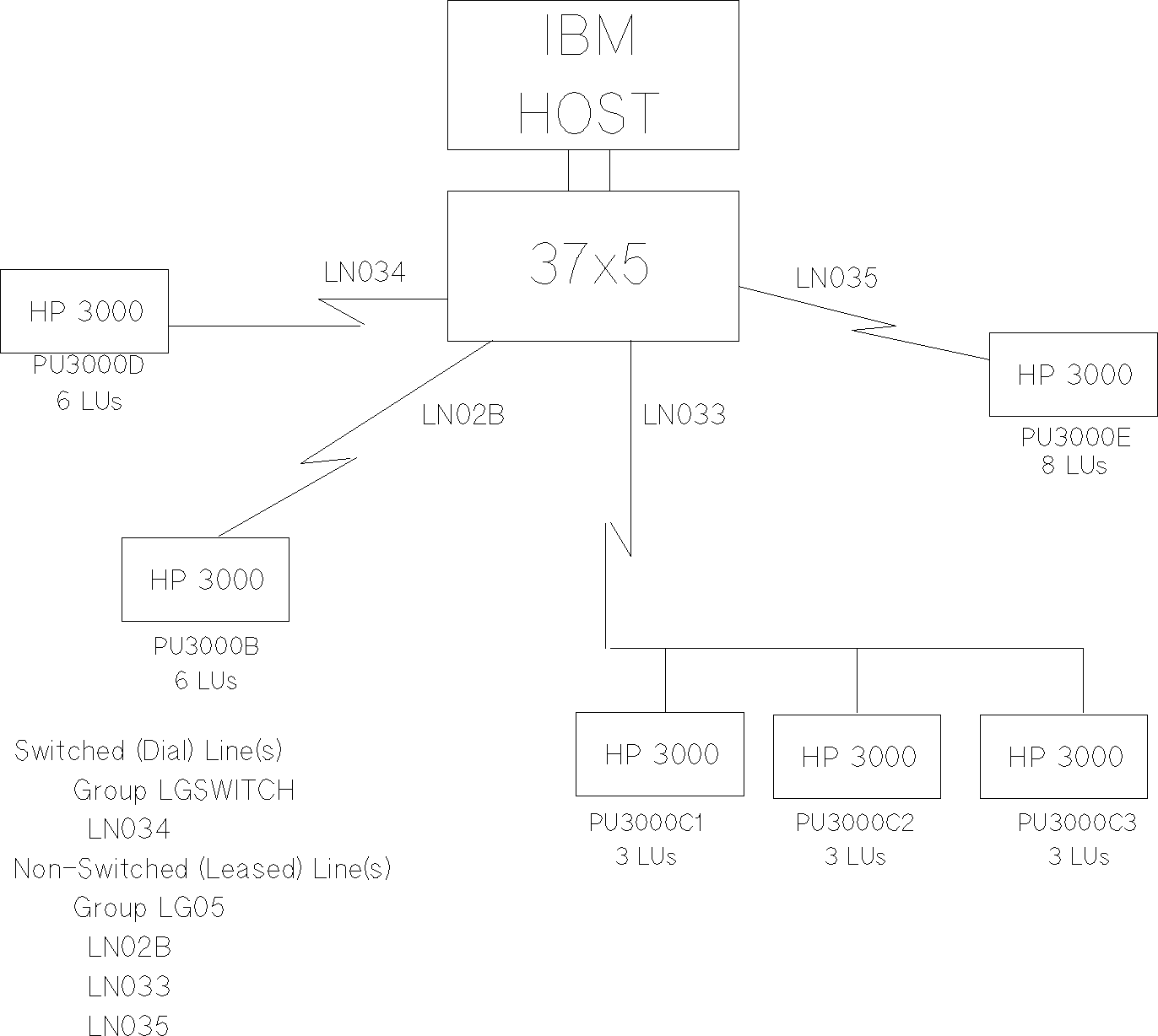

          Figure A-1.  SNA NRJE Example Network

     *******************************************************************
     *
     LG05      GROUP DIAL=NO,
                     LNCTL=SDLC,
                     REPLYTO=1.0,
                     TEXTTO=1.0,
                     TYPE=NCP,
     ********************************************************************
     * LINE OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                    CLOCKNG=EXT,
                    DATRATE=HIGH,
                    ETRATIO=30,
                    HDXSP=NO,
                    INTPRI=1,
                    LPDATS=NO,
                    NRZI=NO,
                    POLLED=YES,
                    SPDSEL=NO,
                    TRANSFR=12,
     ********************************************************************
     * PU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                    IRETRY=NO,
                    MAXDATA=265,
                    MAXOUT=3,
                    PASSLIM=7,
                    PUTYPE=2,
                    SRT=(32768,32768),
     ********************************************************************
     * LU OPERANDS MOVED UP TO THE GROUP MACRO
     ********************************************************************
                    BATCH=NO,
                    DLOGMOD=MODENRJE,
                    ISTATUS=ACTIVE,
                    MODETAB=HPMODTAB,
                    PACING=(3,1),
                    SSCPFM=FSS,
                    VPACING=2
     *    Point to point (leased) low speed line.
     *
     *
     LN02B   LINE ADDRESS= 02B,
                  SPEED=4800,
                  DUPLEX=HALF,
                  MAXPU=1
     *
     SERV300B SERVICE ORDER =(PU3000B)
     *
     PU3000B PU ADDR =C1
     *
     LU30002B LU LOCADDR =2
     *
     LU30003B LU LOCADDR =3
     *
     LU30004B LU LOCADDR =4
     *
     LU30005B LU LOCADDR =5
     *
     LU30006B LU LOCADDR =6
     *
     LU30007B LU LOCADDR =7
     *
     *   Multi-drop line with three drops
     *
     LN033   LINE  ADDRESS =033,
                   SPEED=9600,
                   DUPLEX=FULL,
                   MAXPU=3
     *
     *
     SERV300C SERVICE ORDER =(PU3000C1,PU3000C2,PU3000C3)
     *
     PU3000C1 PU ADDR =C1
     *
     LU30C102 LU LOCADDR =2
     *
     LU30C103 LU LOCADDR =3
     *
     LU30C104 LU LOCADDR =4
     *
     *
     *
     PU3000C2 PU ADDR =C2
     *
     LU30C202 LU LOCADDR =2
     *
     LU30C203 LU LOCADDR =3
     *
     LU30C204 LU LOCADDR =4
     *
     *
     *
     PU3000C3 PU ADDR =C3
     *
     LU30C302 LU LOCADDR =2
     *
     LU30C303 LU LOCADDR =3
     *
     LU30C304 LU LOCADDR =4
     *
     * Point to point line.
     *
     LN035   LINE  ADDRESS =035,
                   SPEED =9600,
                   DUPLEX=FULL,
                   MAXPU=1
     *
     *
     SERV300E SERVICE ORDER =(PU3000E)
     *
     *
     PU3000E PU ADDR =C1
     *
     LU30002E LU LOCADDR =2
     *
     LU30003E LU LOCADDR =3
     *
     LU30004E LU LOCADDR =4
     *
     LU30005E LU LOCADDR =5
     *
     LU30006E LU LOCADDR =6
     *
     LU30007E LU LOCADDR =7
     *
     LU30008E LU LOCADDR =8
     *
     LU30009E LU LOCADDR =9


NOTE  The POLLED=YES parameter is required by a PU type 2 for ACF/NCP
      version 1, releases 1 and 2.  This parameter is invalid for an SDLC
      line for ACF/NCP version 1, release 3 and later versions.


     ******************************************************************
     ************************ HP3000 DIAL UP **************************
     *
     *The following example shows a line GROUP that defines a switched
     *line. The VTAM operands of the PU macros, and the LU macros, are
     *defined under a VBUILD macro, which is kept as a separate member
     *in SYS1.VTAMLST, the parameter library for VTAM.
     *
     ******************************************************************
     LUDRPOOL NUMTYPE2=6
     LGSWITCH GROUP DIAL=YES,
                    LNCTL=SDLC,
                    REPLYTO=1.0,
                    TEXTTO=1.0,
                    TYPE=NCP
     ********************************************************************
     * LINE MACRO DEFINITION FOR SWITCHED SDLC LINE
     ********************************************************************
     LN034    LINE ADDRESS =034,
                   SPEED =9600,
                   ANSWER=ON,
                   CALL=IN,
                   CLOCKNG=EXT,
                   DATRATE=HIGH,
                   DUPLEX=HALF,
                   ETRATIO=30,
                   HDXSP=NO,
                   INTPRI=1,
                   LPDATS=NO,
                   MAXPU=1,
                   NRZI=NO,
                   POLLED=YES,
                   SPDSEL,
                   TRANSFR=12
     *
     *
     *     No SERVICE macro because it is not allowed on switched lines.
     *
     *****************************************************************
     * PU MACRO DEFINITION FOR SWITCHED SDLC LINE
     ******************************************************************
     *
     *
     PU3000D  PU   MAXLU=6,
                   PUTYPE=2
     * All other PU parameters and LU parameters are defined in the
     * VBUILD member for this PU.
     *
     NCPEND        GENEND SCANCTL=(2,,,,1100)
                   END


NOTE  The POLLED=YES parameter is required by a PU type 2 for ACF/NCP
      version 1, releases 1 and 2.  This parameter is invalid for an SDLC
      line for ACF/NCP version 1, release 3 and later versions.


Switched Major Node

The following is an example of the PU and LU definitions in a switched
major node that could use the switched (dial) line LN034 under group
LGSWITCH.

     SW3000D   VBUILD TYPE=SWNET  THIS MEMBER DEFINES A SWITCHED MAJOR
     NODE
     *
     *
     PU3000D  PU  ADDR= C4
                   IDBLK=023,
                   IDNUM= 01234,
                   MAXLU=6,
                   PUTYPE=2,
                   SRT=(32768,32768),
                   BATCH=YES,
                   DLOGMOD=MODENRJE,
                   ISTATUS=INACTIVE,
                   MODTAB=HPMODTAB,
                   PACING=(3,1),
                   SSCPFM=FSS,
                   VPACING=(2,1)
     *
     LU30002D LU LOCADDR =2
     *
     LU30003D LU LOCADDR =3
     *
     LU30004D LU LOCADDR =4
     *
     LU30005D LU LOCADDR =5
     *
     LU30006D LU LOCADDR =6
     *
     LU30007D LU LOCADDR =7
