Planning Jobs

When preparing jobs for a host, an NRJE user must consider host system
characteristics, such as the type of job entry subsystem and programming
languages supported, as well as the HP 3000 resources configured for SNA
NRJE.

Job Input

Jobs sent to a host system using a physical card reader normally consist
of Job Control Language (JCL) and data.  These cards are concatenated to
form a job stream .

Jobs sent to a host system using NRJE must be constructed as if they
would be sent directly to the host using a card reader.  However, input
through NRJE is in card images instead of physical cards.  Card record
image sizes must be a minimum of 80 bytes for all supported host job
entry subsystems, and can be a maximum size of the following:

 *  248 bytes for JES2 or JES3 workstations that use a 256-byte RU.

 *  252 bytes for JES2 or JES3 workstations that use a 512-byte RU.

 *  128 bytes for VSE/POWER workstations.

You combine records into files.  Then you identify to NRJE the files to
be sent to the host.  You can use the first and last files of the set for
routine JCL statements.

When NRJE processes a SUBMIT command, it opens each card reader image
file in sequence.  Each file is opened, its records are read and then
written to a spool file that is submitted to the host.  Then the file is
closed.

SNA NRJE accepts input from two types of card image files:

 *  Infiles

 *  FD files

Infiles.  An Infile contains a complete job or a partial job.  The file
can contain ##FD cards that point to additional files to be included in
your spool file.  In fact, an Infile can consist of ##FD cards only.
Also, an Infile can be transmitted without translation.  Chapter 3, "User
Commands," describes the SUBMIT command, which is used to identify
Infiles to be transmitted.

FD Files.  FD files are similar to Infiles in that they may contain the
same kind of information, they are constructed in the same way, and they
can be transmitted without translation.  They are referenced directly by
means of ##FD cards in the Infile.  (See Figure 2-1).

FD files may reference other FD files.  This nesting can be continued up
to 20 levels deep.  Figure 2-1 illustrates the relationships among
several card image files that have been merged into a single job stream.
The names of the Infiles were indicated by the user when submitting the
job.  First-level FD files, RED and BLUE, were specified indirectly by
means of records--card images--contained in Infile A. Two records within
RED point to the two level-two files.

When SNA NRJE processes a SUBMIT command, it opens each Infile named
directly in the command, and each FD file as it is referenced.  The files
are opened with the MPE semi-exclusive and read-only file restrictions.
Each file remains open until all of its records have been processed, at
which time it is immediately closed.


NOTE  If an Infile or FD file is kept as a numbered file and the record
      width is less than 80 bytes, NRJE will transmit the line numbers as
      part of the data record.


Figure 2-1 shows the relationship among infiles and FD files in a job
stream.  Figure 2-2 shows the order in which the card images from the
files in Figure 2-1 are transmitted to the host.

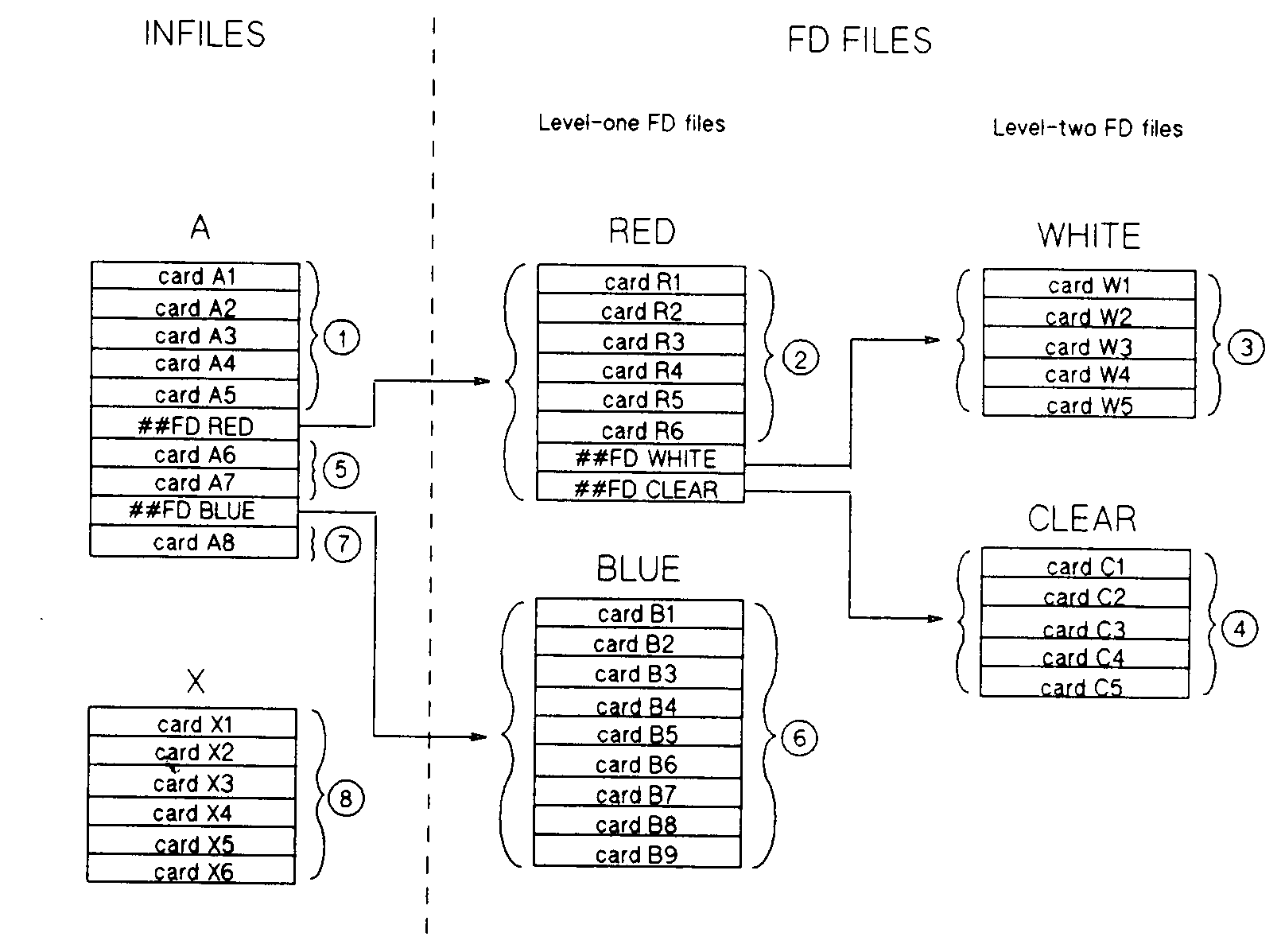

          Figure 2-1.  Relationship Among files in a Job Stream

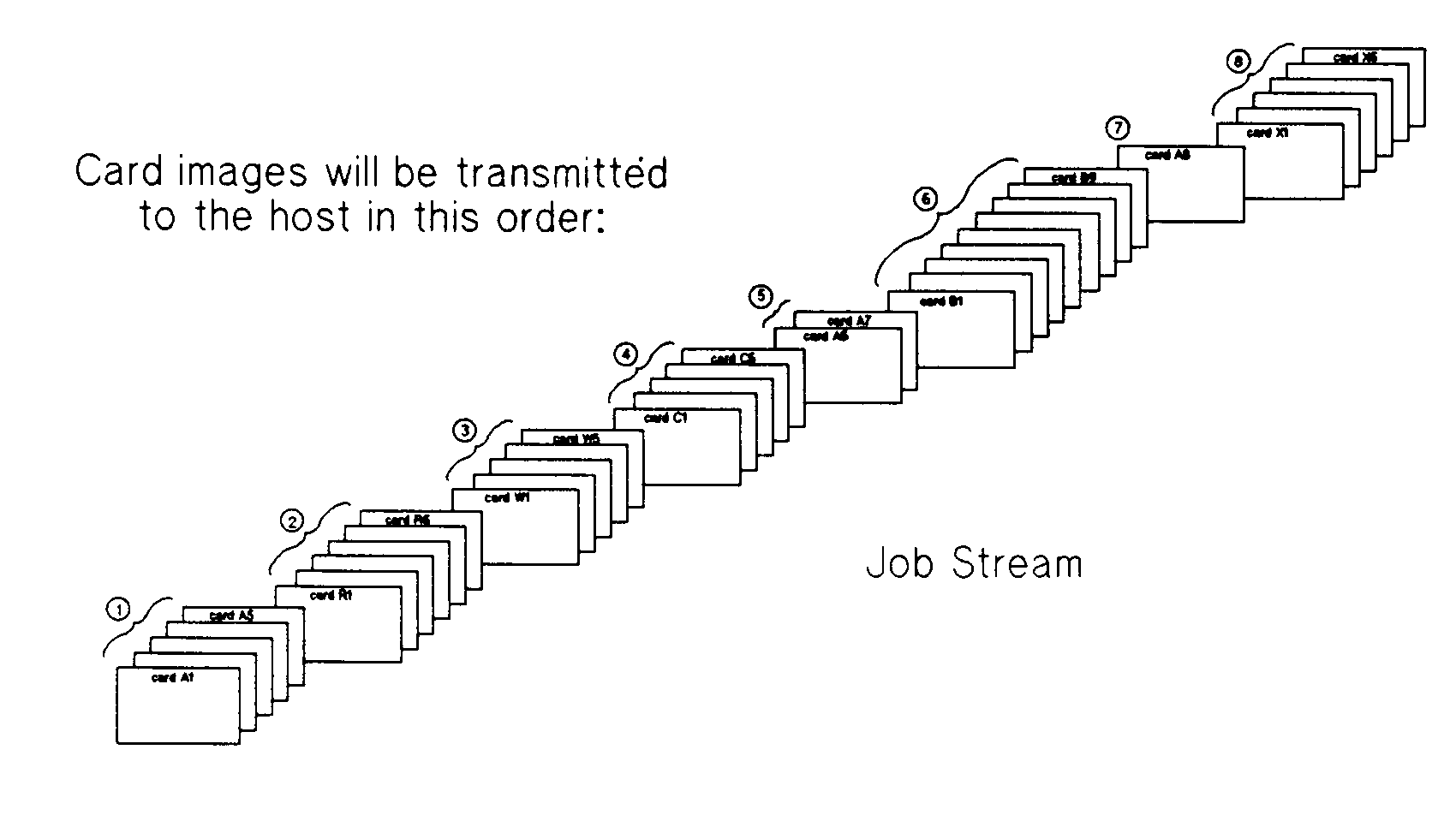

          Figure 2-2.  Order of Card Images Transmitted

Host System Job Control

SNA NRJE checks for valid JOB cards, SIGNOFF cards, and host console
commands before transmission.  If NRJE detects a SIGNOFF card, it prints
a warning message.  The card is not transmitted to the host.

SNA NRJE requires at least one JOB card whenever a SUBMIT command is
issued.  If the TRANSPARENT parameter is omitted from an FD card image,
SNA NRJE recognizes all JOB cards contained in the referenced file as job
delimiters, not data.

Valid JOB cards are used to break an input job stream into separate spool
files, which are placed in the reader transmission queue.  If any host
command card images are between host jobs in an input job stream, they
are sent with the first of the jobs.  For example, host system PRIORITY
cards have no effect on the host when associated with the second or
subsequent job in a job stream.  Figure 2-3 shows two jobs that are
submitted to SNA NRJE together.  SNA NRJE merges Infile A with FD file
RED. The first priority card has the desired effect on JOB1.  The second
priority card is transmitted to the host as part of JOB1 and therefore
does not influence JOB2.

When priorities are important, each job should be submitted to SNA NRJE
separately.

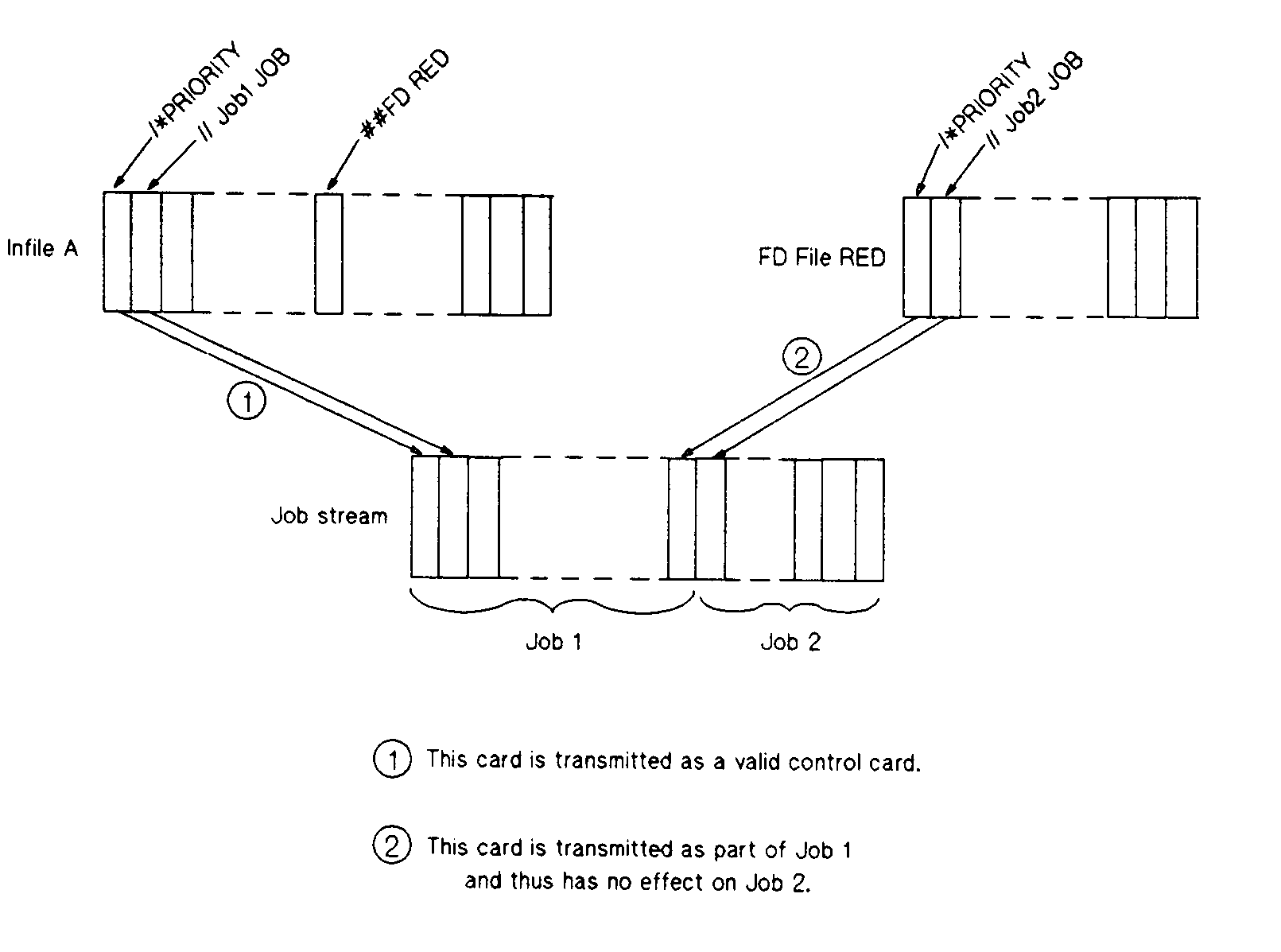

          Figure 2-3.  Priority Card to Job Stream Relationship

Input File Libraries

The job streaming feature of SNA NRJE allows you to construct jobs from
job control cards, programs, and data that already exist in disc files.
You can create libraries of job modules that can be assembled into a
variety of different jobs.

The SNA NRJE user must ensure that Infiles and FD files submitted
together constitute a valid job according to host system requirements.

Job Output

Output from a job can be received from a host whenever communication has
been established with a workstation.  The default output destination for
the workstation must be a spooled device as configured in the NMMGR
Workstation Data Page 2 screen.

You can control job output.  Chapter 4, "Job Output," describes what to
do within a job to route the returning data sets to specific
destinations.
