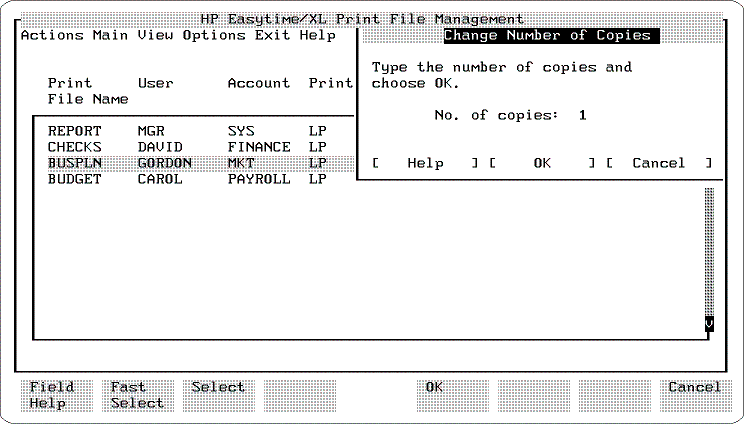

HP Easytime/iX uses dialog boxes to present information or to prompt you for data needed to complete a task. Dialog boxes are windows that appear on your screen overlaying a portion of the current display.
Dialog boxes usually contain one or more fields (areas that you can fill in or edit), or a list of choices from which you can select a value.
Whenever an ellipsis (...) appears after a menu item, you know that a dialog box (or another screen) follows.
When a dialog box appears, you may be asked to input information in any of the following ways:
Type the information in a field.
Select one or more items in a list.
Choose from a set of available options.
To type text in a field |
 |
Press Tab to move from one data-entry field to the next.
Type the requested information.
To correct typing errors |
 |
You can use any of the following keys to correct typing errors:
To do this | Press these keys |
---|
Go to insert mode | Insert char |
Exit insert mode | Insert char again |
| |
Delete a character | Delete char |
Delete one character to the left | Backspace |
Delete all characters | Delete line |
Delete all characters to the right of the cursor | Clear line |
To select from a list in a dialog box |
 |
You can select only one item from a list that appears within a dialog box. Often, one item that is highlighted (preselected) for you.
Use the [utrif] and [dtrif] keys to move the cursor to the item that you want to select.
Press either F3, Return, or Spacebar.

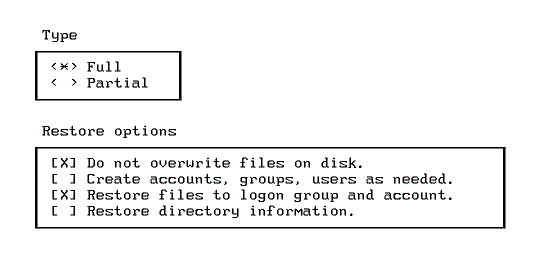

To choose options in a dialog box |
 |
Press Tab to move to the option that you want.
Press either F3, Return, or Spacebar to choose the option.
Selected choices are marked by either an asterisk <*>, or by [X].
To move in a dialog box |
 |
< > You can use the following keys to move around in a dialog box:
To move | Press these keys |
---|
To the next field | Tab |
To the previous field | Shift + Tab |
One character to the right | [rtrif] |
One character to the left | [ltrif] |
To close a dialog box |
 |
After you have supplied the requested information, press F5 {{OK}} to complete a task and close the dialog box.
To cancel a dialog box |
 |
Press F8 {{Cancel}} to cancel a task and close the dialog box.
