Lesson 1 presents the physical parts of the computer. Computers consist of hardware and software components: - Hardware
The physical equipment: integrated circuit boards, disk drives, terminals (the screen and keyboard together), tape drives, printers, and plotters. - Software
The programs that instruct the hardware to do something (Lesson 2).
Hardware |  |
Hardware is all of the electronic equipment that a computer includes. If you can touch it, pick it up, or move it around, it is hardware. A computer consists of a central unit, called the central processing unit (CPU), and external devices, called peripherals. - CPU
The central processing unit is the "brain" of the computer. Every instruction given to the computer passes through the electronic circuits of the CPU. When you program the computer to add two numbers together, the arithmetic is performed in the CPU. When you want something sorted, the CPU controls the task from start to finish. - SPU
The system processing unit contains all of the components of the computer system including the central processing unit. The SPU does not refer to the system console or any other single, peripheral device. - Peripherals
Peripherals are all of the other hardware connected to the CPU. Peripherals are often referred to as peripheral devices. The computer assigns to each device an identifying number called an LDEV number. This number is the "address" (of your terminal, for instance) that the computer uses when it sends and receives information.
Peripherals |  |
There are five classes of peripherals that may be connected to a standard HP 3000 system: - Terminals
Your terminal (the screen and keyboard) gives you a way of communicating with the computer. You can enter commands or run programs and see the results. - Disk Drives
Information and programs that are not being used by the SPU are stored on disk drives. The information could be the text of a letter, information in a database, or a program that you might use every day. There might be one or many disk drives attached to your computer. Information on a disk drive can be retrieved quickly. - Tape Drives
Information that is not accessed frequently but must be kept for a long time is stored on magnetic tapes. Tape drives are used to store information from the disk onto the tape. The computer takes longer to retrieve information from a tape. The advantage of tape lies in safely keeping backup copies of vital information or programs. If information is ever lost from the computer, it can be restored to the system from the tape(s); however, the restored version of a file might not be the most up-to-date version of the file. It might be an earlier version. It is common practice for system operators to store all of the disk files on the computer to back up tapes at regular intervals. Thus, if you lose or accidentally erase an important file, there is a reasonable chance of having that file restored to the computer. - Printers
Printers come in all shapes and sizes. Some are designed for extremely high speeds. Some are designed for very high-quality, finished documents. There may be one or many printers attached to your computer. If there is only one, it may be referred to as the line printer. - System Console
The system console is a special terminal that your system operator uses almost exclusively to control the day-to-day functioning of the computer. The system console is usually located close to the CPU.

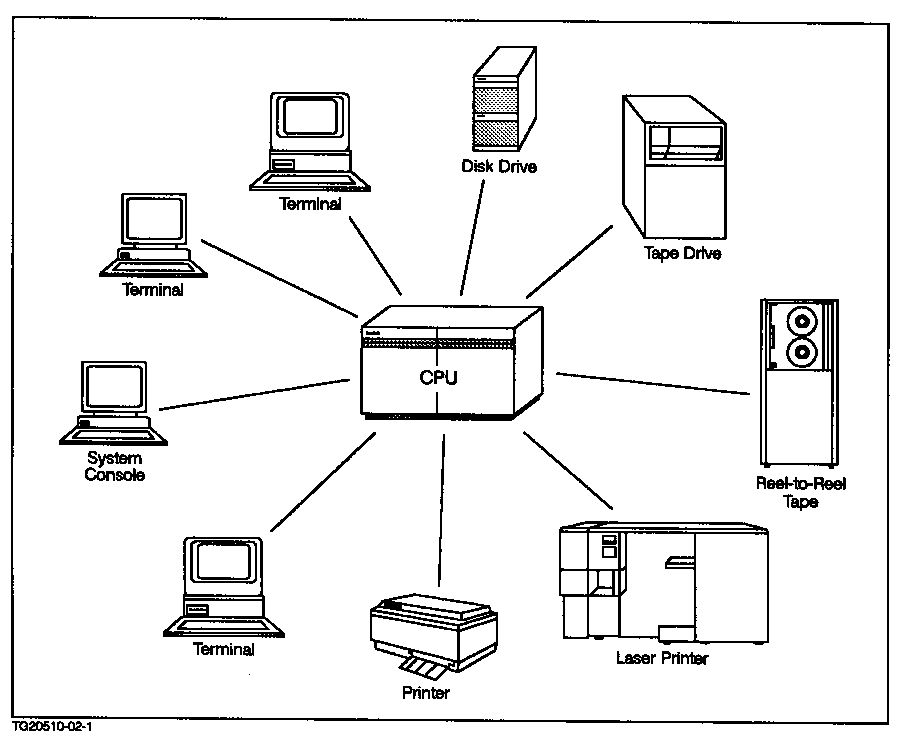

The following figure shows a typical computer system. Figure 3-1 A Typical Computer System
Lesson 1 Exercises |  |
What is the name of the central unit of the computer? Name four peripherals that make up a basic HP 3000 system. What is the name of the terminal that is used by the system operator to control the entire HP 3000 system and that is usually located close to the CPU?
|
