HP SNADS/iX Configuration Example

This section contains a tested configuration for an AS/400 that acts as a Network Node and performs routing services for an HP 3000 configured as a LEN node. The AS/400 and the HP 3000 use HP SNADS/iX to communicate over an APPN network. Figure F-3 illustrates the configuration described in this section.

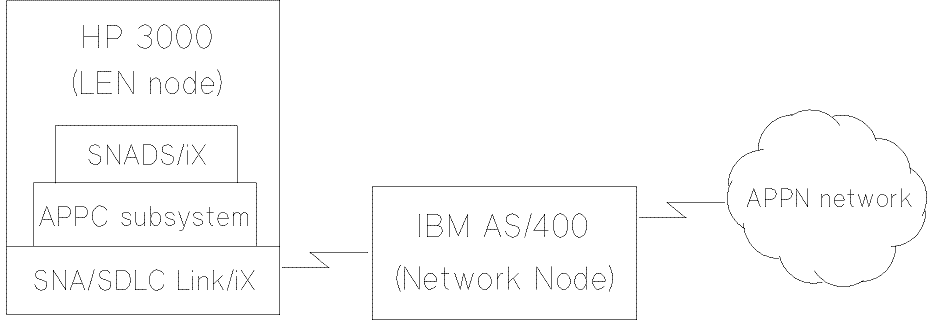

Figure F-3 SNADS/iX Example Network

   Display Details of Distribution Queue

   Queue. . . . . . . . . . . . . . . . . . . . . :   HPDESKQ
   Queue type. . . . . .. . . . . . . . . . . . . :   *SNADS
   Remote location name . . . . . . . . . . . . . :   APPC002
   Mode. . . . . . . . . .  . . . . . . . . . . . :   DW
   Remote net ID. . . . . . . . . . . . . . . . . :   APPN
   Local location name. . . . . . . . . . . . . . :   AS40002
   Normal priority:
      Send time:
         From/To . . . . .  . . . . . . . . . . . :   :   :
         Force . . . . . .  . . . . . . . . . . . :   :
      Send depth . . . . .  . . . . . . . . . . . :   1
   High priority:
      Send time:
         From/To . . . . .  . . . . . . . . . . . :   :   :
         Force . . . . . .  . . . . . . . . . . . :   :
      Send depth . . . . .  . . . . . . . . . . . :   1
   Number of retries . . .  . . . . . . . . . . . :   3
   Number of minutes
      between retries. . .  . . . . . . . . . . . :   5
   To ignore time/depth values
      while receiving:
      Send queue . . . . .  . . . . . . . . . . . :   N

   Display Details of Routing Table Entry

   Destination system
      name/group. . . . . . . . . . . . . . . . . :   HPGATE   HP
   Description . . . . .. . . . . . . . . . . . . :   HP Desk system
   Service level:
      Fast:
         Queue name. . . .  . . . . . . . . . . . :   HPDESKQ
         Maximum hops . . . . . . . . . . . . . . :   *DFT
      Status:
         Queue name . . . . . . . . . . . . . . . :   HPDESKQ
         Maximum hops. . .  . . . . . . . . . . . :   *DFT
      Data high:
         Queue name . . . . . . . . . . . . . . . :   HPDESKQ
         Maximum hops. . .  . . . . . . . . . . . :   *DFT
      Data low:
         Queue name . . . . . . . . . . . . . . . :   HPDESKQ
         Maximum hops. . .  . . . . . . . . . . . :   *DFT

   Display Directory Entry Details (remote HP Desk user)

   User ID/Address . . . . . . . . . . . . . . . .:   *ANY   HPLAB
   Description . . . . . . . . . . . . . . . . . .:   Users on HP Desk
   System name/Group . . . . . . . . . . . . . . .:   HPGATE   HP
   User profile. . . . . . . . . . . . . . . . . .:
   Indirect user . . . . . . . . . . . . . . . . .:   No
   Personal mail . . . . . . . . . . . . . . . . .:   No
   Mailing Address . . . . . . . . . . . . . . . .:
   Location. . . . . . . . . . . . . . . . . . . .:
   Telephone numbers . . . . . . . . . . . . . . .:
   Text. . . . . . . . . . . . . . . . . . . . . .:

   Display Directory Entry Details (local AS/400 user)

   User ID/Address . . . . . . . . . . . . . . . .:   JENNER   IBMMKT
   Description . . . . . . . . . . . . . . . . . .:   IBM mail user
   System name/Group . . . . . . . . . . . . . . .:   SNADS1   IBM
   User profile. . . . . . . . . . . . . . . . . .:
   Indirect user . . . . . . . . . . . . . . . . .:   No
   Personal mail . . . . . . . . . . . . . . . . .:   No
   Mailing Address . . . . . . . . . . . . . . . .:
   Location. . . . . . . . . . . . . . . . . . . .:
   Telephone numbers . . . . . . . . . . . . . . .:
   Text. . . . . . . . . . . . . . . . . . . . . .:

Configuration of HP Desk Resident Users

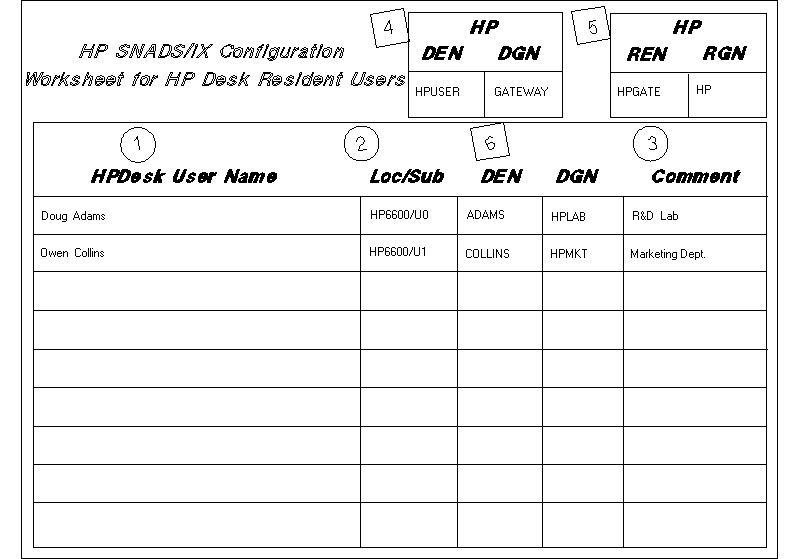

Figure F-4 shows an example of the HP SNADS/iX configuration worksheet for HP Desk resident users.

The fields correspond to the numbers on the worksheet. Fields 1, 2, and 3 should be completed by the HP SNADS/iX gateway administrator. Fields 4, 5, and 6 should be completed by the AS/400 system administrator.

Figure F-4 Example SNADS Config. Worksheet for Desk Users

Configuration of SNA/DS Resident Users

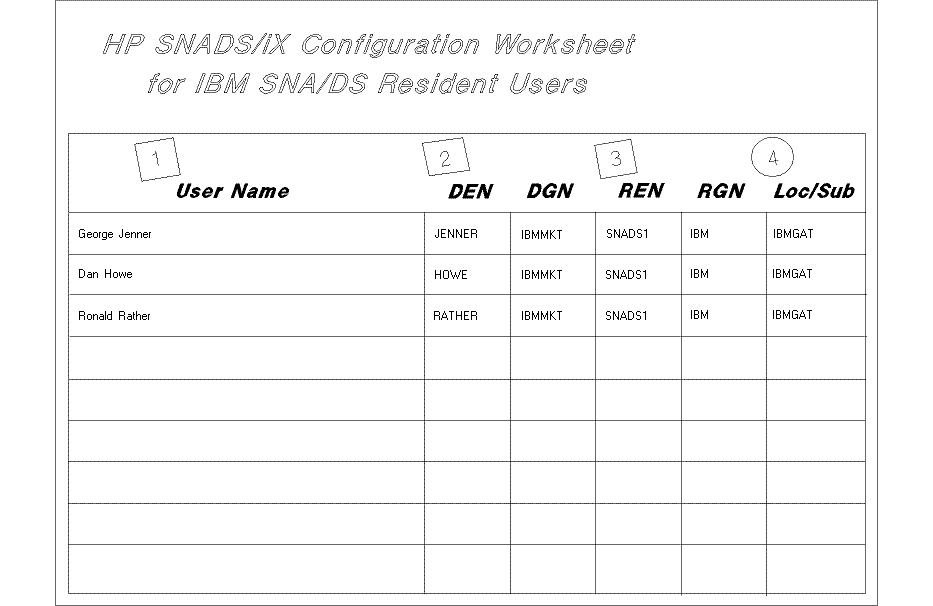

Figure F-5 shows an example of the HP SNADS/iX configuration worksheet for IBM SNA/DS resident users.

The fields correspond to the numbers on the worksheet. Fields 1, 2, and 3 should be completed by the AS/400 system administrator. Field 4 should be completed by the HP SNADS/iX gateway administrator.

Figure F-5 Example SNADS Config. Worksheet for IBM Users
