HP 3000 Series 9X8LX Computer Systems Getting Started

Chapter 3  Familiarizing Yourself With Your Computer Peripherals

To familiarize yourself with the console

The console is an ordinary terminal that has a special purpose.  You can
locate the switches, adjusting knobs, and connectors of the console in
the following illustration.

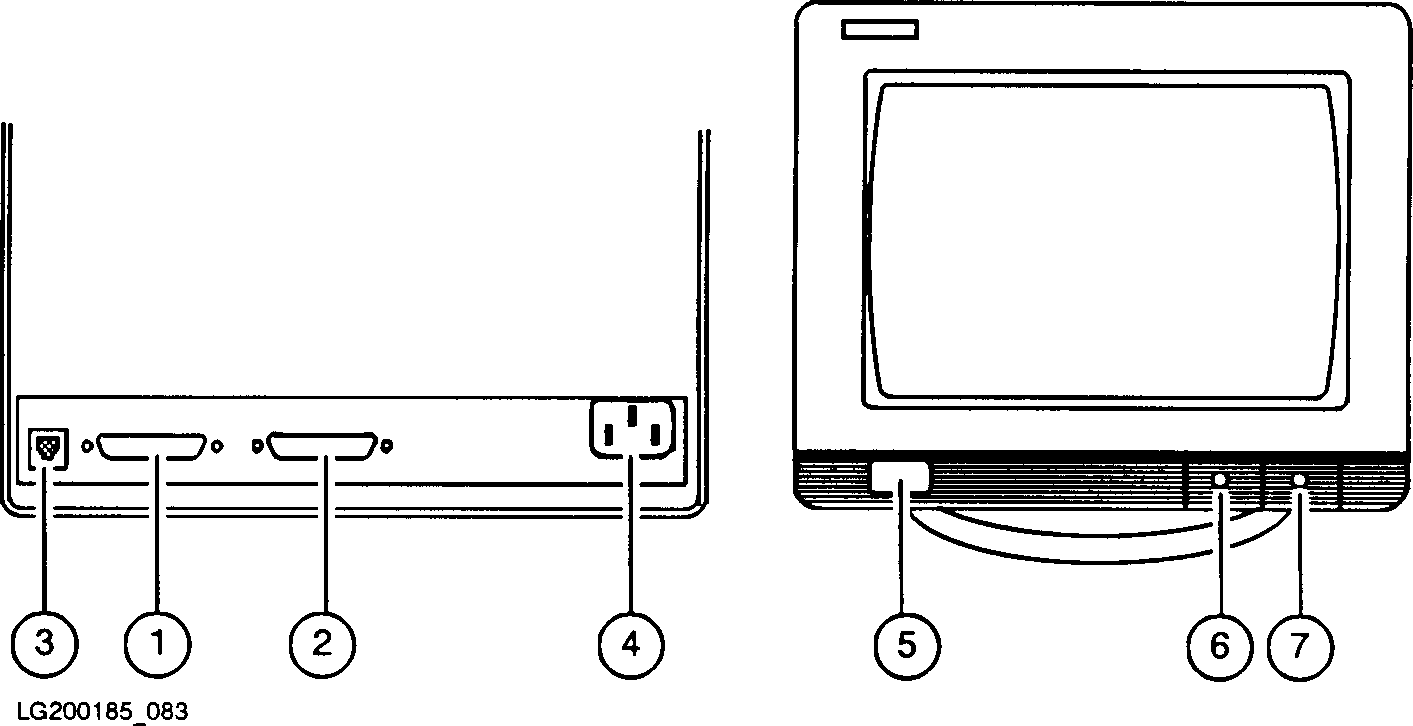

          Computer Console Back and Front Views

   1.  port 1, datacomm connector to the computer (back)
   2.  port 2, printer connector (back, not used for this computer
       system)
   3.  keyboard cable connector (back)
   4.  power cord connector (back)
   5.  power ON/OFF switch (front)
   6.  brightness control (front)
   7.  contrast control (front)
