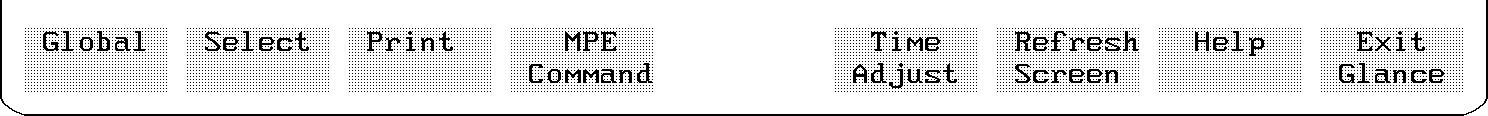

HP GlancePlus Function Keys and Commands To make it easy to select screens or functions, GlancePlus displays a row of function-key labels across the bottom of each screen. These labels, also called softkeys, correspond to function keys F1 through F8 on your terminal keyboard.Figure 3-5. HP GlancePlus Function Keys You can also access all of GlancePlus's functionality using the single-letter commands shown in tables 3-1 and 3-2 (see pages 3-10 and 3-11). To avoid confusion, function keys perform the same actions on all GlancePlus screens. To maintain this consistency, some screens or functions can be selected only by using their single-letter commands. The command abbreviations, such as C for CPU screen and D for Disc screen, are intuitive and easy to remember. For a quick reminder, simply enter H or press the Help softkey, then press C at the next prompt to indicate you want a quick list of the available commands. Additional information about commands is presented in chapter 4. Table 3-1. Commands to Access Screens ------------------------------------------------------------------------- | | | | | | Command | Command | Function | Action | | Name | Character | Key | | | | | | | ------------------------------------------------------------------------- | | | | | | CPU Detail | C | | Displays CPU Detail screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Disc Detail| D | | Displays Disc Detail screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Filter | F | | Displays Filter screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Global | G | F1 | Displays Global screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Help | H | F7 | Enters Help facility. | | | | | | ------------------------------------------------------------------------- | | | | | | Select Job | J | | Selects particular job to be | | | | | displayed in detail on the | | | | | Job/Session screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Memory | M | | Displays Memory Detail screen. | | Detail | | | | | | | | | ------------------------------------------------------------------------- | | | | | | Xpert | O | | Displays Expert Overview of | | Overview | | | system bottlenecks. Note: The | | | | | X key is the command character | | | | | for the Xpert Analysis command. | | | | | | ------------------------------------------------------------------------- | | | | | | Select | P | | Selects particular process to be | | Process | | | displayed in detail on the | | | | | Process screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Select | S | | Selects particular session to be | | Session | | | displayed in detail on the | | | | | Job/Session screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Workload | W | | Displays Workload screen. | | | | | | ------------------------------------------------------------------------- | | | | | | Select | # | F2 | Selects job/session/process to | | | | | monitor. | | | | | | ------------------------------------------------------------------------- | | | | | | Previous | < | | Displays screen that was last | | Display | | | active before entering current | | | | | display. | | | | | | ------------------------------------------------------------------------- | | | | | | Next Logical > | | Displays next logical screen, | | Display | | | that is, the top resource | | | | | consumer. See chapter 4. | | | | | | ------------------------------------------------------------------------- Table 3-2. Commands to Access Program Activities ----------------------------------------------------------------------------- | | | | | | Command | Command | Function | Action | | Name | Character | Key | | | | | | | ----------------------------------------------------------------------------- | | | | | | All | A | | Displays detail data for all | | Processes | | | processes or applications rather | | | | | than only interesting processes | | | | | or applications. | | | | | | ----------------------------------------------------------------------------- | | | | | | Exit | E | F8 | Terminates program. | | Glance | | | | | | | | | ----------------------------------------------------------------------------- | | | | | | Print | L | F3 | Toggles continuous printing on | | | | | or off for the line printer | | | | | (LP). | | | | | | ----------------------------------------------------------------------------- | | | | | | Change | Q | | Changes queue or priority of a | | Queue | | | given job, session, or process. | | | | | | ----------------------------------------------------------------------------- | | | | | | Refresh | R | F6 | Clears and displays an updated | | Screen | | | screen. | | | | | | ----------------------------------------------------------------------------- | | | | | | Time | T or I | F5 | Changes refresh time or | | Adjust | | | interval. | | | | | | ----------------------------------------------------------------------------- | | | | | | Users | U | | Lists users of a file. | | | | | | ----------------------------------------------------------------------------- | | | | | | Set Option | V | | Displays current option values | | Values | | | and allows you to change them. | | | | | | ----------------------------------------------------------------------------- | | | | | | Xpert | X | | Displays Expert Analysis. | | Analysis | | | | | | | | | ----------------------------------------------------------------------------- | | | | | | Zero | Z | | Resets averages to zero and | | Averages | | | recomputes them beginning with | | | | | the current interval. | | | | | | ----------------------------------------------------------------------------- | | | | | | MPE | : | F4 | Allows you to enter an MPE | | Command | | | command. | | | | | | ----------------------------------------------------------------------------- | | | | | | | Ctrl+Y | | Terminates command display. | | | | | | ----------------------------------------------------------------------------- | | | | | | | Ctrl+S | | Stops scrolling of screen | | | | | display. | | | | | | ----------------------------------------------------------------------------- | | | | | | | Ctrl+Q | | Resumes scrolling of screen | | | | | display. | | | | | | ----------------------------------------------------------------------------- | | | | | | Update | Enter or | | Updates display immediately. | | Display | Space Bar | | | | | | | | -----------------------------------------------------------------------------
![[]](../../pic3k/M012035/FFN83c50.gif)
