HP RXForecast Users Manual for MPE Systems

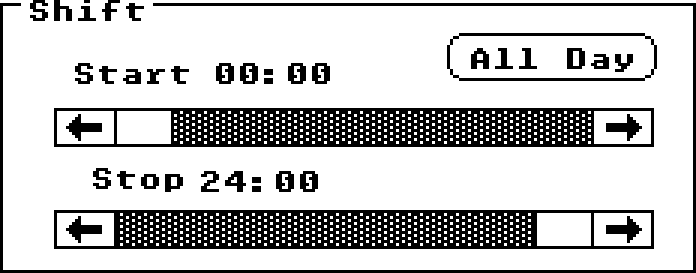

Shift Option

The Shift option appears on the Forecasts command dialog box.




Use the Shift Start or Stop scroll bars to set the start and stop times
of the "day." You can define the shift as narrowly as 15 minutes or as
broadly as 24 hours by adjusting the shift start and stop times.  The
shift can start at any 15-minute interval you choose.  Times will be
shown in the dialog box.

Select a scroll arrow to change the time by 15 minutes (left to subtract
time; right to add time).  Select the shaded bar to change the time by 1
hour (left to subtract time; right to add time).  Or drag the scroll box
in the direction you want the time to change.  The minimum change is 15
minutes.

Select  All Day to reset the limits to 0:00 and 24:00.

If you choose a stop time that is earlier than the start time, HP
RXForecast will display Next Day above the Stop scroll bar, indicating
that for each "day," the HP RXForecast forecasts will cross from one
calendar day into the next.
