Screens

The diagnostic screens provide full-screen access to diagnostics for all
configured products.

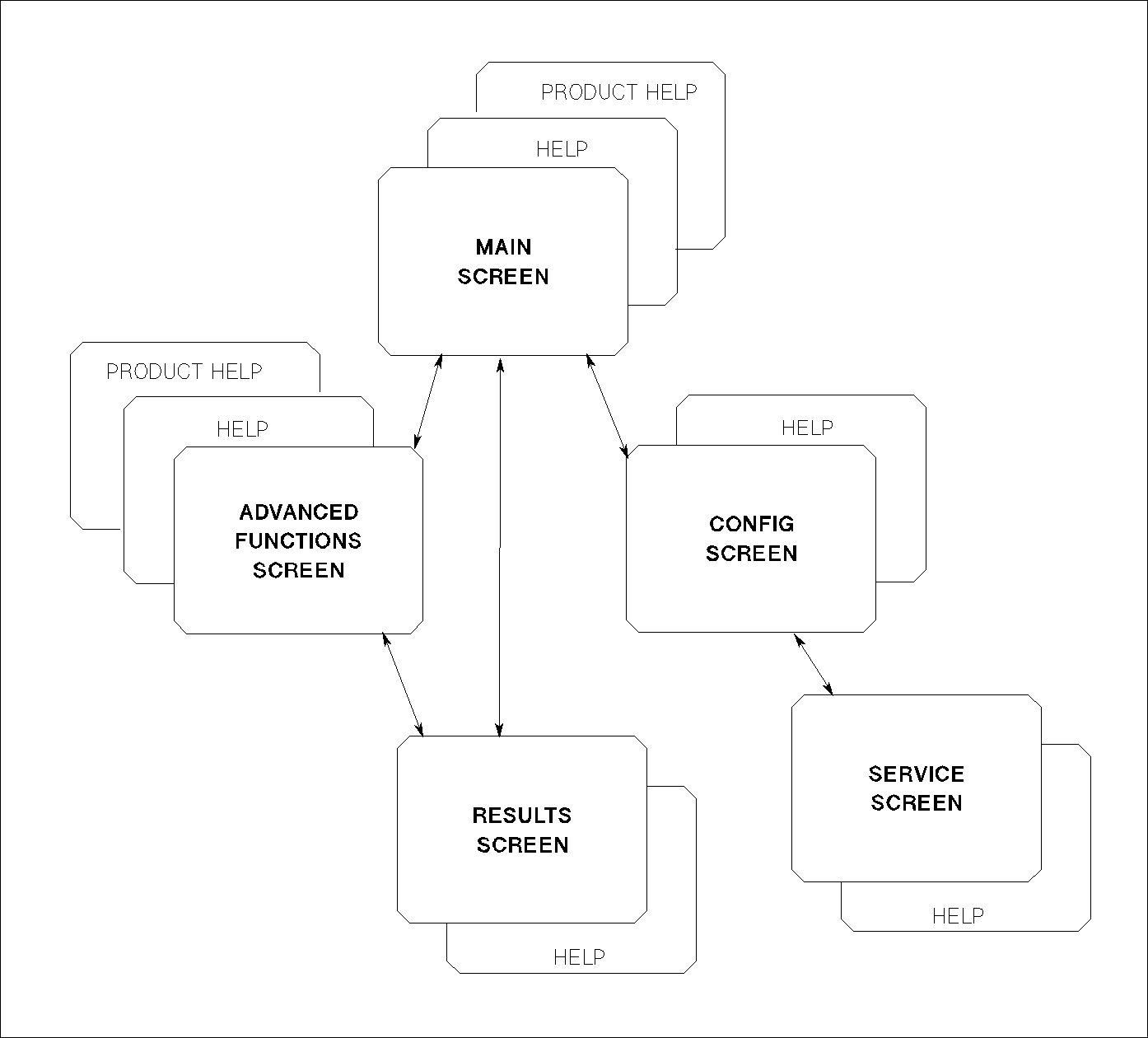

          Figure 7-1.  Host Diagnostic Screens

Using Screens

To run the Host Diagnostic Interface with screens:

At the MPE prompt, enter:

       RUN PPCDIAG.PPC.SYS

The Main Screen is displayed.

Getting Help with Screens

To display help from any Host Diagnostic Interface screen:

Choose:

        Help  f7

If the help screen has multiple pages, choose  Next Page f5 and  Prev
Page f4 to page back and forth through the help message.  These function
labels are blank if there is only a single screen of help.

To display help for the Resource Sharing product diagnostic:

From the Main Screen:

   1.  Enter X beside the product name Resource Sharing.

   2.  Choose:

        Help  f7

From the Advanced Functions screen:

       Choose:

        Product Help f6

Help accessed from the Advanced Functions screen describes all tests
available for the product that was specified at the Main Screen.
