Information Access Server: Planning and Configuring

Worksheet 2:  Access Group Definition

Access Group Definition

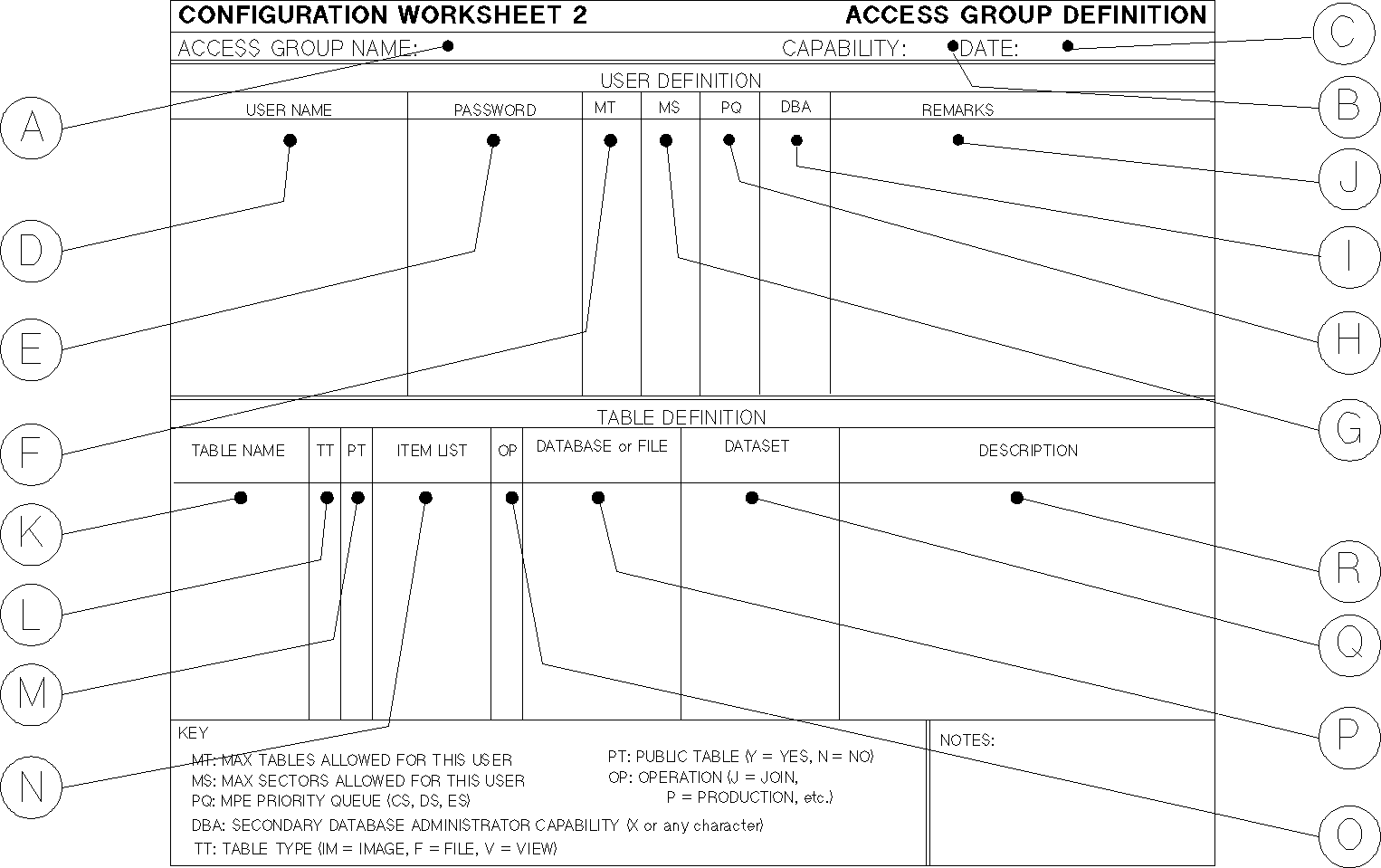

          Figure 1-2.  Labeled Diagram of Configuration Worksheet 2

Objective.

The primary DBA or secondary DBA uses this worksheet to arrive at the
definitions of access groups, of the PC users who will belong to them, of
secondary DBAs, and of the IMAGE, file, and view tables each access group
will be able to use.

Worksheet Description.

 At the top of the worksheet are spaces for the ACCESS GROUP
 NAME (A), the CAPABILITY (B) of the access group, and the
 DATE (C) you defined the access group in the Administrator
 Utility.

          Table 1-0.  (cont.)

                          Seven columns are provided for the definitions of Access PC
                          users belonging to the access group:

(D) USER NAME             The name you want to give the Access PC user.  The name you
                          enter in Access PC can be up to 16 characters long and must
                          begin with an alpha character followed by any combination of
                          alphanumeric characters and/or hyphens.  (Access Server
                          upshifts alpha characters in this field.)

(E) PASSWORD              The password (optional) you want to give the user.  If you
                          provide a password, it, too, can be up to 16 characters long
                          and must begin with an alpha character followed by any
                          combination of alphanumeric characters and/or hyphens.
                          (Upper and lower case are significant in the assignment of
                          passwords.)

(F) MT                    The maximum number of result tables this user can save on the
                          host HP 3000.  You might put UNLMT in this column if you
                          don't want to set a limit.

(G) MS                    The maximum number of disc sectors this user's saved tables
                          can occupy on the disc drives connected to the host HP 3000.
                          You can put UNLMT if you don't want to set a limit.

(H) PQ                    The MPE priority of the user's server process.  The default
                          is CS, the normal priority for interactive processes.  DS is
                          a lower priority and ES is lower still.

(I) DBA                   Designates an optional secondary DBA. Put an X (or any
                          printable character) in this column next to any user to be
                          configured as a secondary DBA. (Only the primary DBA can
                          configure a secondary DBA.)

(J) REMARKS               A column for any additional information about this user.
                          (Unlike most other columns, these remarks are not part of the
                          user definition and are not recorded in the data dictionary.)
                          The PC user's full name might go here, for example.  Or,
                          since there need not be a one-to-one correspondence between
                          user names and real people, you might indicate which people
                          are using which user name.

                          Eight columns are provided for the definitions of configured
                          tables accessible to users in this access group:

(K) TABLE NAME            The name you assign to each configured table being described.
                          Table names can be up to 16 characters long and must begin
                          with an alpha character followed by any combination of
                          alphanumeric characters and any of these characters: + - * /
                          ?  ' # % & @.  (In naming tables, keep in mind any
                          limitations on table names in the applications your PC users
                          plan to use with data saved from Access Server.)

(L) TT                    The table type.  IM represents an IMAGE table (a table
                          derived exclusively from one IMAGE dataset).  F represents a
                          table derived exclusively from one file.  V represents a view
                          table (a table derived from one or more previously configured
                          tables).

          Table 1-0.  (cont.)

(M) PT                    Indicates whether the table is a public table.  Because no
                          access groups are assigned to it, a public table can be
                          accessed by any Information Access user.  A No in this column
                          means you'll need to configure table security for this table.
                          (Note:  A table can be a public table and still have item
                          security on selected items.  Keep track of item security in
                          the Description column.)

(N) ITEM LIST             The names of the items contained in the table.  A configured
                          table can have up to 64 items (columns).  For IMAGE tables,
                          the Add IMAGE Table screens provide an easy way to include
                          all items from a dataset, so you may not need to list all the
                          items here in that case; the same is true for file tables.

(O) OP                    For view tables, the kind of operation required to configure
                          the table.  J3, for example, might mean three tables are
                          JOINed to create the view table.  For a view table derived
                          from one IMAGE table, you might use an N to mean no special
                          operation is required.

(P) DATABASE OR FILE      The name of the IMAGE database or file the item on the same
                          line is associated with.

(Q) DATASET               The name of the IMAGE dataset the item is derived from.  The
                          name of the file is in the previous column.

(R) DESCRIPTION           A place to describe anything noteworthy about the item, or to
                          refer to a more detailed definition of the view table in
                          Worksheet 3.

To Plan for Access Groups and Users:.

   1.  Use your results from Worksheet 1 to estimate the number of access
       groups you want to configure.  For each access group, make one
       copy of Worksheet 2.

   2.  On each worksheet, fill in an appropriate name and capability for
       the access group.

   3.  For each user you want in the access group, create a user name and
       password.  You may want to leave the saved-table capability
       columns (MT and MS) blank until you've conferred with your System
       Manager.  Indicate which users, if any, have been or will be
       designated as secondary DBAs.

   4.  Based on what you learned from Worksheet 1 about these users' data
       needs, define the IMAGE, file, and view tables for each access
       group.  For complex view tables, list the table name, briefly
       summarize the rest of the information about the table, and refer
       yourself to Worksheet 3 for its complete definition.

Once you've completed Worksheet 2 for each access group, you'll have all
the information required to configure access groups, users, tables
(except view tables), and table and item security.  If you plan to define
view tables, use Worksheet 3.
