D : How the Data Dictionary is Configured

The bulk of the tasks you can perform with the Administrator Utility are
those that allow you to configure the data dictionary.

You define:

   *   Tables.  The data that can be accessed.
   *   Users.  How specific PC users can use Information Access.
   *   Security.  Which part of the data can be accessed by which users.

These three groups of tasks are summarized below.  You will learn how to
do them in Lesson 2.

Menu Structure

The Administrator Utility is menu-driven.  It consists of:

   *   Menus, from which you choose where to go next.
   *   Data entry screens, where you type information.
   *   Display screens, where you get help or examine definitions.

The menus and screens are organized in a hierarchy defined by levels of
operation.  Figure 1-3 shows the relationship between the first few menu
levels.

Additional menus and all data entry and display screens are accessible
from these menu "branches." There's also a quick way to get to specific
screens without stepping through the entire menu path.

When you first learn the Administrator Utility, use the menu path and
keep Figure 1-3 in mind to help you understand how the utility is
organized.  (You'll use both methods in these lessons.)

The summaries below tell you which menu branch or branches you'll use for
that group of tasks.

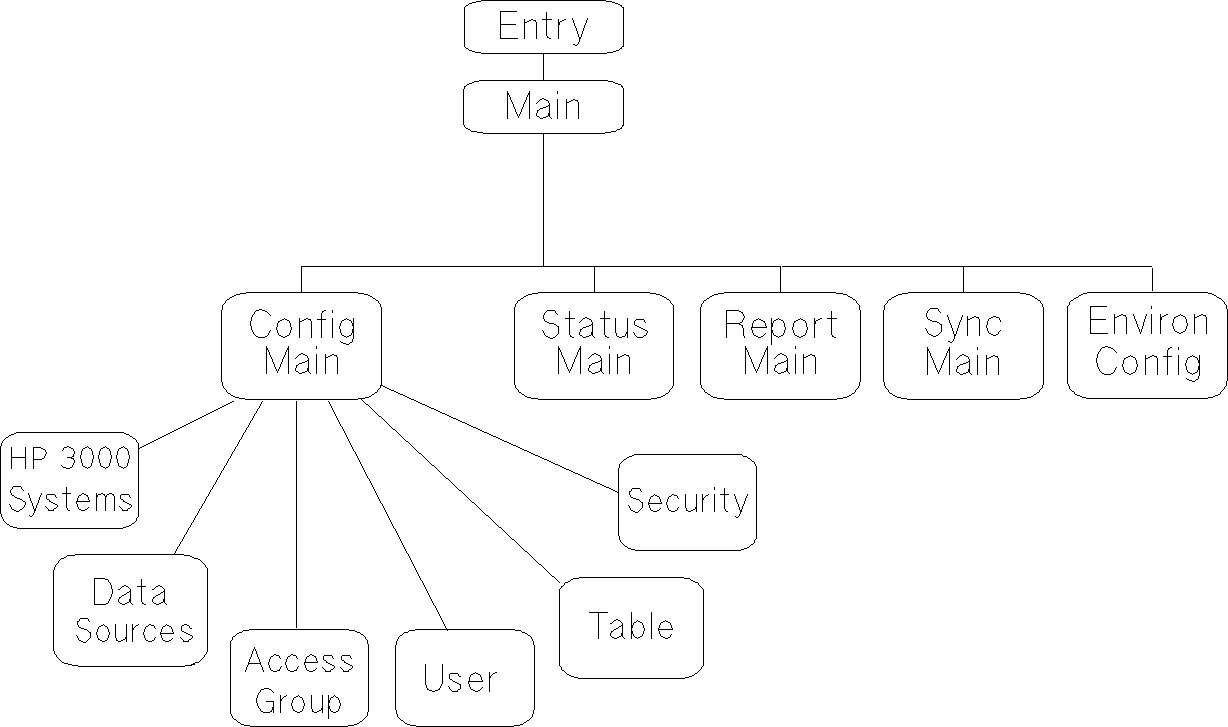

          Figure 1-3.  Administrator Utility Menu Path

Table Configuration

Configuring tables for Information Access involves four steps:

   1.  Configure remote HP 3000 systems if you have remote HP 3000s one
       node way from the host HP 3000.

   2.  Configure the data sources that Access Server can access on the
       host HP 3000 or remote HP 3000s.

   3.  Configure IMAGE or file tables by drawing items from one dataset
       or file into a relational table format.

   4.  Configure view tables by combining items from one or more
       previously configured tables into one relational table format.
       This feature allows you to draw information together from several
       databases or files that reside on one or more HP 3000s.

The tables discussed here are configured tables, which differ from saved
tables:

Configured table.  Either an IMAGE table, a file table, or a view table.
A configured table is actually a table definition that establishes how
the data is arranged when it is loaded into the table.  The data is
loaded when you access the table, so you always get the most current
data.

Configured tables are defined by the DBA. They are accessible by all
users.

Saved table.  Contains historical data (that is, a snapshot of the data
at the time the table was saved).  A saved table is associated with the
PC user who saved it and appears on that user's Remote Tables screen
labeled Saved.  It cannot be accessed by other PC users unless the Host
Batch Facility RELEASE_TABLE command is used to let other PC users access
that particular table.

Step 1:  Configuring Remote HP 3000 Systems.

If a data source (database or file) from which you want to draw data
resides on a remote HP 3000, define that remote system.

Use the screens that branch from the HP 3000 Systems Menu.  The host
system need not be defined.

Step 2:  Configuring Host and Remote Data Sources.

Configure the data sources from which you want to draw data.  Data
sources can include host or remote databases or files.

Use the screens that branch from the Data Sources Menu to define the
source of your data.

Figure 1-4 pictures a system which has been configured for two remote
HP`3000 systems:

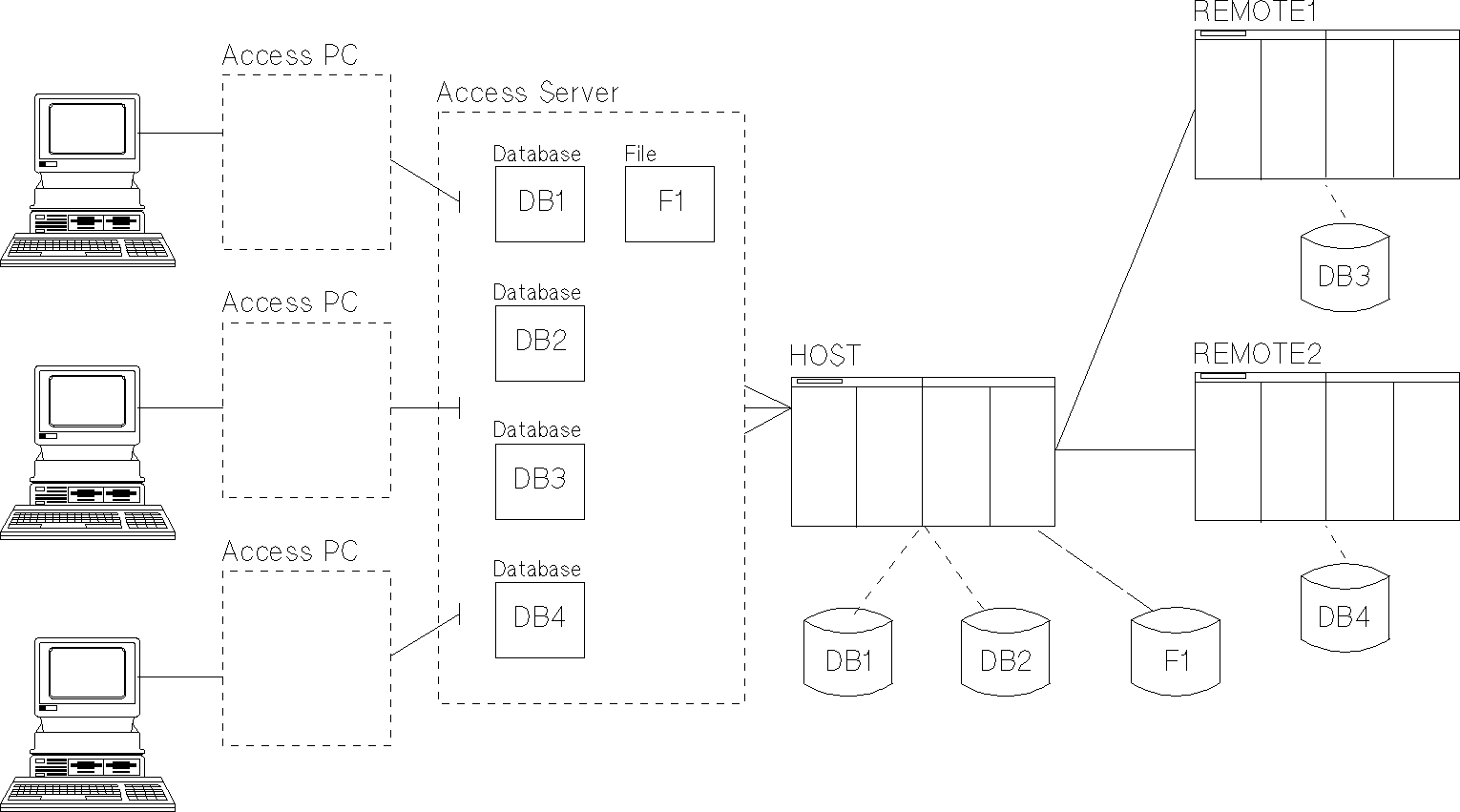

          Figure 1-4.  Configuring Data Sources

In this example, four IMAGE databases are configured, two on the host
HP`3000 and one each on the remote systems.  One file is configured on
the host HP`3000.

Step 3:  Configuring Tables from a Data Source.

Next, you reach into the databases and files you configured (in Step`2)
and, for each dataset or file you're interested in, you define one or
more IMAGE or file tables.  You can specify which items to include in
each table.  Each item you choose will become a column head in the table.

Use the screens that branch from the Table Menu to configure tables from
individual datasets or files in any of the configured databases or files.

These screens are used only to handle configured tables.  To handle saved
tables, use the screens that branch from the System Status Main Menu.


NOTE  The examples that follow will be derived from IMAGE tables only, so
      you can learn about the table configuring process in its simplest
      form.  File tables are derived in a similar way.


Figure 1-5 pictures the same system as in Figure 1-4, with Step 3
completed for IMAGE tables only:

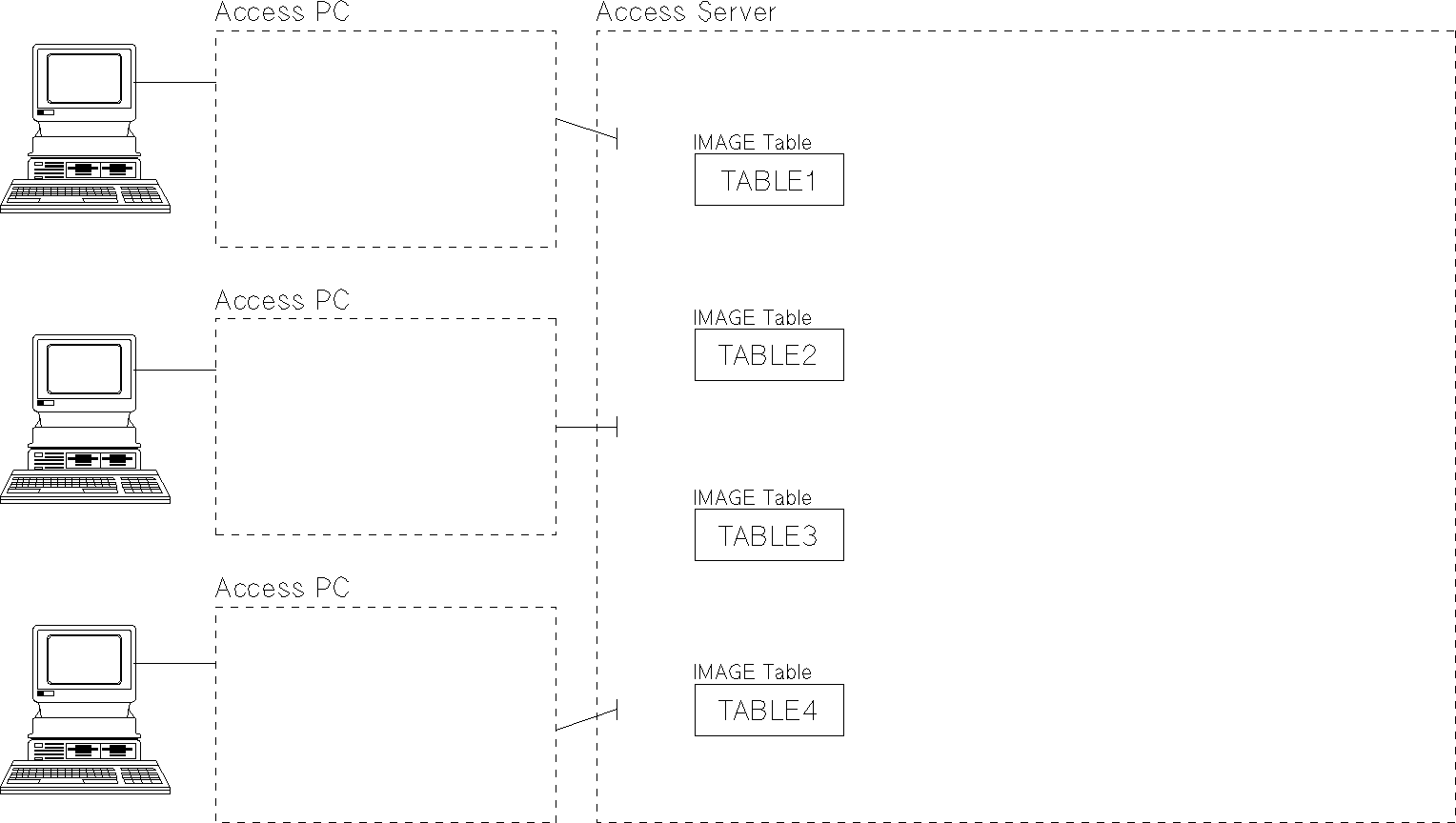

          Figure 1-5.  Configuring IMAGE Tables

In this example, four IMAGE tables are configured, named TABLE1 through
TABLE4:

   *   TABLE1 comes from a dataset in database DB1.
   *   TABLE2 comes from a dataset in database DB2, and so on.

In Figure 1-5, the databases from which these tables come are no longer
shown, nor are the HP 3000s on which the databases reside.  For purposes
of data definition, this information is no longer of concern.  From this
point on, the data is handled in table form.

When Tables Are Accessed.

The definition of each table is stored in the Information Access data
dictionary, but the tables themselves will not actually be loaded with
data until requested through Access PC or through the Host Batch
Facility.  A table will be saved on the host HP 3000 as historical data
(a "saved table") only when requested from a PC or through the Host Batch
Facility.

From the information gathered on the Configuration Worksheets during the
planning stage, you know that some users would like to draw information
together into a different view of the data than these IMAGE tables
provide.

So at this point, you can define the structure of some view tables to do
just that.

Step 4:  Configuring View Tables.

You use simple relational operators to draw items from already configured
tables into a view table format.  The tables from which the items are
drawn can be any combination of previously configured tables.

Use the screens that branch from the Table Menu to configure view tables
that provide different views of your data.

Figure 1-6 pictures the final stage of table definition:

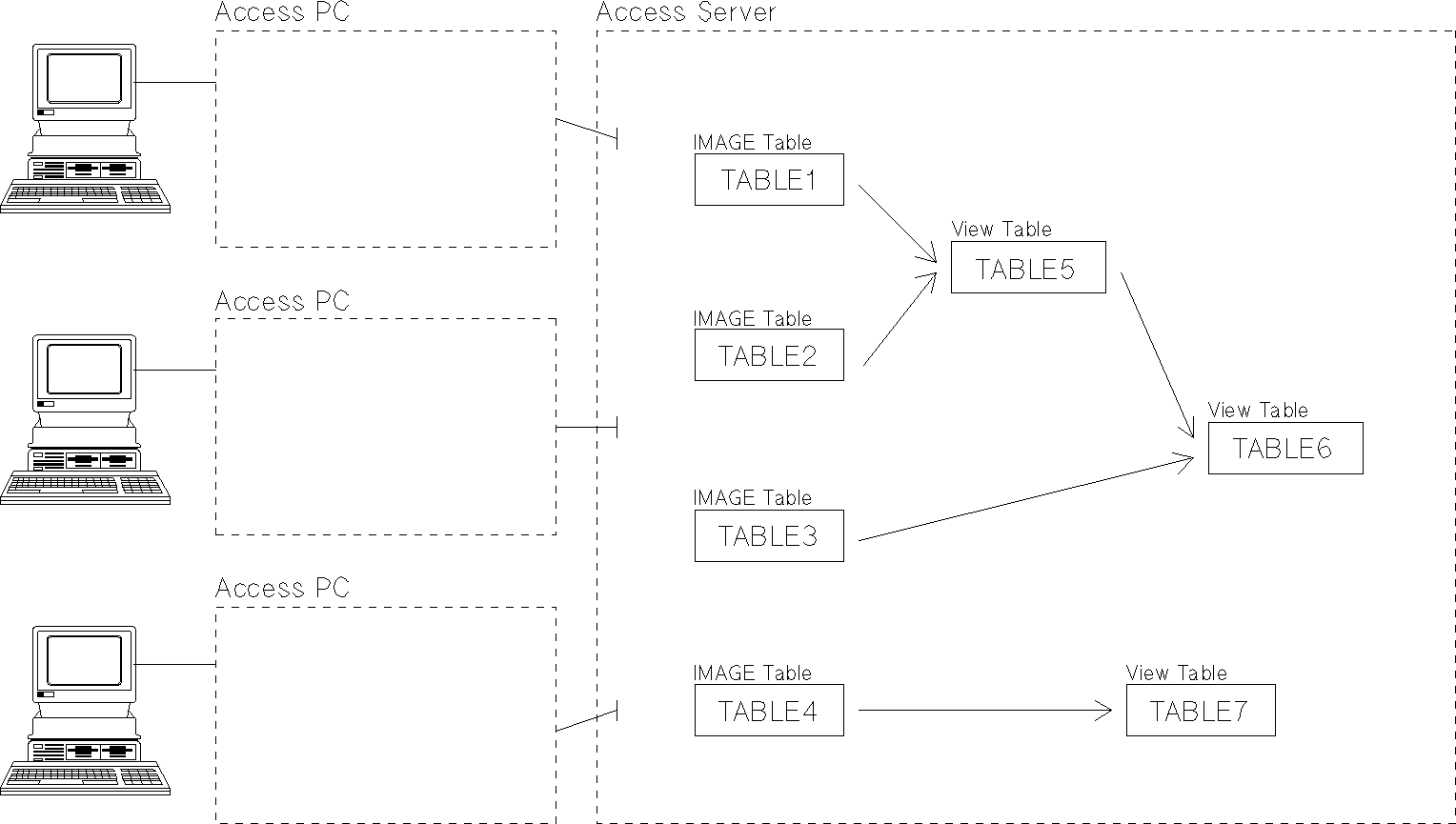

          Figure 1-6.  Configuring View Tables

In this example:

   *   TABLE5 is a view table which includes items from IMAGE tables
       TABLE1 and TABLE2.

   *   TABLE6 is a view table which includes items from view table TABLE5
       and IMAGE table TABLE3.

   *   TABLE7 is a view table which includes a subset of items from IMAGE
       table TABLE4.

The distinction between IMAGE tables and view tables is something most of
your users don't need to be concerned about.  In their view of things,
TABLE1 through TABLE7 are "remote tables" accessible through Access PC.

Only users who are members of access groups with special capabilities
(refer to "User Configuration," below) need to understand how view tables
differ from other kinds of tables.

User Configuration

Configuring users of Information Access involves two steps:

   1.  Configure access groups to name a set of users who need to see the
       same tables and items, and perform the same level of actions (see,
       add, and/or delete configured information).

   2.  Configure valid users, assign them to an access group, and define
       their use of host system resources.

Users are assigned to one and only one access group.  The only
differences between users in an access group are their saved-table
capabilities, MPE priority, and whether or not they are defined as a DBA.

If you want to give one user a different level of access to configured
table data, create a separate access group for that user.

Saved table access is not controlled by the access group to which a user
belongs.  A saved table is available only to the user who created it,
unless the Host Batch Facility RELEASE_TABLE command is used to permit
additional access to that table by a specified user (who can be a member
of any access group).  Here's an example of the commands you'd use to
release a saved table to two users:

               RELEASE_TABLE savedtable1 user3
               RELEASE_TABLE savedtable1 user7

Step 1:  Configuring Access Groups.

Think of an access group as a set of users (one or more) who will want to
see and work with the same configured tables.  The access group will be
used to specify which tables and items the set of users will be able to
see when you define security.

Each access group has an assigned capability level.  All users can see
the tables and items associated with their access group by configured
security.  You can also assign an access group the capability to add
IMAGE databases and tables and to delete any configured tables associated
with their access group.

Use the screens that branch from the Access Group Menu to configure
access groups and control user capabilities.

After you've configured some access groups, your Information Access
Server environment might look like this:

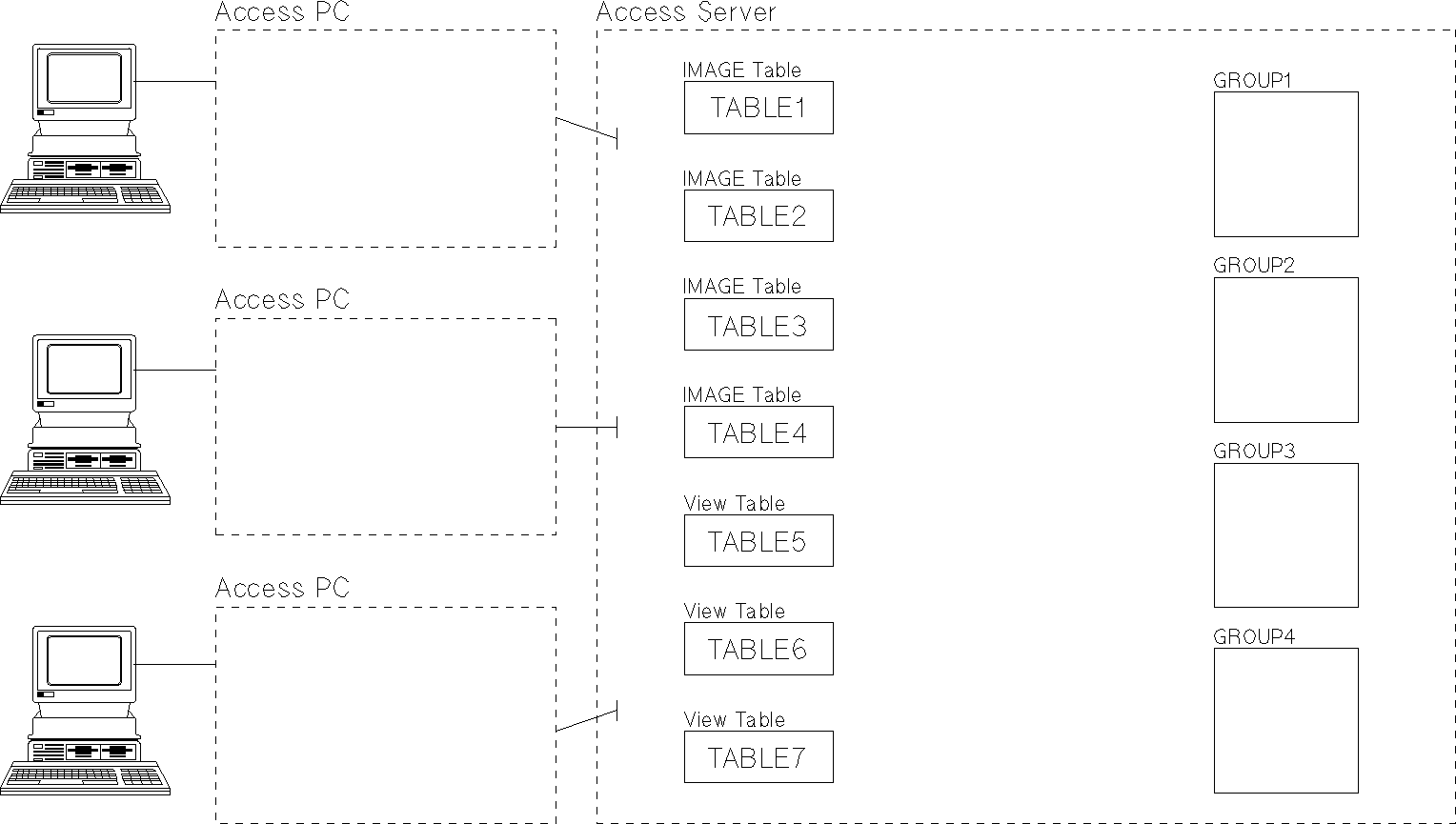

          Figure 1-7.  Configuring Access Groups

In this figure, four access groups, GROUP1 through GROUP4, have been
defined.  At this point, no users belong to the access groups.

Step 2:  Configuring Users.

Users are identified by a name and optional password, which are checked
when a PC user requests remote tables.  You can set limits on a user's
use of host HP 3000 system resources (saved tables, disc space, and MPE
priority).  If you are the primary DBA, you can also make the user a
secondary DBA.

Use the screens that branch from the User Menu to define who will be able
to use Access Server and what system resources they can use.

Once users are added, the system looks like this:

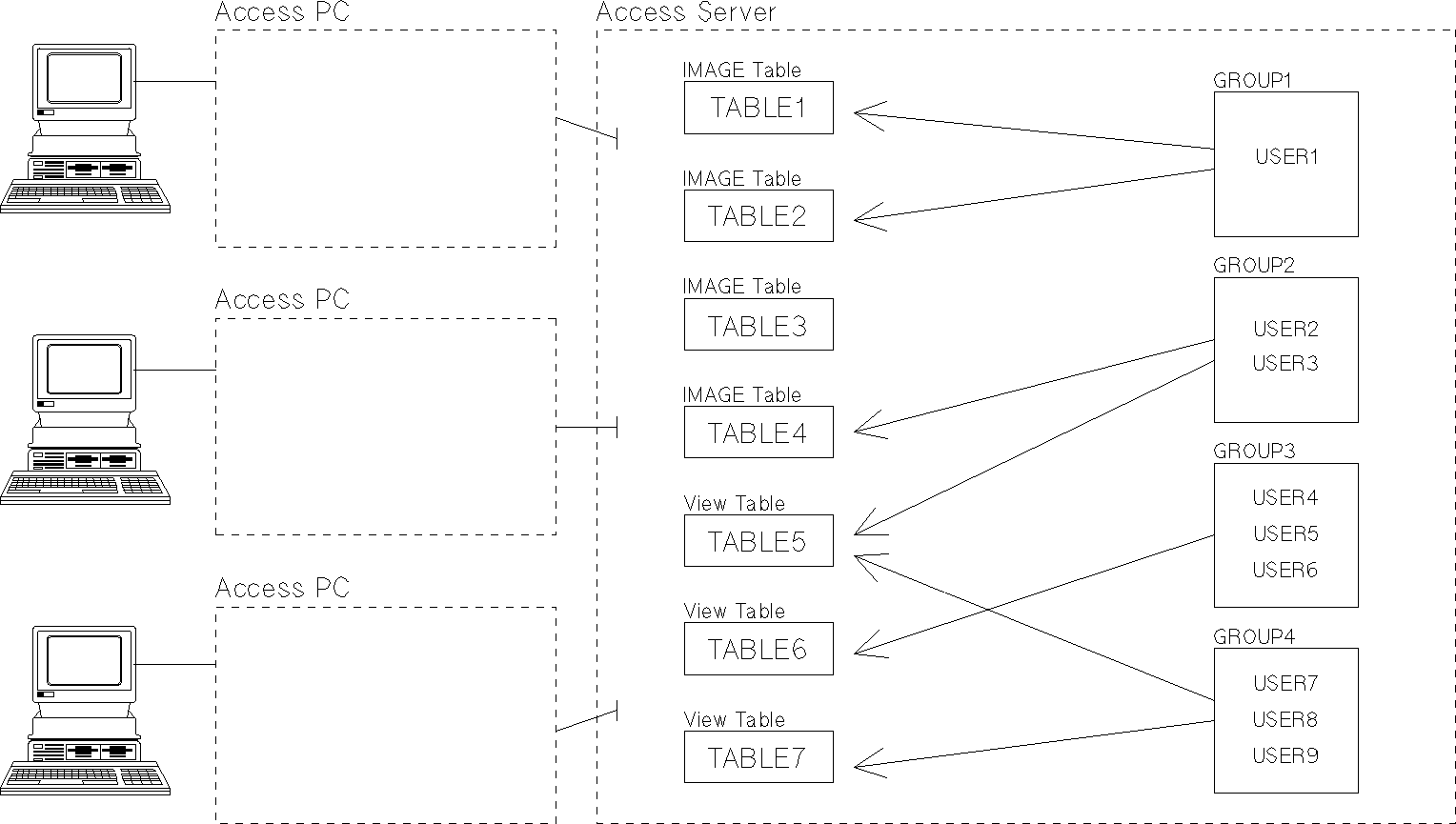

          Figure 1-8.  Configuring Users

In this figure, users USER1 through USER9 are defined.  Each is assigned
to one of the four access groups previously defined.

Users are placed together in an access group because they need to see the
same data.

Next you'll see how to assign access groups to configured tables.

Security Configuration

IMAGE uses database passwords and user classes to control user views of
IMAGE databases.  In a similar way, Information Access controls user
views of its data by assigning access groups to specified tables and
items.

Defining security for Information Access data involves assigning an
access group to the tables and items its users will be allowed to see:

   1.  Configure table security by assigning one or more access groups to
       a table.  This makes the table accessible only by users in those
       access groups.

   2.  Configure item security by assigning one or more access groups to
       an item in a table.  This makes the item accessible only by users
       in those access groups.

Since a secured item is only accessible if the access group associated
with it can see the table containing the item, you must coordinate item
security with table security.

Public Tables and Items.

Public Tables and Items.

Tables with no access groups assigned to them are called public tables
and are accessible by all users.  If no access group is assigned to an
item, it will be accessible to all users who can access the table
containing that item.

If you add security to an item in a public table, then only users in the
access group assigned to the item will be able to see that item.  Other
users will see the rest of the table.

There is no need to add table security before adding item security.  What
you want to avoid, however, is unintentionally creating a public table or
a public item by removing the single access group assigned to the table
or item.  In such cases, if you are the primary DBA, you might want to
make Information Access unavailable to your PC users (using the UDC
command DISABLEAC) while you make your changes in security.


NOTE  Access Server provides a default user capability.  This allows any
      unconfigured user who has a session on the host HP 3000 to look at
      configured tables using Access PC.

      If you allow default user capability, then public tables will be
      accessible by users you have not configured (limited, of course, by
      the MPE security of the default user's logon).

      Keep this in mind when you decide what sort of security to put in
      place and whether or not you want to allow default users into
      Access Server.  (See "Default Users" in Chapter 7, "Configuring
      Users," in the Information Access Server:  Database Administration
      manual.)


Step 1:  Providing Security for Configured Tables.

An access group assigned to a table can be thought of as "owning" that
table.  Use screens that branch from the Table Security Menu to assign an
access group (or groups) to a configured table.

Here is what your system might look like after table security is assigned
to seven tables, specifying previously defined access groups and tables:


          Figure 1-9.  Configuring Table Security

   *   GROUP1 is assigned to TABLE1 and TABLE2.
   *   GROUP2 is assigned to TABLE4 and TABLE5.
   *   GROUP3 is assigned to TABLE6.
   *   GROUP4 is assigned to TABLE5 and TABLE7.

Here is the effect of these assignments:

   *   Because TABLE3 has no access groups assigned to it, it is owned by
       everyone in common and is therefore known as a public table.
       Users in all access groups will be able to access TABLE3.
       (Default users will only be able to access TABLE3.)

   *   Think of any table with one access group assigned to it, for
       example TABLE4, as a solely-owned table.  Only users in GROUP2
       will have access to TABLE4.

   *   Think of any table with more than one access group assigned to it,
       for example TABLE5, as a jointly-owned table.  Users in GROUP2 and
       GROUP4 will have access to TABLE5.

       This is not to say that the views of a jointly-owned table such as
       TABLE5 will necessarily be the same, however.  If you add item
       security to TABLE5, as described next, users in GROUP2 may see a
       different set of columns than users in GROUP4.

Step 2:  Providing Security for Items in Configured Tables.

An access group assigned to an item can be thought of as "owning" that
item.  Use the screens that branch from the Item Security Menu to assign
an access group to an item in a configured table.

Here, for example, is TABLE5 with item security assigned:

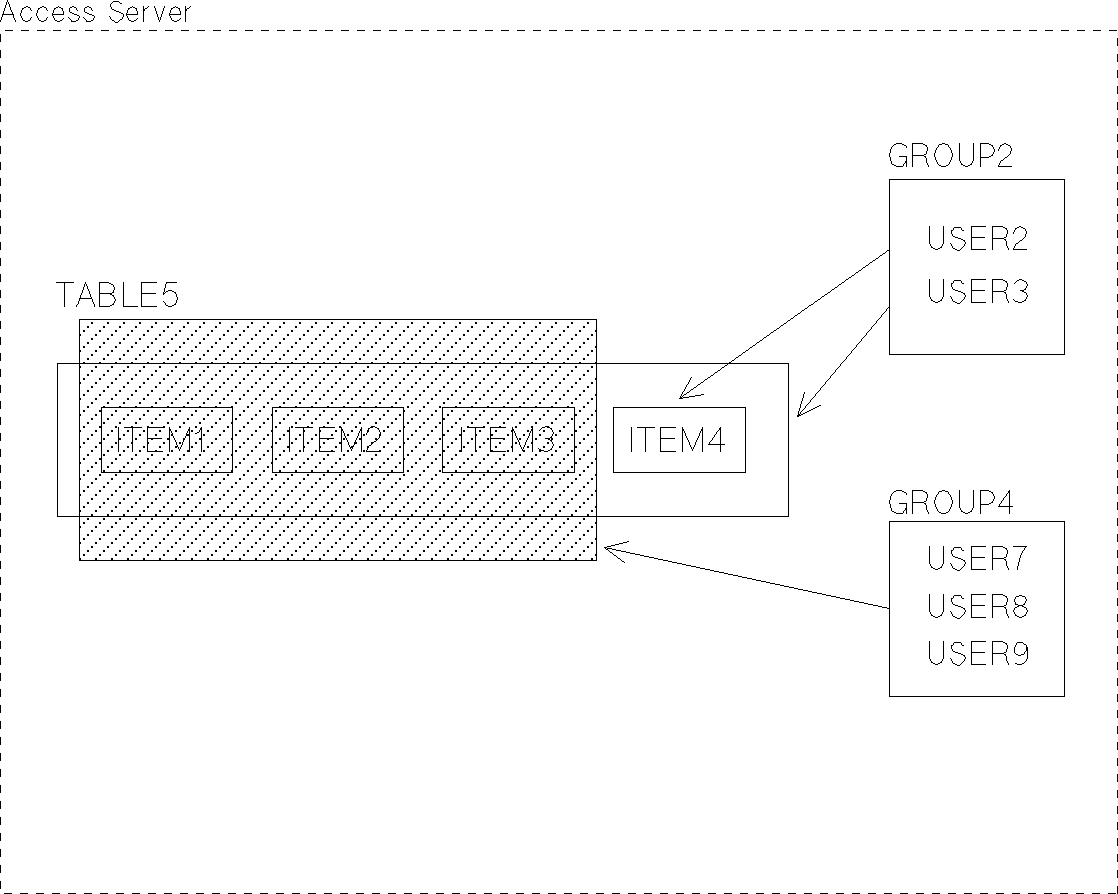

          Figure 1-10.  Configuring Item Security

   *   TABLE5 contains four items, ITEM1 through ITEM4, each of which is
       a column head in the table.

   *   But the fourth column (ITEM4) contains sensitive information,
       perhaps salary figures, which you only want USER2 and USER3 to
       see.  So you assign their access group GROUP2 to ITEM4 in TABLE5.

Here is the effect of these assignments:

   *   When users in GROUP4 access TABLE5, they'll see a three-column
       table, with column heads ITEM1, ITEM2, and ITEM3.

   *   But when users in GROUP2 access TABLE5, they'll see the full
       four-column table, with ITEM1 through ITEM4 as column heads.

Step 3:  Letting PC Users Into Information Access.

At this point, all of your security is in place.  If you made Access
Server unavailable to PC users, you can now make it available again.  You
do this by running ADMIN.PPC.SYS with PARM=1 (or by using the UDC command
ENABLEAC).

If USER3, USER6, and USER9 each ran Access PC and went to the Remote
Tables screen, here's what they'd see:

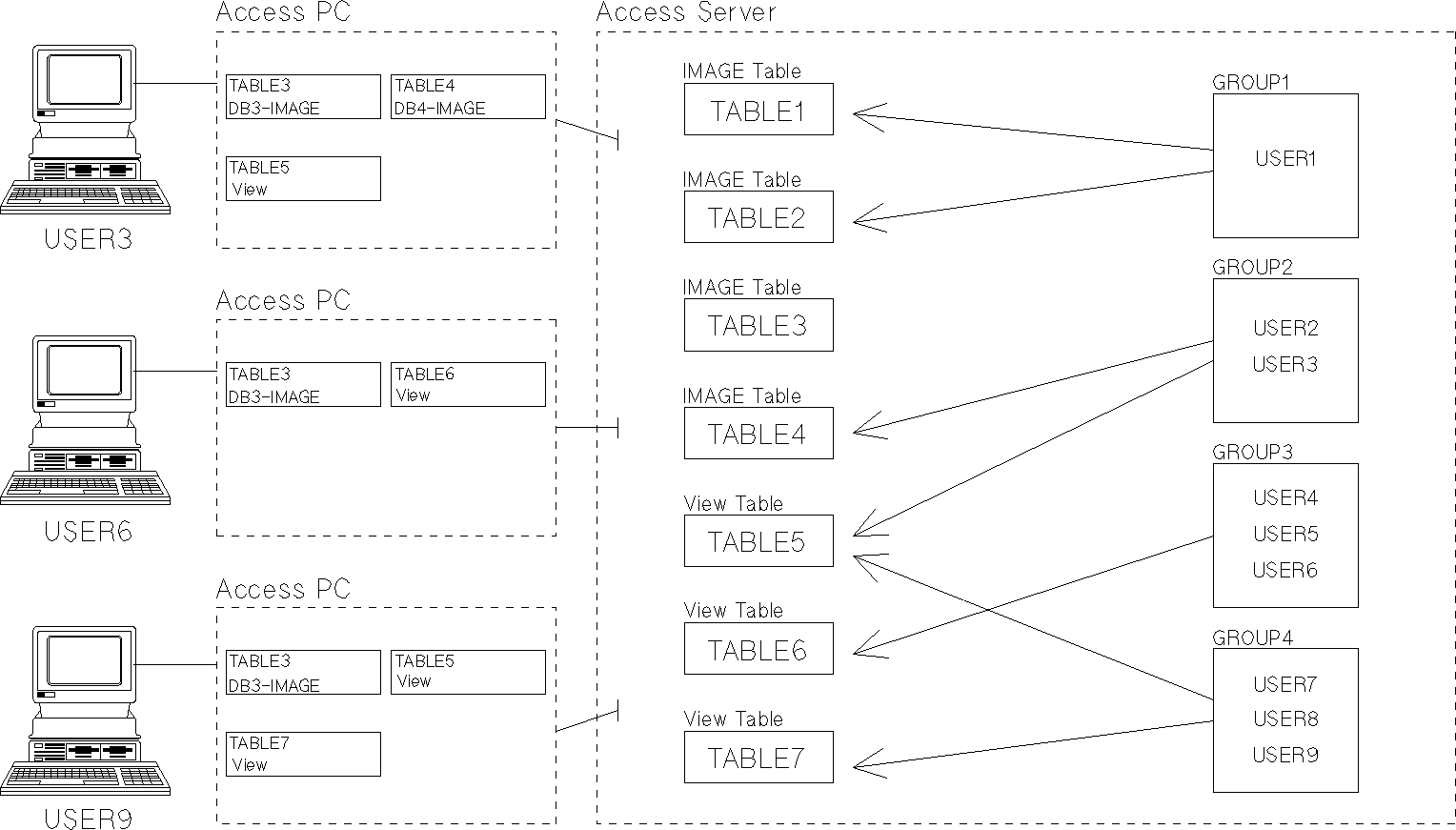

          Figure 1-11.  How Security Affects What PC Users See

Given the table security and item security you have in place:

   *   USER3 sees the public table TABLE3 and the two tables (TABLE4 and
       TABLE5) to which GROUP2 is assigned.

   *   USER6 sees the public table TABLE3 and the one table (TABLE6) to
       which GROUP3 is assigned.

   *   USER9 sees the public table TABLE3 and the two tables (TABLE5 and
       TABLE7) to which GROUP4 is assigned.  Because of the item security
       on TABLE5, USER3 sees four columns in TABLE5, but USER9 sees only
       three columns.

At this point, you should have a fairly good overview of Access Server.
Now that you have completed this lesson, you're ready to perform an
actual configuration.  Lesson 2 will guide you through it.

MPE/iX 5.0 Documentation
