Chapter 7  Using and Maintaining the Tape Drive

This chapter describes procedures for the tape drive that comes with your
HP 3000 Series 9X7LX. A DDS tape drive stores data on cassette tapes in a
format called digital data storage (DDS). To avoid loss of data and
damage to your DDS drive, use only properly certified DDS cassette tapes,
not DAT tapes, which are only tested for audio use.  Hewlett-Packard
makes no warranty for tapes other than those sold specifically for this
tape drive and recommends that you use Hewlett-Packard DDS cassettes with
your DDS-format drive.

The digital data storage (DDS) tape drive is mounted in the same cabinet
with the computer.[REV BEG] The tape drive is located just below the
computer switches and indicators.  The tape drive that comes with your
computer system is one of the two types shown in Figure 7-1  and
Figure 7-2 .  Each tape drive has indicators that are positioned
differently but represent the same functionality.  The procedures in this
chapter are the same using either tape drive.

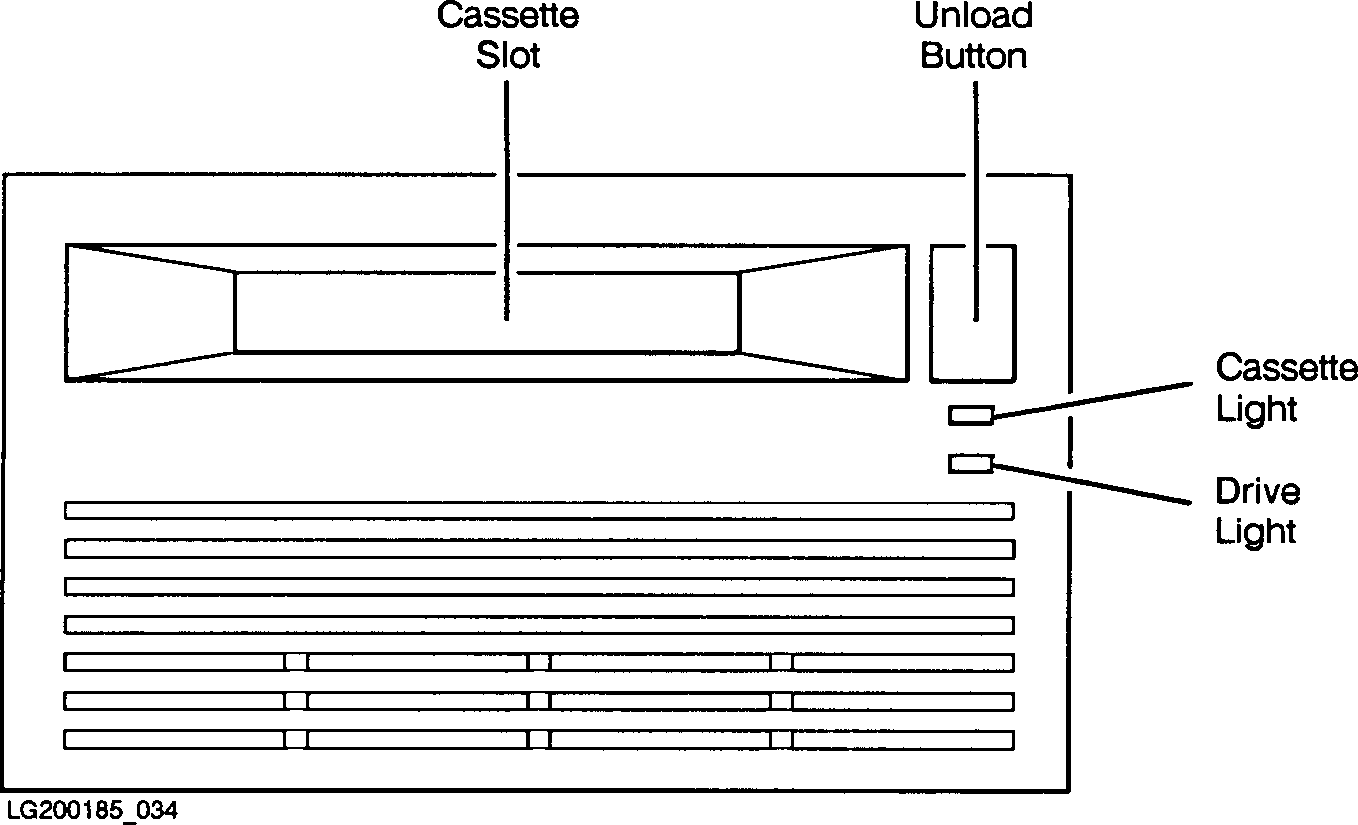

          Figure 7-1.  HP C1502A 5.25-Inch Tape Drive Front Panel

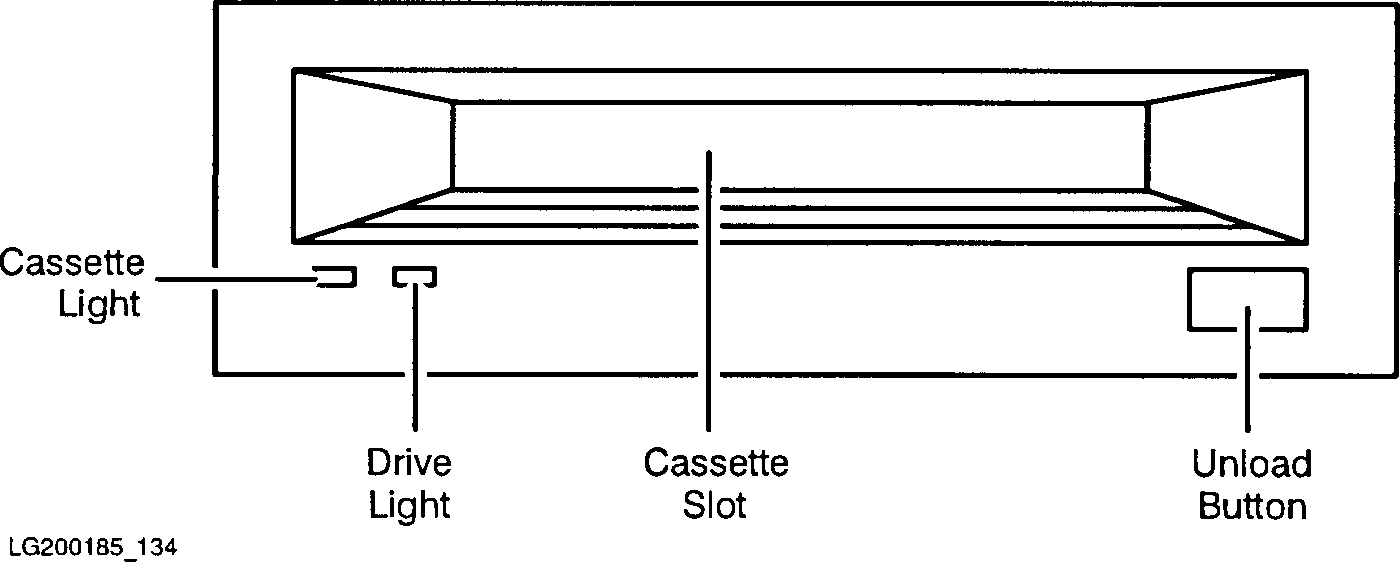

          Figure 7-2.  HP C1503A 3.5-Inch Tape Drive Front Panel
