Data Type Alignments
This section illustrates the various alignment modes of the HP 9000, HP
3000, and HP Apollo systems as well as the storage and alignment rules of
VAX/VMS C, CCS/1000, and CCS/C 3000.
The data alignment modes provided on the various HP and HP Apollo systems
can be divided into two main categories, WORD and NATURAL. WORD alignment
modes are typical of MPE V systems. The most restricted alignment
boundary of WORD alignment modes is 2 bytes. NATURAL alignment modes are
typical of RISC-based systems where the alignment of an object is related
to the size of the object.
The WORD alignments are:
HPUX_WORD The native alignment for HP 9000 Series 300/400.
DOMAIN_WORD The native alignment for HP Apollo Series 3000/4000.
MPE_16 The native alignment for HP 3000 Series 4x/5x/6x/7x
(MPE V).
The NATURAL alignments are:
HPUX_NATURAL The native alignment for HP 9000 Series 700/800 and HP
3000 Series 900.
DOMAIN_NATURAL The native alignment for HP Apollo Series 10000.
NATURAL An architecture-independent alignment mode for HP 9000
Series 300/400/700/800, and HP Apollo Series 3000,
4000, 10000.
The alignment modes listed above can be controlled using the HP_ALIGN
compiler pragma. See the section titled "Declaring the HP_ALIGN Pragma"
in this chapter for a detailed description of this pragma. The NATURAL
alignment mode should be used whenever possible. This mode enables data
to be shared among the greatest number of HP-UX and Domain (HP Apollo)
systems.
The following table presents the differences between the various
alignment modes. The alignment modes of other C compilers are also
shown.
Table 2-1. Comparison of Data Types and Alignments
-------------------------------------------------------------------------------------------------------
| | | | | | |
| Data Type | Size | Alignment | Alignment | Alignment | Alignment |
| | (bytes) | HPUX_WORD | HPUX_NATURAL | HPUX_NATURAL_ | NATURAL |
| | | DOMAIN_WORD | (Series | S500 | |
| | | MPE_16 | 700/800) | | |
| | | | DOMAIN_NATURAL | | |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| char enum | 1 | 1-byte | 1-byte | 1-byte | 1-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| char, signed | 1 | 1-byte | 1-byte | 1-byte | 1-byte |
| char, unsigned | | | | | |
| char | | | | | |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| short enum | 2 | 2-byte | 2-byte | 2-byte | 2-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| short, signed | 2 | 2-byte | 2-byte | 2-byte | 2-byte |
| short, | | | | | |
| unsigned short | | | | | |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| int enum | 4 | n.a. | 4-byte | n.a. | n.a. |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| int, signed | 4 | 4-byte1 | 4-byte | 4-byte | 4-byte |
| int, unsigned | | | | | |
| int | | | | | |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| long enum | 4 | 4-byte | 4-byte | 4-byte | 4-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| long, signed | 4 | 4-byte | 4-byte | 4-byte | 4-byte |
| long, unsigned | | | | | |
| long | | | | | |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| float | 4 | 4-byte1 | 4-byte | 4-byte | 4-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| double | 8 | 4-byte1 | 8-byte | 4-byte | 8-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| long double4 | 16 or 8 | 4-byte1 | 8-byte | n.a. | 8-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| enum | 4 | 4-byte1 | 4-byte | 4-byte | 4-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | |
| arrays | Same as the alignment rule for the type of the array element. |
| | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| struct | 2,3 | 2-byte1 | 1-, 2-, 4- or | 2- or 4 | 2-, 4- or 8 |
| | | | 8 byte2,3 | byte2,3,5 | byte2,3 |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| union | 2,3 | 2-byte1 | 1-, 2-, 4- or | 2- or 4 | 2-, 4- or 8 |
| | | | 8-byte2,3 | byte2,3,5 | byte2,3 |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | |
| bit-fields | Same alignment as declared type. |
| | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| pointer | 4 | 4-byte | 4-byte | 4-byte | 4-byte |
| | | | | | |
-------------------------------------------------------------------------------------------------------
| | | | | | |
| long pointer | 8 | n.a. | n.a. | n.a. | n.a. |
| | | | | | |
-------------------------------------------------------------------------------------------------------
Table 2-1. Comparison of Data Types and Alignments (continued)
------------------------------------------------------------------------------
| | | | | | |
| Data Type | Size | Alignment| Alignment | Alignment | Alignment |
| | (bytes)| HP C/iX | VAX/VMS C | CCS/C 1000 | CCS/C MPE V |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| char enum | 1 | 1-byte | n.a. | n.a. | n.a. |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| char, signed | 1 | 1-byte | 1-byte | 1-byte | 1-byte |
| char, | | | | | |
| unsigned | | | | | |
| char | | | | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| short enum | 2 | 2-byte | n.a. | n.a. | n.a. |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| short, | 2 | 2-byte | n.a. | n.a. | n.a. |
| signed | | | | | |
| short, | | | | | |
| unsigned | | | | | |
| short | | | | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| int enum | 4 | 4-byte | n.a. | n.a. | n.a. |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| int, signed | 4 | 4-byte | 4-byte | 4-byte | 2-byte (Size |
| int, | | | | | = 2 bytes) |
| unsigned int | | | | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| long enum | 4 | 4-byte | n.a. | n.a. | n.a. |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| long, signed | 4 | 4-byte | 4-byte | 2-byte | 2-byte |
| long, | | | | | |
| unsigned | | | | | |
| long | | | | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| float | 4 | 4-byte | 4-byte | 4-byte | 2-byte |
| | | | (Size = 8 | | |
| | | | bytes) | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| double | 8 | 8-byte | 8-byte | 8-byte | 8-byte |
| | | | (Size = 16 | | |
| | | | bytes) | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| long double4 | 16 or | 8-byte | n.a. | n.a. | n.a. |
| | 8 | | | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| enum | 4 | 4-byte | 4-byte | 2-byte | 2-byte |
| | | | | | |
------------------------------------------------------------------------------
| | |
| arrays | Same as the alignment rule for the type of the |
| | array element. |
| | |
------------------------------------------------------------------------------
| | | | | | |
| struct | 2,3 | 1-, 2-, | 4-byte | 1-, 2-, 4- | 1-, 2-, 4- |
| | | 4- or | | or 8-byte, | or 8-byte, |
| | | 8-byte, | | 2,3 | 2,3 |
| | | 2,3 | | | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| union | 2,3 | 1-, 2-, | 4-byte | 1-, 2-, 4- | 2- or |
| | | 4- or 8- | | or | 4-byte2,3,5 |
| | | byte2,3 | | 8-byte2,3 | |
| | | | | | |
------------------------------------------------------------------------------
| | |
| bit-fields | Same alignment as declared type. |
| | |
------------------------------------------------------------------------------
| | | | | | |
| pointer | 4 | 4-byte | 4-byte | 2-byte | 2-byte (size |
| | | | | (size 2 | 2 bytes) |
| | | | | bytes) | |
| | | | | | |
------------------------------------------------------------------------------
| | | | | | |
| long pointer | 8 | 8-byte | n.a. | n.a. | n.a. |
| | | | | | |
------------------------------------------------------------------------------
Footnotes to Table 2-1
1 Within a structure on HPUX_WORD and MPE_16, all types larger than 2
bytes are aligned on a 2-byte boundary.
2 Alignment is the same as the strictest alignment of any member.
3 Padding is done to a multiple of the alignment size.
4 The long double type is only available in ANSI C and on HP-UX,
MPE/iX, and Natural alignment modes; its size is 16 bytes. On DOMAIN
alignment modes, long double is treated as double with a size of 8
bytes.
5 Series 500 computers align structures on 2 or 4 byte boundaries.
Bit-Field Alignment
With the exception of bit-fields, DOMAIN_WORD structure alignment is the
same as Series 300/400 computers and DOMAIN_NATURAL structure alignment
is the same as Series 700/800 computers.
HP-UX Series 700/800 and MPE/iX use different algorithms than DOMAIN for
aligning bit-fields within a structure. HP-UX Series 700/800 and MPE/iX
align bit-fields, for example f, within a structure by taking the
current_offset prior to f within the structure modulo (%) the
alignment_of_f and adding this result to the width_of_f. The formula for
this algorithm is:
(current_offset % alignment_of_f) + width_of_f
If this exceeds the size of f, then it aligns f according to its type;
otherwise, it allocates it at the offset prior to f. DOMAIN uses a
similar algorithm; however, all of its bit-fields are treated as type
int, regardless of their declared type. For example, consider the
following structure declaration:
struct S {char a:4; char b:3; char c:2;};
Under HP-UX Series 700/800 and MPE/iX, a is at bit offset 0, b is at bit
offset 4, and c is at bit offset 8, not at the next bit 7. The reason is
that bit alignment follows this formula:
(7 % 8) + 2
This results in a value of 9. This exceeds the size of type char (8
bits). So, field c is aligned according to its type (that is, on the
next byte boundary).
The DOMAIN algorithm for aligning bit-fields is the same as HP-UX, except
all bit-fields are treated as type int, regardless of their declared
type. The previous example would look like this using the DOMAIN
algorithm:
(7 % 32) + 2
which results in a value of 9. This does not exceed the size of type int
(32-bits). So, field c is aligned at bit offset 7 as seen in the
following figure.
![[]](../../pic3k/M013256/FFN33c50.gif)

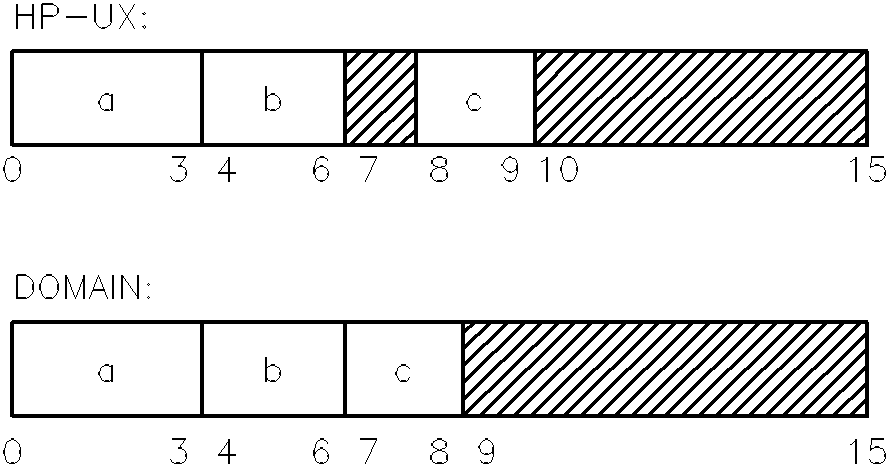

Figure 2-1. Comparison between HP-UX and DOMAIN Bit Alignments
With respect to size, DOMAIN treats all bit-fields as int. Therefore,
the following struct is allowed:
struct Group_members {
char letter:10;
int number;
} gp_mem;
This same struct declaration would cause an error under HP-UX alignment
rules since 10 bits exceeds the size of the data type char.
NATURAL uses the same scheme for bit-fields as DOMAIN.
