Obtaining Status Using DTCCNTRL

The DTCCNTRL STATUS
function displays the current status of each DTC/X.25 Network Access card
installed in a specified DTC. The command displays the DTC type (16, 48
or 72MX) and the software module that is currently active on any DTC/X.25
Network Access cards that are installed.  (Asynchronous cards installed
in the DTC are not displayed.)

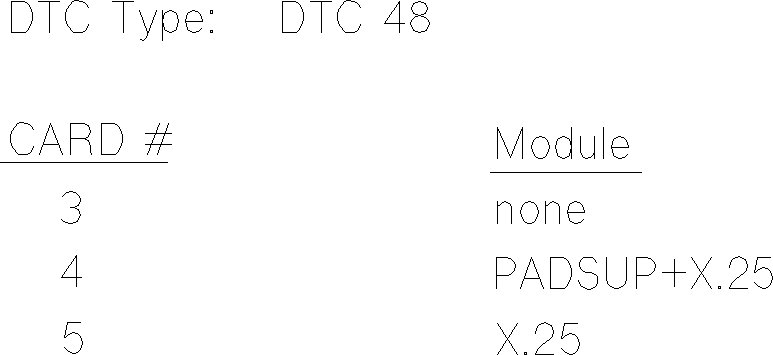

Figure 7-1  shows the display resulting from a DTCCNTRL STATUS command
issued against a DTC 48 containing DTC/X.25 Network Access cards in slots
3, 4, and 5.  Card 3 shows no X.25 network functions active.  Card 4 has
both X.25 system-to-system and PAD support active.  Card 5 has only
system-to-system support active.


          Figure 7-1.  DTCCNTRL Status Display
