Configuring and Managing Host-Based X.25 Links

Configuration Worksheets

Before you start NMMGR, use the worksheets provided here to gather the
necessary configuration information.  Make copies of these worksheets and
fill in the parameter information, then use the worksheets to guide you
through configuration in NMMGR.

DTC Configuration Worksheet

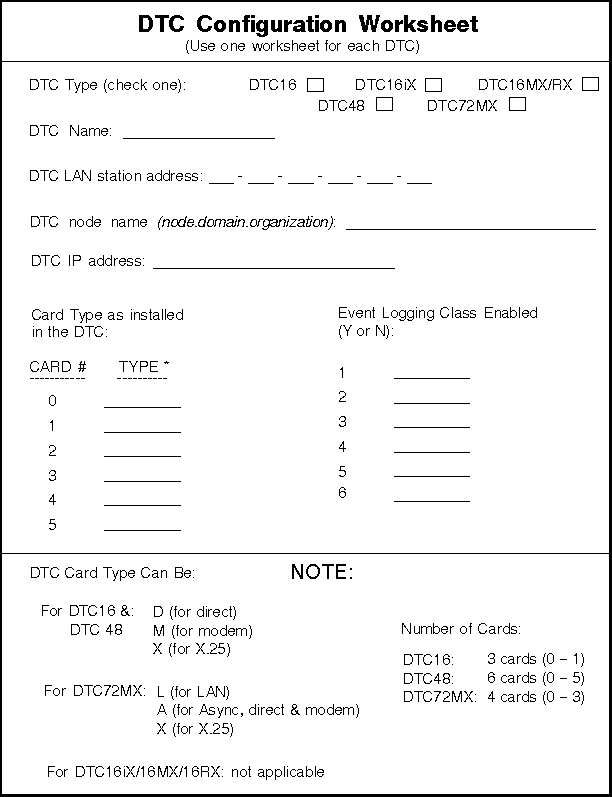

Fill out worksheet as shown in Figure 2-2  for each DTC you are
configuring.


          Figure 2-2.  DTC Configuration Worksheet

DTC Card Configuration Worksheet

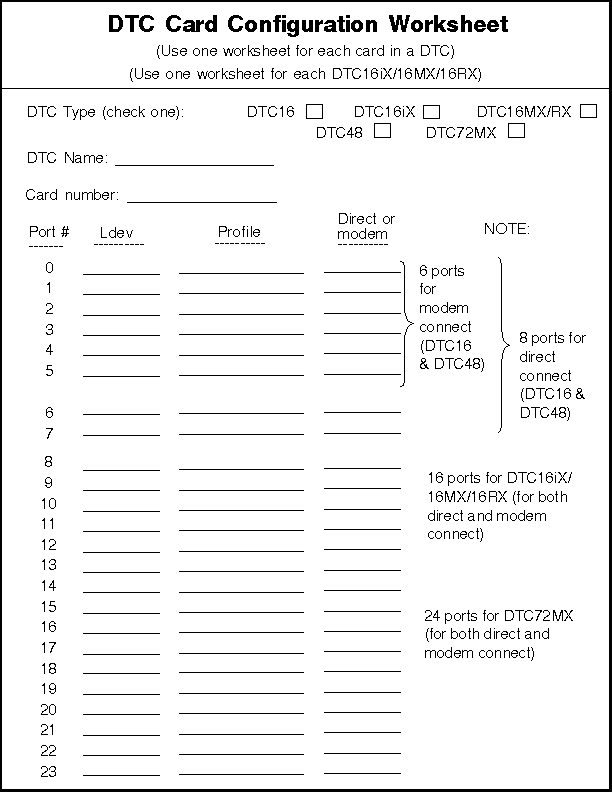

Fill out worksheet as shown in Figure 2-3  for each direct connect
card you are configuring.


          Figure 2-3.  DTC Card Configuration Worksheet

DTC X.25 Card Configuration - Level 1 and Level 2 Worksheet

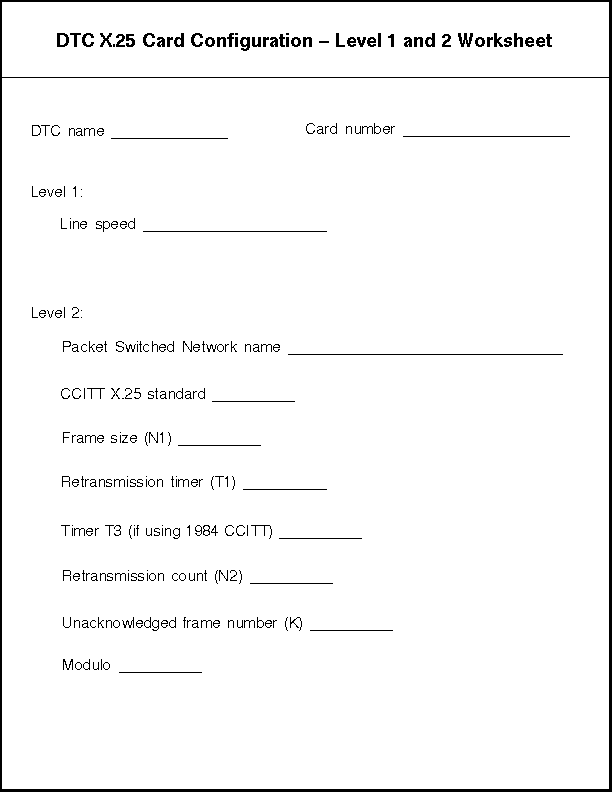

Fill out worksheet as shown in Figure 2-4  for each DTC X.25 Network
Access card you are configuring.


          Figure 2-4.  DTC X.25 Level 1 & 2 Worksheet

DTC X.25 Card Configuration - Level 3 & Miscellaneous Worksheet

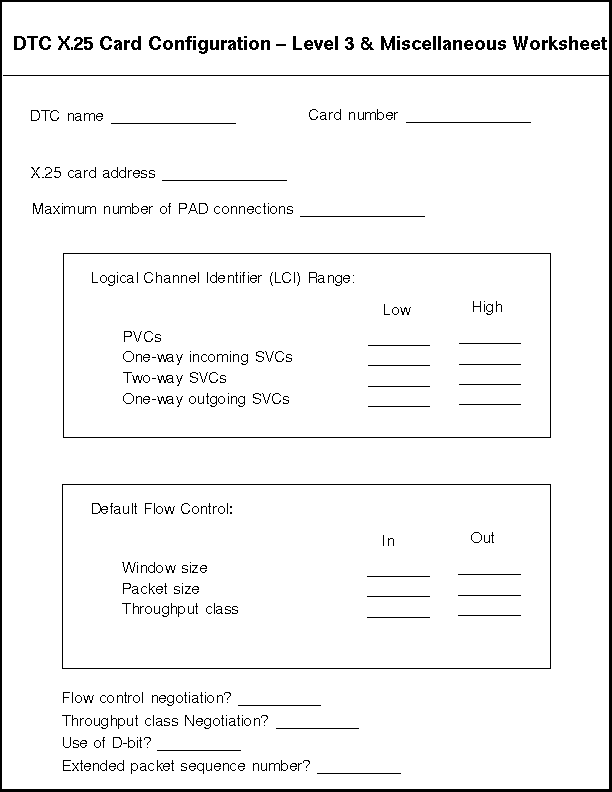

Fill out worksheet as shown in Figure 2-5  for each DTC X.25 Network
Access card you are configuring.


          Figure 2-5.  X.25 Card Level 3 and Miscellaneous Worksheet

DTC X.25 Card Configuration - System-to-System Worksheet

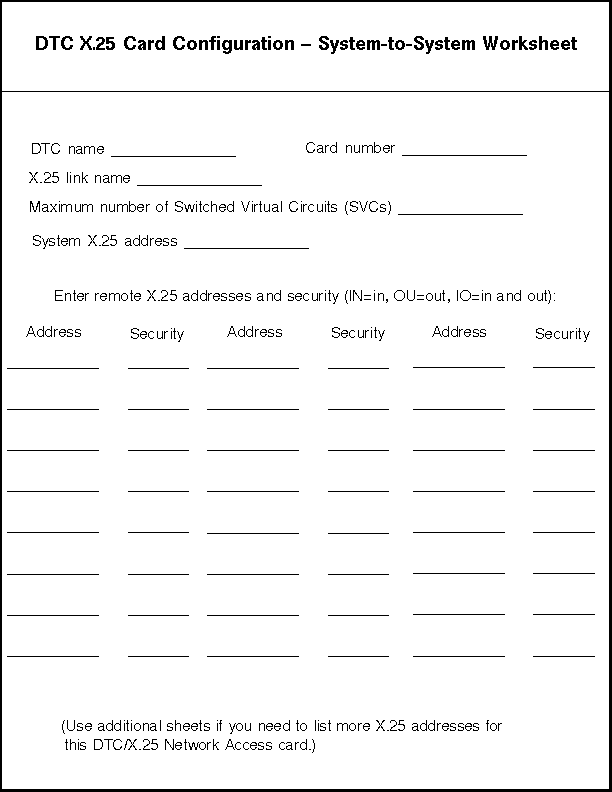

Fill out worksheet as shown in Figure 2-6  for each DTC X.25 Network
Access card for which you are configuring system-to-system connections.


          Figure 2-6.  X.25 Card Configuration - System-to-System Worksheet

DTC X.25 Card Configuration - Nailed PAD Worksheet

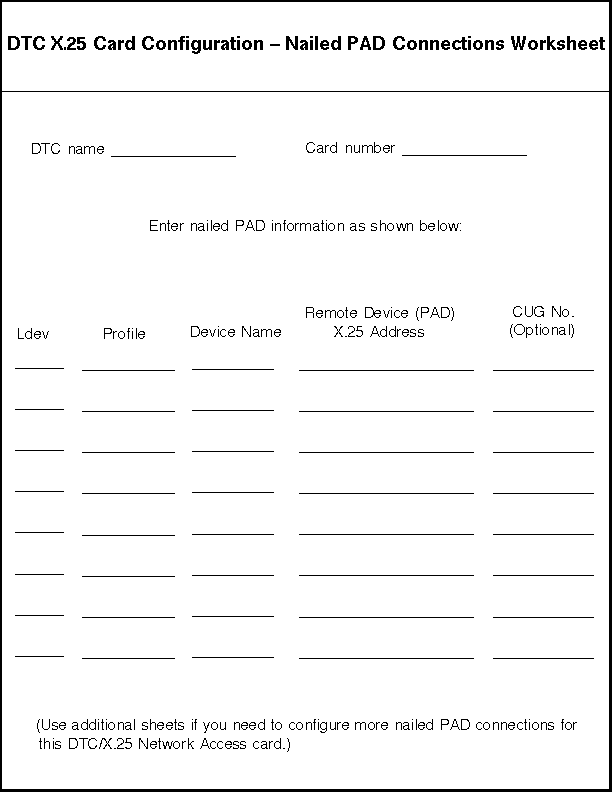

Fill out worksheet as shown in Figure 2-7  for each DTC X.25 Network
Access card for which you are configuring nailed PAD connections.


          Figure 2-7.  X.25 Card Configuration - Nailed PAD Worksheet

DTC X.25 Card Configuration - PAD Security Worksheet

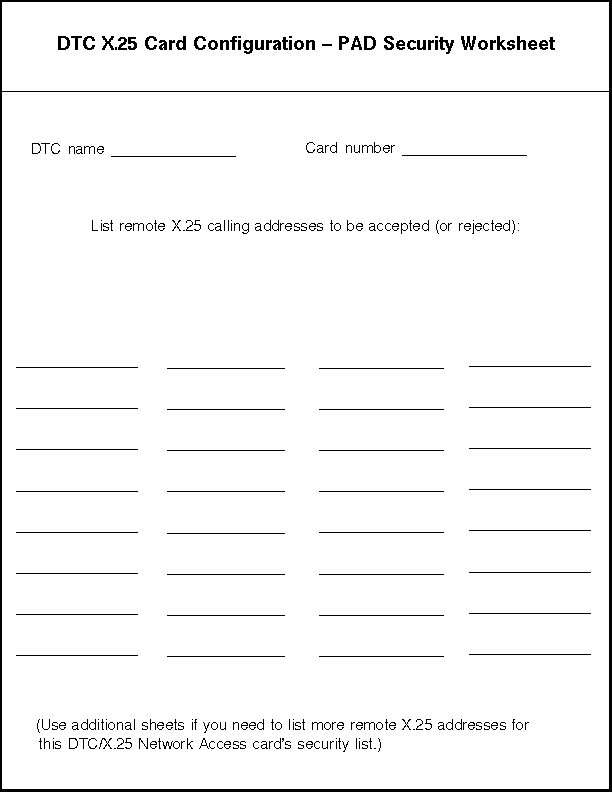

Fill out worksheet as shown in Figure 2-8  for each DTC X.25 Network
Access card for which you are configuring PAD security.


          Figure 2-8.  X.25 Card Configuration - PAD Security Worksheet
