Chapter 11  Loopback Network Interface Configuration Screens

The screens in this chapter are those you would see when configuring a
Loopback network.  The Loopback Network Interface Configuration branch of
NMMGR begins with a screen called the Network Interface Configuration
screen.  Figure 11-1 shows the screen flow for configuring the Loopback
screens.  Screens unique to Loopback are indicated by bold boxed screens.
[FUNCTION] denotes the function key used at a screen to invoke the next
screen on the screen flow.

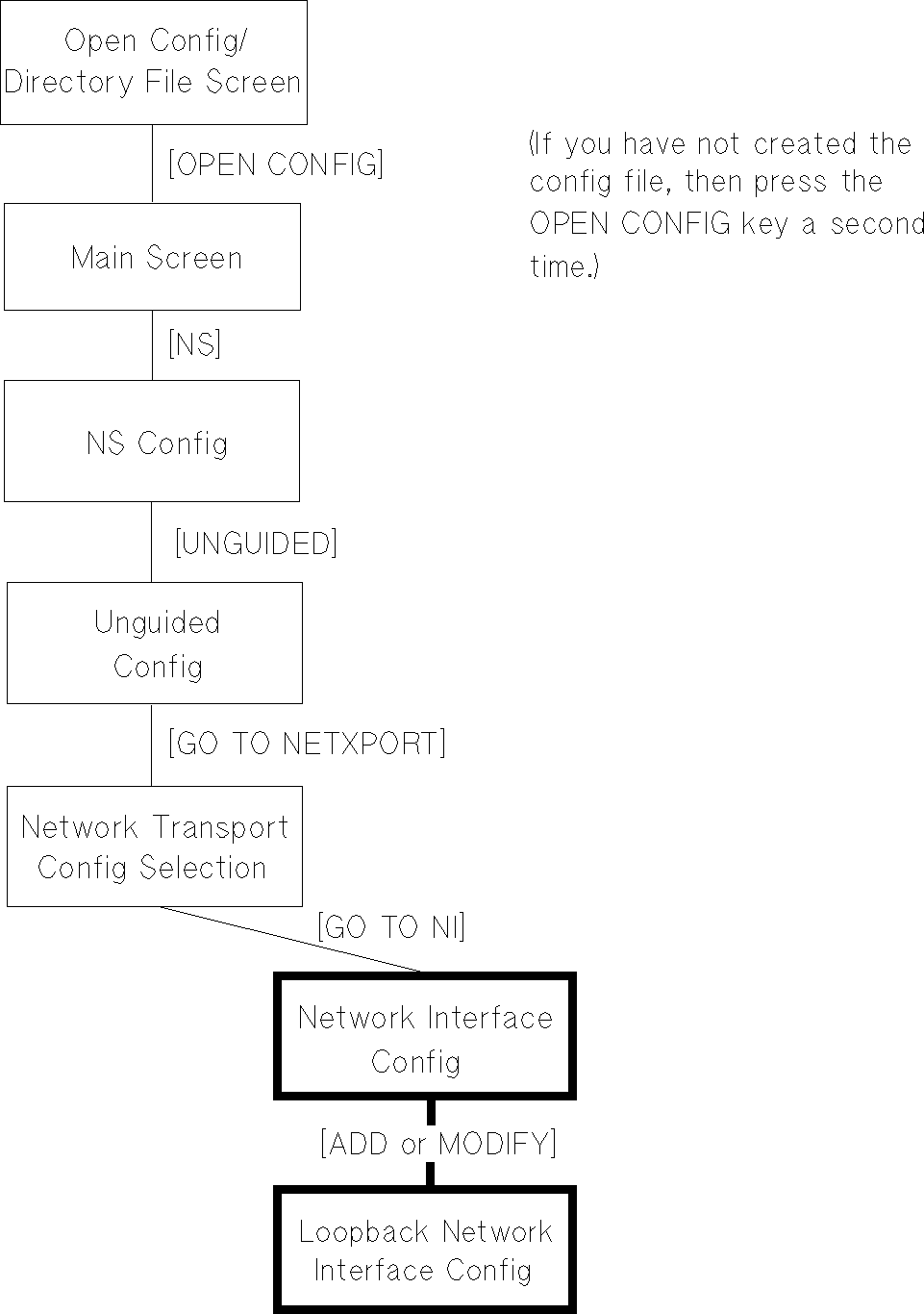

          Figure 11-1.  Loopback Network Interface Config Screen Flow
