Security String(s) Configuration

The Security String(s) Configuration screen (#110) supplies the security
string required by the dial ID protocol for the node you are configuring.
Note that the security string is not required if dial ID protocol is not
enabled.  This screen, shown in figure 10-7, is displayed if you press
the [Go to SECURITY] function key at the preceding Dial ID Protocol
Configuration screen (figure 10-6).  It is also displayed when you type:

@NETXPORT.NI.NIname.PROTOCOL.DIAL.SECURITY

in the command window of any screen and press the [Enter] key, where
NIname is the configured gateway half NI.

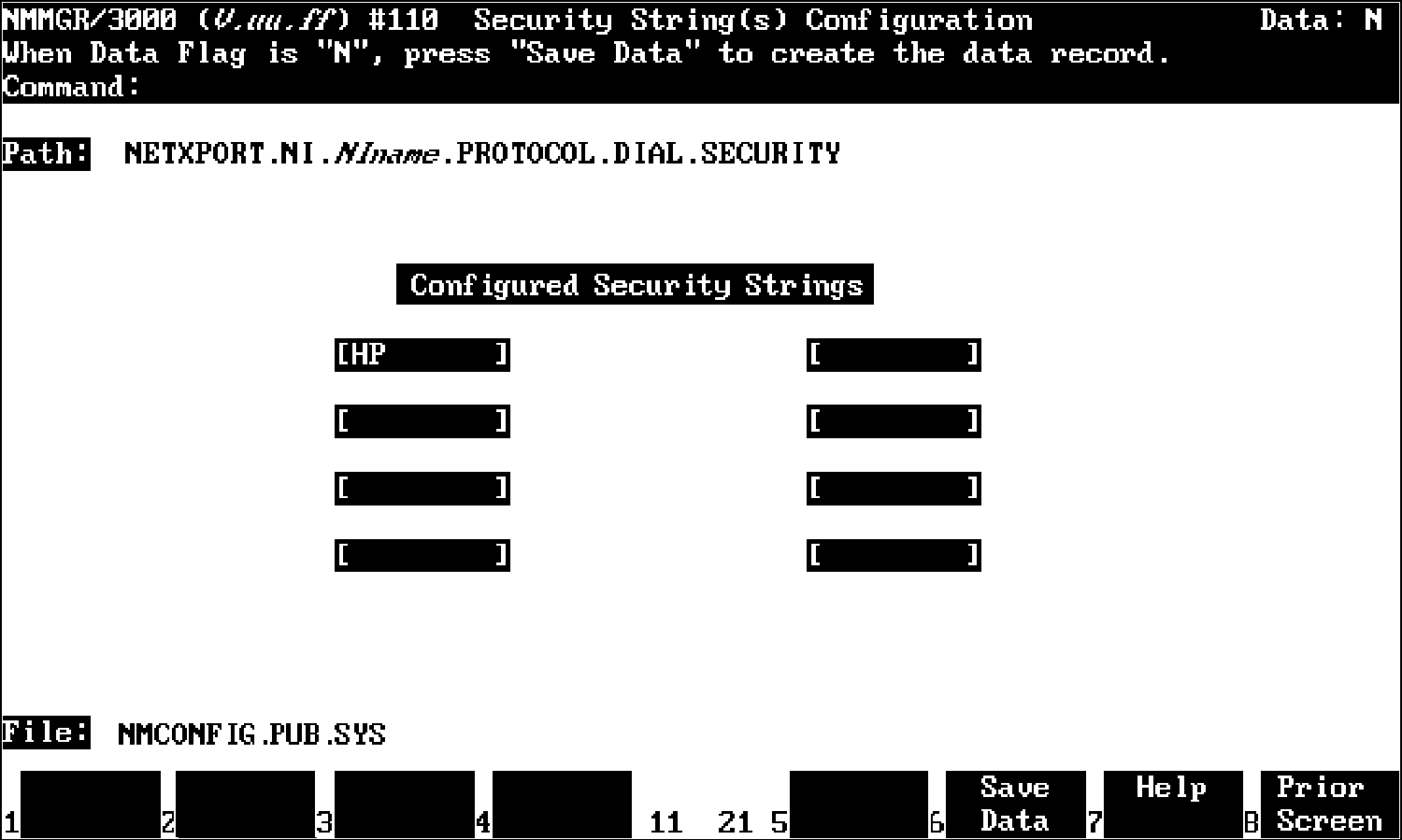

          Figure 10-7.  Security String(s) Configuration

Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating.  Verify
that the data record has been created by checking that the Data flag is
set to Y.

Fields

Configured security       Enter the security string that remote nodes
strings                   must use to gain dial link access to the node
                          you are configuring.  The string can contain up
                          to eight alphanumeric characters, left
                          justified, with no embedded blanks.

                          Default value:  HP

                          Related screen:

                             *   NETXPORT.NI.NIname.LINK.linkname

                                 The dial ID protocol is enabled/disabled
                                 on this screen.

                          ______________________________________________

                          NOTE  To delete a security string, blank out
                                the field that contains the string you
                                want deleted, and press [Save Data].

                          ______________________________________________
