Protocol Configuration

The Protocol Configuration screen (#113) in figure 10-4 is displayed when
you press the [Go To PROTOCOL] function key at the Gateway Half Network
Interface Configuration screen (figure 10-3).  It is also displayed when
you type the path name:

@NETXPORT.NI.NIname.PROTOCOL

in the command window of any screen and press the [Enter] key, where
NIname is the configured gateway half NI.

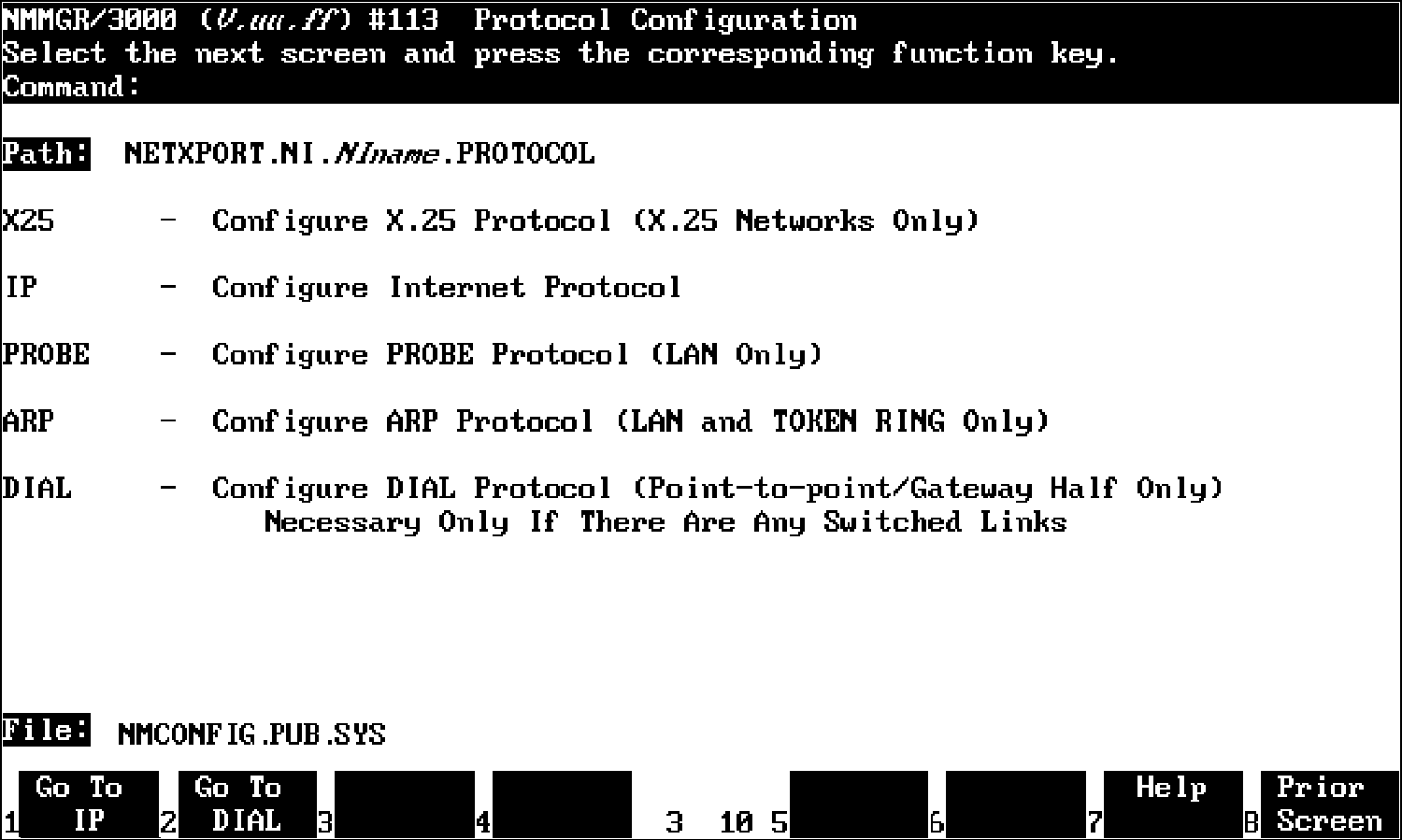

          Figure 10-4.  Protocol Configuration

For the gateway half NI, you must configure the IP protocol.  The dial
protocol must be configured only if you have any switched lines.

Choose the protocol to configure and press the corresponding function
key.
