NS3000/iX NMMGR Screens Reference Manual

Chapter 10  Gateway Half Network Interface Configuration Screens

The screens in this chapter are those you would see when configuring a
Gateway Half network.  The Gateway Half Network Interface Configuration
branch of NMMGR begins with a screen called the Network Interface
Configuration screen.  Figure 10-1 shows the screen flow for configuring
the Gateway Half screens.  Screens unique to Gateway Half are indicated
by bold boxed screens.  [FUNCTION] denotes the function key used at a
screen to invoke the next screen on the screen flow.

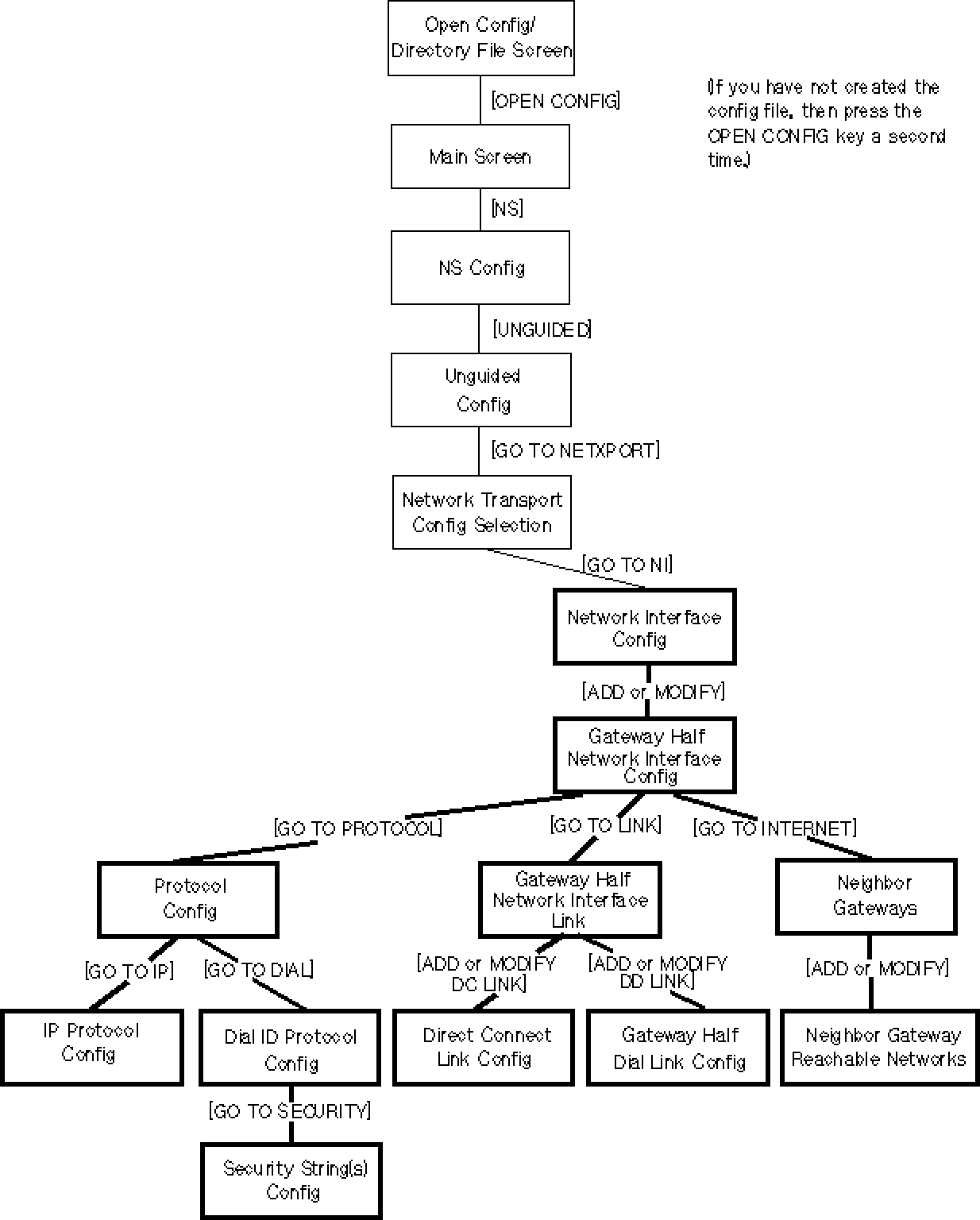

          Figure 10-1.  Gateway Half Network Interface Config Screen Flow
