Chapter 9  FDDI Network Interface Configuration Screens

The screens in this chapter are those you would see when configuring an
FDDI network.  The FDDI Network Interface Configuration branch of NMMGR
begins with a screen called the Network Interface Configuration screen.
Figure 9-1 shows the screen flow for configuring the FDDI screens.
Screens unique to FDDI are indicated by bold boxed screens.  [FUNCTION]
denotes the function key used at a screen to invoke the next screen on
the screen flow.

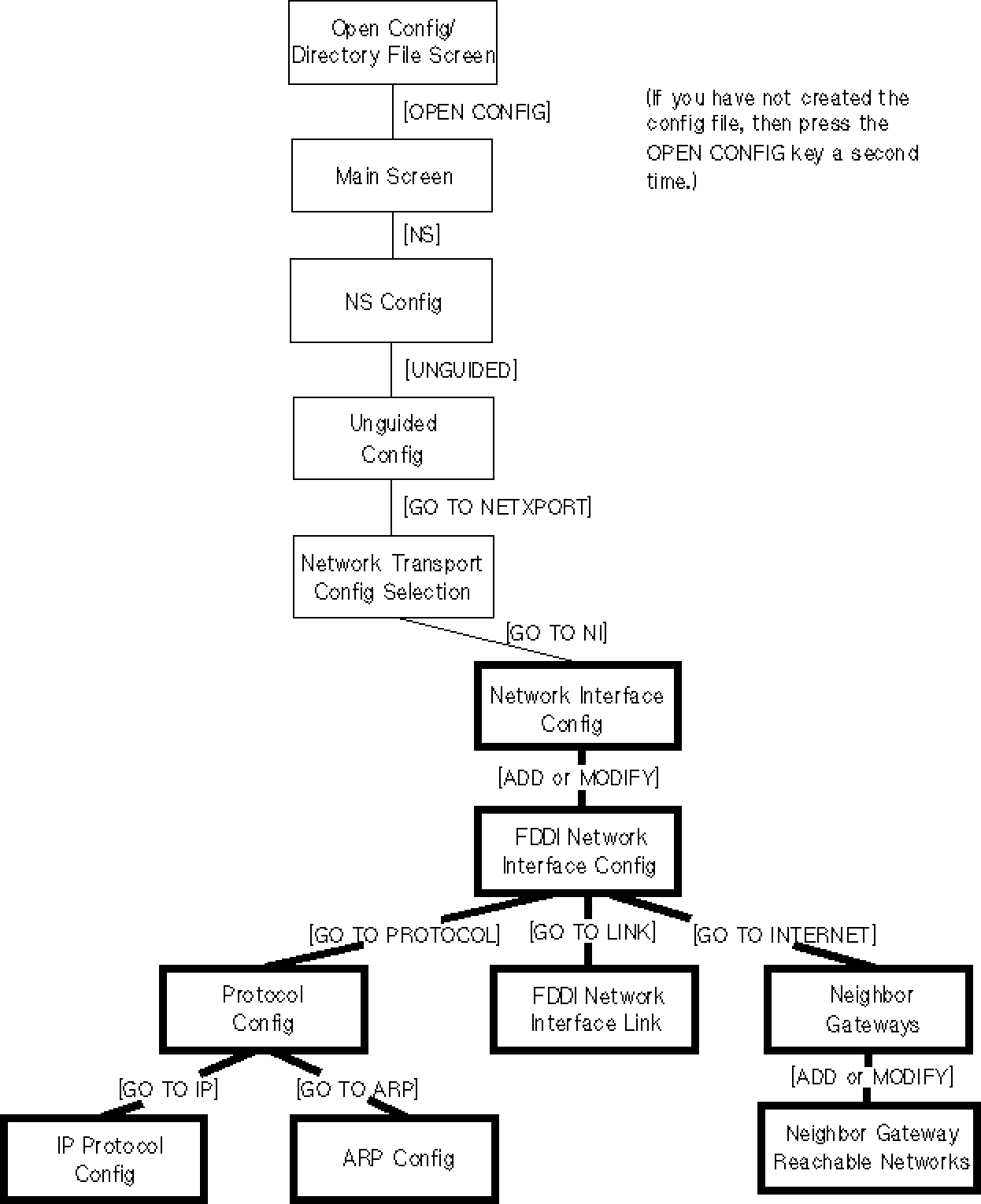

          Figure 9-1.  FDDI Network Interface Config Screen Flow
