Protocol Configuration

The Protocol Configuration screen (#113) in figure 8-4 is displayed when
you press the [Go To PROTOCOL] function key at the Token Ring Network
Interface Configuration screen (figure 8-3).  It is also displayed when
you type the path name:

@NETXPORT.NI.NIname.PROTOCOL

in the command window of any screen and press the [Enter] key, where
NIname is a configured token ring NI.

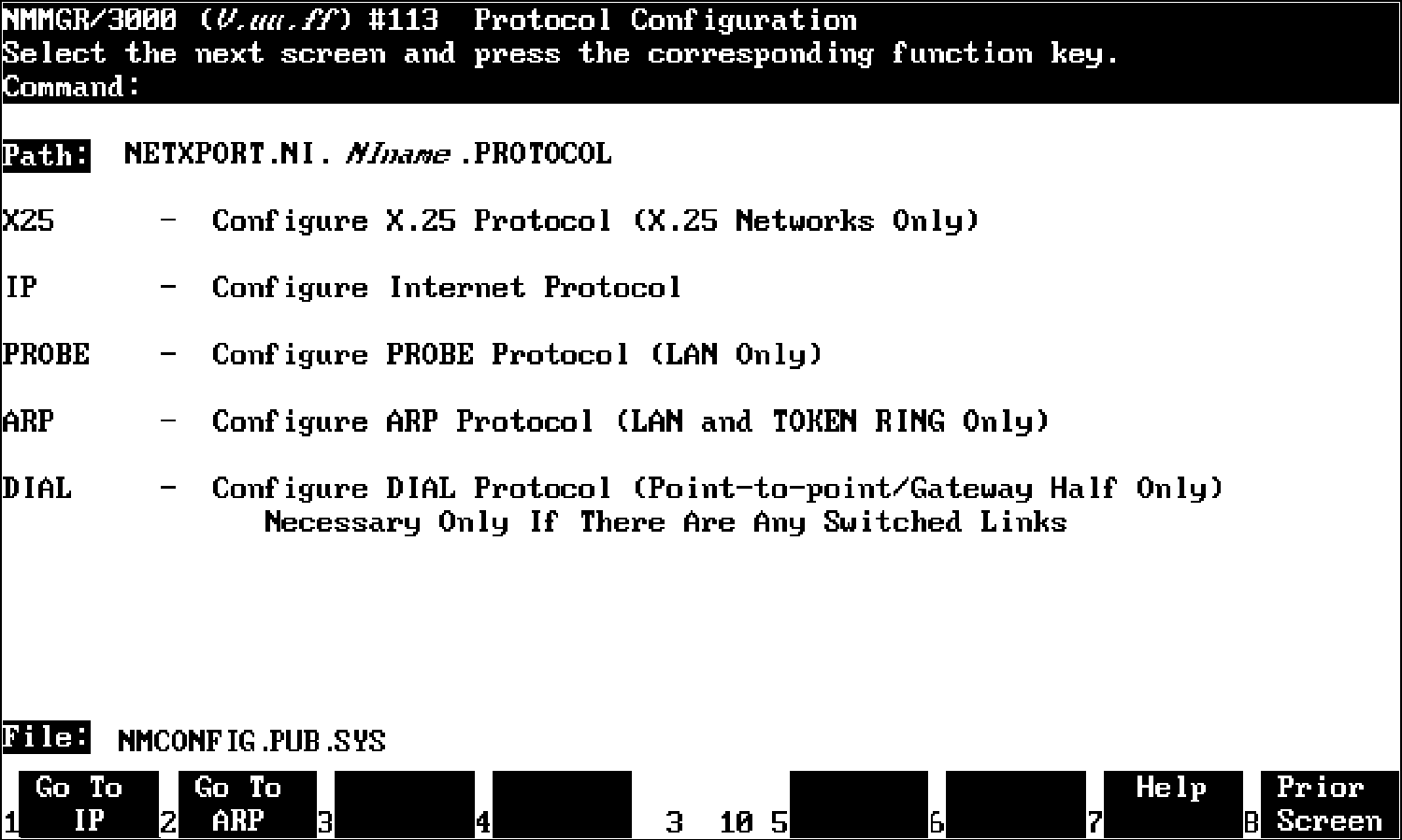

          Figure 8-4.  Protocol Configuration

For the token ring NI, you configure the IP and ARP protocols.  Choose
the protocol to configure, and press the corresponding function key.
