NS3000/iX NMMGR Screens Reference Manual

Chapter 8  Token Ring Network Interface Configuration Screens

The screens in this chapter are those you would see when configuring a
Token Ring network.  The Token Ring Network Interface Configuration
branch of NMMGR begins with a screen called the Network Interface
Configuration screen.  Figure 8-1 shows the screen flow for configuring
the Token Ring screens.  Screens unique to Token Ring are indicated by
bold boxed screens.  [FUNCTION] denotes the function key used at a screen
to invoke the next screen on the screen flow.

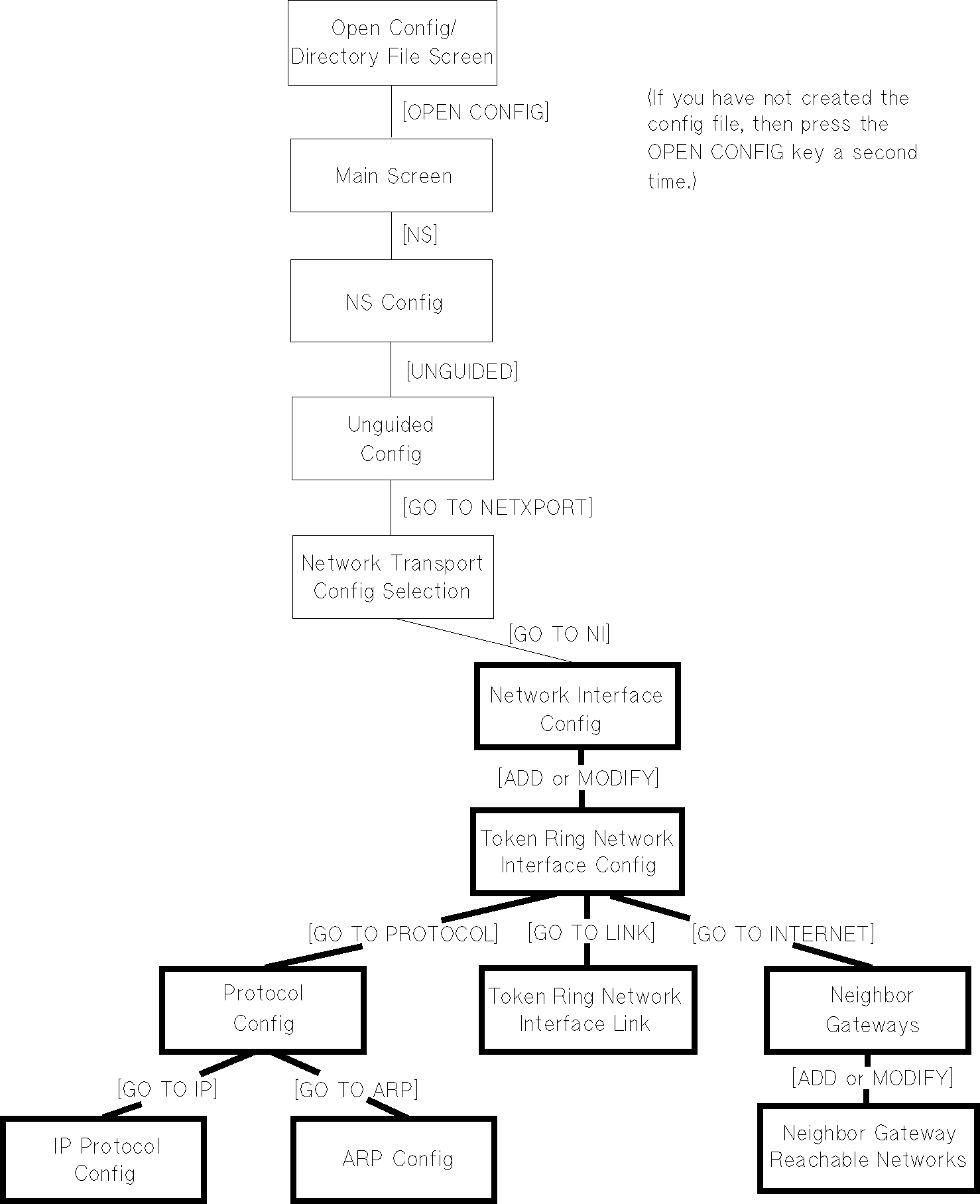

          Figure 8-1.  Token Ring Network Interface Config Screen Flow
