X.25 PVC Address Key Paths

The X.25 PVC Address Key Paths screen (#163) in figure 7-9 is displayed
when you press the [Go To PVCPATH] function key at the General X.25
Configuration screen (figure 7-5).  It is also displayed when you type
the path name:

@NETXPORT.NI.NIname.PROTOCOL.X25.PVCPATH

in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI.

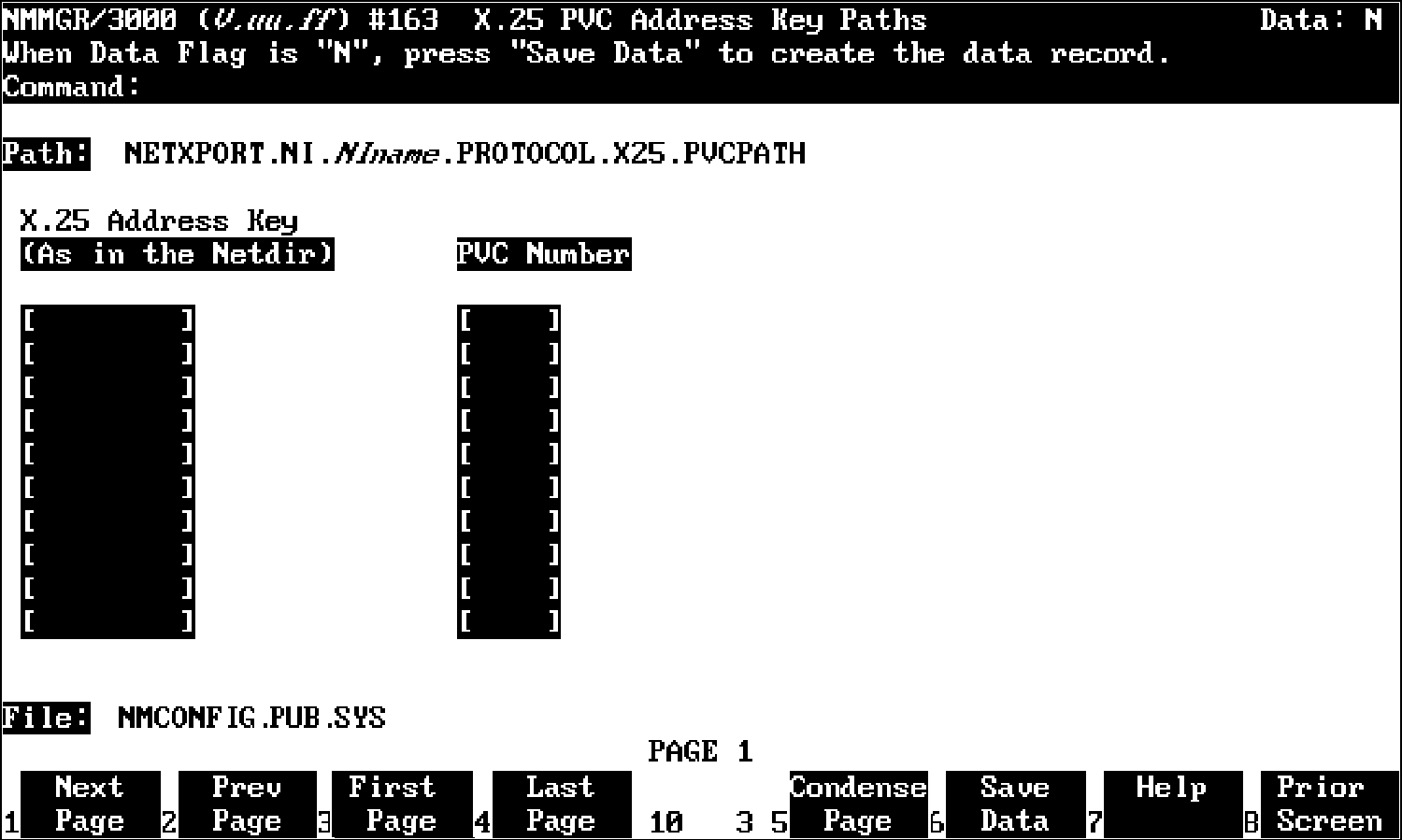

          Figure 7-9.  X.25 PVC Address Key Paths

You may configure up to 128 PVC address keys under an X.25 NI, and if
configuring multiple X.25 NI's, no address key can be used more than once
per system.

Fields

X.25 address key          The X.25 address key is used to identify a
                          remote node to which this node will
                          communicate.  The address key can have up to
                          eight alphanumeric characters, the first of
                          which must be alphabetic.

                          Default:  None.

PVC number                The PVC number is a permanent virtual circuit
                          number which identifies the remote host for the
                          node you are configuring.  This number must be
                          in the PVC range you defined in the OpenView
                          DTC Manager configuration.  This is a required
                          field if you defined a corresponding X.25
                          address key.

                          Default:  None
