Security String(s) Configuration

The Security String(s) Configuration screen (#110) supplies the security
string required by the Dial ID protocol for the node you are configuring.
(Note that the security string is not required if dial ID protocol is not
enabled.)  This screen, shown below in figure 6-7, is displayed if you
pressed the [Go To Security] function key at the preceding Dial ID
Protocol Configuration screen (figure 6-6).  It is also displayed when
you type the path name:

@NETXPORT.NI.NIname.PROTOCOL.DIAL.SECURITY

in the Command window of any screen and press the [Enter] key, where
NIname is a configured point-to-point NI.

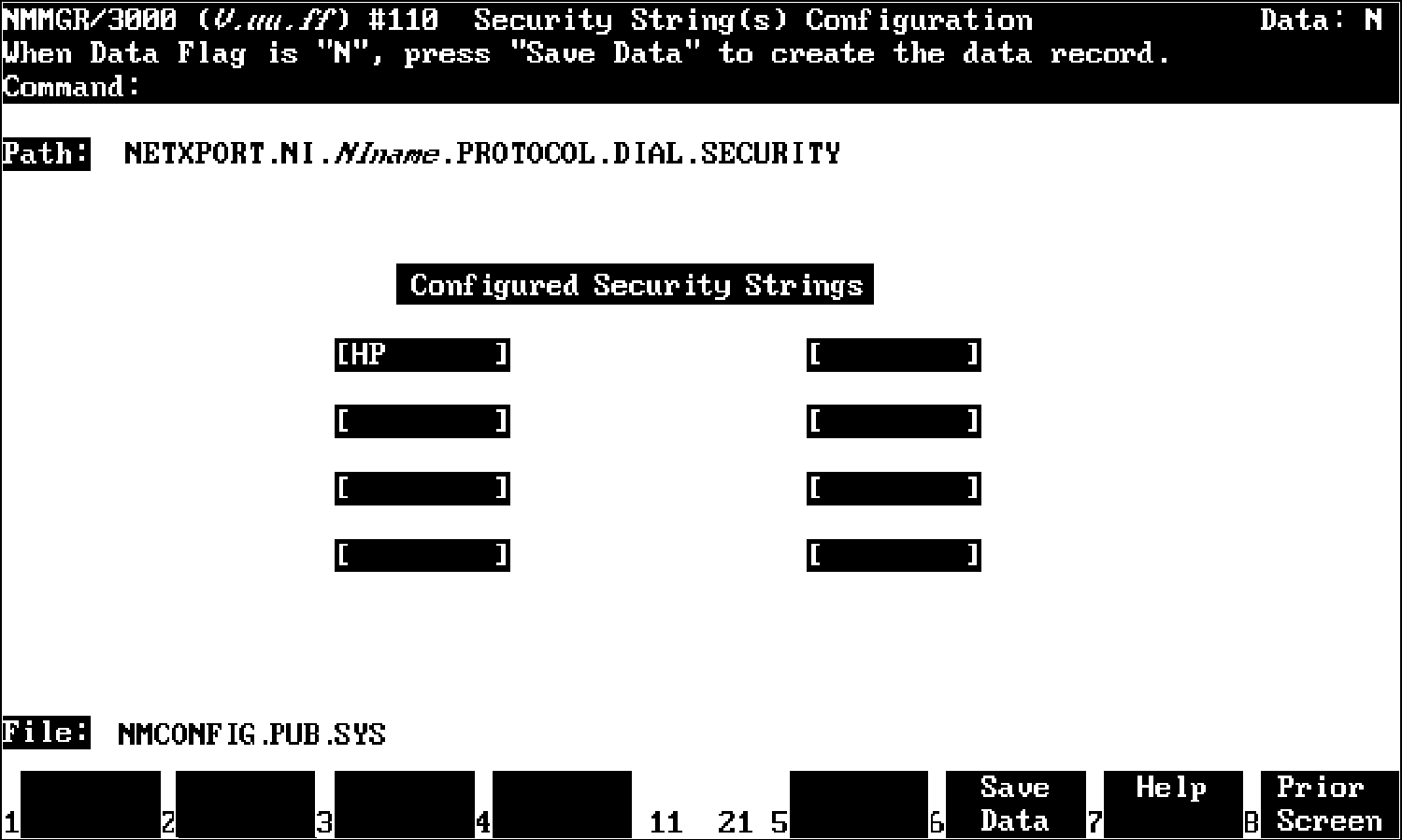

          Figure 6-7.  Security String(s) Configuration

Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating.  You
verify that the data record has been created by checking that the Data
flag is set to Y.

Fields

Configured security       Enter the security string that the remote nodes
strings                   must use to gain dial link access to the node
                          you are configuring.  The string can contain up
                          to eight alphanumeric characters, left
                          justified, with no embedded blanks.  To delete
                          a security string, blank out the field that
                          contains the string you want deleted, then
                          press the [Save Data] function key.

                          Default value:  HP

                          Related screen:

                             *   NETXPORT.NI.NIname.LINK.linkname

                                 The dial IP protocol is enabled or
                                 disabled on this screen.
