Protocol Configuration

The Protocol Configuration screen (#113) in figure 6-4 is displayed when
you press the [Go To PROTOCOL] function key at the Point-to-Point Network
Interface Config screen (figure 6-3).  It is also displayed when you type
the path name:

@NETXPORT.NI.NIname.PROTOCOL

in the Command window of any screen and press the [Enter] key, where
NIname is a configured point-to-point (router) NI name.

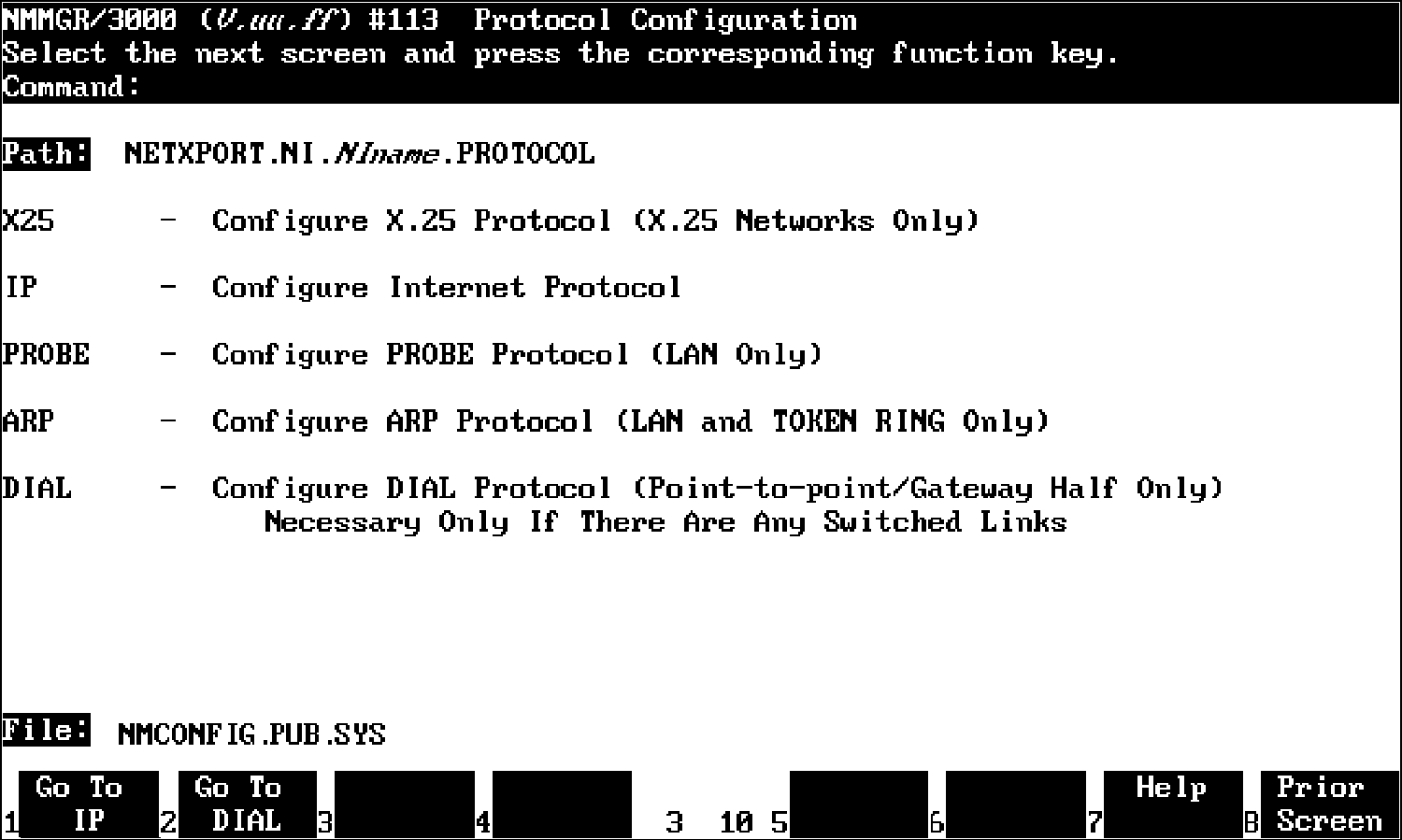

          Figure 6-4.  Protocol Configuration

For a point-to-point NI, you must configure the IP protocol.  The Dial
protocol must be configured if you have switched lines.

Choose the protocol to configure and press the corresponding function
key.
