NS3000/iX NMMGR Screens Reference Manual

Chapter 6  Point-to-Point (Router) Network Interface Configuration
           Screens

The screens in this chapter are those you would see when configuring a
Point-to-Point (router) network.  The Point-to-Point Network Interface
Configuration branch of NMMGR begins with a screen called the Network
Interface Configuration screen.  Figure 6-1 shows the screen flow for
configuring the Point-to-Point (router) screens.  Screens unique to
Point-to-Point are indicated by bold boxed screens.  [FUNCTION] denotes
the function key used at a screen to invoke the next screen on the screen
flow.

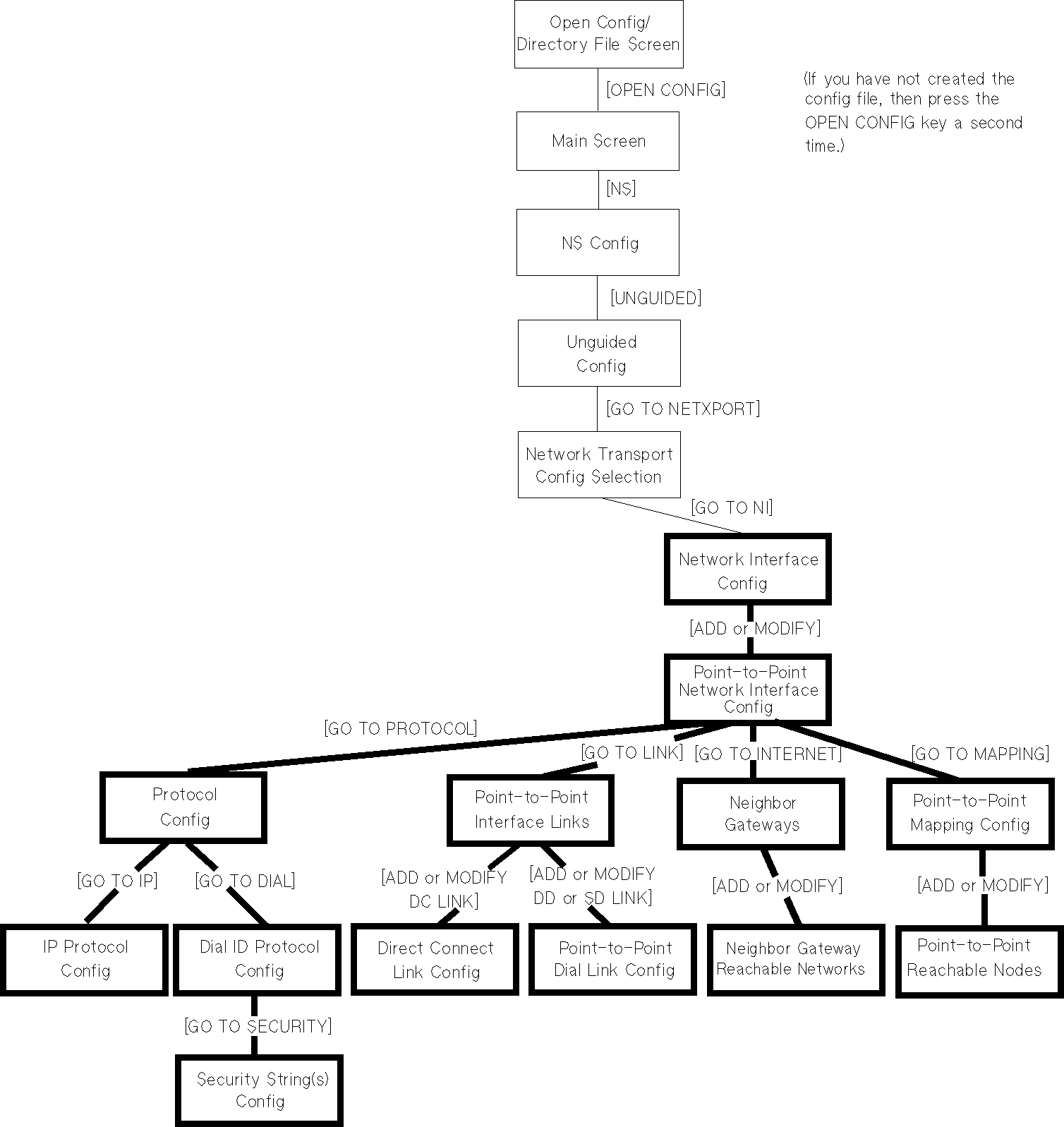

          Figure 6-1.  Point-to-Point Network Interface Config Screen Flow
