LAN Network Interface Link

The LAN Network Interface Link screen (#107) in figure 5-8 is displayed
when you press the [Go To LINK] function key at the LAN Network Interface
Configuration screen (figure 5-3).  It is also displayed when you type
the path name:

@NETXPORT.NI.NIname.LINK

in the command window of any screen and press the [Enter] key, where
NIname is a configured LAN NI.

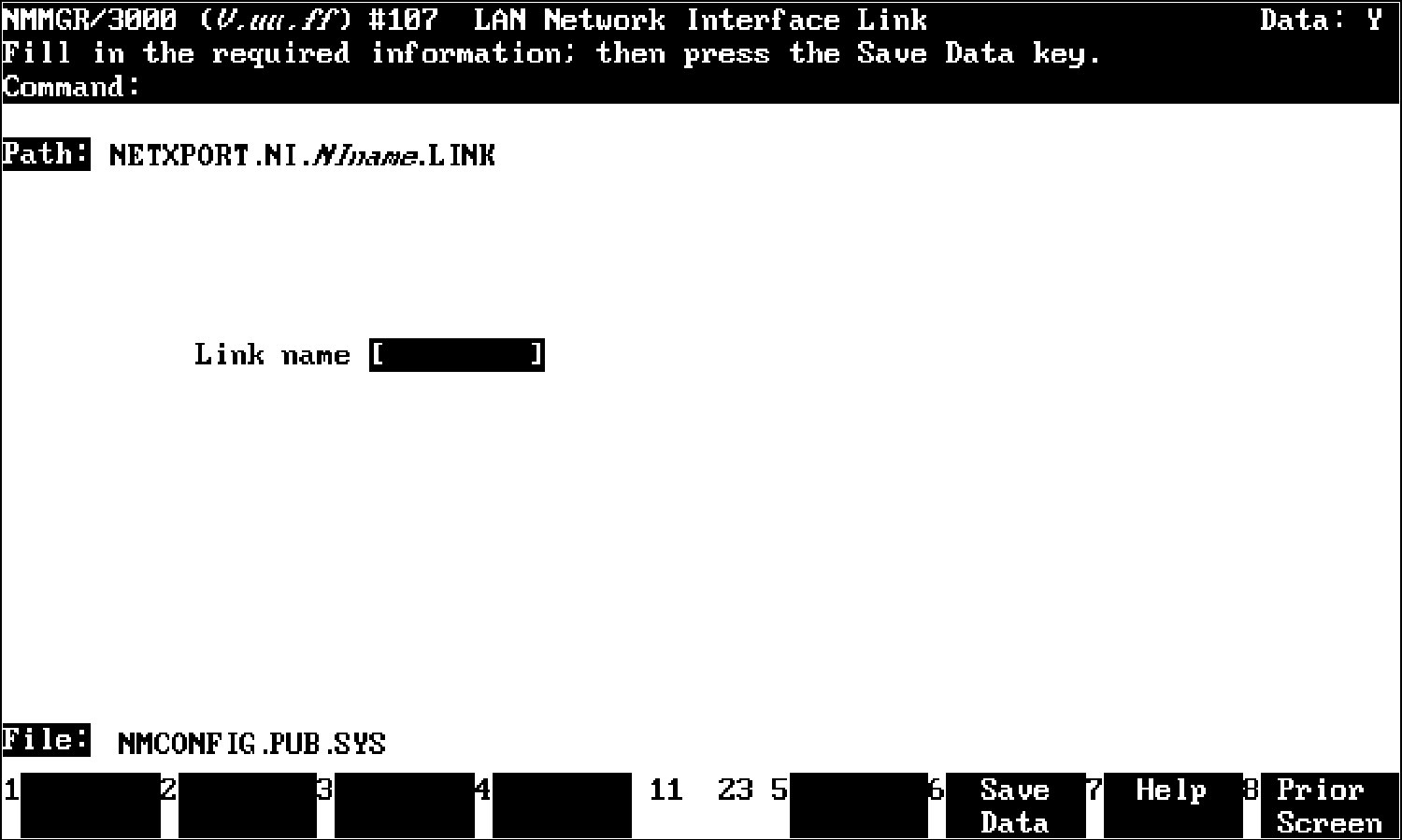

          Figure 5-8.  LAN Network Interface Link

Use this screen to specify the link name for the NI. The link name is
used by the network transport when establishing connections.

Fields

Link name           Make sure this is the same link name configured at
                    the LAN Link Configuration screen (path name LINK).
                    Press the [Save Data] function key to save the link
                    name in the configuration file.  Verify that the link
                    name has been configured by checking that the Data
                    flag is set to Y.

                    This screen associates the link data with the LAN
                    network interface data.  The link name is used by the
                    network transport when establishing connections.  The
                    link name can contain as many as eight alphanumeric
                    characters, and the first character must be
                    alphabetic.

                    To change an existing link name, enter the new name
                    in the Link name field and press the [Save Data]
                    function key.
