NS3000/iX NMMGR Screens Reference Manual

General Protocol Configuration

The General Protocol Configuration screen (#153) in figure 4-4 is
displayed when you press the [Go To GPROT] function key at the Network
Transport Configuration Selection screen (figure 4-2).  It is also
displayed when you type the path name:

@NETXPORT.GPROT

in the command window of any screen and press the [Enter] key.

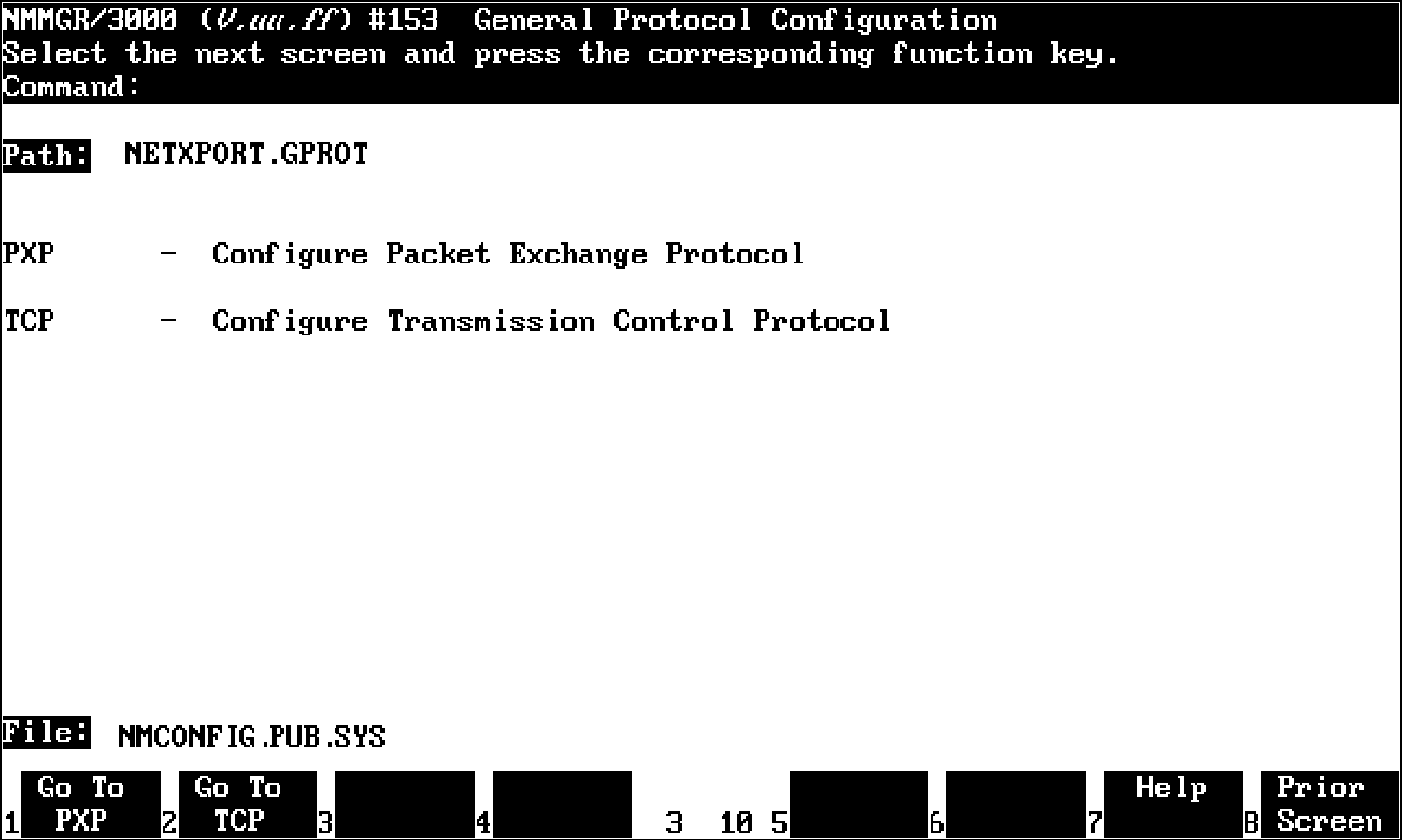

          Figure 4-4.  General Protocol Configuration

From this screen you proceed to the screens used to configure the general
protocols of the network transport.  Both TCP and PXP protocols must be
configured for each node.
