NS3000/iX NMMGR Screens Reference Manual

Network Transport Configuration Selection

The Network Transport Configuration Selection screen (#154) shown in
figure 4-2 is displayed when you press the function key for [Go To
NETXPORT] at the Unguided Configuration screen (#80).  It is also
displayed when you type the path name:

@NETXPORT

in the command window of any screen and press the [Enter] key.

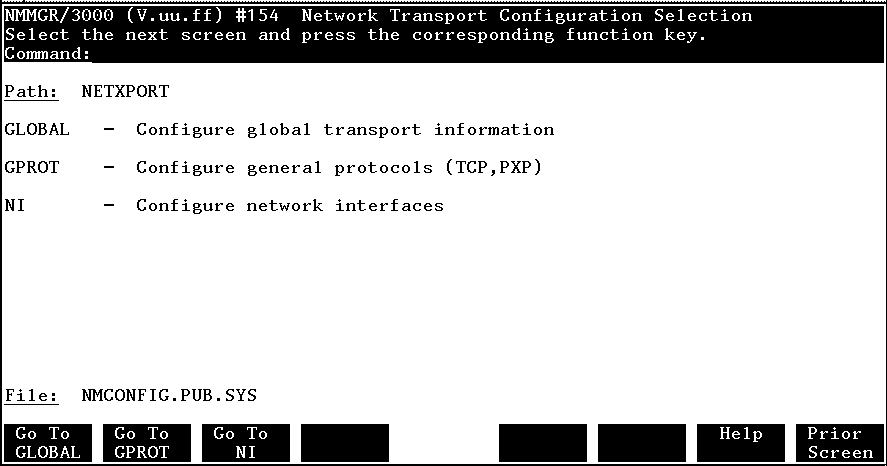

          Figure 4-2.  Network Transport Configuration Selection

From this screen you proceed to the screens used to configure the network
transport.

Choose the item you wish to configure and press the corresponding
function key.  Global transport information and general protocol
information should be configured for all network interfaces.
