Token Ring Link Configuration [ NS3000/iX NMMGR Screens Reference Manual ] MPE/iX 5.0 Documentation


NS3000/iX NMMGR Screens Reference Manual

Token Ring Link Configuration

The Token Ring Link Configuration screen (#87) in figure 3-6 is displayed
when you select a link name of type TOKEN at the Link Selection screen
(figure 3-2) and press the [Add] or [Modify] function key.  It is also
displayed when you type the path name:

@LINK.linkname

in the command window of any screen and press the [Enter] key, where
linkname is the name of a configured token ring link.

[]

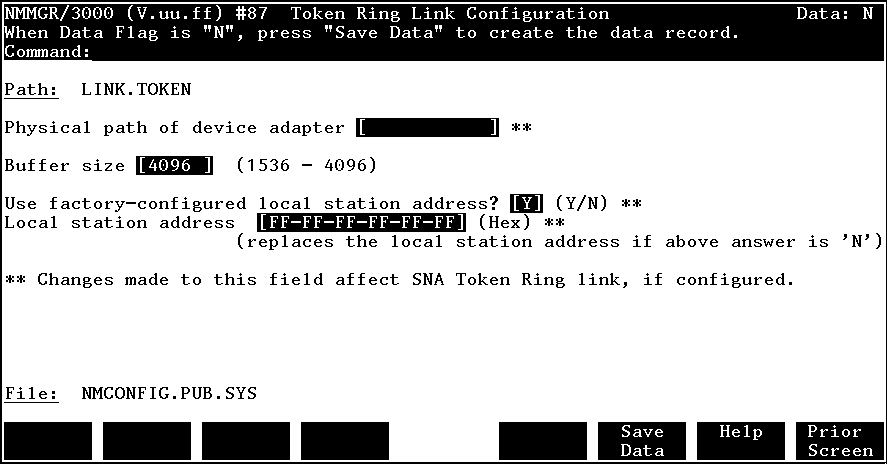

Figure 3-6. Token Ring Link Configuration Press the [Save Data] function key to transfer the data displayed on the screen to the configuration file you are creating or updating. Verify that the data record has been created by checking that the Data flag is set to Y.
CAUTION If the SNA token ring link product is already configured for the IBM subsystem, the values that initially appear in the Token Ring Link Configuration screen fields reflect the SNA configuration. If the same token ring card is being used for both NS and SNA communications, certain fields in the Token Ring Link Configuration screen must match the values of the SNA token ring link configuration. (See the following field descriptions.) If the Link Name configured for a NS token ring link is the same as the name of a SNA token ring link, make sure that the values of these fields in the NS token ring link configuration match the SNA token ring link configuration; otherwise, the NS token ring link configuration will change the SNA token ring link configuration.
Fields Physical path of The physical path number corresponds to the slot device adapter location of a node's token ring device adapter. For HP 3000 systems, the path is derived by a basic formula of 4 x slot number. (Example: 4 x 10 = 40, where the token ring device adapter is installed in slot number 10 and the physical path of the device adapter is 40.) ____________________________________________________ NOTE If the same token ring card is being used for both NS and SNA communications, you must use the same value for this field as is configured for the SNA link. ____________________________________________________ If you are unsure of the slot location or of the physical path number to configure for your system, see your system documentation or consult your Hewlett-Packard service representative. Buffer size The size, in bytes, of the buffer that holds data transferred from the token ring card to the upper layers (inbound data only). Default value: 4096 Range: 1536 - 4096 Use The token ring adapter is supplied with a 48-bit factory-configured station address. These are guaranteed to be unique. local station Do not override the factory configured local node address? address except on the specific instructions of your network administrator or your Hewlett-Packard representative. Default value: Y ____________________________________________________ NOTE If the same token ring card is being used for both NS and SNA communications, you must specify the local station address that is configured for the SNA token ring link. ____________________________________________________ Local station This field is to be used only with specific address instructions from your network administrator or your Hewlett-Packard representative. It allows you to enter a station address to replace the factory configured address. The format must be compatible with HP software requirements. ____________________________________________________ NOTE If the same token ring card is being used for both NS and SNA communications, you must specify the local station address that is configured for the SNA Link. ____________________________________________________
