Network Directory Main

The Network Directory Main screen (#8) shown in figure 13-3 is displayed
when you press the [Open Directry] or the [Create Directry] function key
at the Open Configuration/Directory File screen (#1) as shown in figure
2-2.  This screen is also displayed if a network directory has already
been opened and you type NETDIR in the command window of any screen and
press the [Enter] key.

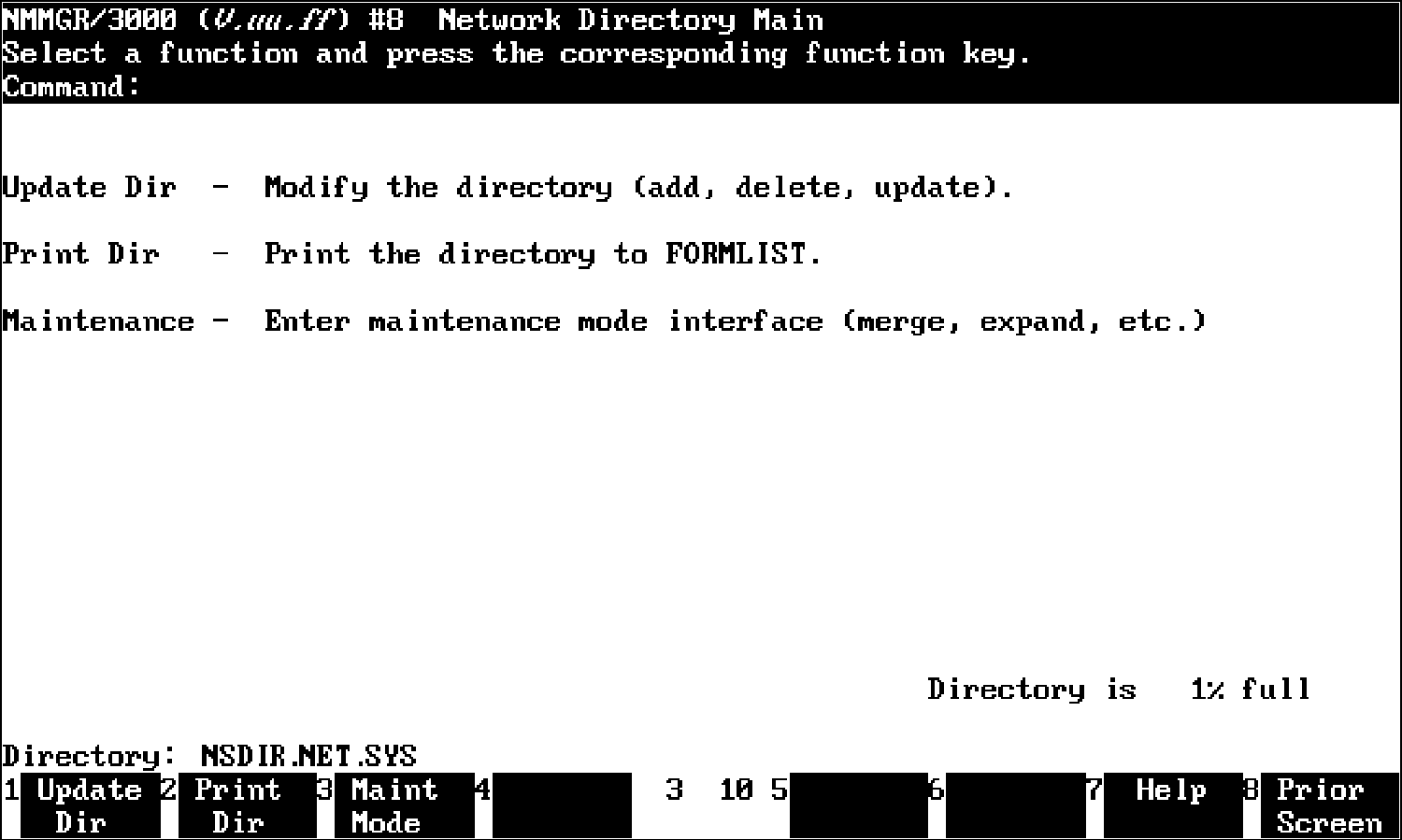

          Figure 13-3.  Network Directory Main

This screen is the main select screen from which all directory functions
are accessed.  The currently opened directory is displayed at the bottom
of all network directory screens.  The percentage of the network
directory that is full is shown in the lower right corner of the screen.

Press the [Update Dir] function key to modify the contents of the
directory by adding, deleting and updating node names and path reports.

Press the [Print Dir] function key to print out a copy of the directory
to formal designator FORMLIST, device class LP. You can use a file
equation for FORMLIST to redirect the output to another device class or
disk file.To set a file equation without leaving NMMGR, enter the
appropriate MPE command, preceded by a colon (:), in the command window
and press the [Enter] key.

Press the [Maint Mode] function key to enter the command interface to
perform directory merging or to expand the size of your directory.  Refer
to Using the Node Management Services (NMS) Utilities for details on
maintenance mode.

Within the maintenance mode interface, command input is read from the
formal designator NMMGRCMD, which defaults to $STDINX. Type EXIT and
press the [Return] key to leave maintenance mode.
