Sample Program Using BULK Processing
The flow chart in Figure 7-1 summarizes the functionality of program
cex9. This program creates orders in the sample DBEnvironment, PartsDBE.
Each order is placed with a specific vendor, to obtain one or more parts
supplied by that vendor.
An order consists of a row in table PurchDB.Orders, which comprises the
order header:
OrderNumber (defined NOT NULL)
VendorNumber
OrderDate
An order usually consists of one or more line items, represented by one
or more rows in the table PurchDB.OrderItems:
OrderNumber (defined NOT NULL)
ItemNumber (defined NOT NULL)
VendPartNumber
PurchasePrice (defined NOT NULL)
OrderQty
ItemDueDate
ReceivedQty
Program cex9 uses a simple INSERT command to create the order header and,
optionally, a BULK INSERT command to insert line items.
The runtime dialog for program cex9 appears in Figure 7-2, and the source
code in Figure 7-3.
To establish a DBE session 54 , cex9 executes function ConnectDBE. This
function evaluates to TRUE when the CONNECT command 5 is successfully
executed.
The program then executes function CreateOrder until the Done flag is set
to TRUE 55 .
Function CreateOrder prompts for a vendor number or a zero (0) to stop
the program 48 . When the user enters a zero, Done is set to TRUE 53
and the program terminates. When the user enters a vendor number,
program cex9:
* Validates the number entered.
* Creates an order header if the vendor number is valid.
* optionally inserts line items if the order header has been
successfully created; the part number for each line item is
validated to ensure the vendor actually supplies the part.
* Displays the order created.
To validate the vendor number, function ValidateVendor is executed 49 .
Function ValidateVendor starts a transaction by invoking function
BeginTransaction 9 , which executes the BEGIN WORK command 6 . Then a
SELECT command 10 is processed to determine whether the vendor number
exists in column VendorNumber of table PurchDB.Vendors:
* If the number exists in table PurchDB.Vendors, the vendor number
is valid. Flag VendorOK is set to TRUE, and the transaction
is terminated by invoking function EndTransaction 11 .
EndTransaction executes the COMMIT WORK command 7 .
* If the vendor number is not found, COMMIT WORK is executed and a
message is displayed to inform the user that the number entered is
invalid 12 . Several flags are set to FALSE so that when control
returns to function CreateOrder, the user is again prompted for a
vendor number.
* If the SELECT command fails, function SQLStatusCheck is invoked
13 to display any error messages 4 . Then the COMMIT WORK
command is executed, and the appropriate flags set to FALSE.
If the vendor number is valid, program cex9 invokes function CreateHeader
to create the order header 50 . The order header consists of a row
containing the vendor number entered, plus two values computed by the
program: OrderNumber and OrderDate.
Function CreateHeader starts a transaction 34 , then obtains an
exclusive lock on table PurchDB.Orders 35 . Exclusive access to this
table ensures that when the row is inserted, no row having the same
number will have been inserted by another transaction. The unique index
that exists on column OrderNumber prevents duplicate order numbers in
table PurchDB.Orders. Therefore an INSERT operation fails if it attempts
to insert a row having an order number with a value already in column
OrderNumber.
In this case, the exclusive lock does not threaten concurrency. No
operations conducted between the time the lock is obtained and the time
it is released involve operator intervention:
* Function CreateHeader invokes function ComputeOrderNumber 36 to
compute the order number and the order date.
* Function ComputeOrderNumber executes a SELECT command to retrieve
the highest order number in PurchDB.Orders 30 . The number
retrieved is incremented by one 31 to assign a number to the
order.
* Function ComputeOrderNumber then executes function SystemDate 32
. This function calls the MPE XL system library nl_ctime 2 to
retrieve and format the current date. The date retrieved is
converted into YYYYMMDD format, the format in which dates are
stored in the sample DBEnvironment.
* Function ComputeOrderNumber then executes function InsertRow 33 .
This function executes a simple INSERT command 22 to insert a
row into PurchDB.Orders. If the INSERT command succeeds, the
transaction is terminated with a COMMIT WORK command, and the
HeaderOK flag is set to TRUE 24 . If the INSERT command fails,
the transaction is terminated with a COMMIT WORK command, but the
HeaderOK flag is set to FALSE 23 so that the user is prompted
for another vendor number when control returns to function
CreateOrder.
To create line items, function CreateOrder executes function
CreateOrderItems until the DoneItems flag is set to TRUE 51 . Function
CreateOrderItems prompts for whether the user wants to specify line items
44 .
If the user wants to create line items, function CreateOrderItems
executes function ItemEntry until the DoneItems flag is set to TRUE 46 ,
then executes function BulkInsert 47 :
* Function ItemEntry assigns values to the host variable structure
array OrderItems 1 ; each record in the array corresponds to one
line item, or row in PurchDB.OrderItems. The function first
assigns the order number and a line number to each row 37 ,
beginning at one. ItemEntry then prompts for a vendor part number
38 , which is validated by invoking function ValidatePart 39 .
Function ValidatePart starts a transaction 14 . Then it executes
a SELECT command 15 to determine whether the part number entered
matches any part number known to be supplied by the vendor. If
the part number is valid, the COMMIT WORK command is executed 16
and the PartOK flag set to TRUE. If the part number is invalid,
COMMIT WORK is executed 17 , and the user informed that the
vendor does not supply any part having the number specified; then
the PartOK flag is set to FALSE so that the user is prompted for
another part number when control returns to function ItemEntry.
If the part number is valid, function ItemEntry completes the line
item. It prompts for values to assign to columns PurchasePrice,
OrderQty, and ItemDueDate 40 . The function then assigns a
negative value to the indicator variable for column ReceivedQty
41 in preparation for inserting a null value into this column.
Function ItemEntry terminates when the user indicates that the
user does not want to specify any more line items 42 or when the
host variable array is full 43 .
* Function BulkInsert starts a transaction 25 , then executes the
BULK INSERT command 27 . The line items in array OrderItems are
inserted into table PurchDB.OrderItems, starting with the first
record and continuing for as many records as there were line items
specified 26 . If the BULK INSERT command succeeds, the COMMIT
WORK command is executed 29 and the ItemsOK flag set to TRUE. If
the BULK INSERT command fails, function RollBackWork is executed
28 to process the ROLLBACK WORK command 8 so that any rows
inserted prior to the failure are rolled back.
If the user does not want to create line items, function CreateOrderItems
displays the order header by invoking function DisplayHeader 45 .
Function DisplayHeader displays the row 18 that was created earlier in
function CreateHeader 50 and inserted into PurchDB.Orders in the
function InsertRow 33 .
If line items were successfully inserted into the PurchDB.OrderItems
table in function BulkInsert, then function CreateOrder invokes function
DisplayOrder 52 to display the order created. Function DisplayOrder
invokes function DisplayHeader 20 to display the order header. Then it
executes function DisplayItems 21 to display each row inserted into the
PurchDB.OrderItems table. Function DisplayItems displays values from the
structure array OrderItems 19 .
When the program user enters a 0 in response to the vendor number prompt
in function CreateOrder, Done is set to TRUE 53 and the program
terminates by executing function ReleaseDBE 56 , which executes the
RELEASE command 3 .
![[]](../../pic3k/M011754/FFN853c50.gif)

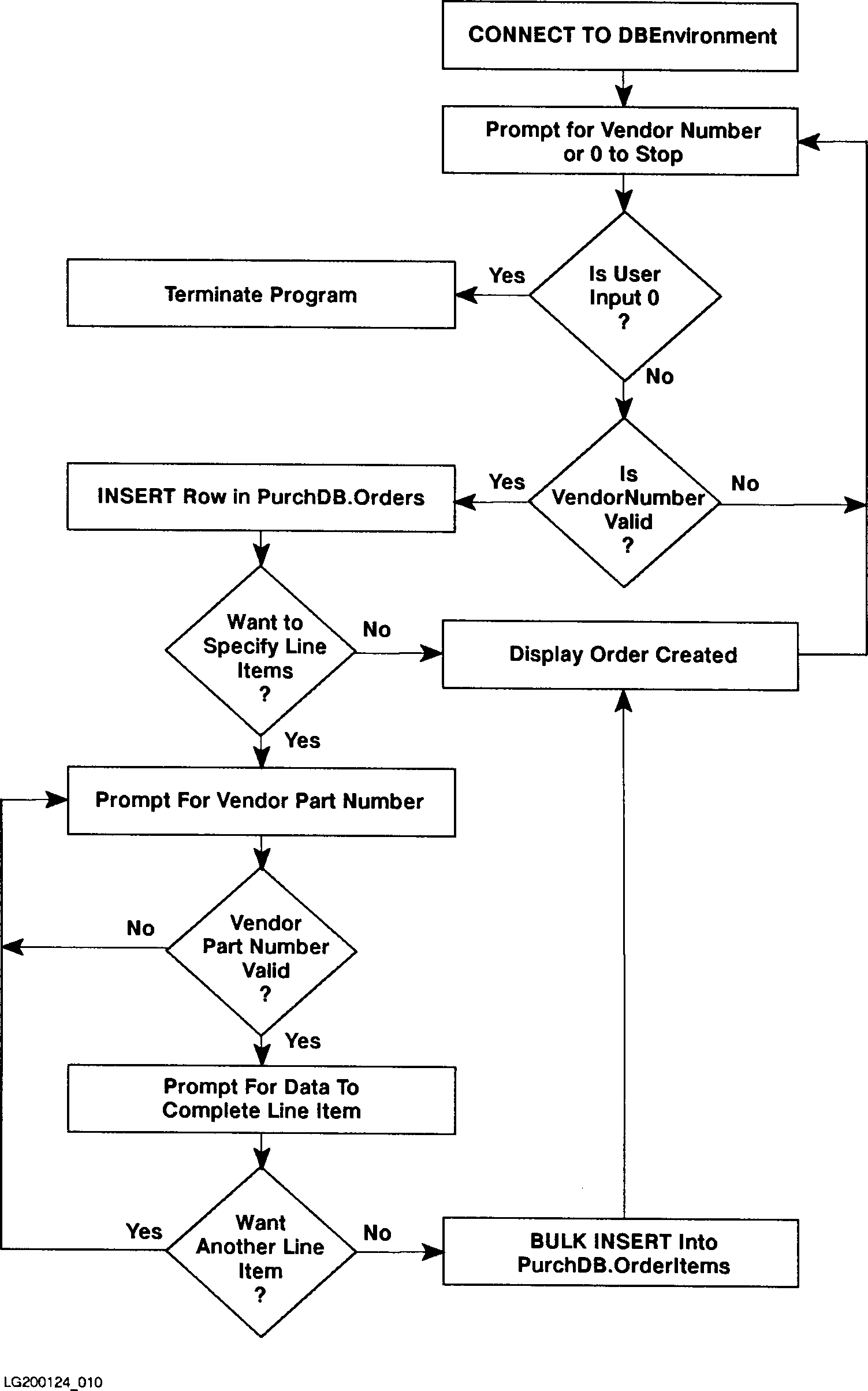

Figure 7-1. Flow Chart of Program cex9
_____________________________________________________________
| |
| Program to Create an Order - cex9 |
| |
| Event List: |
| CONNECT TO PartsDBE |
| Prompt for VendorNumber |
| Validate VendorNumber |
| BEGIN WORK |
| INSERT a row into PurchDB.Orders |
| Prompt for a line item |
| Validate the Vendor Part Number for each line item |
| BULK INSERT rows into PurchDB.OrderItems |
| Repeat the above six steps until the user enters a 0|
| RELEASE the DBEnvironment |
| |
| Connect to PartsDBE |
| |
| Enter a Vendor Number or a 0 to STOP> 9015 |
| |
| Begin Work |
| Validating VendorNumber |
| |
| Commit Work |
| |
| Begin Work |
| LOCK the PurchDB.Orders table. |
| Calculating OrderNumber |
| Calculating OrderDate |
| |
| INSERT into PurchDB.Orders |
| |
| Commit Work |
| |
| Do you want to specify line items (Y/N)?> y |
| |
| You can specify as many as 25 line items. |
| |
| Enter data for ItemNumber: 1 |
| |
| Vendor Part Number > 9040 |
| |
| Begin Work |
| Validating VendPartNumber |
| |
| Commit Work |
| |
| Purchase Price > 1500 |
| |
_____________________________________________________________
Figure 7-2. Runtime Dialog of Program cex9
__________________________________________________________
| |
| Order Quantity > 5 |
| |
| Item Due Date (yyyymmdd) > 19860630 |
| |
| Do you want to specify another line item (Y/N)? > y|
| |
| You can specify as many as 25 line items. |
| |
| Enter data for ItemNumber: 2 |
| |
| Vendor Part Number > 9055 |
| |
| Begin Work |
| Validating VendPartNumber |
| |
| Commit Work |
| |
| The vendor has no part with the number |
| you specified! |
| |
| Do you want to specify another line item (Y/N)? > y|
| |
| You can specify as many as 25 line items. |
| |
| Enter data for ItemNumber: 2 |
| |
| Vendor Part Number > 9050 |
| |
| Begin Work |
| Validating VendPartNumber |
| |
| Commit Work |
| |
| Purchase Price > 345 |
| |
| Order Quantity > 2 |
| |
| Item Due Date (yyyymmdd) > 19860801 |
| |
| Do you want to specify another line item (Y/N)?> n |
| |
| Begin Work |
| BULK INSERT into PurchDB.OrderItems |
| |
| Commit Work |
| |
| |
| |
__________________________________________________________
Figure 7-2. Runtime Dialog of Program cex9 (page 2 of 3)
_______________________________________________
| |
| The following order has been created: |
| Order Number: 30524 |
| Vendor Number: 9015 |
| Order Date: 19860603 |
| |
| Item Number: 1 |
| Vendor Part Number: 9040 |
| Purchase Price: 1500.00 |
| Order Quantity: 5 |
| Item Due Date: 19860630 |
| Received Quantity: is NULL |
| |
| Item Number: 2 |
| Vendor Part Number: 9050 |
| Purchase Price: 345.00 |
| Order Quantity: 2 |
| Item Due Date: 19860801 |
| Received Quantity: is NULL |
| |
| Enter a Vendor Number or a 0 to STOP > 0|
| |
| Release PartsDBE |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
_______________________________________________
Figure 7-2. Runtime Dialog of Program cex9 (page 3 of 3)
____________________________________________________________________________
| |
| /* Program cex9 */ |
| |
| /* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * */|
| /* This program illustrates the use of SQL's BULK INSERT */|
| /* command to insert mulitple rows or tuples at a time. */|
| /* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * */|
| |
| typedef int boolean; |
| |
| boolean Abort; |
| boolean Done; |
| boolean DoneItems; |
| boolean VendorOK; |
| boolean HeaderOK; |
| boolean PartOK; |
| boolean ItemsOK; |
| char response[2]; |
| int counter1; |
| int counter2; |
| int i,j,k; |
| long sec; |
| |
| char *Date; |
| |
| #include <stdio.h> |
| #include <time.h> |
| |
| #define OK 0 |
| #define NotFound 100 |
| #define MultipleRows -10002 |
| #define DeadLock -14024 |
| #define FALSE 0 |
| #define TRUE 1 |
| |
| sqlca_type sqlca; /* SQL Communication Area */ |
| |
| /* Begin Host Variable Declarations */ |
| EXEC SQL BEGIN DECLARE SECTION; |
| int OrderNumber1; |
| int VendorNumber; |
| char OrderDate[9]; |
| char PartSpecified[17]; |
| int MaxOrderNumber; |
| short StartIndex; |
| short NumberOfRows; |
| |
| |
| |
| |
____________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT
___________________________________________________________________________
| |
| struct { |
| int OrderNumber2; |
| int ItemNumber; |
| char VendPartNumber[17]; |
| double PurchasePrice; |
| short OrderQty; |
| char ItemDueDate[9]; |
| short ReceivedQty; |
| sqlind ReceivedQtyInd; |
| } OrderItems[25]; 1 |
| char SQLMessage[133]; |
| EXEC SQL END DECLARE SECTION; |
| /* End Host Variable Declarations */ |
| |
| |
| int SystemDate() /* Function to get the system date */ 32 |
| { |
| |
| sec = time(0); |
| printf("\n Calculating OrderDate"); |
| ptr = localtime(&sec); |
| sprintf(OrderDate, "%2s%2.2d%2.2d%2.2d", |
| "19",ptr->tm_year,++ptr->tm_mon,ptr->tm_mday); |
| |
| } /* End of SystemDate Function */ |
| |
| |
| int SQLStatusCheck() /* Function to Display Error Messages */ 13 |
| { |
| Abort = FALSE; |
| if (sqlca.sqlcode < DeadLock) Abort = TRUE; |
| |
| do { |
| EXEC SQL SQLEXPLAIN :SQLMessage; 4 |
| printf("\n"); |
| printf("%s\n",SQLMessage); |
| } while (sqlca.sqlcode != 0); |
| |
| if (Abort) { |
| ReleaseDBE(); |
| } |
| |
| } /* End SQLStatusCheck Function */ |
| |
| |
| |
| |
| |
| |
___________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 2 of 11)
____________________________________________________________________________
| |
| boolean ConnectDBE() /* Function to Connect to PartsDBE */ |
| 54 |
| { |
| boolean ConnectDBE; |
| printf("\n Connect to PartsDBE"); |
| EXEC SQL CONNECT TO 'PartsDBE'; 5 |
| |
| ConnectDBE = TRUE; |
| if (sqlca.sqlcode != OK) { |
| ConnectDBE = FALSE; |
| SQLStatusCheck(); |
| } /* End if */ |
| return (ConnectDBE); |
| } /* End of ConnectDBE Function */ |
| |
| |
| int ReleaseDBE() /* Function to Release PartsDBE */ 56 |
| { |
| printf("\n Release PartsDBE"); |
| EXEC SQL RELEASE; 3 |
| printf("\n"); |
| |
| Done = TRUE; |
| if (sqlca.sqlcode != OK) |
| SQLStatusCheck(); |
| |
| } /* End ReleaseDBE Function */ |
| |
| |
| boolean BeginTransaction() /* Function to Begin Work */ 9 |
| { |
| boolean BeginTransaction; |
| printf("\n"); |
| printf("\n Begin Work"); |
| |
| EXEC SQL BEGIN WORK; 6 |
| |
| if (sqlca.sqlcode != OK) { |
| SQLStatusCheck(); |
| ReleaseDBE(); |
| } |
| |
| } /* End BeginTransaction Function */ |
| |
| |
| |
| |
____________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 3 of 11)
_______________________________________________________________________________
| |
| int EndTransaction() /* Function to Commit Work */ 11 |
| { |
| printf("\n"); |
| printf("\n Commit Work"); |
| EXEC SQL COMMIT WORK; 7 |
| if (sqlca.sqlcode != OK) { |
| SQLStatusCheck(); |
| } |
| |
| } /* End EndTransaction Function */ |
| |
| |
| int RollBackWork() /* Function to RollBack work */ 28 |
| { |
| printf("\n"); |
| printf("\n RollBack Work"); |
| EXEC SQL ROLLBACK WORK; 8 |
| if (sqlca.sqlcode != OK) { |
| SQLStatusCheck(); |
| ReleaseDBE(); |
| } |
| |
| } /* End of RollBack Function */ |
| |
| |
| int ValidateVendor() /* Function that ensures vendor number is valid */|
| { 49 |
| BeginTransaction(); 9 |
| |
| printf("\n Validating VendorNumber"); |
| EXEC SQL SELECT VendorNumber 10 |
| INTO :VendorNumber |
| FROM PurchDB.Vendors |
| WHERE VendorNumber = :VendorNumber; |
| |
| switch (sqlca.sqlcode) { |
| |
| case OK: VendorOK = TRUE; |
| EndTransaction(); 11 |
| break; |
| case NotFound: EndTransaction(); |
| printf("\n"); |
| printf("\n No vendor has the VendorNumber you");|
| printf("\n specified!"); 12 |
| VendorOK = FALSE; |
| HeaderOK = FALSE; |
| ItemsOK = FALSE; |
| break; |
_______________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 4 of 11)
__________________________________________________________________________________
| |
| default: SQLStatusCheck(); 13 |
| EndTransaction(); |
| VendorOK = FALSE; |
| HeaderOK = FALSE; |
| ItemsOK = FALSE; |
| break; |
| } /* End switch */ |
| |
| } /* End ValidateVendor Function */ |
| |
| |
| \mf="Function" |
| int ValidatePart() /* Function that ensures vendor part number is valid */|
| { 39 |
| BeginTransaction(); 14 |
| |
| sscanf(OrderItems[i].VendPartNumber,"%s",PartSpecified); |
| |
| printf("\n Validating VendPartNumber"); |
| EXEC SQL SELECT VendPartNumber 15 |
| INTO :PartSpecified |
| FROM PurchDB.SupplyPrice |
| WHERE VendorNumber = :VendorNumber |
| AND VendPartNumber = :PartSpecified; |
| |
| switch (sqlca.sqlcode) { |
| |
| case OK: EndTransaction(); 16 |
| PartOK = TRUE; |
| break; |
| case NotFound: EndTransaction(); 17 |
| printf("\n"); |
| printf("\n The vendor has no part with the number" |
| printf("\n you specified!"); |
| PartOK = FALSE; |
| break; |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
__________________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 5 of 11)
_________________________________________________________________________________
| |
| default: SQLStatusCheck(); |
| EndTransaction(); |
| PartOK = FALSE; |
| break; |
| } /* End switch */ |
| |
| } /* End ValidatePart Function */ |
| |
| |
| int DisplayHeader() /* Function to Display row from PurchDB.Orders */ |
| { 45 |
| printf("\n"); |
| printf("\n The following order has been created."); |
| printf("\n"); |
| printf("Order Number: %d\n", OrderNumber1); 18 |
| printf("Vendor Number: %d\n", VendorNumber); |
| printf("Order Date: %s\n", OrderDate); |
| |
| } /* End of DisplayRow Function */ |
| |
| |
| int DisplayItems() /* Function to Display Rows from PurchDB.OrderItems */|
| { 21 |
| j = counter2; |
| printf("\n"); 19 |
| printf("Item Number: %d\n", OrderItems[j].ItemNumber); |
| printf("Vendor Part Number: %s\n", OrderItems[j].VendPartNumber); |
| printf("Purchase Price: %10.2f\n", OrderItems[j].PurchasePrice)|
| printf("Order Quantity: %d\n", OrderItems[j].OrderQty); |
| printf("Item Due Date: %s\n", OrderItems[j].ItemDueDate); |
| printf("Received Quantity: is NULL \n"); |
| counter2 = j + 1; |
| |
| } /* End of DisplayRow */ |
| |
| |
| int DisplayOrder() /* Function to Display Order Created */ 52 |
| { |
| DisplayHeader(); 20 |
| printf("\n"); |
| i = counter1; |
| counter2 = 1; |
| do { |
| DisplayItems(); 21 |
| j = j + 1; |
| } while (j < i); |
| |
| } /* End of DisplayOrder Function */ |
_________________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 6 of 11)
________________________________________________________________________________
| |
| int InsertRow() /* Function to insert row in PurchDB.Orders */ 33 |
| { |
| printf("\n"); |
| printf("\n INSERT into PurchDB.Orders"); |
| EXEC SQL INSERT INTO PurchDB.Orders 22 |
| (OrderNumber, |
| VendorNumber, |
| OrderDate) |
| VALUES (:OrderNumber1, |
| :VendorNumber, |
| :OrderDate); |
| |
| if (sqlca.sqlcode != 0) { |
| SQLStatusCheck(); |
| EndTransaction(); |
| HeaderOK = FALSE; 23 |
| } |
| else { |
| EndTransaction(); |
| HeaderOK = TRUE; 24 |
| } |
| |
| } /* End of InsertRow Function */ |
| |
| |
| int BulkInsert() /* Function to bulk insert into PurchDB.OrderItems */|
| { 47 |
| BeginTransaction(); 25 |
| NumberOfRows = counter1; 26 |
| StartIndex = 1; |
| |
| printf("\n BULK INSERT into PurchDB.OrderItems"); |
| EXEC SQL BULK INSERT INTO PurchDB.OrderItems 27 |
| (OrderNumber, |
| ItemNumber, |
| VendPartNumber, |
| PurchasePrice, |
| OrderQty, |
| ItemDueDate, |
| ReceivedQty) |
| VALUES (:OrderItems, |
| :StartIndex, |
| :NumberOfRows); |
| |
| |
| |
| |
________________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 7 of 11)
_______________________________________________________________________________
| |
| if (sqlca.sqlcode != 0) { |
| SQLStatusCheck(); |
| RollBackWork(); 28 |
| ItemsOK = FALSE; |
| } |
| else { |
| EndTransaction(); 29 |
| ItemsOK = TRUE; |
| } |
| |
| } /* End of BulkInsert Function */ |
| |
| |
| int ComputeOrderNumber() /* Function to assign a number to an order */|
| { 36 |
| EXEC SQL SELECT MAX(OrderNumber) 30 |
| INTO :MaxOrderNumber |
| FROM PurchDB.Orders; |
| |
| if (sqlca.sqlcode != 0) { |
| SQLStatusCheck(); |
| EndTransaction(); |
| HeaderOK = FALSE; |
| } |
| else { |
| printf("\n Calculating OrderNumber"); |
| OrderNumber1 = MaxOrderNumber + 1; 31 |
| SystemDate(); 32 |
| InsertRow(); 33 |
| } |
| |
| } /* End ComputeOrderNumber Function */ |
| |
| |
| int CreateHeader() /* Function to create order header */ 50 |
| { |
| BeginTransaction(); 34 |
| |
| printf("\n LOCK the PurchDB.Orders table."); |
| EXEC SQL LOCK TABLE PurchDB.Orders IN EXCLUSIVE MODE; 35 |
| |
| if (sqlca.sqlcode != 0) { |
| SQLStatusCheck(); |
| EndTransaction(); |
| HeaderOK = FALSE; |
| } |
| |
_______________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 8 of 11)
_______________________________________________________________________________
| |
| else |
| ComputeOrderNumber(); 36 |
| |
| } /* End CreateHeader Function */ |
| |
| |
| int ItemEntry() /* Function to put line items into OrderItems array */ |
| { 46 |
| i = counter1; |
| OrderItems[i].OrderNumber2 = OrderNumber1; 37 |
| OrderItems[i].ItemNumber = i; |
| printf("\n"); |
| printf("\n You can specify as many as 25 line items."); |
| printf("\n"); |
| printf("\n Enter data for ItemNumber: %d\n", OrderItems[i].ItemNumber);|
| printf("\n"); |
| printf("\n Vendor Part Number > "); 38 |
| scanf("%s%*c",OrderItems[i].VendPartNumber); |
| ValidatePart(); 39 |
| DoneItems = FALSE; |
| if (PartOK != FALSE) { |
| printf("\n"); |
| printf("\n Purchase Price > "); 40 |
| scanf("%1f",&OrderItems[i].PurchasePrice); |
| |
| printf("\n Order Quantity > "); 40 |
| scanf("%5d%*c",&OrderItems[i].OrderQty); |
| |
| printf("\n Item Due Date (yyyymmdd) > "); 40 |
| scanf("%s%*c",OrderItems[i].ItemDueDate); |
| |
| OrderItems[i].ReceivedQtyInd = -1; 41 |
| |
| counter1 = i + 1; |
| } |
| if (i < 25) { |
| printf("\n"); |
| printf("\n Do you want to specify another line item (Y/N)? >"); |
| scanf("%s%*c",response); 42 |
| if ((response[0] == 'N') || (response[0] == 'n')) { |
| DoneItems = TRUE; |
| } |
| } |
| else |
| DoneItems = TRUE; 43 |
| } /* End ItemEntry Function */ |
| |
| |
_______________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 9 of 11)
___________________________________________________________________________
| |
| int CreateOrderItems() /* Function to create line items */ 51 |
| { |
| ItemsOK = FALSE; |
| printf("\n"); |
| printf("\n Do you want to specify line items (Y/N)? > "); 44 |
| scanf("%s%*c",response); |
| if ((response[0] == 'N') || (response[0] == 'n')) { |
| DoneItems = TRUE; |
| DisplayHeader(); 45 |
| } |
| else { |
| counter1 = 1; |
| do { |
| ItemEntry(); 46 |
| } while (DoneItems == FALSE); |
| if (counter1 != 1) { |
| BulkInsert(); 47 |
| ItemsOK = TRUE; |
| } |
| } |
| } /* End of CreateOrderItems Function */ |
| |
| |
| int CreateOrder() /* Function to create an order */ 55 |
| { |
| printf("\n"); |
| printf("\n Enter a Vendor Number or a 0 to STOP > "); 48 |
| scanf("%10d%*c",&VendorNumber); |
| if (VendorNumber != 0) { |
| ValidateVendor(); 49 |
| if (VendorOK == TRUE) CreateHeader(); 50 |
| if (HeaderOK == TRUE) { |
| DoneItems = FALSE; |
| do { |
| CreateOrderItems(); 51 |
| } while (DoneItems == FALSE); |
| } |
| if (ItemsOK == TRUE) DisplayOrder(); 52 |
| } |
| else |
| Done = TRUE; 53 |
| |
| } /* End CreateOrder Function */ |
| |
| |
| |
| |
___________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 10 of 11)
___________________________________________________________________________
| |
| main() /* Beginning of program */ |
| { |
| printf("\n Program to CREATE an Order - cex9"); |
| printf("\n"); |
| printf("\n Event list:"); |
| printf("\n CONNECT TO PartsDBE"); |
| printf("\n Prompt for a Vendor Number"); |
| printf("\n Validate the Vendor Number"); |
| printf("\n BEGIN WORK"); |
| printf("\n INSERT a row into PurchDB.Orders"); |
| printf("\n Prompt for a line item"); |
| printf("\n Validate the Vendor Part Number for each line item"); |
| printf("\n BULK INSERT rows into PurchDB.OrderItems"); |
| printf("\n Repeat the above six steps until the user enters a 0");|
| printf("\n RELEASE the DBEnvironment"); |
| printf("\n"); |
| |
| if (ConnectDBE()) { 54 |
| |
| Done = FALSE; |
| do { |
| CreateOrder(); 55 |
| } while (Done != TRUE); |
| |
| ReleaseDBE(); 56 |
| } |
| else |
| printf("\n Error: Cannot Connect to PartsDBE!\n"); |
| |
| } /* End of Program */ |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
___________________________________________________________________________
Figure 7-3. Program cex9: Using BULK INSERT (page 11 of 11)
