Chapter 1  Getting Started with ALLBASE/SQL Programming in FORTRAN

The steps in creating a FORTRAN application program that accesses an
ALLBASE/SQL DBEnvironment are summarized in Figure 1-1 .

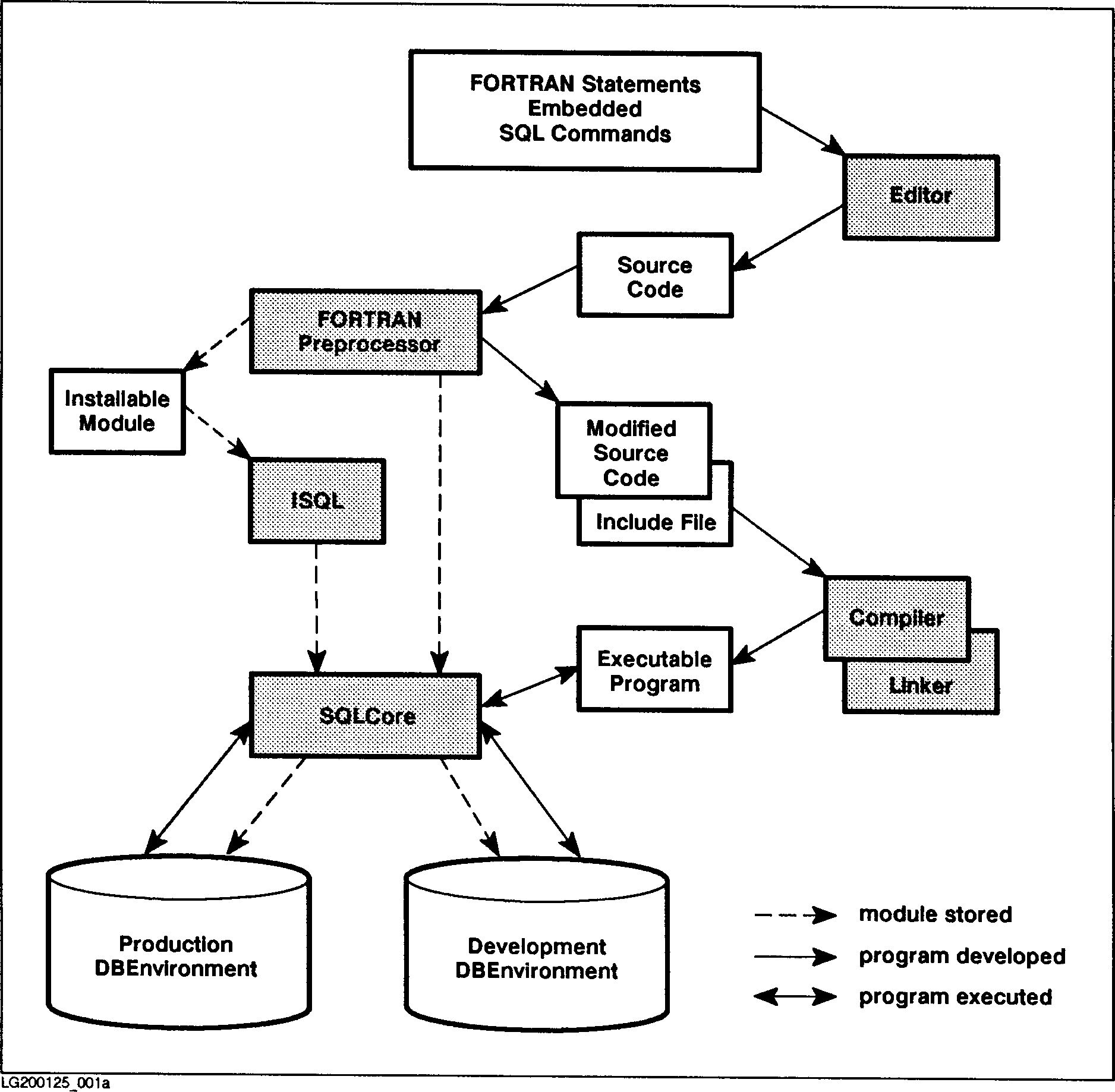

          Figure 1-1.  Creating an ALLBASE/SQL FORTRAN Application Program

Using your favorite editor, create FORTRAN source code.  The source code
is a compilable FORTRAN program or subprogram that contains SQL commands.
The SQL commands contained within the FORTRAN program are said to be
embedded.  Refer to the ALLBASE/SQL Reference Manual for SQL terminology
and usage rules.

Before compiling the source code, it must be preprocessed using the
ALLBASE/SQL FORTRAN preprocessor.  The FORTRAN preprocessor:

   *   Checks the syntax of the SQL commands.

   *   Stores a module in the system catalog of the DBEnvironment to be
       accessed at runtime.  A module consists of ALLBASE/SQL
       instructions for executing SQL commands in your program.

   *   Creates an installable module file.  This file contains a copy of
       the module stored in the DBEnvironment at preprocessing time.
       This file can be used to install the module into another
       DBEnvironment so that the application program can be run in that
       DBEnvironment.

   *   Generates FORTRAN statements for executing the SQL commands and
       comments out the SQL commands.  Non-SQL statements are ignored.
       This modified version of your source code is placed into a file
       created by the preprocessor, referred to as a modified source code
       file.

   *   Creates one include file, which contains type declarations and
       initialization of variables used by the preprocessor generated
       FORTRAN statements.

The FORTRAN compiler and system linker are used to create the executable
program from the modified source code file and the include file.  The
executable program automatically makes the appropriate database accesses
at runtime in DBEnvironments where the related module is stored.
