Preprocessor Input and Output
Regardless of the mode you use, the following input files must be
available when you invoke the FORTRAN preprocessor, as shown in Figure
2-3 :
* source file: a file containing the source code of the FORTRAN
program with embedded SQL commands for one or more DBEnvironments.
The default input filename is:
SQLIN
An alternative name can be specified by using a file equation as
shown later in this chapter.
* ALLBASE/SQL message catalog: a file containing preprocessor
messages and ALLBASE/SQL error and warning messages. The formal
file designator for the message catalog is as follows, with xxx
being the numeric representation for the current native language:
SQLCTxxx.PUB.SYS
When you run the preprocessor in full preprocessing mode, also
ensure that the DBEnvironment accessed by the program is
available.
As Figure 2-3 points out, the FORTRAN preprocessor creates the
following output files:
* modified source file: a file containing the modified version of
the source code in the source file. The default filename for this
file is:
SQLOUT
An alternative name can be specified by using a file equation.
* variable include file: the name for this file, which contains
variable declarations used by FORTRAN statements that the
preprocessor inserts into the modified source file is:
SQLVAR
Both SQLOUT and SQLVAR are created as permanent files in order to
invoke the FORTRAN compiler, as shown in Figure 2-4 .
* ALLBASE/SQL message file: a file containing the preprocessor
banner, error, and warning messages, and other messages. The file
name for this file is:
SQLMSG
* installable module file: a file containing a copy of the module
created by the preprocessor. The file name for this file is:
SQLMOD
When you run the preprocessor in full preprocessing mode, the
preprocessor also stores a module in the DBEnvironment accessed by
your program. The module is used at runtime to execute
DBEnvironment operations.
![[]](../../pic3k/M011857/FFN103c50.gif)

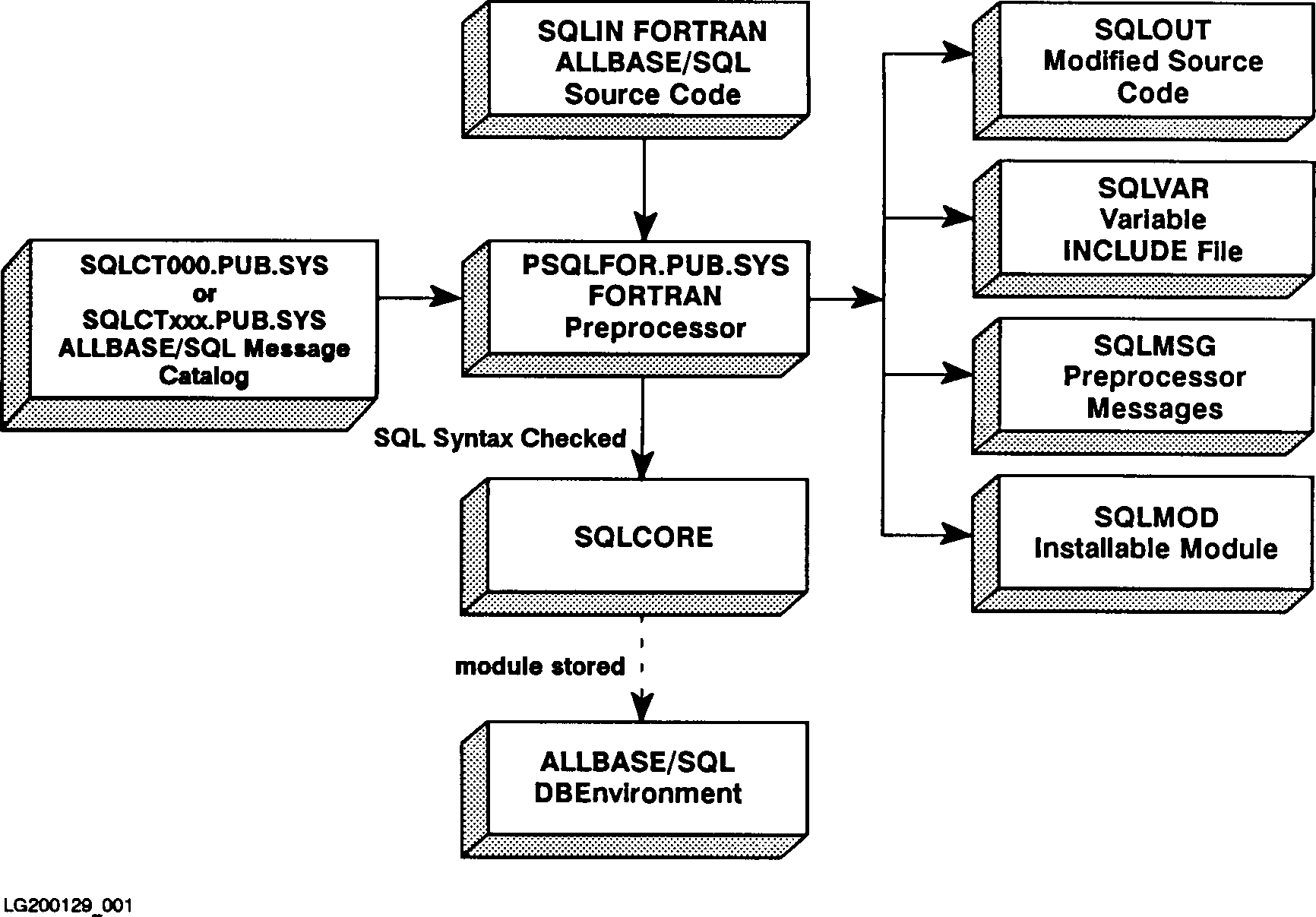

Figure 2-3. FORTRAN Preprocessor Input and Output
![[]](../../pic3k/M011857/FFN113c50.gif)

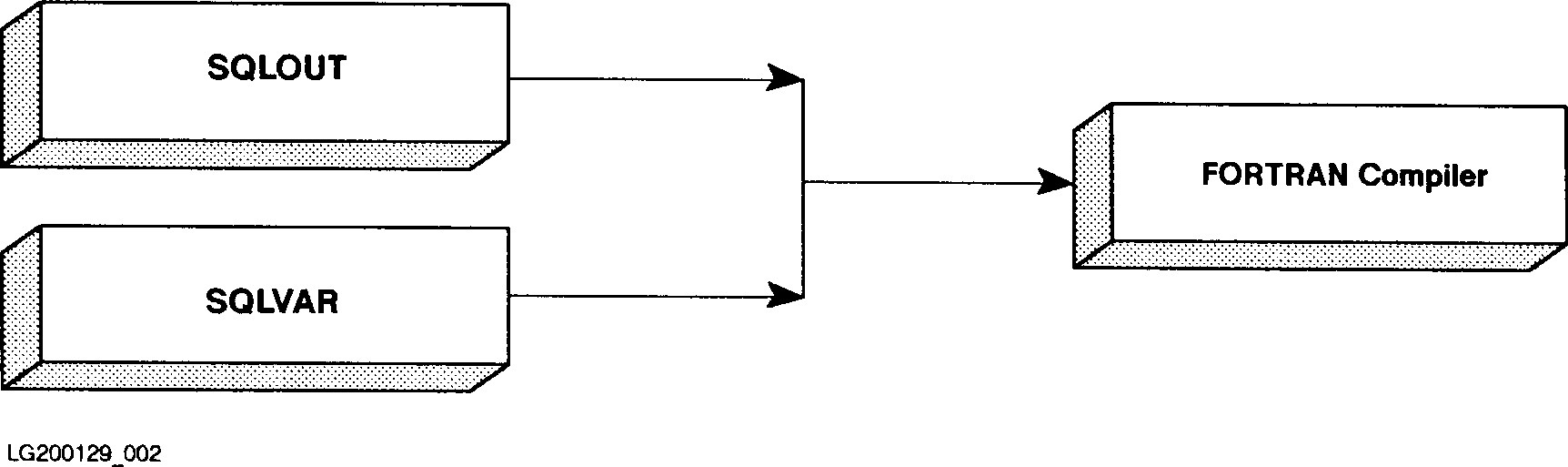

Figure 2-4. FORTRAN Compiler Input
If you want to preprocess several ALLBASE/SQL application programs in the
same group and account and compile and link the programs later, or you
plan to compile a preprocessed program during a future session, you
should do the following for each program:
* Before running the preprocessor, equate SQLIN to the name of the
file containing the application you want to preprocess:
:FILE SQLIN = InFile
* After running the preprocessor, save and rename the output files
if you do not want them overwritten. For example:
:SAVE SQLOUT
:RENAME SQLOUT, OutFile
:SAVE SQLMOD
:RENAME SQLMOD, ModFile
:SAVE SQLVAR
:RENAME SQLVAR, VarFile
* When you are ready to compile the program, you must equate the
include file name to its standard ALLBASE/SQL name (SQLVAR).
Source File
The preprocessor source file must contain at a minimum the following
statements:
PROGRAM Statement
AnyStatement
END
When parsing the source file, the FORTRAN preprocessor ignores all
FORTRAN statements and any FORTRAN compiler directives that are not
supported. Only the following information is parsed by the FORTRAN
preprocessor:
* The PROGRAM Statement or SUBROUTINE name. Unless you specify a
module name in the preprocessor invocation line, the preprocessor
uses the PROGRAM Statement or the SUBROUTINE name to name the
module it stores. A module name can contain as many as 20 bytes
and must follow the rules governing ALLBASE/SQL basic names (given
in the ALLBASE/SQL Reference Manual ).
* Statements found after the prefix EXEC SQL. Follow the rules given
in Chapter 3 for how and where to embed these statements.
* Statements found between the BEGIN DECLARE SECTION and END DECLARE
SECTION commands. These commands delimit a declare section, which
contains FORTRAN data description entries for the host variables
used in that program or subprogram unit. All program units (both
main and subprogram) that contain SQL commands, regardless of
whether or not they contain host variables, must include the BEGIN
DECLARE SECTION and the END DECLARE SECTION commands in order to
create the variable include file. Host variables are described in
Chapter 4.
* The FORTRAN compiler directives $SET, $IF, $ELSE, $ENDIF, and
$INCLUDE are supported by the FORTRAN preprocessor. All other
compiler directives are ignored.
Figure 2-6 illustrates a source file containing a sample program
using the following SQL commands, highlighted with shading:
INCLUDE SQLCA
BEGIN DECLARE SECTION
END DECLARE SECTION
WHENEVER
CONNECT
BEGIN WORK
COMMIT WORK
RELEASE
SQLEXPLAIN
SELECT
As the following interactive sample dialog illustrates, the program
begins a DBE session for PartsDBE, the sample DBEnvironment. It prompts
the user for a part number, then displays information about the part from
the table PurchDB.Parts. Warning and error conditions are handled with
WHENEVER and SQLEXPLAIN commands. The program continues to prompt for a
part number until the user enters a slash (/) or until a serious error is
encountered:
__________________________________________________________________________
| |
| Program to SELECT specified rows from the Parts table -- forex2 |
| Event List: |
| CONNECT TO PartsDBE |
| BEGIN WORK |
| SELECT specified row from the Parts table until user enters a "/"|
| COMMIT WORK |
| RELEASE PartsDBE |
| |
| CONNECT TO PartsDBE |
| |
| Enter PartNumber from Parts table or / to STOP > 1123-P-01 |
| BEGIN WORK |
| SELECT PartNumber, PartName, SalesPrice |
| Part Number: 1123-P-01 |
| Part Name: Central Processor |
| Sales Price: 500.00 |
| Was retrieved from the PurchDB.Parts table! |
| COMMIT WORK |
| |
| Enter PartNumber from Parts table or / to STOP > 1323-D-01 |
| BEGIN WORK |
| SELECT PartNumber, PartName, SalesPrice |
| Part Number: 1323-D-01 |
| Part Name: Floppy Diskette Drive |
| Sales Price: 200.00 |
| Was retrieved from the PurchDB.Parts table! |
| COMMIT WORK |
| |
| Enter PartNumber from Parts table or / to STOP > 1954-LP-01 |
| BEGIN WORK |
| SELECT PartNumber, PartName, SalesPrice |
| Row not found! |
| COMMIT WORK |
| |
| Enter PartNumber from Parts Table or / to STOP > 1823-PT-01 |
| BEGIN WORK |
| SELECT PartNumber, PartName, SalesPrice |
| Part Number: 1823-PT-01 |
| Part Name: Graphics Printer |
| Sales Price: 450.00 |
| Was retrieved from the PurchDB.Parts table! |
| COMMIT WORK |
| |
| Enter PartNumber from Parts table or / to STOP > / |
| RELEASE PartsDBE |
| END OF PROGRAM |
__________________________________________________________________________
Figure 2-5. Runtime Dialog of Program forex2
______________________________________________________________________
| |
| PROGRAM forex2 |
| C |
| C *********************************************************|
| C * This program illustrates the use of SQL's SELECT *|
| C * command to retrieve one row or tuple of data at *|
| C * a time. This program executes a BEGIN WORK command *|
| C * before the SELECT command, and a COMMIT WORK command *|
| C * after executing the SELECT command. An indicator *|
| C * variable is also used for SalesPrice. *|
| C *********************************************************|
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| CHARACTER Done |
| CHARACTER Abort |
| INTEGER MultipleRows |
| INTEGER Deadlock |
| CHARACTER*16 Response |
| C |
| C **************************************************** |
| C * Data Type Conversions : * |
| C * Character = SQL Char(1) * |
| C * Character*n = SQL Char(n) * |
| C * Character*n = SQL VarChar * |
| C * Double Precision = SQL Float * |
| C * Double Precision = SQL Decimal * |
| C * Integer = SQL Integer * |
| C * Integer*2 = SQL SmallInt * |
| C **************************************************** |
| C |
| C (* Begin Host Variable Declarations *) |
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| CHARACTER*16 PartNumber |
| CHARACTER*30 PartName |
| DOUBLE PRECISION SalesPrice |
| SQLIND SalesPriceInd |
| CHARACTER*80 SQLMessage |
| EXEC SQL END DECLARE SECTION |
| C |
| C (* End Host Variable Declarations *) |
| C |
| C |
| C |
| C |
| |
______________________________________________________________________
Figure 2-6. Program forex2
_______________________________________________________________________________
| |
| C |
| C (* Beginning of the Main Program *) |
| C |
| WRITE (*,*) CHAR(27), 'U' |
| WRITE (*,*) 'Program to SELECT specified rows from the Parts Table|
| 1 -- forex2' |
| WRITE (*,*) ' ' |
| WRITE (*,*) 'Event List:' |
| WRITE (*,*) ' CONNECT TO PartsDBE' |
| WRITE (*,*) ' CONNECT TO ../sampledb/PartsDBE' |
| WRITE (*,*) ' BEGIN WORK' |
| WRITE (*,*) ' SELECT specified row from the Parts table until use|
| 1r enters a "/"' |
| WRITE (*,*) ' COMMIT WORK' |
| WRITE (*,*) ' RELEASE PartsDBE' |
| C |
| CALL ConnectDBE |
| CALL QueryTable |
| CALL ReleaseDBE |
| C |
| STOP |
| END |
| C |
| C (* Beginning of the Sub-Routines *) |
| C |
| SUBROUTINE ConnectDBE |
| C (* Subroutine to Connect to PartsDBE *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| C (* Begin Host Variable Declarations *) |
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| EXEC SQL END DECLARE SECTION |
| C |
| EXEC SQL WHENEVER SQLERROR GOTO 500 |
| C |
| WRITE (*,*) ' ' |
| WRITE (*,*) 'CONNECT TO PartsDBE' |
| EXEC SQL CONNECT TO 'PartsDBE' |
| GOTO 600 |
| 500 CALL SQLStatusCheck |
| CALL EndTransaction |
| CALL ReleaseDBE |
| C |
_______________________________________________________________________________
Figure 2-6. Program forex2 (page 2 of 8)
__________________________________________________________
| |
| 600 RETURN |
| EXEC SQL WHENEVER SQLERROR CONTINUE |
| END |
| C (* End of ConnectDBE Subroutine *) |
| C |
| SUBROUTINE BeginTransaction |
| C (* Subroutine to Begin Work *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| C (* Begin Host Variable Declarations *)|
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| EXEC SQL END DECLARE SECTION |
| C |
| EXEC SQL WHENEVER SQLERROR GOTO 500 |
| C |
| WRITE (*,*) 'BEGIN WORK' |
| EXEC SQL BEGIN WORK |
| GOTO 600 |
| 500 CALL SQLStatusCheck |
| CALL EndTransaction |
| CALL ReleaseDBE |
| 600 RETURN |
| EXEC SQL WHENEVER SQLERROR CONTINUE |
| END |
| C (* End BeginTransaction Subroutine *) |
| C |
| SUBROUTINE EndTransaction |
| C (* Subroutine to Commit Work *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| C (* Begin Host Variable Declarations *)|
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| EXEC SQL END DECLARE SECTION |
| C |
| EXEC SQL WHENEVER SQLERROR GOTO 500 |
| WRITE (*,*) 'COMMIT WORK' |
__________________________________________________________
Figure 2-6. Program forex2 (page 3 of 8)
__________________________________________________________
| |
| EXEC SQL COMMIT WORK |
| GOTO 600 |
| 500 CALL SQLStatusCheck |
| CALL ReleaseDBE |
| C |
| 600 RETURN |
| EXEC SQL WHENEVER SQLERROR CONTINUE |
| END |
| C (* End EndTransaction Subroutine *) |
| C |
| SUBROUTINE ReleaseDBE |
| C (* Subroutine to Release PartsDBE *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| |
| C (* Begin SQL Communication Area *) |
| C |
| C (* Begin Host Variable Declarations *)|
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| EXEC SQL END DECLARE SECTION |
| C |
| EXEC SQL WHENEVER SQLERROR GOTO 500 |
| C |
| WRITE (*,*) 'RELEASE PartsDBE' |
| EXEC SQL RELEASE |
| GOTO 600 |
| 500 CALL SQLStatusCheck |
| CALL EndTransaction |
| C |
| 600 RETURN |
| EXEC SQL WHENEVER SQLERROR CONTINUE |
| END |
| C (* End ReleaseDBE Subroutine *) |
| C |
| C |
| C |
| C |
| C |
| C |
| C |
| C |
| C |
| C |
| C |
| C |
| |
| |
__________________________________________________________
Figure 2-6. Program forex2 (page 4 of 8)
______________________________________________________________________
| |
| C |
| SUBROUTINE DisplayRow (PartNumber,PartName,SalesPrice, |
| 1SalesPriceInd) |
| C (* Subroutine to Display a Selected Row *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| C (* Begin Host Variable Declarations *) |
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| CHARACTER*16 PartNumber |
| CHARACTER*30 PartName |
| DOUBLE PRECISION SalesPrice |
| SQLIND SalesPriceInd |
| CHARACTER*80 SQLMessage |
| EXEC SQL END DECLARE SECTION |
| C |
| WRITE(*,100) PartNumber |
| WRITE(*,110) PartName |
| IF (SalesPriceInd .LT. 0) THEN |
| WRITE (*,*) 'Sales Price is NULL' |
| ELSE |
| WRITE(*,120) SalesPrice |
| ENDIF |
| WRITE (*,*) 'Was retrieved from the PurchDB.Parts table!'|
| 100 FORMAT(' Part Number: ',A16) |
| 110 FORMAT(' Part Name: ',A30) |
| 120 FORMAT(' SalesPrice: ',F10.2) |
| C |
| RETURN |
| END |
| C (* End DisplayRow Subroutine *) |
| C |
| SUBROUTINE SQLStatusCheck |
| C (* Subroutine to Check the Status of DeadLocks *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| LOGICAL Abort |
| INTEGER DeadLock |
| C |
______________________________________________________________________
Figure 2-6. Program forex2 (page 5 of 8)
__________________________________________________________
| |
| C |
| C |
| C (* Begin Host Variable Declarations *)|
| C |
| EXEC SQL BEGIN DECLARE SECTION |
| CHARACTER*80 SQLMessage |
| EXEC SQL END DECLARE SECTION |
| C |
| C (* End Host Variable Declarations *) |
| C |
| DeadLock = -14024 |
| Abort = .TRUE. |
| WRITE (*,*) Abort |
| IF (SQLCode .LT. DeadLock) THEN |
| Abort = .TRUE. |
| ELSE |
| Abort = .FALSE. |
| ENDIF |
| DO WHILE (SQLCode .NE. 0) |
| EXEC SQL SQLExplain :SQLMessage |
| WRITE (*,*) SQLMessage |
| END DO |
| IF (Abort) THEN |
| CALL EndTransaction |
| CALL ReleaseDBE |
| ENDIF |
| RETURN |
| END |
| C (* End of SQLStatusCheck Subroutine *) |
| C |
| SUBROUTINE QueryTable |
| C (* Subroutine to Query the Parts table *) |
| C |
| EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C |
| INTEGER DeadLock |
| INTEGER MultipleRows |
| INTEGER NotFound |
| INTEGER OK |
| C |
| C |
| C |
| |
| |
| |
__________________________________________________________
Figure 2-6. Program forex2 (page 6 of 8)
_______________________________________________________________________________
| |
| C |
| C (* Begin Host Variable Declarations *) |
| EXEC SQL BEGIN DECLARE SECTION |
| CHARACTER*16 PartNumber |
| CHARACTER*30 PartName |
| DOUBLE PRECISION SalesPrice |
| SQLIND SalesPriceInd |
| CHARACTER*80 SQLMessage |
| EXEC SQL END DECLARE SECTION |
| C |
| C (* End Host Variable Declarations *) |
| C |
| MultipleRows = -10002 |
| DeadLock = -14024 |
| NotFound = 100 |
| OK = 0 |
| C |
| DO WHILE (PartNumber .NE. '/') |
| WRITE(*,100) |
| 100 FORMAT(/$,' Enter PartNumber from Parts table or / to STOP > ')|
| READ(*,110) PartNumber |
| 110 FORMAT (A16) |
| C |
| IF (PartNumber .NE. '/' ) THEN |
| C |
| CALL BeginTransaction |
| WRITE(*,*) 'SELECT PartNumber, PartName, SalesPrice' |
| C |
| EXEC SQL SELECT PartNumber, PartName, SalesPrice\ |
| 1 INTO :PartNumber,\ |
| 2 :PartName,\ |
| 3 :SalesPrice :SalesPriceInd\ |
| 4 FROM PurchDB.Parts\ |
| 5 WHERE PartNumber = :PartNumber |
| C |
| IF ((SQLWarn(3) .EQ. 'w') .OR. (SQLWarn(3) .EQ. 'W')) THEN |
| WRITE (*,*) 'SQL WARNING has occurred. The following row' |
| WRITE (*,*) 'of data may not be valid!' |
| CALL DisplayRow (PartNumber,PartName,SalesPrice, |
| 1 SalesPriceInd) |
| ENDIF |
| C |
| C |
| C |
| C |
| C |
| C |
_______________________________________________________________________________
Figure 2-6. Program forex2 (page 7 of 8)
________________________________________________________________
| |
| C |
| IF (SQLCode .EQ. OK) THEN |
| CALL DisplayRow (PartNumber, PartName, SalesPrice,|
| 1SalesPriceInd) |
| ELSEIF (SQLCode .EQ. NotFound) THEN |
| WRITE (*,*) 'Row not found!' |
| ELSEIF (SQLCode .EQ. MultipleRows) THEN |
| WRITE(*,*) 'WARNING: More than one row qualifies!'|
| ELSE |
| CALL SQLStatusCheck |
| ENDIF |
| CALL EndTransaction |
| ENDIF |
| END DO |
| RETURN |
| END |
| C (* End QueryTable Subroutine *) |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
________________________________________________________________
Figure 2-6. Program forex2 (page 8 of 8)
Output File Attributes
When the source file illustrated in Figure 2-6 is preprocessed, the
attributes of the output files are created as follows:
:listftemp,2
TEMPORARY FILES FOR SOMEUSER.SOMEACCT,SOMEGRP
ACCOUNT= SOMEACCT GROUP= SOMEGRP
FILENAME CODE ----------LOGICAL RECORD--------- ----SPACE----
SIZE TYP EOF LIMIT R/B SECTORS #X MX
SQLMOD 250W FB 3 1023 1 208 1 10 (TEMP)
SQLMSG 254B VA 14 1023 1 128 1 8 (TEMP)
SQLOUT 80B FA 646 10000 16 384 3 32 (TEMP)
SQLVAR 80B FA 8 2048 16 128 1 26 (TEMP)
Modified Source File
As the FORTRAN preprocessor parses the source file, it copies lines from
the source file into the modified source file, comments out embedded SQL
commands, and inserts information around each embedded SQL command.
Figure 2-7 illustrates the modified source file generated for the source
file pictured in Figure 2-6 . The shaded lines contain information
generated by the FORTRAN preprocessor.
In both preprocessing modes, the FORTRAN preprocessor:
* Inserts a C in column 1 on each line containing an embedded SQL
command to comment out the SQL command for the FORTRAN compiler.
* Inserts one include FORTRAN compiler directive after the Type
Declaration Section. This directive references the preprocessor
generated include file (variable include file) during compilation.
* Inserts a "Start SQL Preprocessor" comment before, and an "End SQL
Preprocessor" comment after code that it modifies.
In full preprocessing mode, the preprocessor also:
* Generates a FORTRAN COMMON BLOCK declaration of SQLCA following
the EXEC SQL INCLUDE SQLCA command.
* Generates FORTRAN statements providing conditional instructions
following SQL commands encountered after one of the following SQL
commands: WHENEVER SQLERROR, WHENEVER SQLWARNING, and WHENEVER
NOT FOUND.
* Generates FORTRAN statements that call ALLBASE/SQL external
procedures at runtime. These calls reference the module stored by
the preprocessor in the DBEnvironment for execution at runtime.
Variables used by these external calls are defined in the variable
declaration include file.
* Inserts a "Start Inserted Statements" comment before generated
information.
CAUTION Although you can access the modified source file and the
variable declaration file with an editor, you should never
change the information generated by the FORTRAN preprocessor.
Your DBEnvironment or other files on the system could be damaged
at runtime if preprocessor generated statements are altered.
If you change non-preprocessor generated statements in the modified
source file, make the changes to the source file, re-preprocess the
source file, and re-compile the output files before putting the
application program into production.
________________________________________________________
| |
| C**** Start SQL Preprocessor ****\ |
| $ALIAS SQLXCNHF = 'SQLXCNHF' PASCAL \ \ |
| $ (%REF,%REF,%VAL,%VAL)\ |
| $ALIAS SQLXCO = 'SQLXCO' PASCAL \ \ |
| $ (%REF,%VAL,%REF)\ |
| $ALIAS SQLXEXIF = 'SQLXEXIF' PASCAL \ \ |
| $ (%REF,%REF,%VAL)\ |
| $ALIAS SQLXEXUF = 'SQLXEXUF' PASCAL \ \ |
| $ (%REF,%REF,%VAL,%REF,%VAL,%VAL,%REF,%VAL)\|
| $ALIAS SQLXFE = 'SQLXFE' PASCAL \ \ |
| $ (%REF,%REF,%REF,%VAL,%REF,%VAL,%VAL,%VAL)\|
| $ALIAS SQLXID = 'SQLXID' PASCAL \ \ |
| $ (%REF,%REF,%REF,%VAL,%REF,%VAL,%VAL)\ |
| $ALIAS SQLXOPKF = 'SQLXOPKF' PASCAL \ \ |
| $ (%REF,%REF,%REF,%VAL,%REF,%VAL,%VAL)\ |
| $ALIAS SQLXPLNF = 'SQLXPLNF' PASCAL \ \ |
| $ (%REF,%REF,%VAL,%VAL)\ |
| $ALIAS SQLXPREF = 'SQLXPREF' PASCAL \ \ |
| $ (%REF,%REF,%VAL,%REF,%VAL)\ |
| $ALIAS SQLXSECF = 'SQLXSECF' PASCAL \ \ |
| $ (%REF,%REF,%REF,%VAL)\ |
| $ALIAS SQLXST = 'SQLXST' PASCAL \ \ |
| $ (%REF)\ |
| $ALIAS SQLXSVPF = 'SQLXSVPF' PASCAL \ \ |
| $ (%REF,%VAL,%REF,%REF)\ |
| C**** End SQL Preprocessor **** |
________________________________________________________
Figure 2-7. Modified Source File for Program forex2
______________________________________________________________________
| |
| PROGRAM forex2 |
| C *********************************************************|
| C * This program illustrates the use of SQL's SELECT *|
| C * command to retrieve one row or tuple of data at *|
| C * a time. This program executes a BEGIN WORK command *|
| C * before the SELECT command, and a COMMIT WORK command *|
| C * after executing the SELECT command. An indicator *|
| C * variable is also used for SalesPrice. *|
| C *********************************************************|
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL INCLUDE SQLCA\ |
| C (* Begin SQL Communication Area *)\ |
| C**** Start Inserted Statements ****\ |
| CHARACTER SQLCAID*8\ |
| INTEGER SQLCABC\ |
| INTEGER SQLCODE\ |
| INTEGER SQLERRL\ |
| CHARACTER SQLERRM*256\ |
| CHARACTER SQLERRP*8\ |
| INTEGER SQLERRD(6)\ |
| CHARACTER SQLWARN(0:7)\ |
| INTEGER SQLEXT(2) |
______________________________________________________________________
Modified Source File for Program forex2
___________________________________________________________________
| |
| CHARCTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,\ |
| 1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7\ |
| EQUIVALENCE (SQLWARN0,SQLWARN(0)),\ |
| 1 (SQLWARN1,SQLWARN(1)),\ |
| 2 (SQLWARN2,SQLWARN(2)),\ |
| 3 (SQLWARN3,SQLWARN(3)),\ |
| 4 (SQLWARN4,SQLWARN(4)),\ |
| 5 (SQLWARN5,SQLWARN(5)),\ |
| 6 (SQLWARN6,SQLWARN(6)),\ |
| 7 (SQLWARN7,SQLWARN(7))\ |
| COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,\ |
| 1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT\|
| C**** End SQL Preprocessor **** |
| CHARACTER Done |
| CHARACTER Abort |
| INTEGER MultipleRows |
| INTEGER Deadlock |
| CHARACTER*16 Response |
| C |
| C **************************************************** |
| C * Data Type Conversions : * |
| C * Character = SQL Char(1) * |
| C * Character*n = SQL Char(n) * |
| C * Character*n = SQL VarChar * |
| C * Double Precision = SQL Float * |
| C * Double Precision = SQL Decimal * |
| C * Integer = SQL Integer * |
| C * Integer*2 = SQL SmallInt * |
| C **************************************************** |
| C (* Begin Host Variable Declarations *) |
| C |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL BEGIN DECLARE SECTION\ |
| C**** End SQL Preprocessor ****\ |
| CHARACTER*16 PartNumber\ |
| CHARACTER*30 PartName\ |
| DOUBLE PRECISION SalesPrice\ |
| INTEGER*2 SalesPriceInd\ |
| C SQLIND SalesPriceInd |
| CHARACTER*80 SQLMessage |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL END DECLARE SECTION |
| C |
| C (* End Host Variable Declarations *) |
| C |
| C (* Beginning of the Main Program *) |
| C |
| C**** End SQL Preprocessor **** |
___________________________________________________________________
Figure 2-7. Modified Source File for Program forex2 (page 2 of 13)
_______________________________________________________________________________
| |
| INCLUDE 'SQLVAR' |
| WRITE (*,*) CHAR(27), 'U' |
| WRITE (*,*) 'Program to SELECT specified rows from the Parts Table|
| 1 -- forex2' |
| WRITE (*,*) ' ' |
| WRITE (*,*) 'Event List:' |
| WRITE (*,*) ' CONNECT TO PartsDBE' |
| WRITE (*,*) ' BEGIN WORK' |
| WRITE (*,*) ' SELECT specified row from the Parts table until use|
| 1r enters a "/"' |
| WRITE (*,*) ' COMMIT WORK' |
| WRITE (*,*) ' RELEASE PartsDBE' |
| C |
| CALL ConnectDBE |
| CALL QueryTable |
| CALL ReleaseDBE |
| C |
| STOP |
| END |
| C |
| C (* Beginning of the Sub-Routines *) |
| C |
| SUBROUTINE ConnectDBE |
| C (* Subroutine to Connect to PartsDBE *) |
| C |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL INCLUDE SQLCA |
| C |
| C (* Begin SQL Communication Area *) |
| C (* Begin Host Variable Declarations *) |
| C |
| C**** Start Inserted Statements ****\ |
| CHARACTER SQLCAID*8\ |
| INTEGER SQLCABC\ |
| INTEGER SQLCODE\ |
| INTEGER SQLERRL\ |
| CHARACTER SQLERRM*256\ |
| CHARACTER SQLERRP*8\ |
| INTEGER SQLERRD(6)\ |
| CHARACTER SQLWARN(0:7)\ |
| INTEGER SQLEXT(2)\ |
| CHARACTER SQLWARN0,SQLWARN1,SQLWARN2,SQLWARN3,\ |
| 1 SQLWARN4,SQLWARN5,SQLWARN6,SQLWARN7\ |
| EQUIVALENCE (SQLWARN0,SQLWARN(0)),\ |
| 1 (SQLWARN1,SQLWARN(1)),\ |
| 2 (SQLWARN2,SQLWARN(2)),\ |
| 3 (SQLWARN3,SQLWARN(3)), |
_______________________________________________________________________________
Figure 2-7. Modified Source File for Program forex2 (page 3 of 13)
________________________________________________________________________________
| |
| 4 (SQLWARN4,SQLWARN(4)),\ |
| 5 (SQLWARN5,SQLWARN(5)),\ |
| 6 (SQLWARN6,SQLWARN(6)),\ |
| 7 (SQLWARN7,SQLWARN(7))\ |
| COMMON /SQLCA/ SQLCAID,SQLCABC,SQLCODE,SQLERRL,\ |
| 1 SQLERRM,SQLERRP,SQLERRD,SQLWARN,SQLEXT\ |
| C**** End SQL Preprocessor ****\ |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL BEGIN DECLARE SECTION\ |
| C**** End SQL Preprocessor ****\ |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL END DECLARE SECTION\ |
| C\ |
| C**** End SQL Preprocessor ****\ |
| INCLUDE 'SQLVAR'\ |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL WHENEVER SQLERROR GOTO 500\ |
| C\ |
| C**** Start Inserted Statements ****\ |
| C**** End SQL Preprocessor **** |
| WRITE (*,*) ' ' |
| WRITE (*,*) 'CONNECT TO PartsDBE' |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL CONNECT TO 'PartsDBE'\ |
| C**** Start Inserted Statements ****\ |
| CALL SQLXCO(SQLCAID,264,'00AE0000506172747344424520202020202020202\|
| 1020202020202020202020202020202020202020202020202020202020202020202\|
| 2020202020202020202020202020202020202020202020202020202020202020202\|
| 3020202020202020202020202020202020202020202020202020202020202020202\|
| 40202020202020202020202020')\ |
| IF (SQLCODE .LT. 0) THEN\ |
| GO TO 500\ |
| END IF\ |
| C**** End SQL Preprocessor **** |
| GOTO 600 |
| 500 CALL SQLStatusCheck |
| CALL EndTransaction |
| CALL ReleaseDBE |
| C |
| 600 RETURN |
| C**** Start SQL Preprocessor ****\ |
| C EXEC SQL WHENEVER SQLERROR CONTINUE\ |
| C**** Start Inserted Statements ****\ |
| C**** End SQL Preprocessor **** |
| END |
| C (* End of ConnectDBE Subroutine *) |
| SUBROUTINE BeginTransaction |
| C (* Subroutine to Begin Work *) |
________________________________________________________________________________
Figure 2-7. Modified Source File for Program forex2 (page 4 of 13)
