HP 3000 Manuals

HPTOOLSET XL Reference Manual

Main Edit Function Key Set

The Show Files function key is available in the Main Edit Function Key
Set.

     ShoFiles   Read   PrevKeys NextKeys   Edit   Refresh    Help     Exit

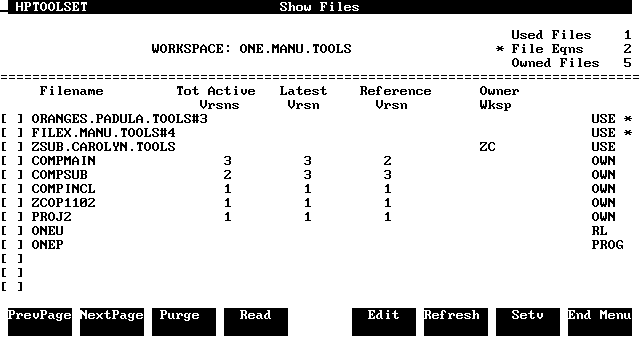

          Figure 4-16.  Show Files Menu

The Show Files Menu displays the following:

(1) Workspace             Is the name of the workspace for which the
                          files are being listed.

(2) Name of Owner         Is the name of the workspace that owns the used
Workspace                 files.

(3) Number of Active      Is the number of versions not purged from the
Versions                  file.

(4) LATEST version        Is the version number assigned with the last
                          SETVERSION command.

(5) REFERENCE version     Is the version which users other than the file
                          owner use by default.

(6) OWN, USE, RL, PROG    Is the type of file.  The object and program
                          file names are defined when your workspace is
                          created.  The default is to append a U or a P
                          to the first seven characters of the
                          workspacename.

(7) *                     Indicates that a file equation is associated
                          with the USE file.

Pressing the Show Files function key or entering the SHOW FILES command
produces a secondary function key set containing the Edit, Read,
SetVersion, and Purge operations.  Any of these operations can be
performed by typing a character in the box beside any file or pressing
the appropriate function key.
