HP ALLBASE/BRW Reference Manual

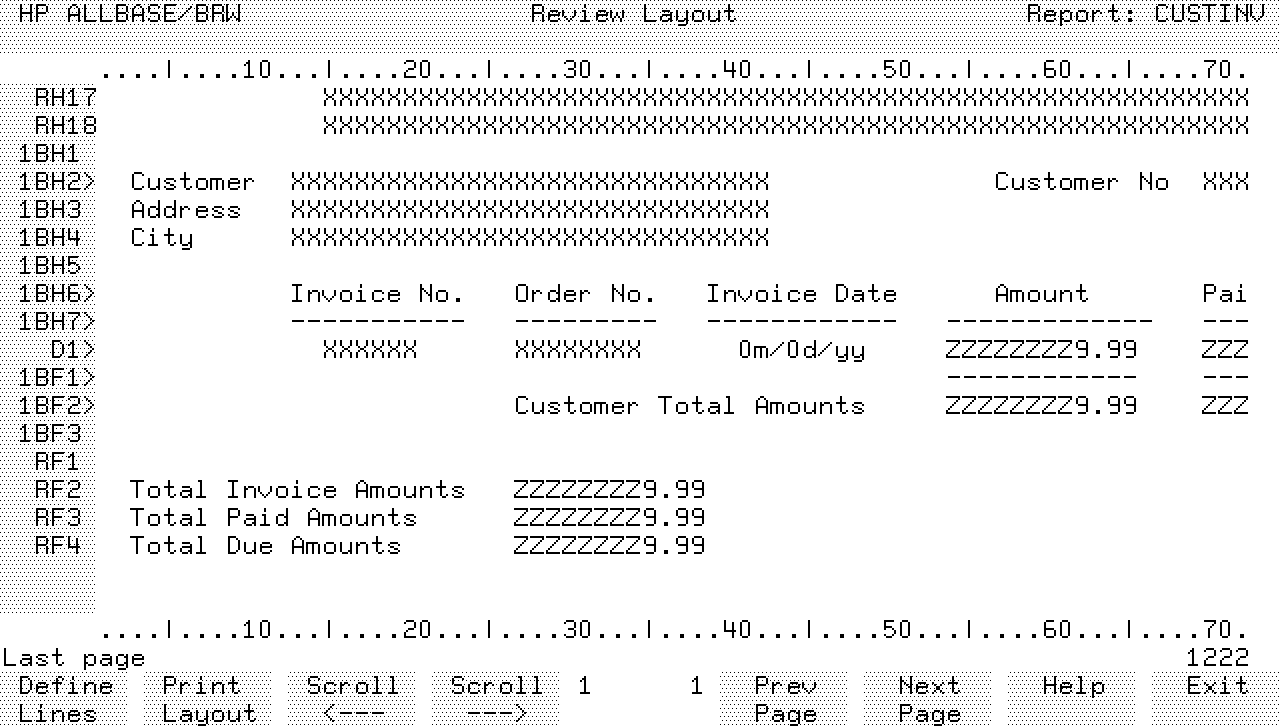

Review Layout Screen

Use this screen to review a sample of the report layout on-line and to
print a copy of the sample.




To review on-line

Use the Scroll and Prev/Next Page functions keys to review the entire
sample layout.

To print a sample

   1.  Press Print Layout.

   2.  When you see the prompt, type the print device you want to use.

   3.  Press Enter.

Field Descriptions

Line

The description of the line.  This unlabeled field is located to the left
of the layout area.

The following are examples of the symbols used on the sample layout.

RH7                   Report Heading, line 7.  Use Prev Page to see
                      previous lines in the Report Heading.

RH8                   Report Heading, line 8.

1BH1                  First break level heading, line 1.

1BF1                  First break level footing, line 1.

RF1                   Report Footing, line 1.

<                     Text or items are to the left of the current screen
                      for this line.  Use Scroll <--- to see that portion
                      of the line.

>                     Text or items are to the right of the current
                      screen for this line.  Use Scroll---> to see that
                      portion of the line.
