HP ALLBASE/BRW Reference Manual

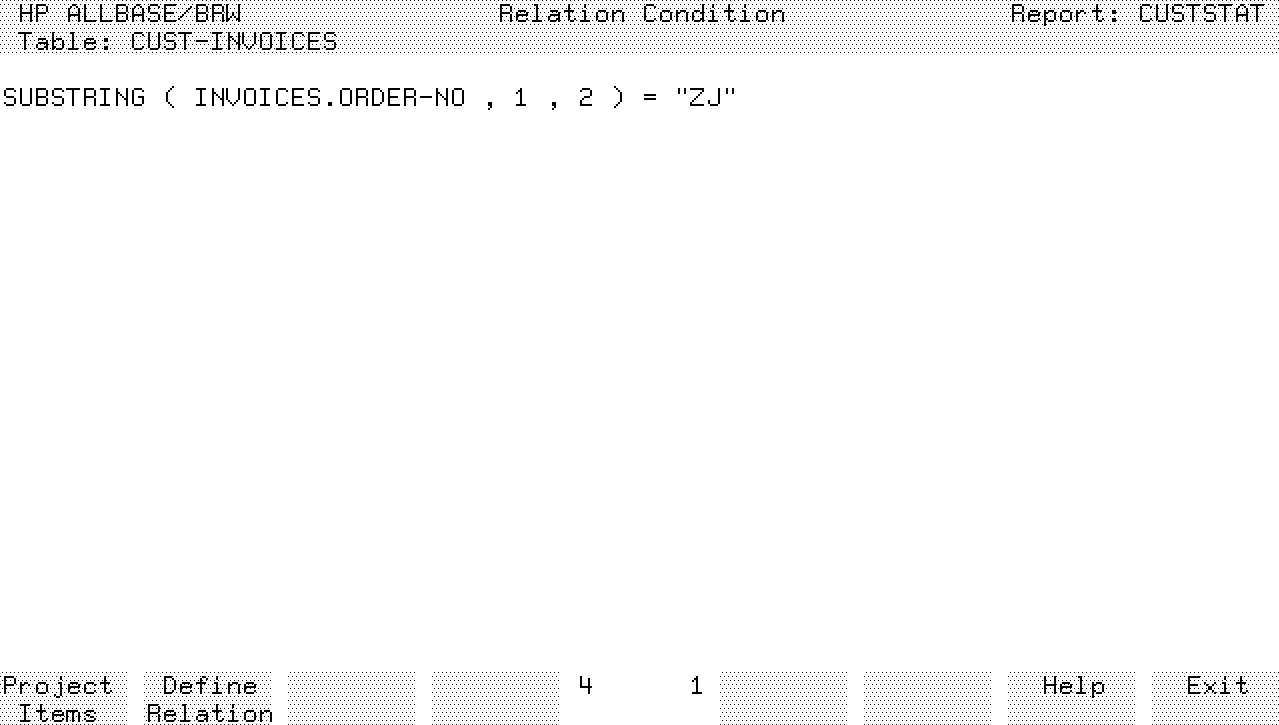

Relation Condition Screen

Use this screen to enter the formula which selects a subset of data for
the joined table.




To define a relation condition

   1.  Type the condition formula.

       Leave blanks around any operators in the formula.

       You can use all terminal editing and arrow keys when typing and
       editing a formula.

   2.  Press Enter.

       The formula is checked for correctness.

       If the system detects an error, the part of the formula with the
       error is highlighted.  Correct the error and press Enter again.
       Or, choose Exit Save to save the formula as it is (in spite of the
       error).

To delete the relation condition

   1.  Use Clear Display to delete the formula.

   2.  Press Enter.

Softkeys

Softkeys on this screen take you to the screen named on the softkey
label.
