HP ALLBASE/BRW Reference Manual

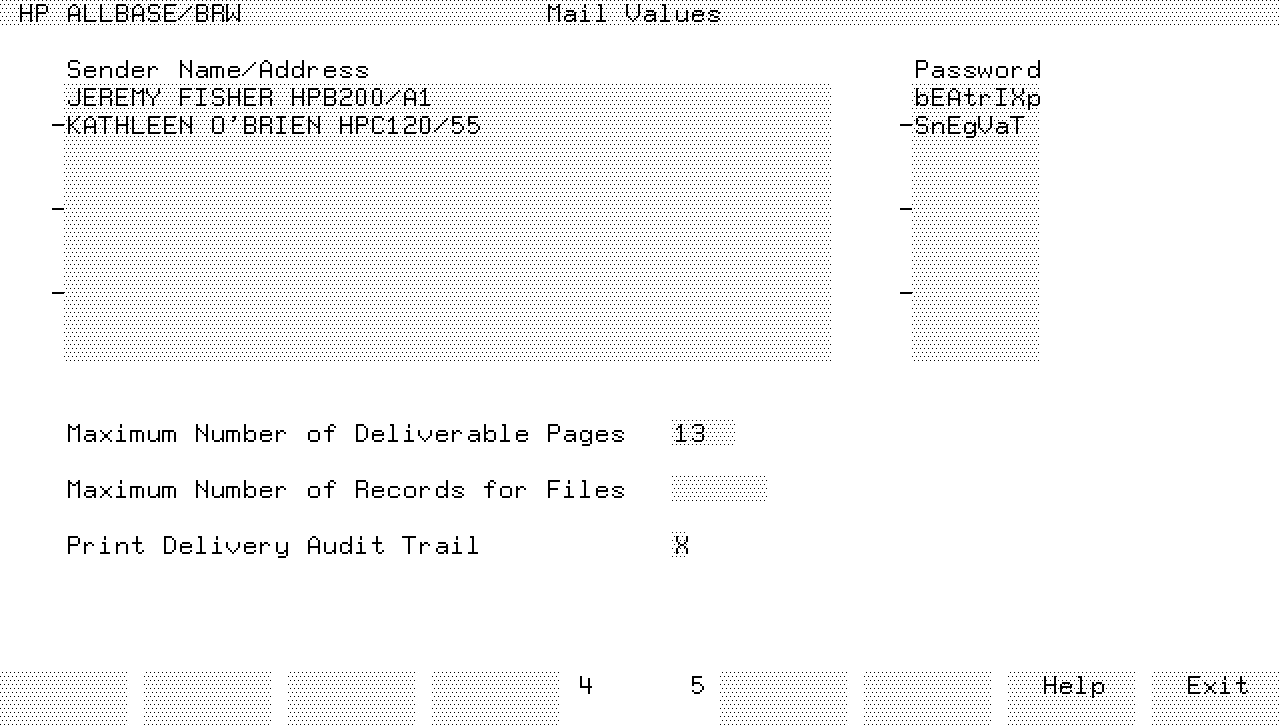

Mail Values Screen

This screen is part of the BRWSETUP.PUB.SYS program.  Use this screen to
define default specifications for HP BRW-Desk/XL. This screen is for use
only when you have HP BRW-Desk/XL in addition to HP ALLBASE/BRW.




To change the default specifications

   1.  Type the desired value in the appropriate fields.  See the Field
       Descriptions section for details on each field.

   2.  Press Enter.

Field Descriptions

Sender Name/Address

Required.  The HPDesk user name/address that is used when signing on to
HPDesk.  This address is not validated at specification time.  You can
specify up to 9 different senders, and a minimum of 1 sender is required.
HP BRW-Desk/XL will use this pool of senders to do the sign on to HPDesk.
If it cannot sign on with the first sender, the next sender will be used
until the sign on is successful or until the configured number of senders
is exceeded.

Password

Optional.  The password of the user signing on.  Note that HPDesk
passwords are case-sensitive; that is, if the password is PeTeR, and you
supply PETER in the Password field, HPDesk will not let HP BRW-Desk/XL
log on.

These passwords are encrypted in the configuration file.

Maximum Number of Deliverable Pages

Optional.  The user-defined limit on the size of the message that can be
sent to HPDesk.  This limit is counted in report pages.  If a message
exceeds this limit, the message will not be submitted to HPDesk and the
delivery audit trail will show that fact.  The default is the maximum
size of an item permitted in the HPDesk system.

Maximum Number of Records for Files

Optional.  The user-defined maximum number of records for output files
that can be generated and sent via HP BRW-Desk/XL. If the number is
exceeded,the HP ALLBASE/BRW execution program (BRWEXEC.PUB.SYS) will
abort.  The default is the maximum size of an item permitted in the
HPDesk system.

Print Delivery Audit Trail

Optional.  Blank out the X in this field if you do not want to print the
delivery audit trail messages (a record of the mailing process that is
generated whenever a report using HP BRW-Desk/XL is run).  The default is
an X in this field:  that is, to print the delivery audit trail.
