Syntax Diagrams

Syntax diagrams provide you with the complete logic, elements, and
structure of the Calculation Language.  The diagrams are made up of three
related parts:

   *   Diagram 1 shows expressions, including calculated items and
       functions.

   *   Diagram 2 shows the conditions (or logical-expressions).

   *   Diagram 3 shows the primaries of the first two diagrams, that is,
       names and constants.

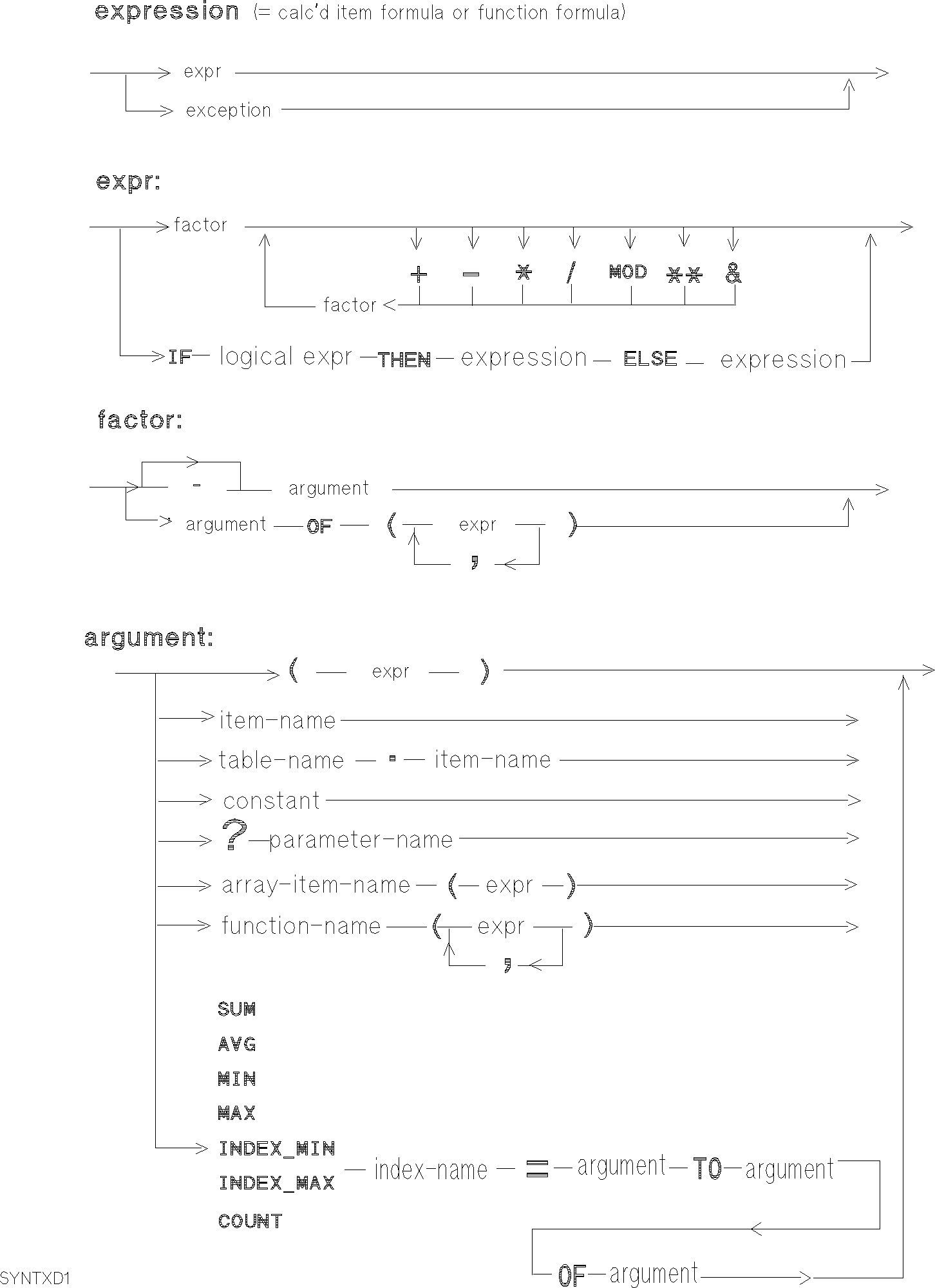

          Syntax Diagram 1:  Expressions

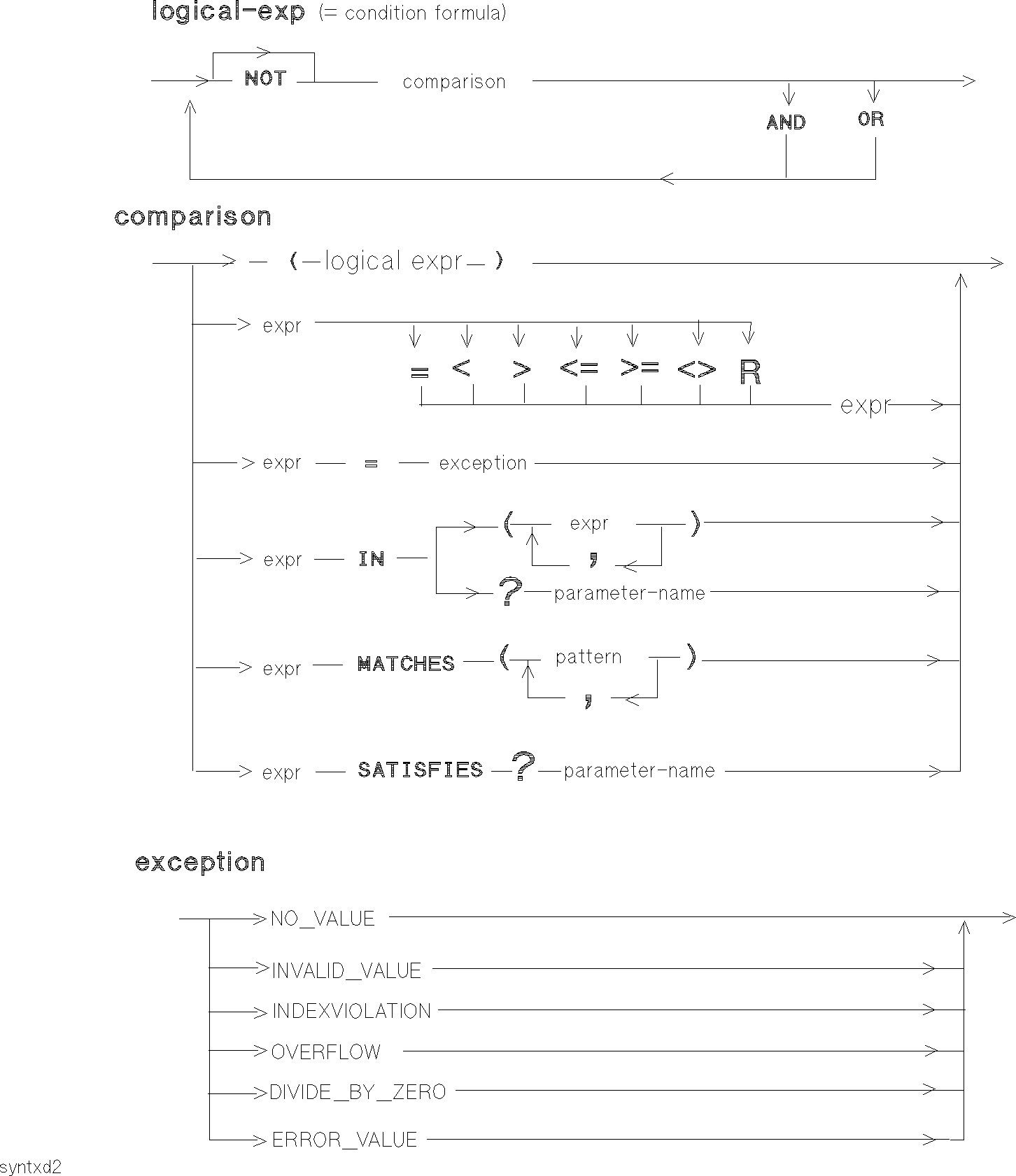

          Syntax Diagram 2:  Conditions/Logical Expressions

Note that Diagram 2 uses expressions defined in Diagram 1, and IF
expressions in Diagram 1 use conditions in Diagram 2.

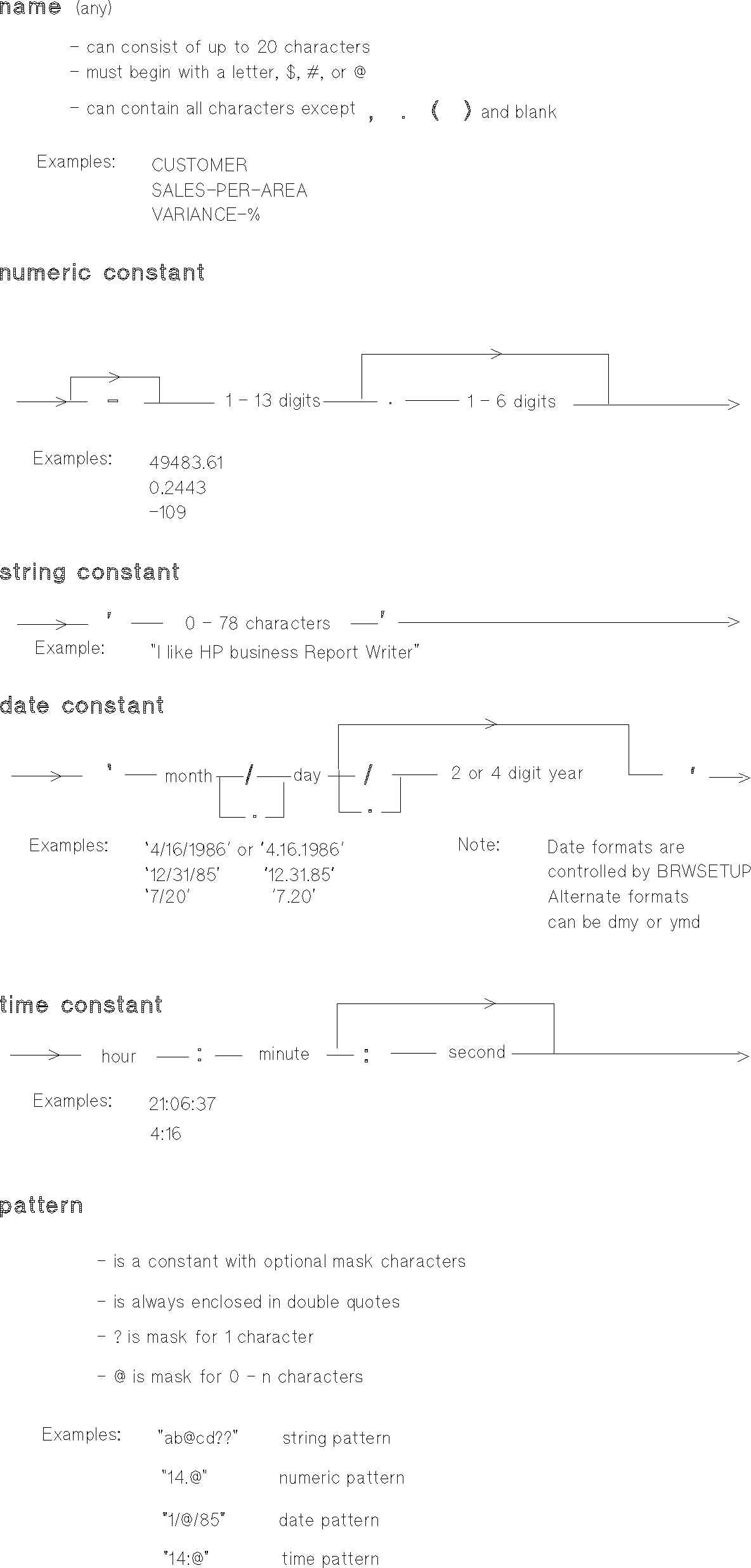

          Syntax Diagram 3:  Primaries for Diagrams 1 and 2
