FGETINFO NM and CM callable. Returns access and status information about a file.
NOTE FGETINFO is provided for compatibility with MPE V/E-based systems only. It is recommended that FFILEINFO be used to access data.

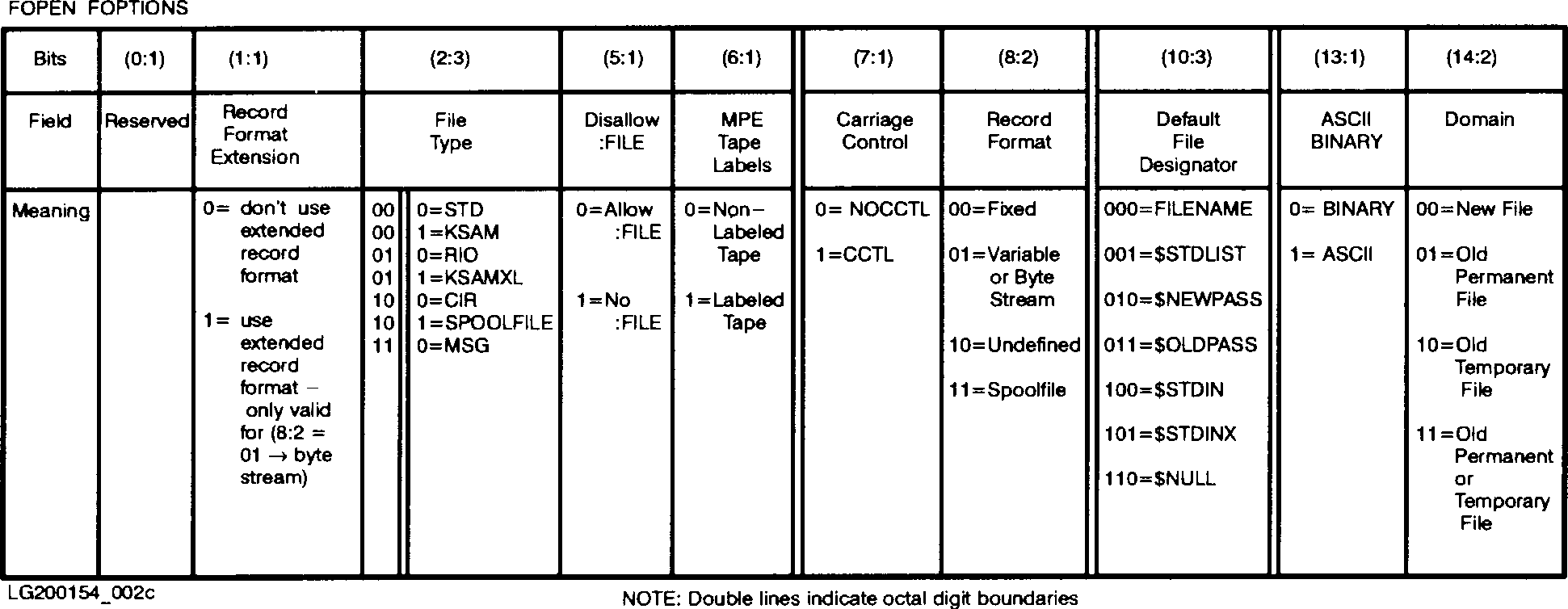

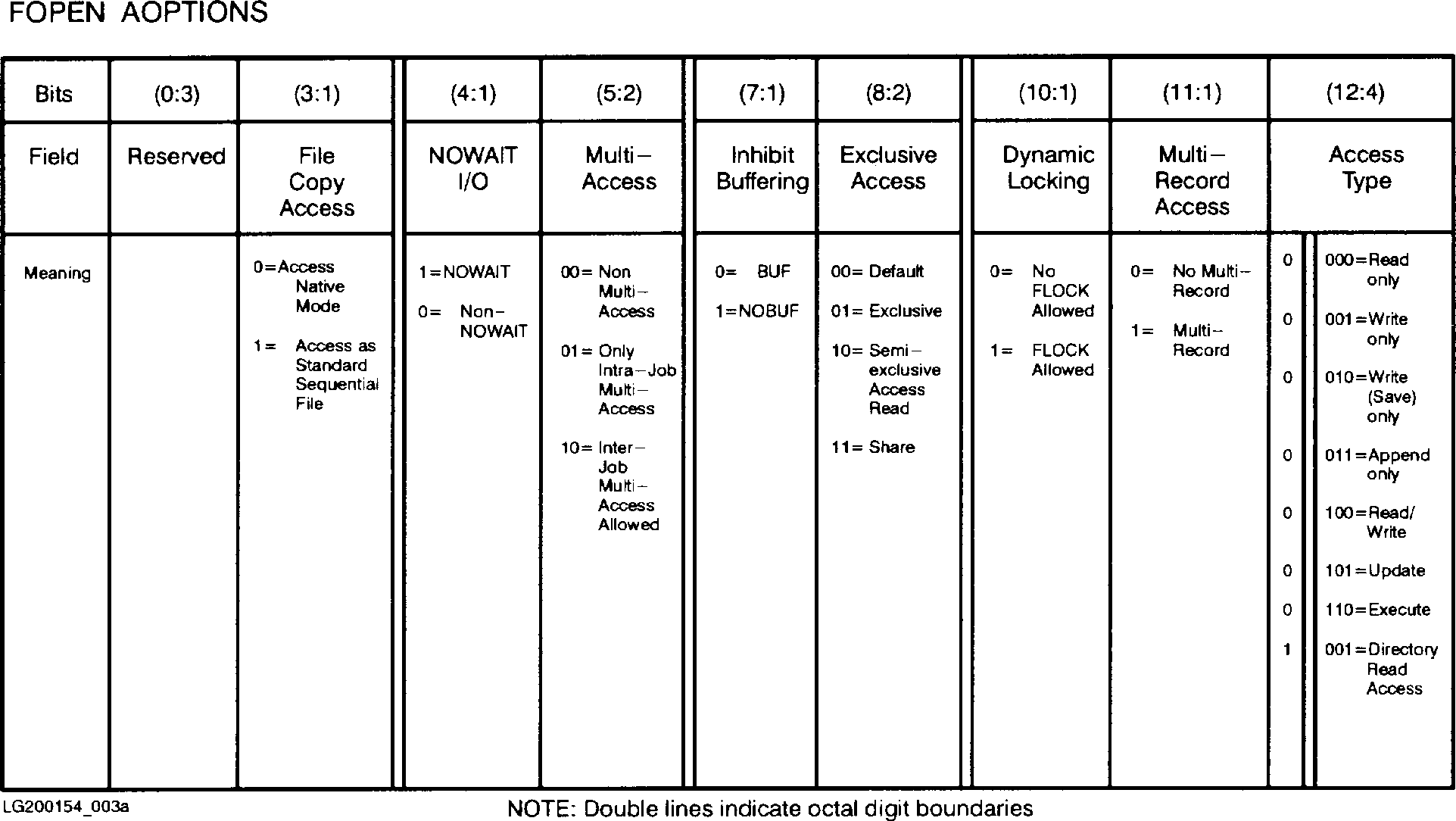

Syntax _________________________________________________________________ | | | I16V CA U16 U16 | | FGETINFO(filenum,formaldesig,foption,aoption | | I16 I16 U16 U16 I16 | | lrecsize,devtype,ldevnum,hdaddr,filecode, | | I32 I32 I32 I32 I32 I16 | | lrecptr,eof,filelimit,logcount,physcount,blksize,| | U16 I16 I16 CA I32 | | extsize,numextent,userlabels,creatorid,labaddr); | _________________________________________________________________ Parameters filenum 16-bit signed integer by value (required) Passes the file number of the file for which information is requested. formaldesig character array (optional) Returns the actual designator of the file being referenced, in the following format: filename.groupname.accountname The formaldesig array must be at least 28 bytes in length. When the actual designator is returned, unused bytes in the array are filled with blanks on the right. A nameless file returns an empty string. The fully qualified name of the file referenced by filenum is returned as the value of this parameter. Only names which can be expressed using MPE-only semantics are returned. If the name of the object referenced by filenum can not be expressed using MPE-name semantics, a CCL condition code is returned. Calling FCHECK after this error will return FSERR391. foption 16-bit unsigned integer by reference (optional) Returns seven file access characteristics by setting bit groupings (refer to Figure 4-5 ) as follows: Bits Value/Meaning 14:2 Domain: The file domain searched to locate the file: 00 New file 01 Old permanent file 10 Old temporary file 11 Old temporary or permanent file The record format extension bit is returned as the foption (1:1) bit. Byte stream record format is represented as a record format extension of one witha variable record format (foption (8:2) bits equal to 01. Directories, symbolic links, device links, pipes and FIFO's cannot be represented by foptions. If the object referenced by filenum (ASC) Not valid for asynchronous device files; however, these bits may have been set if file redirection was anticipated. 13:1 ASCII/Binary: 0 Binary 1 ASCII 10:3 Default file designator: 000 Actual file designator (same as formal file designator) 001 Actual file designator $STDLIST 010 Actual file designator $NEWPASS 011 Actual file designator $OLDPASS 100 Actual file designator $STDIN 101 Actual file designator $STDINX 110 Actual file designator $NULL Table 4-7. (cont.) Bits Value/Meaning 8:2 Record format foption: 00 Fixed-length records 01 Variable-length records 10 Undefined-length records 11 Spoolfile format records (ASC) Not valid for asynchronous device files; however, "fixed-length" may have been set if file redirection was anticipated. 7:1 Carriage control: 0 No carriage-control character expected 1 Carriage-control character expected 6:1 MPE/iX tape label: 0 Nonlabeled tape 1 Labeled tape (ASC) Not valid for asynchronous device files. May have been set if file redirection was anticipated. 5:1 Disallow FILE equation foption: This option ignores any corresponding FILE command, so the specifications in the call to FOPEN/HPFOPEN take effect (unless overridden by those in the file label). The following bit settings apply: 1 Disallow FILE command 0 Allow FILE command Table 4-7. (cont.) Bits Value/Meaning 2:3 File type: 000 Standard file (STD) 001 KSAM/3000 file 010 Relative I/O file (RIO) 011 KSAM XL file 100 Circular file (CIR) 101 NM spoolfile 110 Message file (MSG) (ASC) Set to 000 for asynchronous device files. 1:1 Record format extension: 0 Do not use extended record format 1 Use extended record format 0:1 Reserved for the operating system aoption 16-bit unsigned integer by reference (optional) Returns file access information by setting bit groupings (see Figure 4-6 ), in the following manner: Bits Value/Meaning 12:4 Access type aoption: The type of access allowed users of this file: 0000 Read only 0001 Write only 0010 Write only (previous data not deleted) 0011 Append only 0100 Read/Write 0101 Update 0110 Execute 0111 Execute-Read 1000 Reserved 1001 Directory read access 11:1 Multirecord: 0 Nonmultirecord mode 1 Multirecord mode 10:1 Dynamic locking: 0 Disallow dynamic locking/unlocking 1 Allow dynamic locking/unlocking 8:2 Exclusive: Specifies the access, from the time it is opened to the time it is closed: 00 Default 01 Exclusive access 10 Semi-Exclusive access 11 Shared access Table 4-7. (cont.) Bits Value/Meaning 7:1 Inhibit buffering: Inhibits automatic buffering by the operataing system and allows I/O to take place directly between the stack and the applicable hardware device: 0 Normal buffering 1 Inhibit buffering (ASC) Not valid for asynchronous device files. 5:2 Multiaccess mode: Provides the accessors with shared access to the file: 00 Nonmultiaccess 01 Intrajob multiaccess 10 Interjob multiaccess (ASC) Not valid for asynchronous device files. 4:1 Nowait I/O: Allows the accessors to initiate an I/O request and to have control returned before completion of the I/O. 0 Nowait I/O not in effect 1 Nowait I/O in effect 3:1 File copy access: 0 Access in file's native mode 1 Access as standard sequential file 0:3 Reserved for the operating system. lrecsize 16-bit signed integer by reference (optional) Returns the logical record size associated with the file: * If the file was created as a binary file, this value is positive and expresses the size in half words. * If the file was created as an ASCII file, this value is negative and expresses the size in bytes. For interprocess communication (IPC), when there is a call to FCONTROL with controlcode=46 , the value returned in lrecsize is the size of the data records, including the 4-byte header. Maintained to ensure backward compatibility with MPE V/E-based systems. MPE V/E record size limits are imposed when FGETINFO returns record size information on all file types (STD, KSAM, RIO, CIR, MSG). If the record size of the specified file exceeds MPE V/E limits, a zero is returned. Use itemnum 67 of the FFILEINFO intrinsic or itemnum 30 of the FLABELINFO intrinsic to obtain valid MPE/iX record size data if the record size exceeds MPE V/E limits. devtype 16-bit signed integer by reference (optional) Returns the type and subtype of the device being used for a KSAM, RIO, circular, or message file, or devices such as a tape drive, printer, or terminal where bits (0:8) indicate device subtype, and bits (8:8) indicate device type. For standard disk files, bits (8:8)=00000011 and bits (0:8)=00001000 (indicate a 7933/35 disk drive). If the file is not spooled or is opened as a spoolfile through the logical device, the returned devtype is actual. If an output file is spooled and was opened by device class name, devtype contains the type and subtype of the first device in its class. (This may be different from the device actually used.) ldevnum 16-bit unsigned integer by reference (optional) Returns the logical device number (ldev) associated with the device where the file label resides: * If the file is a disk file, ldevnum is the location of the file label. (File data may reside on the same device as the file label.) * If the file is spooled, ldevnum is a virtual device number that does not correspond to the system configuration I/O device list. * If the file is located on a remote computer, linked by a DS point-to-point or X.25 link, the left eight bits (0:8) are the logical device number of the distributed system (DS) device. * If the remote computer is linked by NS 3000/XL, the left eight bits (0:8) are the remote environment of the connection. The right eight bits (8:8) are the LDEV of the device on the remote computer where the file label resides. * If the DS device for the RFA or the LDEV is 0, then ldevnum returns a 0. hdaddr 16-bit unsigned integer by reference (optional) Returns 2048. Maintained to provide backward compatibility with MPE V/E-based systems. filecode 16-bit signed integer by reference (optional) Returns the file code of a disk file. (ASC) Not valid for asynchronous device files. lrecptr 32-bit signed integer by reference (optional) Returns the current logical record pointer setting. This value is the displacement in logical records from record number 0 in the file and identifies the record that would be accessed next by an FREAD or FWRITE call. (ASC) Not valid for asynchronous device files. eof 32-bit signed integer by reference (optional) Returns the pointer setting of the last logical record currently in the file (equivalent to the number of logical records currently in the file). If the file does not reside on disk, this value is zero. For interprocess communication (IPC), when a call to FCONTROL with itemnum=46 is in effect, the number of records returned in eof includes open, close, and data records. (ASC) Not valid for asynchronous device files. filelimit 32-bit signed integer by reference (optional) Returns a number representing the last logical record that could exist in the file (the physical limits of the file). If the file does not reside on disk, this value is zero. (ASC) Not valid for asynchronous device files. logcount 32-bit signed integer by reference (optional) Returns the total number of logical records passed to and from the program during the current file access. physcount 32-bit signed integer by reference (optional) Returns the total number of physical I/O operations performed within the process, against the file, since the last FOPEN/HPFOPEN call. blksize 16-bit signed integer by reference (optional) Returns the file block size: * If the file is binary, the value is positive and the size is in half words. * If the file is ASCII, the value is negative and the size is in bytes. Maintained for backward compatibility with MPE V/E-based systems. MPE V/E block size limits are imposed when FGETINFO returns block size information on all file types (STD, KSAM, RIO, CIR, MSG). If the block size of the specified file exceeds MPE V/E limits, 0 is returned. Use itemnum=68 of the FFILEINFO intrinsic or itemnum=31 of the FLABELINFO intrinsic to get valid MPE/iX block size data if the block size exceeds MPE V/E limits. (ASC) Not valid for asynchronous device files. extsize 16-bit unsigned integer by reference (optional) Maintained to provide backward compatibility with MPE V/E-based systems. (ASC) Not valid for asynchronous device files. numextent 16-bit signed integer by reference (optional) Maintained to provide backward compatibility with MPE V/E-based systems. (ASC) Not valid for asynchronous device files. userlabels 16-bit signed integer by reference (optional) Returns the number of user labels defined for the file during creation. If the file is not a disk file, this number is zero. When an old file is opened for overwrite output, the value of userlabels is not reset, and old user labels are not destroyed. (ASC) Not valid for asynchronous device files. creatorid character array (optional) An unqualified form of the file owner's name is returned as the value of this parameter. The file owner is not necessarily the file's creator. File ownership may be changed using the :ALTFILE command. A symbolic zero (ASCII 48 in decimal) is returned as the file owner for root directories, accounts, and MPE groups created prior to the POSIX release. If the file is not located in the account in which the file owner is a member, a blank file owner name is returned. (ASC) Not valid for asynchronous device files. labaddr 32-bit signed integer by reference (optional) Returns a zero. Maintained for backward compatibility with MPE V/E-based systems. (ASC) Not valid for asynchronous device files.Figure 4-5. Foption Bit SummaryFigure 4-6. Aoption Bit Summary Operation Notes Returns access and status information about a file located on any device. The file must be opened by the calling process at the time of the FGETINFO call. Condition Codes CCE (2) Request granted. CCG (0) Not returned. CCL (1) Request denied. An error occurred. Related Information Intrinsics FFILEINFO, FOPEN Commands None Manuals Getting System Information Programmer's Guide (32650-90018), Using KSAM XL (32650-90168), and KSAM/3000 Reference Manual (30000-90079)
