User's Guide to MPE/iX Security

Components of the Account Structure

The account structure consists of four components:  accounts, groups,
users, and files.

   *   Accounts are the basic structure for organizing users and
       information in the system.  System users and system information
       belong to accounts.

   *   Groups further organize users and information within accounts.

   *   Users belong to the account, but access files by logging on to a
       group.  If they know the appropriate group passwords, users can
       log on to any group within the account.

       Generally, users are associated with a home group to which the
       system logs them on when they do not specify a group name in their
       logon command.

   *   Files store the information.  Any time that you run a program, use
       a spreadsheet, or compose a letter, you are using files.  Files
       belong to groups within an account.

The system directory is the system's internal list of accounts, groups,
users, and files.  It keeps track of their characteristics and their
relationships.

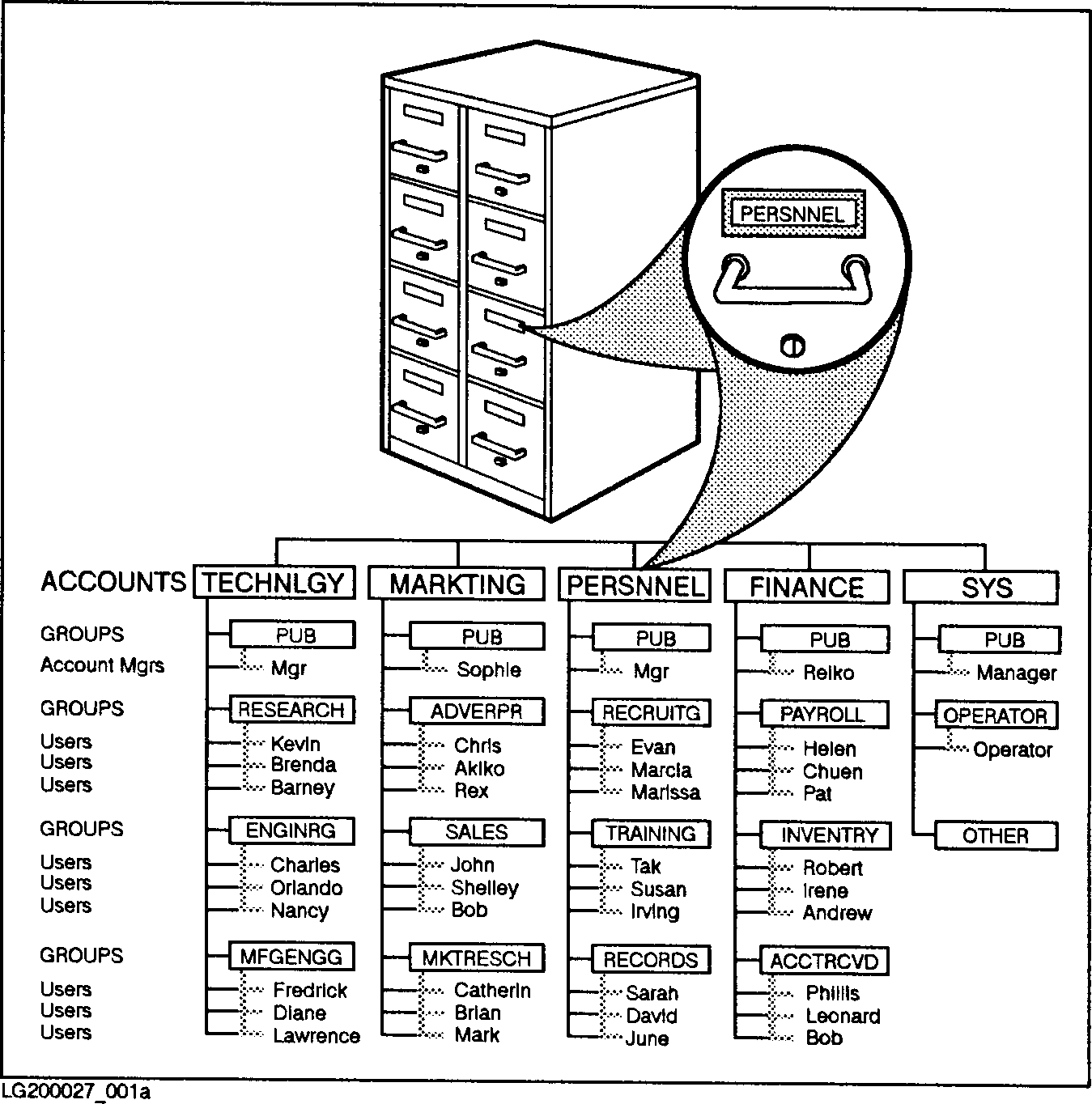

Figure 1-1  illustrates the relationship between accounts, groups, and
users.  Accounts (TECHNLGY, MARKTING, SYS, for example) are shown
horizontally, across the top of the diagram.  Groups (RESEARCH, SALES,
RECORDS, for example) are stacked vertically under their accounts.  Users
(KEVIN, CHARLES, DIANE, for example) appear under their home groups.  The
solid black lines in Figure 1-1  indicate firm, primary relationships.

Notice that all users have their strongest relationships with their
accounts, and all groups have their strongest relationships with their
accounts.  The gray lines indicate less solid relationships; although
users have a solid relationship with the account, they also have a
convenience relationship with a home group.  Users are most likely to
work in and to have files stored in their home group.


          Figure 1-1.  Account Relationships

Notice in Figure 1-1  the occasional odd spelling, like TECHNLGY and
RECRUITG. All account, group, user, and file names must be eight
characters or fewer in length.

The Individual Account

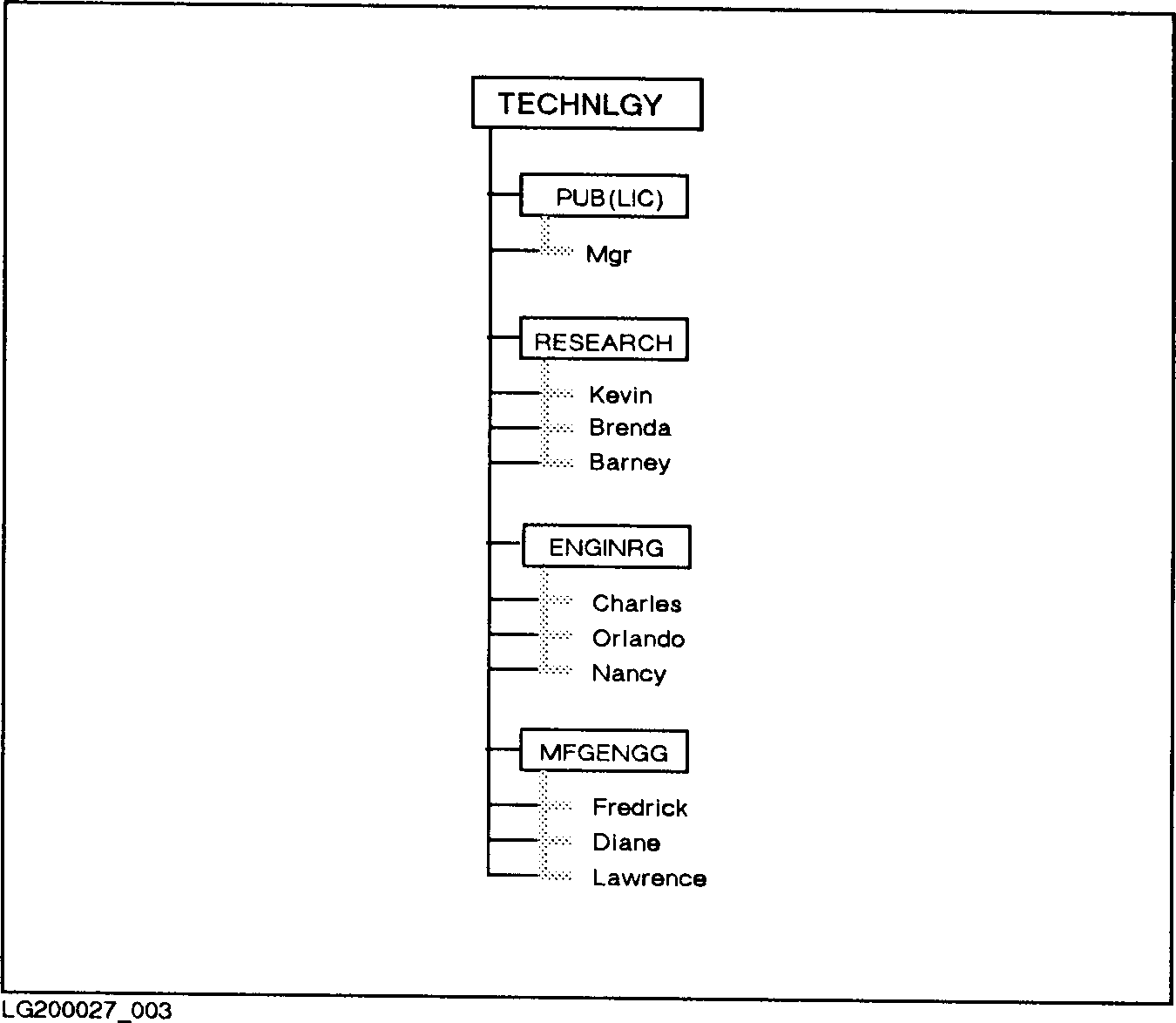

Figure 1-2  shows the structure of an individual account.  Not all
accounts look like the one in Figure 1-2 , but most are similar.
Every account has a name, a PUB (PUBLIC) group, and an account manager.
When you first create an account, the account manager has the PUB group
as a home group.


          Figure 1-2.  An Individual Account

The account manager is responsible for establishing the groups and users
within the account.  In the example above, the group named RESEARCH is
the home group for three users, ENGINRG is the home group of three users,
and MFGENGG is the home group of three users.  In each case, the users
are likely to do their work in their home group.  Because their main
relationship is to the account, they can log on to any group in the
account if they know the group passwords.

You can also create users who do not have a home group.  These users can
log on to any group, but must specify the desired group and its password
when they log on.

Files

When you do almost any kind of work with a computer, you work with files.
Reports, spreadsheets, program listings, letters, management tools, and
more all exist within the system in the form of files.

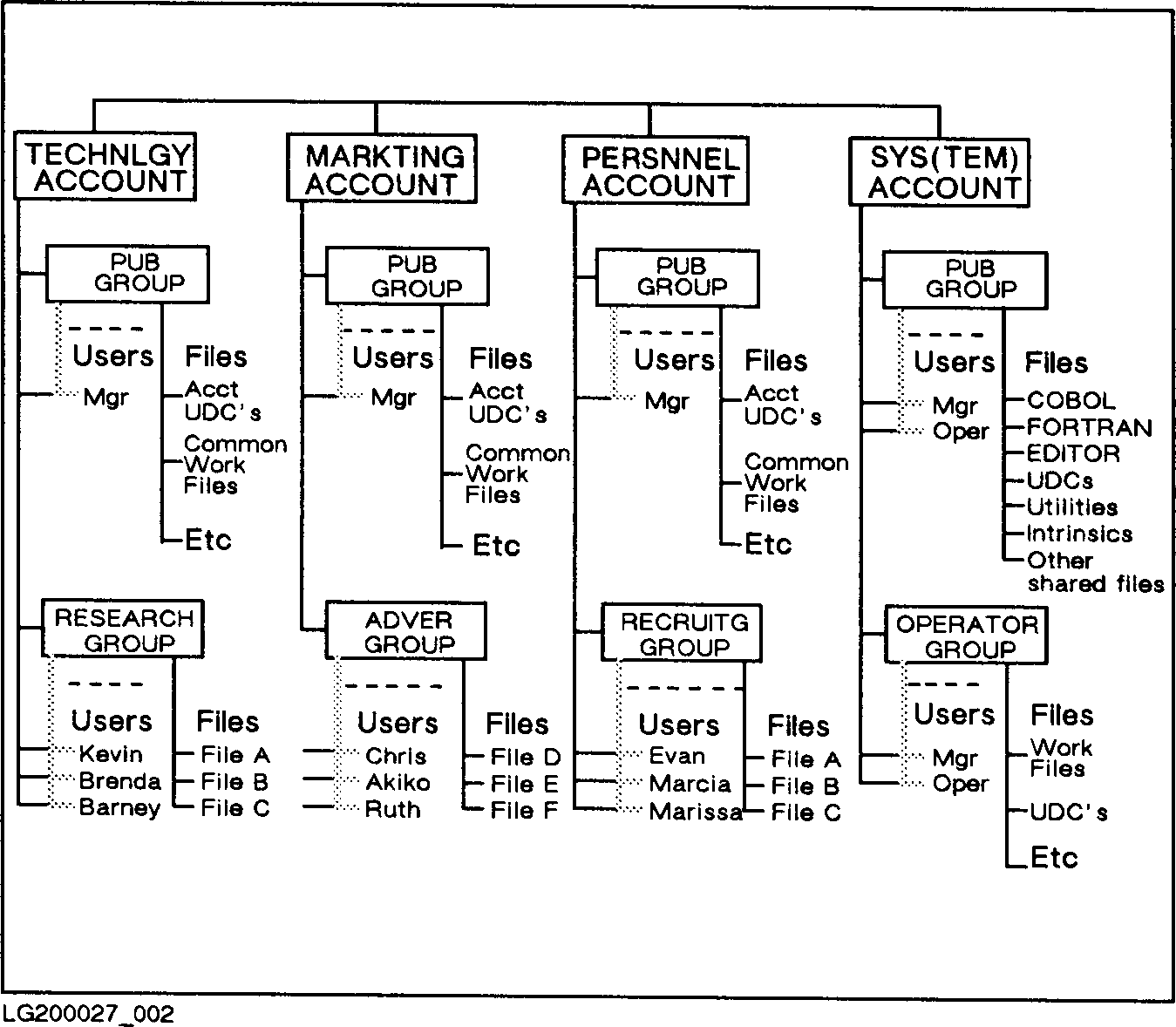

The files belong to the groups in an account as shown in Figure 1-3 .


          Figure 1-3.  Groups, Users, and Files

The system stores the files necessary for operating the computer.  For
example, utilities, system libraries, program subsystems, languages,
compilers, user-defined commands, and the system itself are in the SYS
(SYSTEM) account's PUB group.

The PUB groups in other accounts contain files that the users of those
accounts share.  Files in other groups are usually the private files of
that group's users.

Standard Characteristics

Every system has standard accounts, groups, and users.  Each system has a
SYS (for system) account.  It contains the operating system, shared
programs, and files shared by the members of all accounts.  Each account
has a group named PUB (for public).  The PUB account contains certain
publicly accessible files.  For example, the PUB group of the SYS account
contains system programs available to all users.  The user MANAGER is
built in to the SYS account.  MANAGER is the initial system manager.

Creating Naming Conventions

Notice that each account, group, and user in Figure 1-3  has a name.
Files also have names.  An account, group, user, or file name must be
eight characters or fewer in length.  It must begin with an alphabetic
character.  Subsequent characters can be alphabetic or numeric.

Account names must be unique, but notice that each account has a group
named PUB. Group names must only be unique, within an account.  Files
must have unique names within a group, but two files in different groups
might have the same name within an account.  User names must be unique
within an account, but two users in different accounts might have the
same user name.

For example, in Figure 1-1 , there is a user named BOB in both the
FINANCE and MARKTING accounts.

User Names

The system distinguishes between users with the same name by using both
the user and account name as the user's fully qualified name.  By
convention, fully qualified user names take the form:

     username.accountname

For example, the fully qualified name of the user BOB in the FINANCE
account is BOB.FINANCE. The BOB in MARKTING has the full name
BOB.MARKTING. The two BOBs may or may not be the same person, but to the
system they are different users.  When users log on to the system, they
use their fully qualified names.  For example:

     HELLO BOB.FINANCE

Group Names

Groups have fully qualified names that are similar to fully qualified
user names.  A fully qualified group name has the following form:

     groupname.accountname

For example, the PUB group of the TECHNLGY account has the fully
qualified name PUB.TECHNLGY. The PUB group of the SYS account has the
fully qualified name of PUB.SYS. Think of the notation PUB.SYS as short
for the PUB group of the SYS account.

File Names

Fully qualified file names include the file's name, its group, and its
account.  A fully qualified file name has the following format:

     filename.groupname.accountname

For example, a file named "FILEA" in the "RESEARCH" group of the
"TECHNLGY" account has the fully qualified name "FILEA.RESEARCH.TECHNLGY".
A file's fully qualified name distinguishes it from any other file in the
system.  You can use a file's fully qualified name to access it from
anywhere in the system (if you pass the file access restrictions).
