KSAM/3000 Reference Manual

FGETKEYINFO

INTRINSIC NUMBER 303

Requests access and status information about a KSAM file,

                          IV       A        A
         FGETKEYINFO(filenum,ksamparam,ksamcontrol)

PARAMETERS

filenum          integer by value (required)

                 A word identifier supplying the filenumber of the file
                 about which information is requested.

ksamparam        array (required)

                 An array of the same format and size as the byte array
                 of the same name in FOPEN (refer to Table 4-8), except
                 that key file size is given as the number of sectors.
                 The length of the array depends on the number of keys in
                 the KSAM file; its length is 17 words plus 4 words for
                 each key.  Note that the device (words 6-14) is not
                 returned as a device class name but as an ASCII string
                 containing the logical device number.

ksamcontrol      array (required)

                 An array whose size is 128 words containing control
                 information about the key file.  Refer to Table 4-5 for
                 the definition of the array contents.

CONDITION CODES

CCE              Request granted.

CCG              (not retuned)

CCL              Request denied because an error occurred such as:
                 insufficient space declared for ksamparam or
                 ksamcontrol; or an illegal file number; or the DB
                 register is not set to the user stack.

USING FGETKEYINFO

Once a KSAM file is opened, you can request information about the key
file through this intrinsic.  The ksamparam return provides static
information defined for the key file at the time it was created.  The
ksamcontrol parameter provides dynamic information about the use of the
key file from the time it was created.  In particular, it provides a
count of the number of times the key file was referenced by various
intrinsics, the date and time it was created, closed, updated or written
to, and so forth.

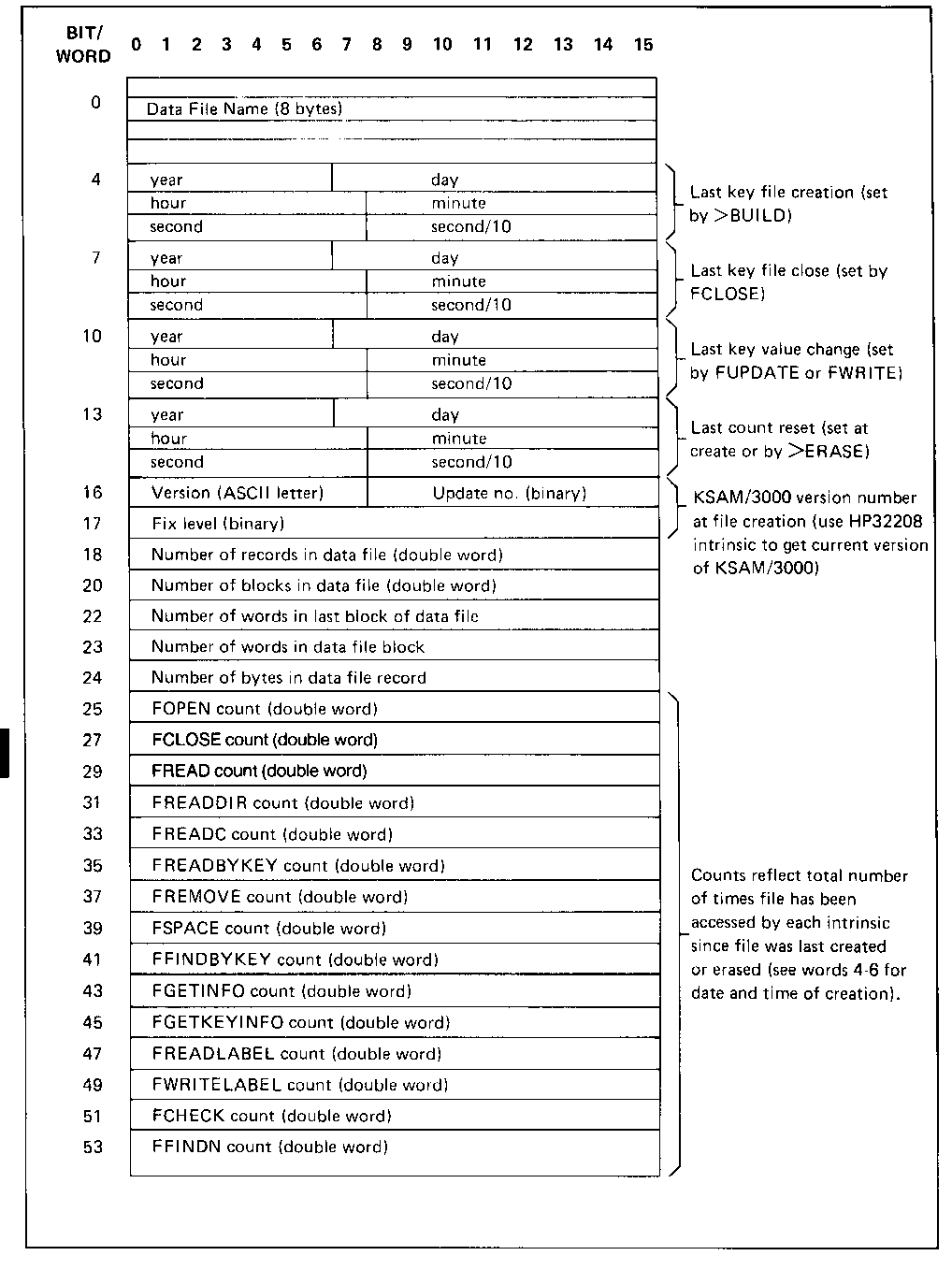

          Table 4-5.  FGETKEYINFO ksamcontrol Parameter Format

---------------------------------------------------------------------------------------

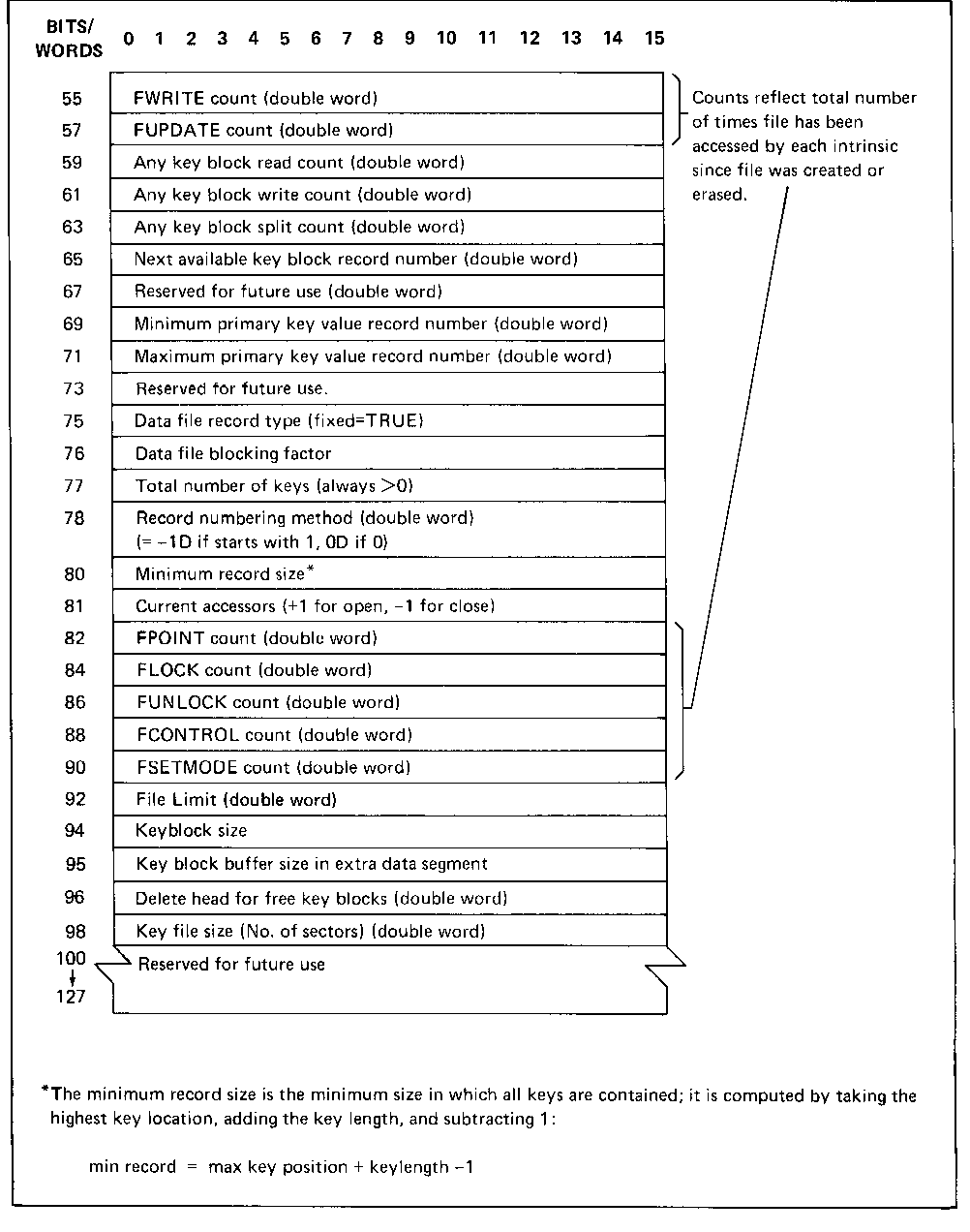

          Table 4-5.  FGETKEYINFO ksamcontrol Parameter Format (continued)

---------------------------------------------------------------------------------------
