HP 3000 Manuals

KSAM/3000 Reference Manual

USING KSAMUTIL IN BATCH MODE

A batch job can be developed on the text editor (EDITOR) and then
executed with the MPE :STREAM command.  In order to distinguish the MPE
commands within a streamed batch job from those external to the job, an
exclamation point (!)  is used as the command prefix rather than a colon
(:).  KSAMUTIL commands have no command prefix when executed in a batch
job.

In the job illustrated in Figure 2-1, the first step after job
initialization with the !JOB command is to purge all KSAM and non-KSAM
files that will be created within the job.  This insures that there are
no files in the account with names duplicating files that will be created
programmatically with the job.

Following initialization, the first program in the job is run.  Since
this program uses a KSAM file, MANPN, this file is created with the
KSAMUTIL BUILD command before the program is executed.  Note that the
program is purged immediately before calling BUILD to create it.  This is
done to make sure that no duplicate key or data file exists in the
account.

The newly created KSAM file is used in program MAN1, which was previously
compiled and is input from the file CARDIN; output from the program goes
to the file REPORT associated with the line printer.  An !EOD command
follows the program.  If data is entered here rather than from the input
file, then the !EOD follows the data.  Any other programs in the job
stream follow the !EOD each with its own terminating !EOD. The entire job
is terminated by an !EOJ command.

Figure 2-1 is an EDITOR listing of a job entered to a file through the
EDITOR program.  This job could also have been punched on cards or any
other device that accepts jobs, but in that case, the standard command
prefix, the colon (:), would be used.  (Refer to the EDIT/3000 Reference
Manual for instructions on using the EDITOR.)

In order to run this job, you can enter the command:

     :STREAM filename

where filename identifies the EDITOR file where the job was saved.

Batch jobs need not be streamed, but can be entered entirely as a card
deck or through some other input device.  Streaming allows you to develop
and execute the job interactively at your terminal.  For a full
discussion of using the :STREAM command to introduce jobs in a session,
refer to the MPE Commands Reference Manual.

Batch jobs do not support the OFFLINE parameter for the KEYDUMP, KEYINFO,
KEYSEQ, and VERIFY commands.

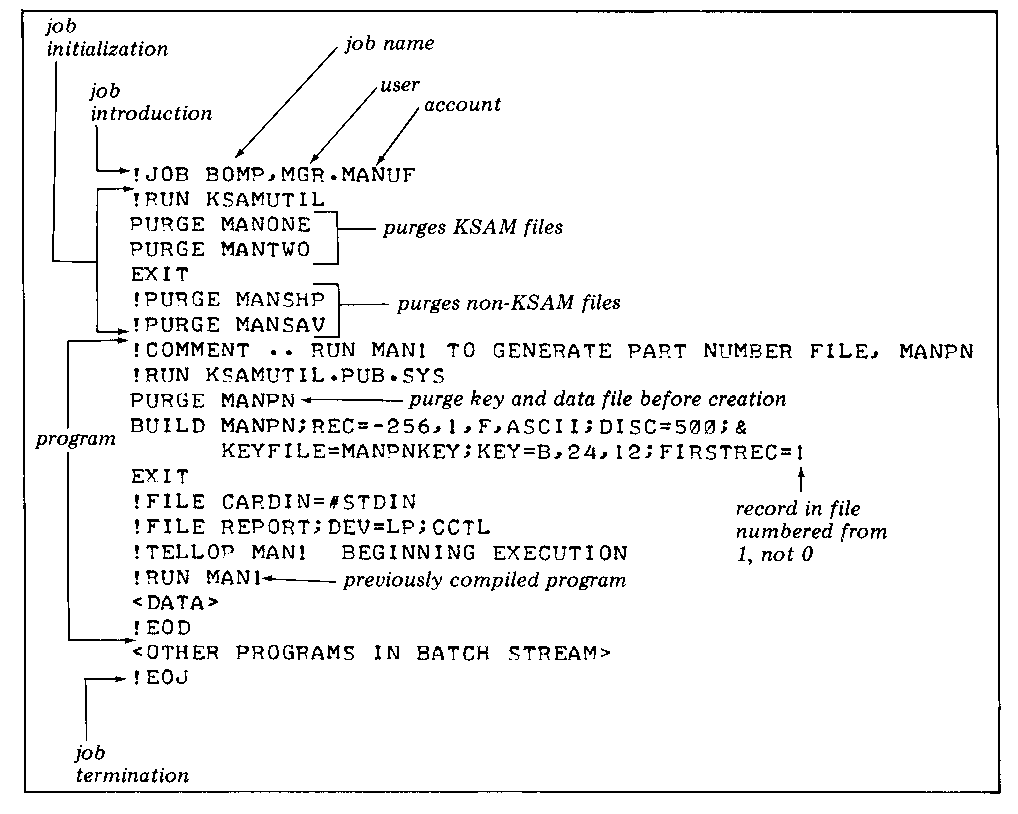

          Figure 2-1.  EDITOR Listing of Job to be Streamed
