Switch Programming User's Guide

Overview

This overview presents mixed-mode procedure calls in the CM --> NM
direction in two ways:

 *  Schematic flow-of-control diagram

 *  Stepwise sequence of events

Flow of Control:  CM --> NM

The flow of control for mixed-mode procedure calls in the direction CM
--> NM is illustrated in Figure 4.1:

[]

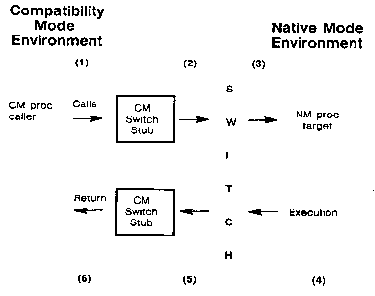

Figure 4.1. CM --> NM Switch Summary 1 Stepwise Switch to NM A mixed-mode procedure call in the direction CM --> NM involves the following steps, as indicated in Figure 4.1: 1. The CM code needing to access an NM routine calls Switch, either by means of in-line code or a Switch stub. 2. The in-line code or CM Switch stub sets up the data structures and parameters required by Switch and makes a call to either the HPSWTONMNAME intrinsic or the HPLOADNMPROC and HPSWTONMPLABEL intrinsics. 3. HPSWTONMNAME or HPSWTONMPLABEL calls the NM routine, after preparing the NM registers as though the call was being made from Native Mode. 4. The NM routine executes as though called from Native Mode and returns the functional return value (if any) to the calling Switch intrinsic. Reference parameters are modified by the NM routine. 5. If the NM routine has a functional return value, HPSWTONMNAME or HPSWTONMPLABEL copies the value back to the CM stack. 6. The stub or in-line code checks whether the Switch operation was successful and then control returns to the CM routine.
NOTE HPSWTONMNAME or a combination of HPLOADNMPROC and HPSWTONMPLABEL are the system intrinsics called to pass CM values and parameters to Native Mode, to change the execution mode, and to invoke an NM routine. HPSWTONMNAME, HPLOADNMPROC, and HPSWTONMPLABEL reside in the CM system library, SL.PUB.SYS. The only difference between using HPSWTONMNAME and HPSWTONMPLABEL is the manner in which the target routine is identified.
