The Core Set (Continued)
Core Set Relationship Types
The following relationship types are included in the core set. Note that
in the first column, the entity types are shown in upper case, while the
relationship class is shown in lower case.

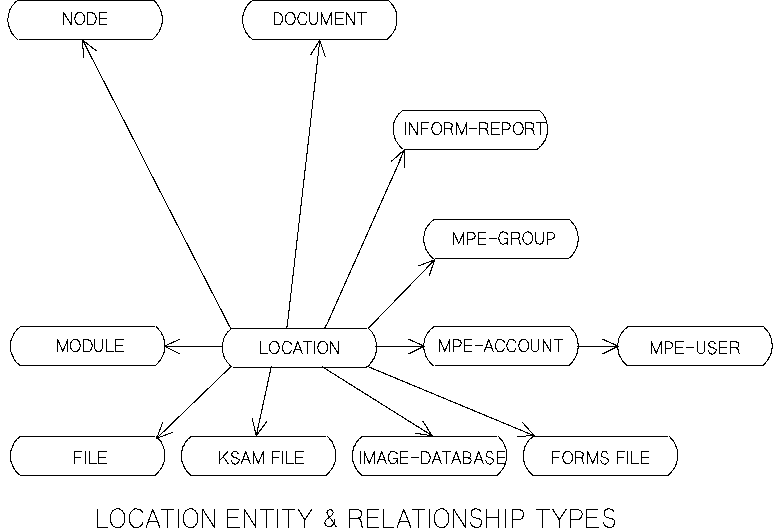

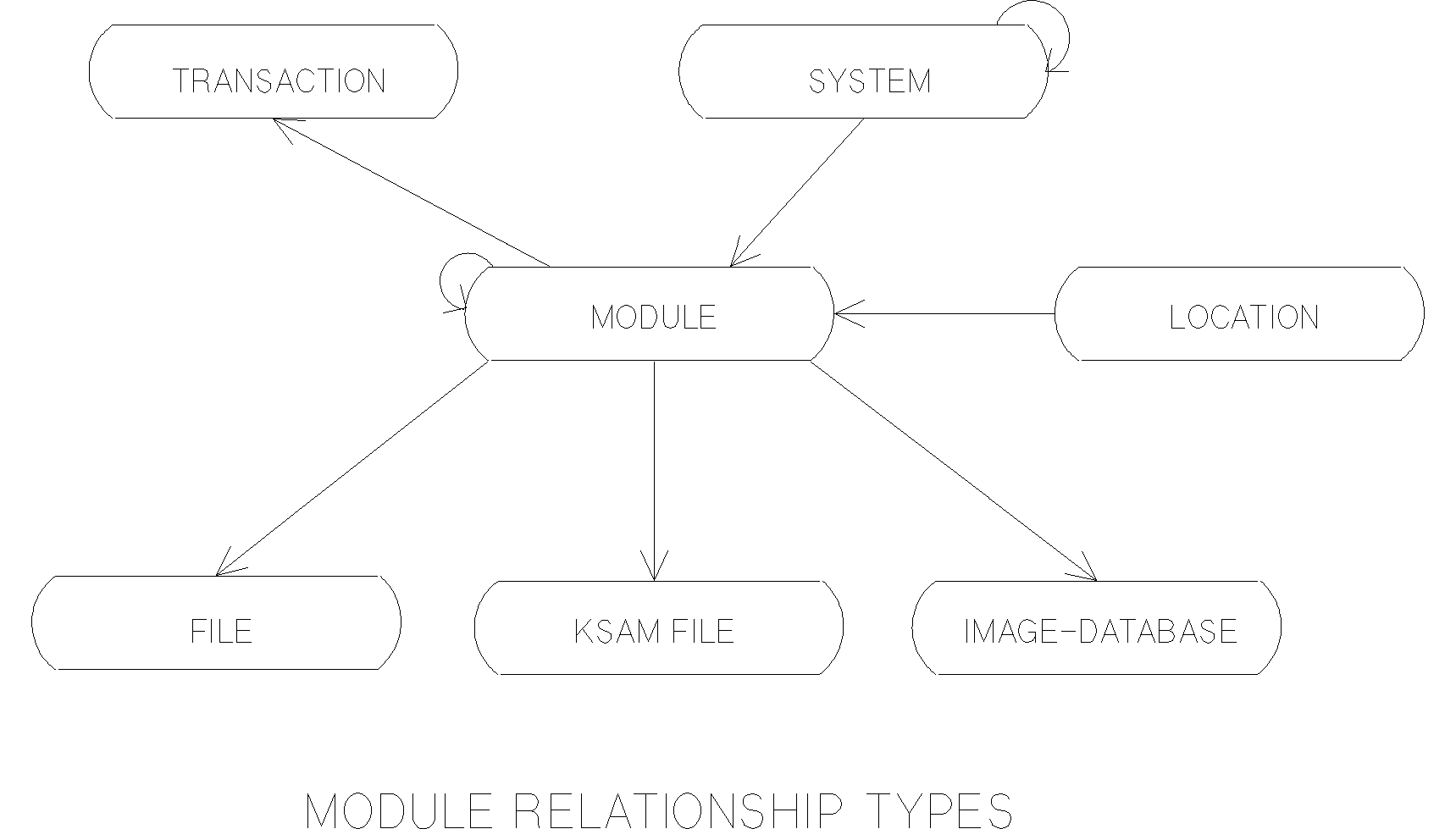

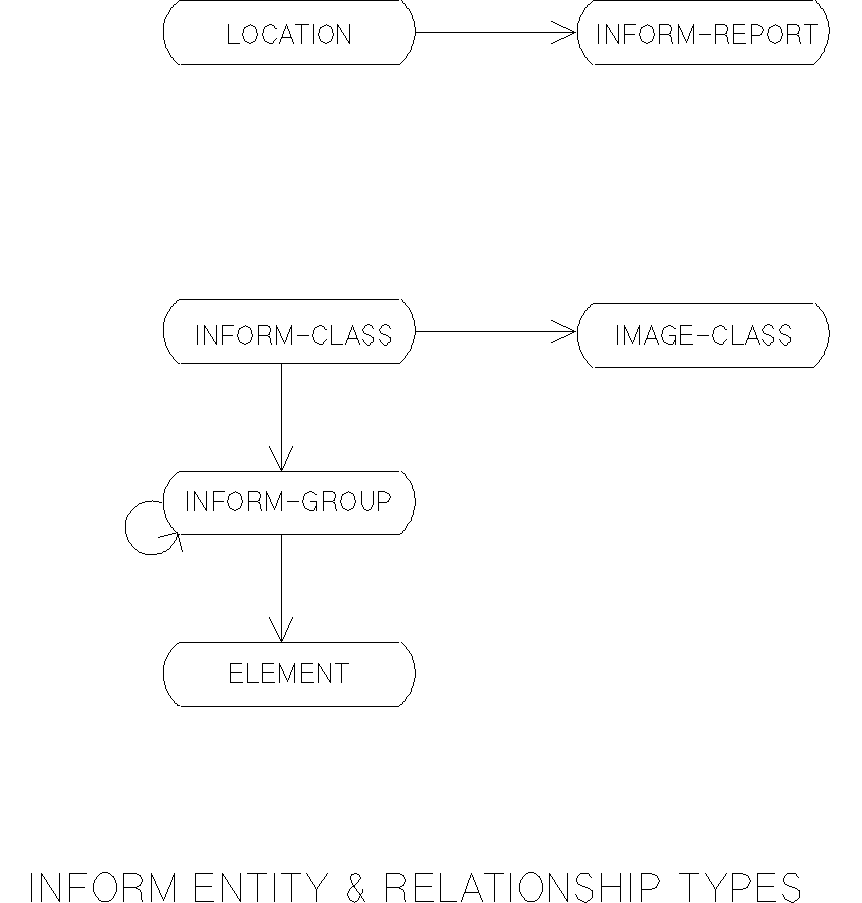

Following this table are diagrams that represent how the relationship
types are used to represent various subsystems. A diagram of IMAGE
entity types and relationships is included in Chapter 7, Subsystem
Support.
Table 6-3. Core Set Relationship Types
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |

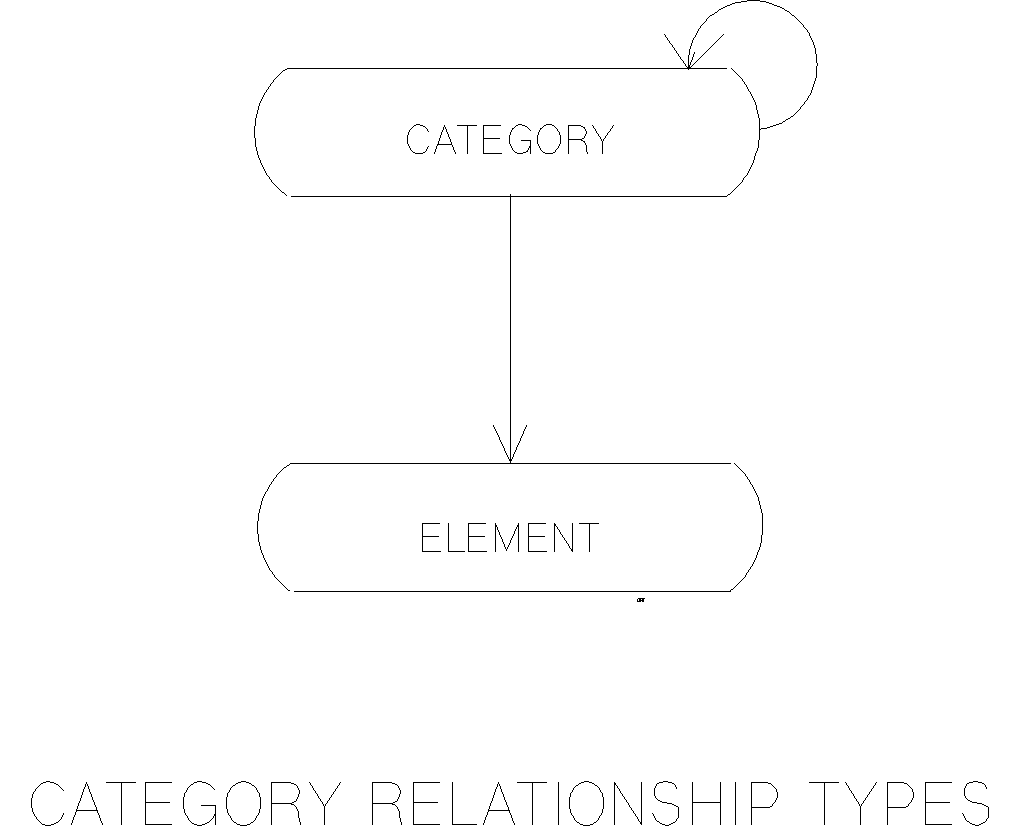

| CATEGORY contains CATEGORY | This relationship type | scope-owner |
| | establishes that a | date-created |
| | category is contained in | date-changed |
| | a category. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| CATEGORY contains ELEMENT | This relationship type | scope-owner |
| | establishes the element | date-created |
| | that is contained in a | date-changed |
| | category. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| COPYLIB key KSAMFILE | This relationship type | scope-owner |
| | establishes the KSAM file | date-created |
| | key for a copylib. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| DEVICE-CLASS contains DEVICE | This relationship type | scope-owner |
| | establishes the devices | date-created |
| | contained in a device | date-changed |
| | class. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| ELEMENT contains ELEMENT | This relationship type | scope-owner |
| | establishes a child | date-created |
| | element which is a part | date-changed |
| | of the parent element. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | back-reference-flag |
| | | element-type |
| | | byte-offset |
| | | display-length |
| | | decimal |
| | | blank |
| | | justify |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. Core Set Relationship Types(cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| ELEMENT contains | This relationship type | scope-owner |
| HP-CONDITION-NAME | establishes a COBOL | scope-changed |
| | condition name that is | date-created |
| | subordinate to the | date-changed |
| | element. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| ELEMENT redefines ELEMENT | This relationship type | scope-owner |
| | establishes that the | date-created |
| | first element redefines | date-changed |
| | the second element. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | element-type |
| | | display-length |
| | | decimal |
| | | blank |
| | | justify |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| ELEMENT references ELEMENT | This relationship type | scope-owner |
| | establishes a reference | date-created |
| | to the second element by | date-changed |
| | the first element, for | scope-changed |
| | example, a Pascal type | relationship-position |
| | reference. | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| ELEMENT contains IMAGE-CLASS | This relationship type | scope-owner |
| | establishes the IMAGE | date-created |
| | data items secured by the | date-changed |
| | IMAGE security class. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | access |
| | | |
----------------------------------------------------------------------------------------------
| | | |

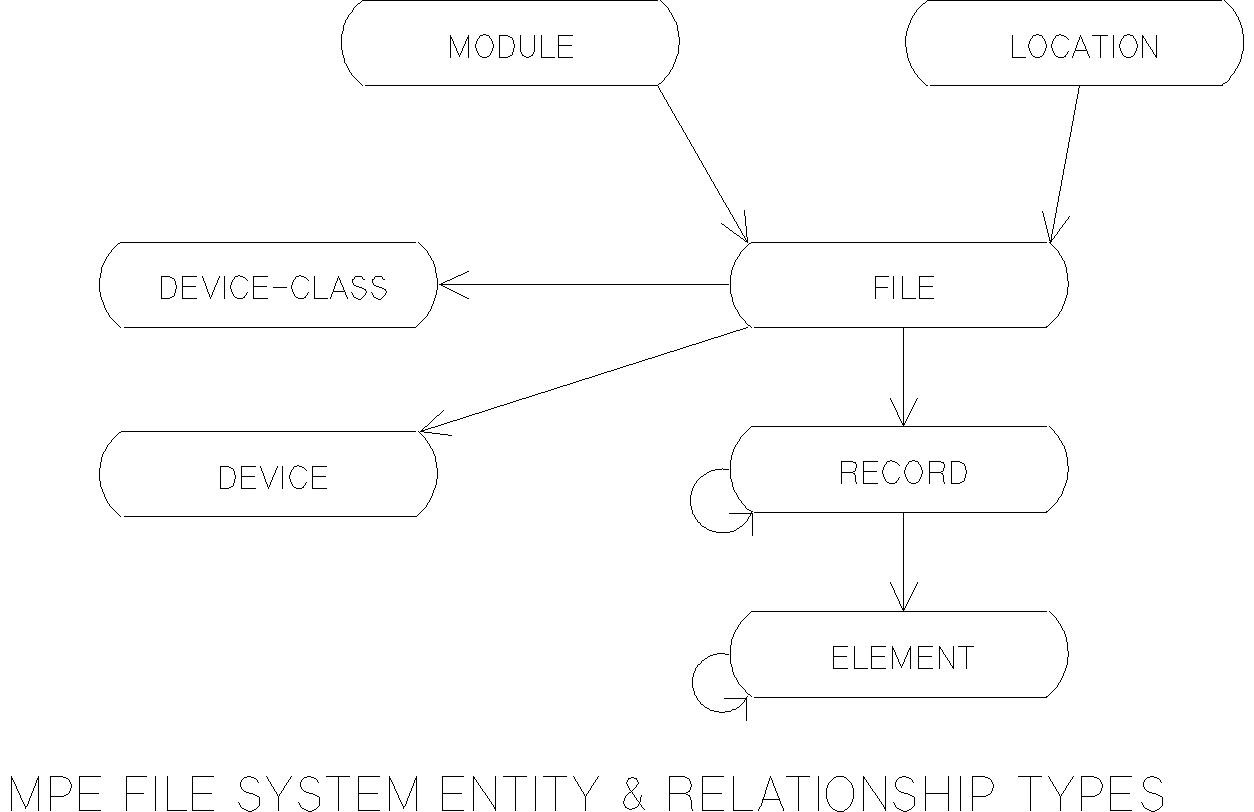

| FILE contains RECORD | This relationship type | scope-owner |
| | establishes a record | date-created |
| | layout for the file. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | primary-record |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| FILE uses DEVICE | This relationship type | scope-owner |
| | establishes that a file | date-created |
| | will use a device for | date-changed |
| | output. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | cctl-flag |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| FILE uses DEVICE-CLASS | This relationship type | scope-owner |
| | establishes that a file | date-created |
| | uses a device class on | date-changed |
| | output. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | cctl-flag |
| | | |
----------------------------------------------------------------------------------------------
| | | |

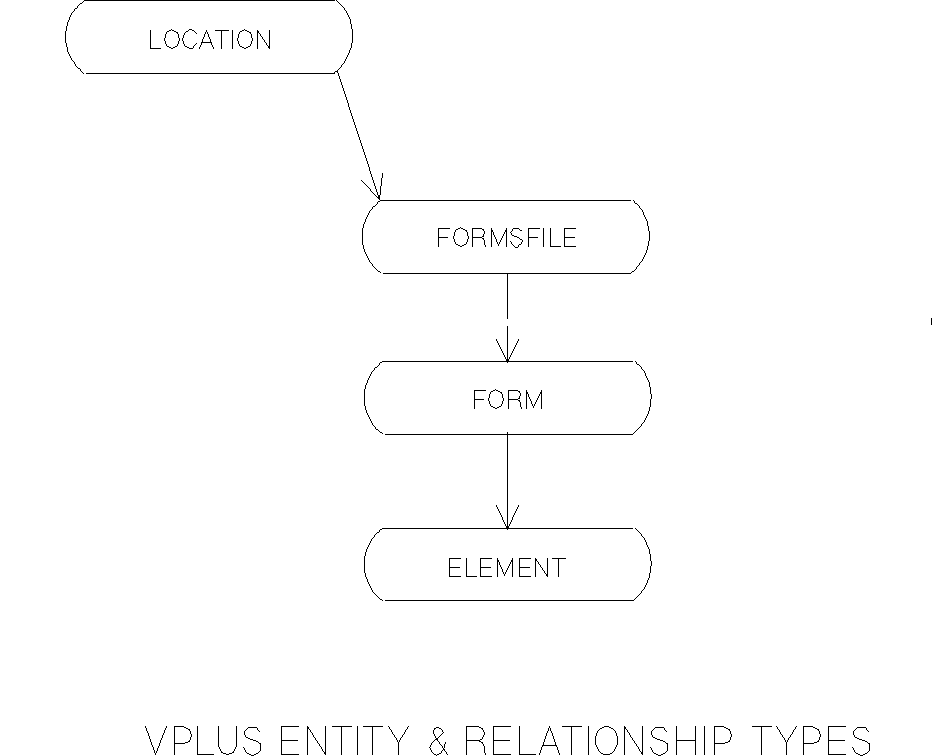

| FORMSFILE contains FORM | This relationship type | scope-owner |
| | establishes that a form | date-created |
| | is a part of a formsfile. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | head-form |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| FORM contains ELEMENT | This relationship type | scope-owner |
| | establishes that an | date-created |
| | element is a part of a | date-changed |
| | form. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | element-type |
| | | byte-offset |
| | | display-length |
| | | decimal |
| | | field-enhancement |
| | | field-type |
| | | field-number |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBE-FILE contains FILE | The relationship type | scope-owner |
| | defines the system file | date-created |
| | name of a dbefile (ie. | date-changed |
| | the MPE file name). | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBE-FILESET contains | The relationship type | scope-owner |
| HPDBE-FILE | establishes that an HPSQL | date-created |
| | dbefile is contained in | date-changed |
| | an HPSQL dbefileset. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBE-FILESET contains | The relationship type | scope-owner |
| HPSQL-TABLE | establishes that the rows | date-created |
| | of an HPSQL table are | date-changed |
| | contained in an HPSQL | scope-changed |
| | dbefileset. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBE-LOGFILE contains FILE | The relationship type | scope-owner |
| | defines the system file | date-created |
| | name of a dbefile (ie. | date-changed |
| | the MPE file name). | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBENVIRONMENT contains | The relationship type | scope-owner |
| HPSQL-AUTH-NAME | establishes that an HPSQL | date-created |
| | authorization group is | date-changed |
| | contained in an HPSQL | scope-changed |
| | DBEnvironment. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBENVIRONMENT contains | The relationship type | scope-owner |
| HPDBE-FILESET | establishes that an HPSQL | date-created |
| | dbefileset is contained | date-changed |
| | in an HPSQL | scope-changed |
| | DBEnvironment. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBENVIRONMENT contains | The relationship type | scope-owner |
| HPDBE-LOGFILE | establishes that a | date-created |
| | logfile is contained in a | date-changed |
| | DBEnvironment. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBENVIRONMENT contains | The relationship type | scope-owner |
| HPSQL-TABLE | establishes that an HPSQL | date-created |
| | table is contained in an | date-changed |
| | HPSQL DBEnvironment. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBENVIRONMENT contains | The relationship type | scope-owner |
| HPSQL-VIEW | establishes that an HPSQL | date-created |
| | view is contained in an | date-changed |
| | HPSQL DBEnvironment. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPDBENVIRONMENT contains | The relationship type | scope-owner |
| IMAGE-DATABASE | establishes that an IMAGE | date-created |
| | database is contained in | date-changed |
| | a DBEnvironment. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME contains | The relationship type | scope-owner |
| USER MPE-ACCOUNT | establishes an HPSQL | date-created |
| | authorization name that | date-changed |
| | represents an HPSQL user. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME contains | The relationship type | scope-owner |
| HPSQL-AUTH-NAME | establishes the HPSQL | date-created |
| | authorization groups and | date-changed |
| | HPSQL users that belong | scope-changed |
| | to an HPSQL authorization | relationship-position |
| | group. | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME accesses | The relationship type | scope-owner |
| ELEMENT HPSQL-TABLE | establishes that an HPSQL | date-created |
| | authorization name has | date-changed |
| | update authority to an | scope-changed |
| | element within the HPSQL | relationship-position |
| | table. | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME accesses | The relationship type | scope-owner |
| ELEMENT HPSQL-VIEW | establishes that an HPSQL | date-created |
| | authorization name has | date-changed |
| | update access to an | scope-changed |
| | element within the HPSQL | relationship-position |
| | view. | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME accesses | The relationship type | scope-owner |
| HPSQL-TABLE | establishes that an HPSQL | date-created |
| | authorization name has | date-changed |
| | access to any element | scope-changed |
| | within the HPSQL table. | relationship-position |
| | | sensitivity |
| | | hpsql-alter-auth |
| | | hpsql-delete-auth |
| | | hpsql-index-auth |
| | | hpsql-insert-auth |
| | | hpsql-select-auth |
| | | hpsql-update-auth |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME accesses | The relationship type | scope-owner |
| HPSQL-VIEW | establishes that an HPSQL | date-created |
| | authorization name has | date-changed |
| | access to an element | scope-changed |
| | within the HPSQL view. | relationship-position |
| | | sensitivity |
| | | hpsql-alter-auth |
| | | hpsql-delete-auth |
| | | hpsql-index-auth |
| | | hpsql-insert-auth |
| | | hpsql-select-auth |
| | | hpsql-update-auth |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME accesses | The relationship type | scope-owner |
| MODULE | establishes that an HPSQL | date-created |
| | authorization name has | date-changed |
| | the authority to run a | scope-changed |
| | module. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME owns | The relationship type | scope-owner |
| HPSQL-AUTH-NAME | establishes that an HPSQL | date-created |
| | authorization name owns | date-changed |
| | an HPSQL authorization | scope-changed |
| | group. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME owns | The relationship type | scope-owner |
| HPSQL-TABLE | establishes that an HPSQL | date-created |
| | authorization name owns | date-changed |
| | an HPSQL table. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME owns | The relationship type | scope-owner |
| HPSQL-VIEW | establishes that an HPSQL | date-created |
| | authorization name owns | date-changed |
| | an HPSQL view. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-AUTH-NAME owns | The relationship type | scope-owner |
| MODULE | establishes that an HPSQL | date-created |
| | authorization name owns a | date-changed |
| | module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-INDEX contains | The relationship type | scope-owner |
| ELEMENT | establishes the elements | date-created |
| | that make up an HPSQL | date-changed |
| | index. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-TABLE contains | The relationship type | scope-owner |
| RECORD | establishes a record | date-created |
| | layout for an HPSQL | date-changed |
| | table. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | primary-record |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-TABLE key HPSQL-INDEX | The relationship type | scope-owner |
| | establishes an index of | date-created |
| | an HPSQL table. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | hpsql-clustering |
| | | unique |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| HPSQL-VIEW contains RECORD | The relationship type | scope-owner |
| | establishes the record | date-created |
| | layout of a view. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | primary-record |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATASET | This five-way | scope-owner |
| ELEMENT | relationship type | date-created |
| ELEMENT | establishes the path | date-changed |
| IMAGE-DATASET | between an IMAGE master | scope-changed |
| IMAGE-DATABASE | or relation data set and | relationship-position |
| chains | an IMAGE detail or | sensitivity |
| | relation data set, and | primary-flag |
| | gives the search and sort | |
| | items, and the database | |
| | which this chain is in. | |
| | The entity types describe | |
| | the following: | |
| | IMAGE-DATASET : the | |
| | detail or relation | |
| | dataset ELEMENT : the | |
| | search item of this chain | |
| | ELEMENT : the sort item | |
| | of this chain | |
| | IMAGE-DATASET : the path | |
| | master or relation | |
| | dataset IMAGE-DATABASE : | |
| | the database this chain | |
| | is in | |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATABASE contains | This relationship type | scope-owner |
| IMAGE-CLASS | establishes the classes | date-created |
| | in an IMAGE database. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATABASE contains | This relationship type | scope-owner |
| IMAGE-DATASET | establishes the data sets | date-created |
| | in an IMAGE database. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | blocking-factor |
| | | capacity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATASET contains | The relationship type | scope-owner |
| HPDBE-FILE | establishes that a | date-created |
| | dbefile is contained in | date-changed |
| | an HPImage dataset. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | access |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATASET contains | This relationship type | scope-owner |
| IMAGE-CLASS | establishes the IMAGE | date-created |
| | data sets secured by the | date-changed |
| | IMAGE security class. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | access |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATASET contains RECORD | This relationship type | scope-owner |
| | establishes the record | date-created |
| | layout of an IMAGE data | date-changed |
| | set. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | primary-record |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATASET key ELEMENT | This relationship type | scope-owner |
| | establishes the key data | date-created |
| | item of an IMAGE master | date-changed |
| | data set. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| IMAGE-DATASET uses DEVICE | This relationship type | scope-owner |
| CLASS | specifies the device | date-created |
| | class at which a dataset | date-changed |
| | resides. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-CLASS contains | This relationship type | scope-owner |
| IMAGE-CLASS | establishes the IMAGE | date-created |
| | security classes | date-changed |
| | contained in an Inform | scope-changed |
| | class to describe Inform | relationship-position |
| | user security. | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-CLASS contains | This relationship type | scope-owner |
| INFORM-GROUP | establishes the Inform | date-created |
| | group that is secured to | date-changed |
| | an Inform security class. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-GROUP contains | This relationship type | scope-owner |
| INFORM-GROUP | establishes that the | date-created |
| | child Inform group is a | date-changed |
| | part of the parent Inform | scope-changed |
| | group. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-GROUP contains | This relationship type | scope-owner |
| ELEMENT FILE | establishes that the data | date-created |
| | element from the MPE file | date-changed |
| | is contained in an Inform | scope-changed |
| | group. | relationship-position |
| | | sensitivity |
| | | link-value |
| | | element-display |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-GROUP contains | This relationship type | scope-owner |
| ELEMENT IMAGE-DATASET | establishes that the data | date-created |
| IMAGE-DATABASE | element from the IMAGE | date-changed |
| | dataset/database is | scope-changed |
| | contained in an Inform | relationship-position |
| | group. | sensitivity |
| | | link-value |
| | | element-display |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-GROUP contains | This relationship type | scope-owner |
| ELEMENT KSAMFILE | establishes that the data | date-created |
| | element from the KSAM | date-changed |
| | file is contained in an | scope-changed |
| | Inform group. | relationship-position |
| | | sensitivity |
| | | link-value |
| | | element-display |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| INFORM-GROUP contains | The relationship type | scope-owner |
| ELEMENT HPSQL-TABLE | establishes that the data | date-created |
| HPDBENVIRONMENT | element from the HPSQL | date-changed |
| | table/DBEnvironment is | scope-changed |
| | contained in an Inform | relationship-position |
| | group. | sensitivity |
| | | link-value |
| | | element-display |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| KSAMFILE contains RECORD | This relationship type | scope-owner |
| | establishes a record | date-created |
| | format for a KSAM file. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | primary-record |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| KSAMFILE key KSAMFILE | This relationship type | scope-owner |
| | establishes for a KSAM | date-created |
| | data file its KSAM key | date-changed |
| | file. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| KSAMFILE key ELEMENT | This relationship type | scope-owner |
| | establishes a key for a | date-created |
| | KSAM file. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | primary-flag |
| | | unique |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains COPYLIB | This relationship type | scope-owner |
| | establishes that a | date-created |
| | copylib resides at a | date-changed |
| | location. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains DEVICE | This relationship type | scope-owner |
| | establishes that a device | date-created |
| | resides at a location. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains DICTIONARY | This relationship type | scope-owner |
| | establishes that a | date-created |
| | dictionary resides at a | date-changed |
| | location. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains DOCUMENT | This relationship type | scope-owner |
| | establishes that a | date-created |
| | document resides at a | date-changed |
| | location. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains | The relationship type | scope-owner |
| HPDBENVIRONMENT | establishes the location | date-created |
| | of a DBEnvironment. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains | This relationship type | scope-owner |
| IMAGE-DATABASE | establishes the location | date-created |
| | of a database. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains FILE | This relationship type | scope-owner |
| | establishes that a file | date-created |
| | is at a location. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains FORMSFILE | This relationship type | scope-owner |
| | establishes that a VPLUS | date-created |
| | forms file is at a | date-changed |
| | location. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains KSAMFILE | This relationship type | scope-owner |
| | establishes that a KSAM | date-created |
| | file is at a location. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains MODULE | This relationship type | scope-owner |
| | establishes that a module | date-created |
| | is at a location. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION names MPE-GROUP | This relationship type | scope-owner |
| MPE-ACCOUNT | names the MPE group and | date-created |
| | MPE account that make up | date-changed |
| | a location. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION names NODE | This relationship type | scope-owner |
| NETWORK-DOMAIN | names the node, network | date-created |
| NETWORK-ORGANIZATION | domain and network | date-changed |
| | organization that make up | scope-changed |
| | a location. | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| LOCATION contains | This relationship type | scope-owner |
| INFORM-REPORT | establishes that a report | date-created |
| | is at a location. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE contains MODULE | This relationship type | scope-owner |
| | establishes that the | date-created |
| | child module is a part of | date-changed |
| | the parent module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | directive |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE processes ELEMENT | This relationship type | scope-owner |
| | establishes that an | date-created |
| | element is processed by a | date-changed |
| | module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | parm-flag |
| | | parm-number |
| | | pass-method |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE processes FILE | This relationship type | scope-owner |
| | establishes that a file | date-created |
| | is processed by a module. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE processes | This relationship type | scope-owner |
| IMAGE-DATABASE | establishes that a | date-created |
| | database is processed by | date-changed |
| | a module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE processes KSAMFILE | This relationship type | scope-owner |
| | establishes that a KSAM | date-created |
| | file is processed by a | date-changed |
| | module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE processes MODULE | This relationship type | scope-owner |
| | establishes that the | date-created |
| | parent module calls the | date-changed |
| | child module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | directive |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MPE-ACCOUNT contains USER | This relationship type | scope-owner |
| | establishes that a user | date-created |
| | is assigned to an MPE | date-changed |
| | account. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| MODULE contains TRANSACTION | This relationship type | scope-owner |
| | establishes that a | date-created |
| | transaction is part of a | date-changed |
| | module. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| NODE NETWORK-DOMAIN | This 3-way relationship | scope-owner |
| NETWORK-ORGANIZATION names | type names a fully | date-created |
| | qualified Network | date-changed |
| | Directory node name. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| RECORD contains ELEMENT | This relationship type | scope-owner |
| | establishes that an | date-created |
| | element is part of a | date-changed |
| | record. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | back-reference-flag |
| | | element-type |
| | | byte-offset |
| | | display-length |
| | | decimal |
| | | blank |
| | | justify |
| | | not-null |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| RECORD redefines RECORD | This relationship type | scope-owner |
| | establishes that the | date-created |
| | first record redefines | date-changed |
| | the second record. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| SYSTEM contains SYSTEM | This relationship type | scope-owner |
| | establishes that a child | date-created |
| | system is part of a | date-changed |
| | parent system. | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Table 6-3. (cont.)
----------------------------------------------------------------------------------------------
| | | |
| Relationship Type | Description | Core Set Attributes |
| | | |
----------------------------------------------------------------------------------------------
| | | |
| SYSTEM contains MODULE | This relationship type | scope-owner |
| | establishes that a module | date-created |
| | is part of a system. | date-changed |
| | | scope-changed |
| | | relationship-position |
| | | sensitivity |
| | | |
----------------------------------------------------------------------------------------------
Core Set Domains
The following domains are included in the core set:
Table 6-4. Core Set Domains
--------------------------------------------------------------------------------------------
| | |
| Domain | Description |
| | |
--------------------------------------------------------------------------------------------
| | |
| DICTIONARY-REPORT | This domain stores SDMAIN reports. |
| | |
--------------------------------------------------------------------------------------------
| | |
| INFORM-REPORT | This domain stores RAPID reporting information. |
| | |
--------------------------------------------------------------------------------------------
| | |
| the common domain | This domain is created when you initialize |
| | System Dictionary. It is unnamed and you use |
| | blanks to access the common domain. (Refer to |
| | Chapter 4 for more information.) |
| | |
--------------------------------------------------------------------------------------------
Core Set Scopes
The following scopes are included in the core set:
Table 6-5. Core Set Scopes
--------------------------------------------------------------------------------------------
| | |
| Scope | Description |
| | |
--------------------------------------------------------------------------------------------
| | |
| CORESET | This scope owns all core set definitions and |
| | structures. |
| | |
--------------------------------------------------------------------------------------------
| | |
| the DA scope | This scope (Dictionary Administrator) has |
| | access to the entire dictionary and has all |
| | capabilities. The DA scope name is created |
| | when you initialize System Dictionary. (Refer |
| | to Chapter 5 for more information.) |
| | |
--------------------------------------------------------------------------------------------
Core Set Diagrams
The following figures illustrate the core set structures of the following
relationships/subsystems:
* Category (Figure 6-6)
* Location (Figure 6-7)
* Module (Figure 6-8)
* INFORM (Figure 6-9)
* KSAM files (Figure 6-10)
* MPE files (Figure 6-11)
* Formsfile (VPLUS) (Figure 6-12)
![[]](../../pic3k/M010489/F06043c50.gif)
Figure 6-4. Category Relationship Types
![[]](../../pic3k/M010489/F06053c50.gif)
Figure 6-5. Location Entity and Relationship Types
![[]](../../pic3k/M010489/F06063c50.gif)
Figure 6-6. Module Relationship Types
![[]](../../pic3k/M010489/F06073c50.gif)
Figure 6-7. Inform Entity and Relationship Types
![[]](../../pic3k/M010489/F06083c50.gif)
Figure 6-8. KSAM File System Entity & Relationship Types
![[]](../../pic3k/M010489/F06093c50.gif)
Figure 6-9. MPE File System Entity & Relationship Types
![[]](../../pic3k/M010489/F06103c50.gif)
Figure 6-10. VPLUS Entity and Relationship Types
